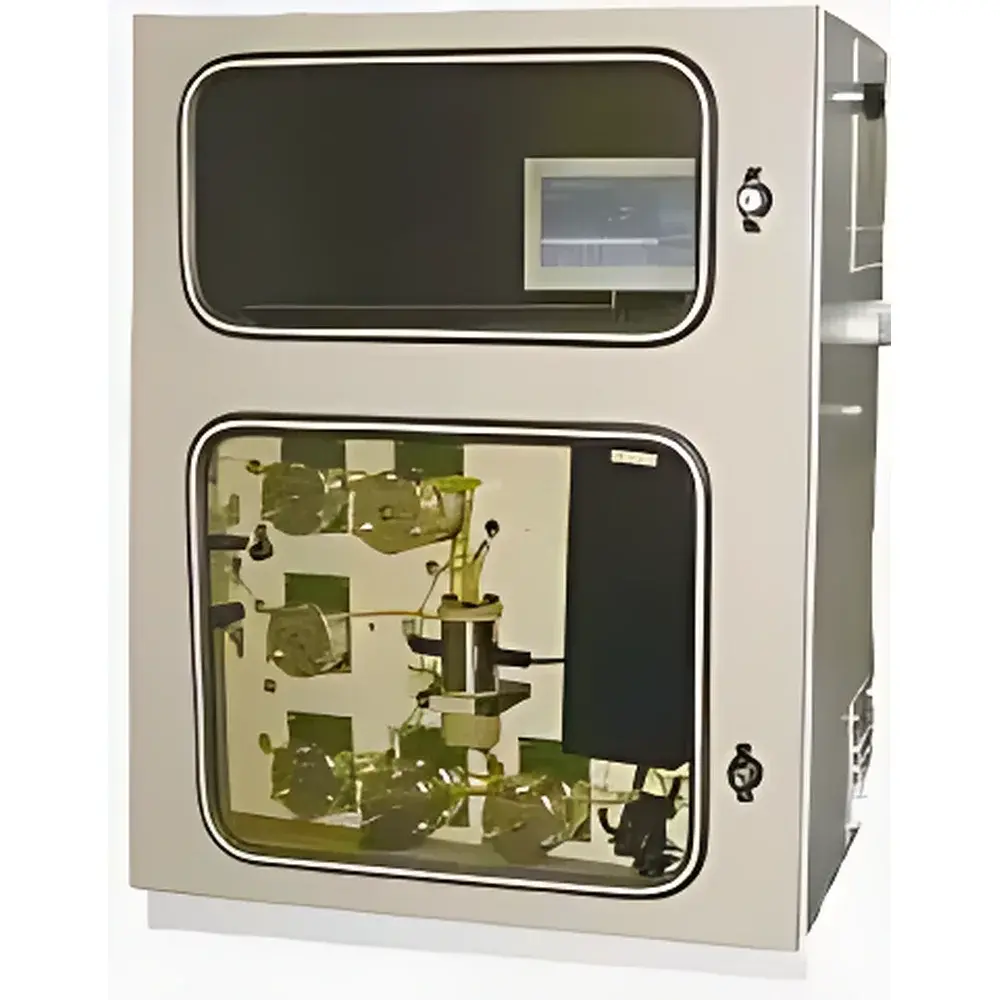

SAIL HERO SERES 2000 TP Online Total Phosphorus Analyzer

Overview

The SAIL HERO SERES 2000 TP Online Total Phosphorus Analyzer is an industrial-grade, fully automated water quality monitoring system engineered for continuous, unattended measurement of total phosphorus (TP) in diverse aqueous matrices. It implements a rigorously validated two-stage analytical sequence: first, quantitative oxidation of all phosphorus-containing species—including orthophosphate, condensed phosphates, and organophosphorus compounds—via UV-catalyzed alkaline persulfate digestion under controlled thermal conditions; second, colorimetric quantification of liberated orthophosphate using the molybdenum blue method at 880 nm. This methodology ensures stoichiometric conversion and high specificity, delivering trace-level sensitivity and long-term stability required for regulatory compliance monitoring. Designed for deployment in municipal wastewater treatment plants, surface water surveillance networks, industrial effluent discharge points, and ecological monitoring stations, the SERES 2000 TP operates within ambient temperature ranges of 5–40 °C and supports uninterrupted operation over 30-day maintenance intervals under typical field conditions.

Key Features

• UV-enhanced catalytic digestion module with integrated high-precision PID temperature control (±0.5 °C), enabling >95% oxidation efficiency for refractory phosphorus species while reducing digestion time to ≤30 minutes
• Modular reaction manifold constructed from chemically inert, low-adsorption materials—including modified PTFE peristaltic tubing and quartz-glass flow cells—to minimize carryover and memory effects
• Dual-pump fluid handling architecture: high-stability进口 peristaltic pump (certified lifetime ≥10,000 hours) for precise reagent/sample metering; corrosion-resistant air displacement pump for waste expulsion without contact between waste stream and metering components
• Auto-ranging optical detection system with dual-beam photometry, 880 nm interference filter, and thermally stabilized photodiode detector—delivering linear response across four user-selectable concentration spans
• Embedded safety protocols including auto-resettable thermal cutoff, real-time pressure monitoring in fluidic lines, and fail-safe reagent level sensing with audible/visual alerts
• Fully autonomous operational cycle: automatic line flushing, multi-point calibration verification, fault diagnostics, and post-abnormality recovery sequence that clears residual digestate prior to resuming analysis

Sample Compatibility & Compliance

The SERES 2000 TP is validated for direct analysis of raw and filtered samples from natural surface waters (rivers, lakes, reservoirs), secondary-treated municipal wastewater, industrial process effluents (e.g., food processing, chemical manufacturing, pharmaceutical production), and domestic sewage influent/effluent streams. Sample turbidity up to 100 NTU and suspended solids ≤100 mg/L are accommodated without pre-filtration, provided representative homogenization is maintained upstream. Analytical performance conforms to the Chinese national standard HJ/T 103–2003 for online total phosphorus analyzers. While not certified to ISO 15681-1 or ASTM D515-19, its measurement principle and validation protocol align with the technical requirements of these international references for spectrophotometric TP determination. The instrument’s data logging architecture supports audit-ready timestamped records suitable for GLP-compliant environmental reporting frameworks.

Software & Data Management

The embedded firmware (v3.2+) provides local touchscreen operation via a 7-inch resistive LCD interface with intuitive menu navigation and real-time trend visualization. Remote access is enabled through Modbus TCP/IP, RS-485 (RTU), and optional 4G LTE connectivity, allowing integration into SCADA systems or centralized EMS platforms. All measurement events—including calibration logs, alarm triggers (reagent depletion, pressure anomaly, optical drift), and diagnostic self-tests—are stored with UTC timestamps and retained for ≥180 days onboard. Data export supports CSV and XML formats compliant with China’s Ministry of Ecology and Environment (MEE) data transmission specifications. Firmware updates are performed via secure HTTPS-based OTA protocol with SHA-256 signature verification. Audit trail functionality includes operator ID tagging (optional LDAP integration), change history for calibration coefficients, and immutable event logging meeting basic requirements for traceability under GB/T 32925–2016.

Applications

• Real-time compliance monitoring at wastewater treatment plant discharge outfalls per China’s GB 18918–2002 Class I-A limits
• Trend-based eutrophication early-warning in lake and reservoir ecosystems
• Process control feedback in tertiary phosphorus removal units (e.g., coagulation/flocculation optimization)
• Industrial pretreatment verification for facilities discharging to municipal sewers
• Long-term water quality assessment in national surface water monitoring networks (e.g., MEE National Surface Water Quality Monitoring Network)
• Research-grade longitudinal studies requiring high-frequency TP data with documented uncertainty budgets

FAQ

What sample pretreatment is required prior to analysis?
No filtration or centrifugation is required for samples with suspended solids ≤100 mg/L. For highly turbid or viscous industrial effluents, inline 80-µm mesh prefiltration is recommended to prevent clogging.
Does the analyzer support simultaneous total nitrogen measurement?
No—the SERES 2000 TP is dedicated exclusively to total phosphorus. A separate SERES 2000 TN configuration is available for total nitrogen analysis using alkaline persulfate UV digestion followed by nitrate/nitrite reduction and diazotization.
How often must reagents be replenished during continuous operation?
At standard 60-minute measurement intervals, the full reagent set (persulfate, molybdate, ascorbic acid, sulfuric acid) supports ≥7 days of unattended operation; extended-life kits enable up to 30 days depending on selected range and sample matrix.
Is remote calibration possible without on-site technician intervention?
Yes—standard single-point and multi-point calibrations can be initiated remotely via encrypted web interface or Modbus command; however, physical verification of standard solution integrity and optical path cleanliness remains a recommended quarterly practice.
What cybersecurity measures are implemented for network-connected units?
The device enforces TLS 1.2+ for web interface, disables default credentials upon first boot, supports role-based access control (RBAC), and isolates Modbus TCP traffic via configurable port filtering—aligned with IEC 62443-3-3 SL1 baseline requirements.
