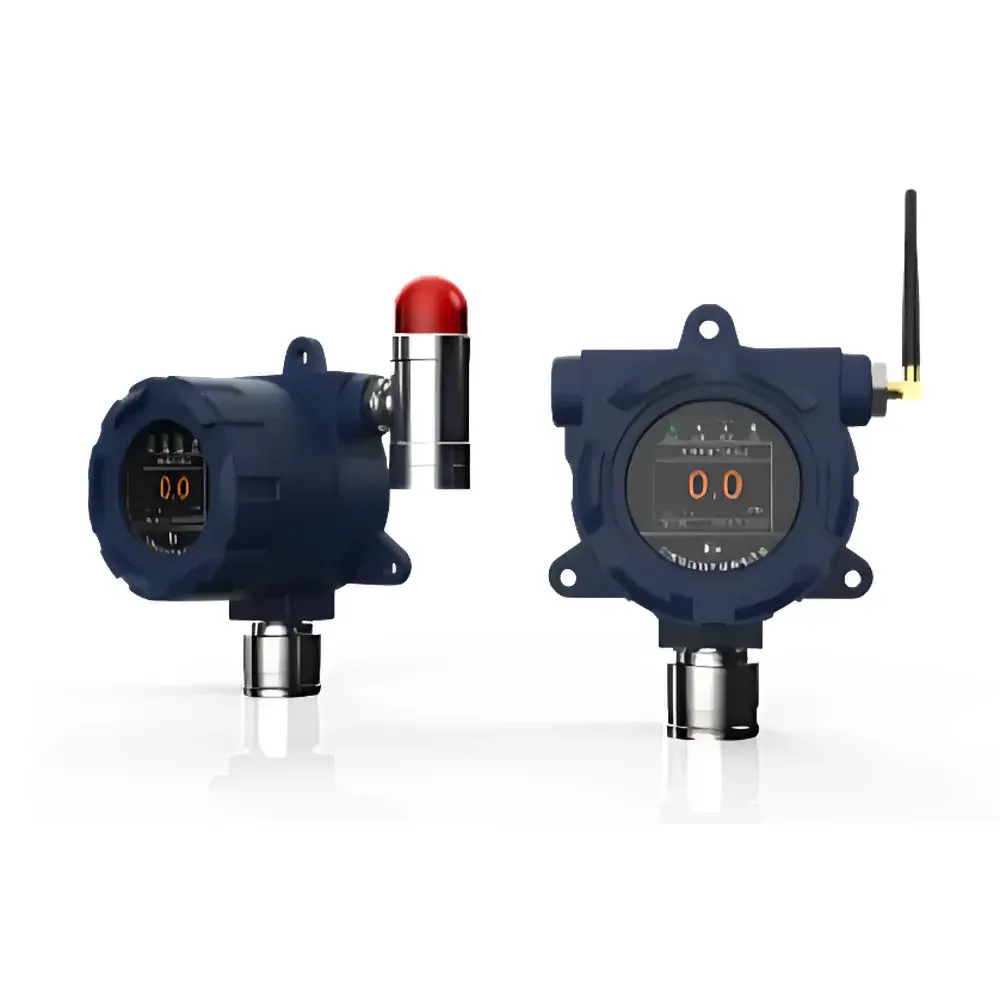

SAIL HERO XHAQSP-708 Fixed Gas Detector with Integrated Alarm and Industrial Display

Overview

The SAIL HERO XHAQSP-708 is a fixed-point, continuous-duty gas detection instrument engineered for real-time monitoring of oxygen (O₂) deficiency/enrichment and hazardous gas concentrations—including carbon monoxide (CO), hydrogen sulfide (H₂S), nitrogen dioxide (NO₂), chlorine (Cl₂), ammonia (NH₃), and combustible hydrocarbons—in industrial process areas, confined spaces, chemical storage facilities, and wastewater treatment plants. It operates on the principle of electrochemical sensing for toxic gases and oxygen, with optional configurations supporting catalytic bead (for LEL detection) or NDIR (for CO₂, CH₄) transduction. The unit functions as a field node within a distributed safety system: it autonomously acquires, processes, and displays concentration data while transmitting standardized analog or digital signals to central control panels, PLCs, or SCADA systems. Its architecture prioritizes long-term stability under harsh environmental conditions—mechanical vibration, condensation, dust ingress, and wide thermal cycling—without requiring routine recalibration beyond scheduled maintenance intervals.

Key Features

• Multi-sensor compatibility: Factory-configured for O₂ and up to two additional toxic or combustible gases; modular sensor bays support field-swappable electrochemical cells with calibrated lifetime ≥24 months.
• Dual sampling modes: Diffusion-based operation for ambient air monitoring; optional flow-through adapter enables active sampling from ducts, manifolds, or remote probe locations via external pump integration.
• Rugged human-machine interface: 2.0-inch TFT color display with high-contrast backlight, showing real-time ppm/%LEL/%vol values, trend graphs (last 24 h), alarm status icons, and diagnostic codes—all legible across -40°C to +70°C ambient extremes.
• Industrial-grade signal outputs: Three-wire 4–20 mA loop output (HART-compatible upon request), isolated RS-485 port supporting Modbus RTU protocol (addressable up to 32 nodes), and embedded 4G LTE module for cloud-based telemetry (MQTT/HTTP POST) with configurable upload intervals and event-triggered alerts.
• Fail-safe relay interface: One programmable SPDT relay (250 VAC/30 VDC, 5 A resistive load) with adjustable alarm thresholds (high/low/high-high/low-low), time-delayed activation, and latching/non-latching modes for direct control of ventilation fans, solenoid valves, or emergency showers.
• Intrinsic safety and explosion protection: Certified to IEC 60079-1 (flameproof “d”) and IEC 60079-31 (dust ignition proof “t”) standards; dual certification Ex db IIC T6 Gb (gas) and Ex tb IIIC T80°C Db (dust) ensures deployment in Zone 1, Zone 2, Zone 21, and Zone 22 hazardous locations per IEC 60079-10-1.

Sample Compatibility & Compliance

The XHAQSP-708 is validated for continuous exposure to industrial atmospheres containing particulate matter, humidity up to 95% RH (non-condensing), and trace corrosive vapors (e.g., HCl, SO₂). Sensor selection must align with target analyte chemistry: electrochemical cells are specified for electroactive species (e.g., Cl₂, NO₂); catalytic beads require inert carrier gas environments to avoid poisoning; NDIR modules exclude cross-sensitivity from water vapor or methane homologues. Regulatory conformance includes mandatory Chinese national standards GB 12358-2006 (general requirements for gas detectors) and GB 3836 series (explosion protection), plus CE marking under ATEX 2014/34/EU for equipment placed on the EU market (subject to notified body assessment for Category 2 devices). For pharmaceutical or food-grade applications, units may be supplied with FDA-compliant housing materials (316L SS mounting bracket, silicone-free gaskets) and documentation packages supporting 21 CFR Part 11 audit trails when integrated with compliant host software.

Software & Data Management

Local configuration is performed via on-device menu navigation or USB-C service port using SAIL HERO’s PC-based Commissioning Tool (Windows/Linux), which supports sensor zero/span calibration, relay logic programming, alarm setpoint assignment, and firmware updates. When deployed with 4G telemetry, data streams to the vendor-agnostic SAIL CLOUD platform—accessible via browser or mobile app—where users define custom dashboards, generate PDF reports (daily/weekly/monthly), configure SMS/email alerts, and export CSV/Excel datasets for QA/QC review. All communication channels support TLS 1.2 encryption; stored logs retain timestamped readings, alarm events, relay actuations, and sensor health diagnostics for ≥180 days. Audit trail functionality meets GLP/GMP record-keeping expectations where raw data integrity and operator accountability are required.

Applications

• Chemical manufacturing: Continuous O₂ monitoring in reactor purge lines and H₂S detection in sulfur recovery units.
• Municipal infrastructure: CH₄ and H₂S surveillance in lift stations, digesters, and sewer force mains.
• Power generation: CO detection in boiler rooms and battery charging areas; O₂ deficiency warning in turbine enclosures.
• Pharmaceutical cleanrooms: Ammonia leak detection in HVAC chillers and solvent storage cabinets.
• Mining & tunneling: Real-time CO and NOₓ tracking in underground ventilation shafts per MSHA/NIOSH guidelines.
• Food processing: Ethylene monitoring in cold storage and Cl₂ verification in sanitization systems.

FAQ

What gases can the XHAQSP-708 detect out of the box?
Standard configuration includes O₂ and one user-selectable toxic gas (e.g., CO, H₂S, Cl₂); dual-toxic variants and LEL/CH₄ options are available upon order specification.
Is field calibration possible without specialized equipment?
Yes—zero calibration can be performed in fresh air; span calibration requires certified gas standard and regulator; both procedures are guided step-by-step in the onboard menu.
Can multiple XHAQSP-708 units share a single RS-485 bus?
Yes—Modbus RTU addressing allows up to 32 uniquely identified detectors on one twisted-pair line, simplifying cabling in large-scale deployments.
Does the 4G module support SIM cards from global carriers?
It accepts standard nano-SIM cards with APN configuration; tested compatibility includes China Mobile, Vodafone, T-Mobile, and Telstra networks.
How often does the electrochemical sensor require replacement?
Typical service life is 24–36 months depending on cumulative exposure; the device logs sensor age and triggers a maintenance alert at 90% end-of-life threshold.
