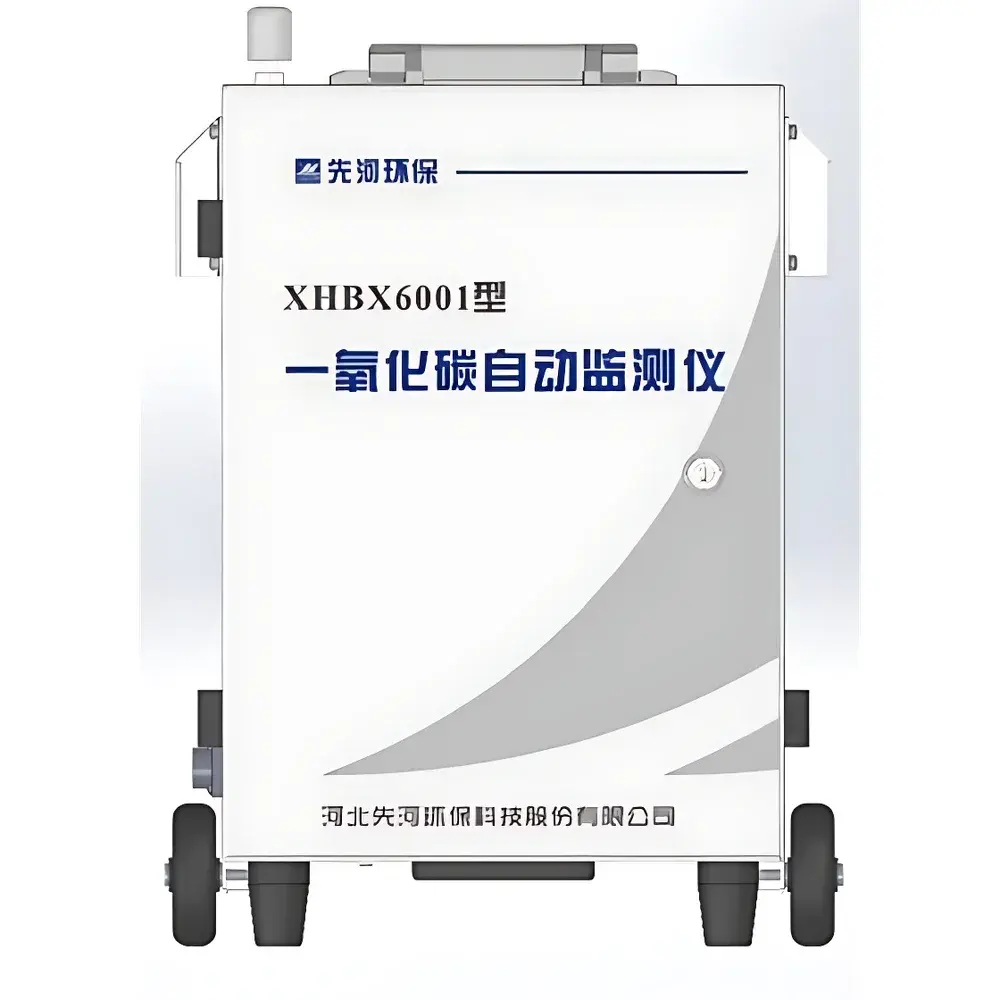

SAIL HERO XHBX6001 Portable Carbon Monoxide (CO) Automatic Monitoring Instrument

Overview

The SAIL HERO XHBX6001 Portable Carbon Monoxide (CO) Automatic Monitoring Instrument is a field-deployable, battery-powered gas analyzer engineered for rapid, on-site quantification of carbon monoxide in ambient air or confined-space environments. It operates on the principle of electrochemical sensing—where CO diffuses through a selective membrane into an electrolytic cell, generating a current proportional to its concentration. This primary transduction mechanism ensures high specificity for CO with minimal cross-sensitivity to common interferents such as H₂, NO₂, and CH₄ under typical environmental conditions. The instrument integrates real-time temperature and atmospheric pressure measurement modules to automatically compensate for density and diffusion-rate variations, thereby maintaining measurement integrity across altitudes ranging from sea level to 3,000 m and ambient temperatures from −10 °C to +50 °C. Designed in accordance with GB/T 18204.2–2014 (Chinese National Standard for Determination of Carbon Monoxide in Ambient Air—Electrochemical Sensor Method), it delivers traceable, repeatable results suitable for regulatory screening, occupational health assessments, and emergency response protocols.

Key Features

• Battery-operated design with ≥8 hours of continuous operation on a single charge, enabling extended field deployment without external power sources
• Integrated environmental compensation: onboard thermistor and piezoresistive barometric sensor correct CO readings in real time for temperature and pressure drift
• Ruggedized IP54-rated enclosure with shock-absorbing rubber overmold, certified for transport in standard emergency response kits and vehicle-mounted mounting brackets
• Backlit graphical LCD display with intuitive icon-driven interface supporting dual-unit output (ppm and mg/m³) and auto-ranging scaling
• Internal data logger storing up to 10,000 timestamped records with UTC synchronization via optional Bluetooth module
• Calibration traceability supported by NIST-traceable CO span gas certificates; zero calibration performed using ambient air or certified zero gas

Sample Compatibility & Compliance

The XHBX6001 is validated for direct sampling of ambient air, indoor workplace atmospheres, tunnel exhaust plumes, and post-incident fire zones where CO accumulation poses acute inhalation hazards. It is not intended for use in corrosive, condensing, or particulate-laden gas streams without optional particulate filter and hydrophobic membrane pre-treatment. Regulatory alignment includes compliance with China’s HJ 93–2013 (Technical Specification for Ambient Air Quality Monitoring) and functional equivalence to EPA Method OVA-01 for portable CO screening. While not certified for Class I, Division 1 hazardous locations, its low-power electronics and sealed sensor housing meet IEC 61000-4 immunity requirements for electromagnetic compatibility in mobile command vehicles and disaster staging areas.

Software & Data Management

Data export is facilitated via micro-USB or Bluetooth 5.0 (optional) to the proprietary SAIL HERO DataLink Desktop Suite—a Windows-based application supporting GLP-compliant audit trails, user access levels (admin/operator), and electronic signature functionality per FDA 21 CFR Part 11 requirements. Raw sensor outputs, environmental metadata, and calibration logs are stored in encrypted CSV and SQLite formats. Batch report generation includes customizable headers, statistical summaries (min/max/avg/stdev), and overlay plots comparing multiple monitoring events. Firmware updates are delivered through signed binary packages verified via SHA-256 hash to ensure system integrity during field maintenance.

Applications

• Emergency response: rapid assessment of CO levels following structure fires, generator misuse, or natural gas leaks
• Occupational safety: routine monitoring in boiler rooms, parking garages, welding zones, and underground utility tunnels
• Environmental compliance: short-term ambient air quality surveys near traffic corridors, industrial perimeters, or biomass combustion sites
• Public health surveillance: indoor air quality audits in schools, elderly care facilities, and low-income housing units with aging heating infrastructure
• Training and certification: hands-on instruction for first responders and environmental technicians on real-time gas hazard recognition and mitigation workflows

FAQ

What is the detection range and resolution of the XHBX6001?
The instrument measures CO across a default range of 0–500 ppm with 0.1 ppm resolution; extended-range configurations (0–2000 ppm) are available upon factory configuration.
Does the device support automatic zero calibration?
Yes—ambient air zeroing is supported via timed auto-zero cycles or manual initiation; users may also perform span calibration using certified CO standard gases at 100 ppm or 200 ppm.
Can the XHBX6001 be used in rain or high-humidity environments?
With its IP54 ingress protection rating, the unit resists water splashes from any direction and operates reliably at relative humidity up to 95% non-condensing; prolonged exposure to saturated conditions is not recommended.
Is firmware upgrade capability available in the field?
Yes—upgrades are performed via USB or Bluetooth using digitally signed firmware images; version history and installation logs are retained in internal memory for audit purposes.
How frequently should calibration be performed for regulatory compliance?
Daily bump testing is recommended prior to critical use; full two-point (zero/span) calibration is required every 30 days or after sensor exposure to concentrations exceeding 1,000 ppm, per GB/T 18204.2–2014 guidance.
