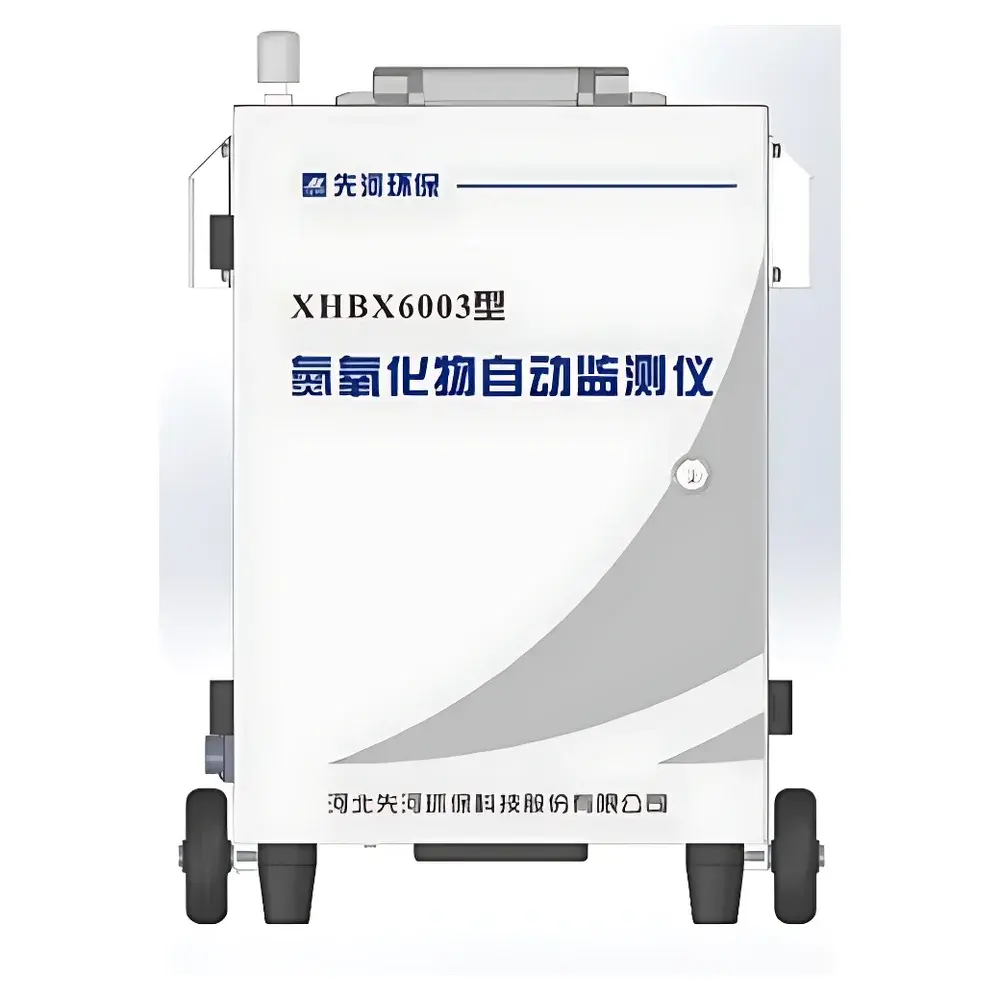

SAIL HERO XHBX6003 Portable Nitrogen Oxides (NO/NO₂/NOₓ) Automatic Monitor

Overview

The SAIL HERO XHBX6003 Portable Nitrogen Oxides (NO/NO₂/NOₓ) Automatic Monitor is a field-deployable, real-time gas analyser engineered for rapid, on-site quantification of nitrogen oxide species in ambient air, stack emissions, and emergency response scenarios. It operates on chemiluminescence detection (CLD) principle — the reference method specified in EPA Method 42, ISO 7935:1996, and HJ 1222–2021 (China’s national standard for NOₓ monitoring) — ensuring trace-level sensitivity and high specificity for NO and NO₂ via catalytic conversion and light-emission measurement. The instrument integrates embedded environmental sensors for simultaneous acquisition of ambient temperature, atmospheric pressure, and relative humidity — critical parameters for stoichiometric correction and regulatory-compliant concentration reporting (e.g., normalized to 273.15 K and 101.325 kPa per ISO 12039). Its compact, ruggedized chassis meets IP54 ingress protection and MIL-STD-810G shock/vibration requirements, enabling reliable operation in mobile laboratories, roadside monitoring campaigns, industrial fence-line surveys, and post-incident air quality assessments.

Key Features

• Triple-species gas analysis: Simultaneous real-time measurement of nitric oxide (NO), nitrogen dioxide (NO₂), and total reactive nitrogen oxides (NOₓ) with independent calibration channels.
• Chemiluminescence detection system with ozone generator and photomultiplier tube (PMT) detector, delivering sub-ppb detection limits and linear dynamic range from 0–10 ppm (extendable to 100 ppm with optional dilution module).
• Integrated meteorological sensor suite: Precision thermistor (±0.2 °C), capacitive barometer (±0.1 kPa), and capacitive hygrometer (±2 %RH) for automatic environmental compensation.
• Battery-powered operation: Rechargeable Li-ion pack supports ≥6 hours continuous monitoring; compatible with 12 V DC vehicle power input and universal AC adapter.
• Onboard data logging: Internal SD card storage (up to 32 GB) with timestamped records at user-selectable intervals (1 s to 60 min); automatic file rollover and CRC-32 error checking.
• Hot-swap modular design: Field-replaceable reaction chamber, ozone generator, and optical filter without tools or factory recalibration.

Sample Compatibility & Compliance

The XHBX6003 accepts undiluted ambient air samples via heated stainless-steel inlet line (maintained at 40 °C to prevent condensation and adsorption losses). It is validated for use with sample flow rates between 0.5–1.5 L/min and supports optional particulate filtration (PM₂.₅/PM₁₀) and moisture removal (Nafion™ dryer) modules. The analyser complies with China’s HJ 1019–2019 technical specification for portable emission monitoring instruments and aligns with EU Directive 2008/50/EC ambient air quality assessment requirements. Data output formats adhere to ASTM D6522-20 (standard test method for NOₓ in ambient air) and support GLP/GMP audit trails when paired with certified software configurations.

Software & Data Management

The device ships with SAIL HERO AirView™ PC software (Windows 10/11 compatible), providing real-time graphical display, spectral diagnostics, calibration curve management, and automated report generation in PDF/CSV/XLSX. Firmware supports remote firmware updates via USB or Ethernet. All measurement events — including zero/span checks, calibration logs, sensor diagnostics, and environmental parameter timestamps — are stored with immutable metadata, satisfying FDA 21 CFR Part 11 requirements for electronic records when configured with user authentication and audit trail enablement. Data export conforms to ISO/IEC 17025:2017 documentation standards for accredited testing laboratories.

Applications

• Ambient air quality monitoring networks: Urban background stations, traffic hotspots, and regional transport studies.
• Emergency response: Rapid deployment following chemical spills, industrial accidents, or wildfire plume tracking.
• Mobile emission testing: On-road RDE (Real Driving Emissions) compliance verification for light-duty vehicles per UN/ECE Regulation No. 83.
• Industrial hygiene: Workplace exposure assessment near combustion sources, welding operations, and nitric acid handling facilities.
• Research & education: Field-based atmospheric chemistry investigations and undergraduate environmental engineering lab curricula.

FAQ

What is the detection limit for NO using the XHBX6003?
The typical 3σ detection limit is 0.2 ppb for NO under standard operating conditions (1-s averaging, 1 L/min flow rate).
Does the instrument require daily calibration?
Zero and span calibration is recommended before each deployment cycle; however, the built-in stability algorithm allows up to 72 hours of uninterrupted operation between calibrations when used within controlled environments.
Can the XHBX6003 be integrated into existing SCADA or IoT platforms?
Yes — it provides Modbus RTU (RS-485) and TCP/IP (Ethernet) interfaces with open protocol documentation for seamless integration into third-party environmental management systems.
Is the analyzer certified for use in explosion-hazardous areas?
No — the XHBX6003 is rated for general-purpose industrial environments (Class I, Division 2 per NEC Article 500) but lacks ATEX or IECEx certification for Zone 1/2 hazardous locations.
How is data integrity ensured during extended field deployments?
All logged data include hardware-generated UTC timestamps, cyclic redundancy checksums, and write-once memory allocation to prevent overwriting or tampering — supporting chain-of-custody workflows required by regulatory authorities.
