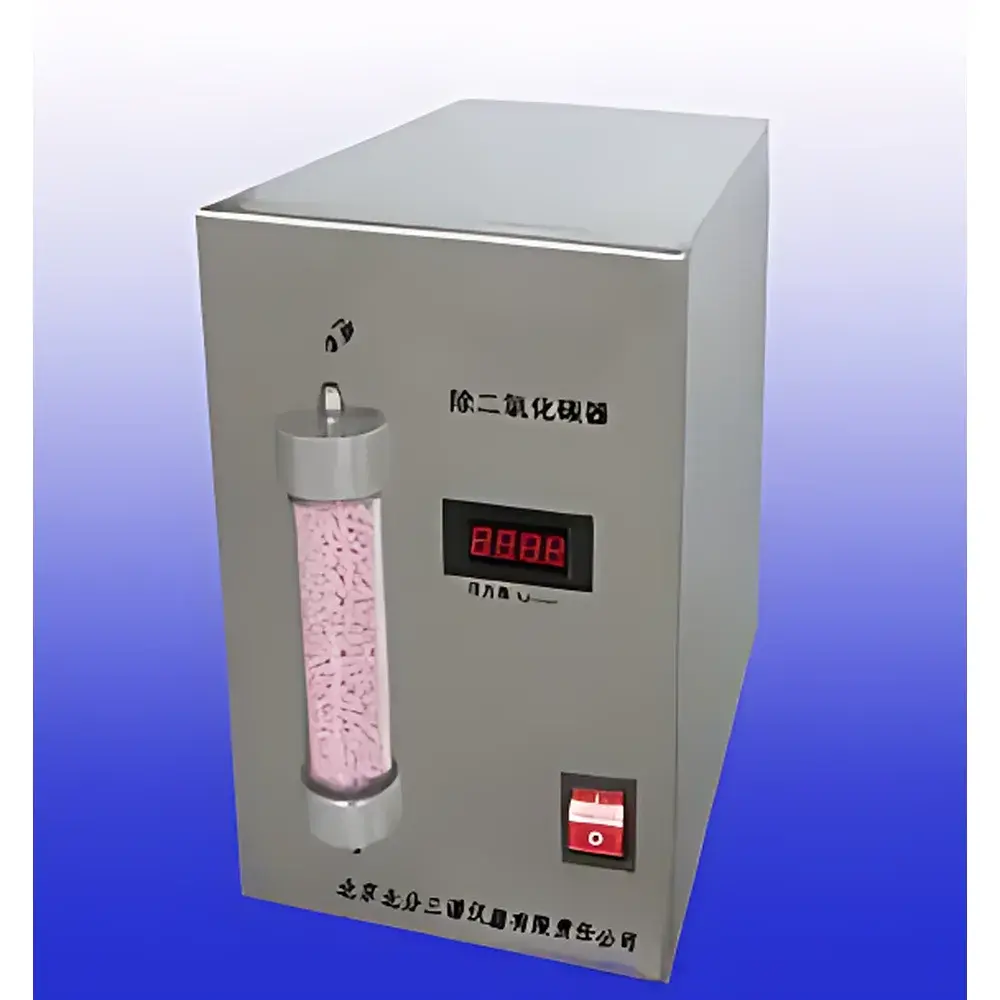

Sanbei Sanpu TBF-8 Stainless Steel CO₂ Scrubber Tube

Overview

The Sanbei Sanpu TBF-8 Stainless Steel CO₂ Scrubber Tube is an inline gas purification component engineered for high-integrity removal of carbon dioxide (CO₂) and moisture (H₂O) from carrier gases and sample streams in gas chromatography (GC) systems. It operates on the principle of selective adsorption—utilizing a dual-function, thermally stable, metal oxide–based sorbent matrix that simultaneously captures CO₂ via chemisorption and water vapor via physisorption. Unlike regenerable or consumable cartridges requiring periodic replacement, the TBF-8 employs a long-life, non-depleting adsorbent formulation with no scheduled maintenance under standard GC operating conditions (≤5000 mL/min at ambient temperature). Its all-stainless-steel construction (316L-grade body and end fittings) ensures mechanical robustness, pressure integrity up to 1.6 MPa (232 psi), and resistance to corrosion from trace acidic or oxidizing impurities—critical for extended service life in analytical laboratories performing EPA Method 8260, ASTM D1945, or ICH Q2(R2)-aligned method validation.

Key Features

• Stainless steel (316L) monolithic tube design with seamless welds and electropolished interior surface—minimizes particle shedding and adsorptive memory effects
• Dual-target purification: simultaneous removal of CO₂ (≤0.1 ppm residual) and H₂O (≤0.1 ppm residual) at ambient temperature
• High-flow capacity: rated for continuous operation at up to 5000 mL/min without breakthrough or pressure drop exceeding 0.02 MPa
• Modular port compatibility: standard M8×1 metric thread, Φ3.2 mm push-to-connect, and 1/8″ NPT female ports—enabling direct integration into Swagelok®, Parker, or VICI GC gas lines
• No consumables or regeneration required: sorbent bed remains effective for ≥12 months under typical GC carrier gas usage (He or H₂ at 30–50 mL/min)
• Trace-metal–free construction: certified low-extractables profile suitable for ultra-trace VOC analysis and isotopic ratio GC-MS applications

Sample Compatibility & Compliance

The TBF-8 is validated for use with helium, hydrogen, nitrogen, and argon carrier gases—and compatible with sample matrices including ambient air, stack emissions, breath condensates, and hydrocarbon-rich refinery streams. It meets ISO 8573-1:2010 Class 1 specifications for compressed air purity (solid particles <0.1 µm, oil content <0.01 mg/m³, water dew point −70°C), and supports compliance with USP , EP 2.2.43, and FDA 21 CFR Part 11 requirements when deployed within documented, auditable GC gas delivery systems. Each unit undergoes individual flow-pressure testing and residual CO₂ verification using calibrated cavity ring-down spectroscopy (CRDS) prior to shipment.

Software & Data Management

As a passive hardware component, the TBF-8 does not incorporate embedded electronics or firmware. However, it is fully compatible with laboratory information management systems (LIMS) and electronic lab notebooks (ELN) through standardized asset tagging (QR-coded serial number etched on housing) and integration into instrument qualification protocols (IQ/OQ/PQ). Maintenance logs—including installation date, upstream pressure monitoring records, and system leak-check reports—can be linked to the device ID in compliance with GLP and GMP audit trails.

Applications

• Carrier gas conditioning for capillary GC and GC-MS systems requiring ultra-low CO₂ background (e.g., CO₂ interference suppression in methanizer-FID detection)
• Purification of zero-air standards and calibration gas blends used in environmental monitoring (EPA TO-14A, TO-15)
• Pre-column protection for PLOT and molecular sieve columns susceptible to CO₂-induced phase degradation
• Integration into automated GC sampling manifolds for continuous emissions monitoring (CEMS) and biogas composition analysis
• Supporting inert atmosphere generation in headspace-GC and purge-and-trap systems where CO₂ catalyzes oxidation of sensitive analytes

FAQ

What is the maximum allowable inlet pressure for the TBF-8?
The TBF-8 is rated for continuous operation at ≤1.6 MPa (232 psi); short-term spikes up to 2.0 MPa are permissible if duration is <5 seconds.
Can the TBF-8 be used with hydrogen carrier gas?
Yes—its 316L stainless steel construction and non-catalytic sorbent formulation prevent H₂ embrittlement and ensure stability under reducing conditions.
Is the TBF-8 compatible with GC systems requiring ISO 17025-accredited gas purity verification?
Yes—each unit ships with a Certificate of Conformance referencing residual CO₂ and H₂O test data traceable to NIST SRM 1950 (Metabolites in Frozen Human Plasma) and ISO/IEC 17025-accredited CRDS calibration.
Does the TBF-8 require periodic regeneration or sorbent replacement?
No—its sorbent is engineered for indefinite service life under specified flow and concentration conditions; replacement is only necessary after confirmed breakthrough via downstream CO₂ analyzer verification.
Can custom port configurations be ordered?
Yes—Sanbei Sanpu offers OEM customization for BSPP, SAE J1926, or VCR fittings; lead time is 10–12 business days for non-standard configurations.
