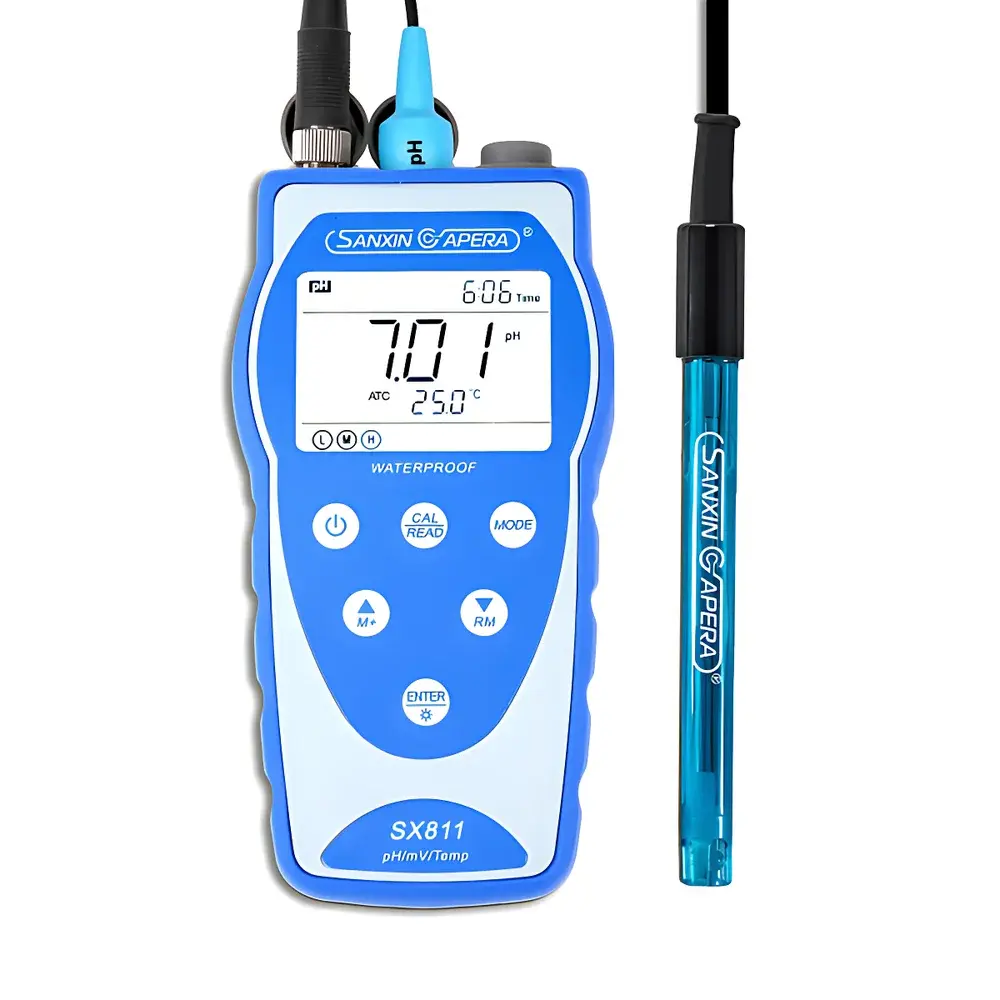

SANXIN SX811 Portable pH Meter

Overview

The SANXIN SX811 Portable pH Meter is a field-deployable, high-precision electrochemical instrument engineered for reliable pH and mV measurements in demanding industrial, environmental, and laboratory settings. Based on potentiometric measurement principles—where the potential difference between a glass pH sensing electrode and a reference electrode is converted into a logarithmic pH value—the SX811 delivers traceable accuracy across an extended pH range of –2.00 to 19.99. Its design adheres to fundamental electrochemical standards including ISO 3696 (water purity), ASTM D1293 (pH of water), and IUPAC recommendations for electrode calibration and temperature compensation. The instrument employs a solid-state analog front-end coupled with digital signal processing to minimize drift, suppress noise, and ensure stable endpoint detection—critical for applications such as boiler feedwater monitoring, desalination plant effluent analysis, and pharmaceutical process water validation.

Key Features

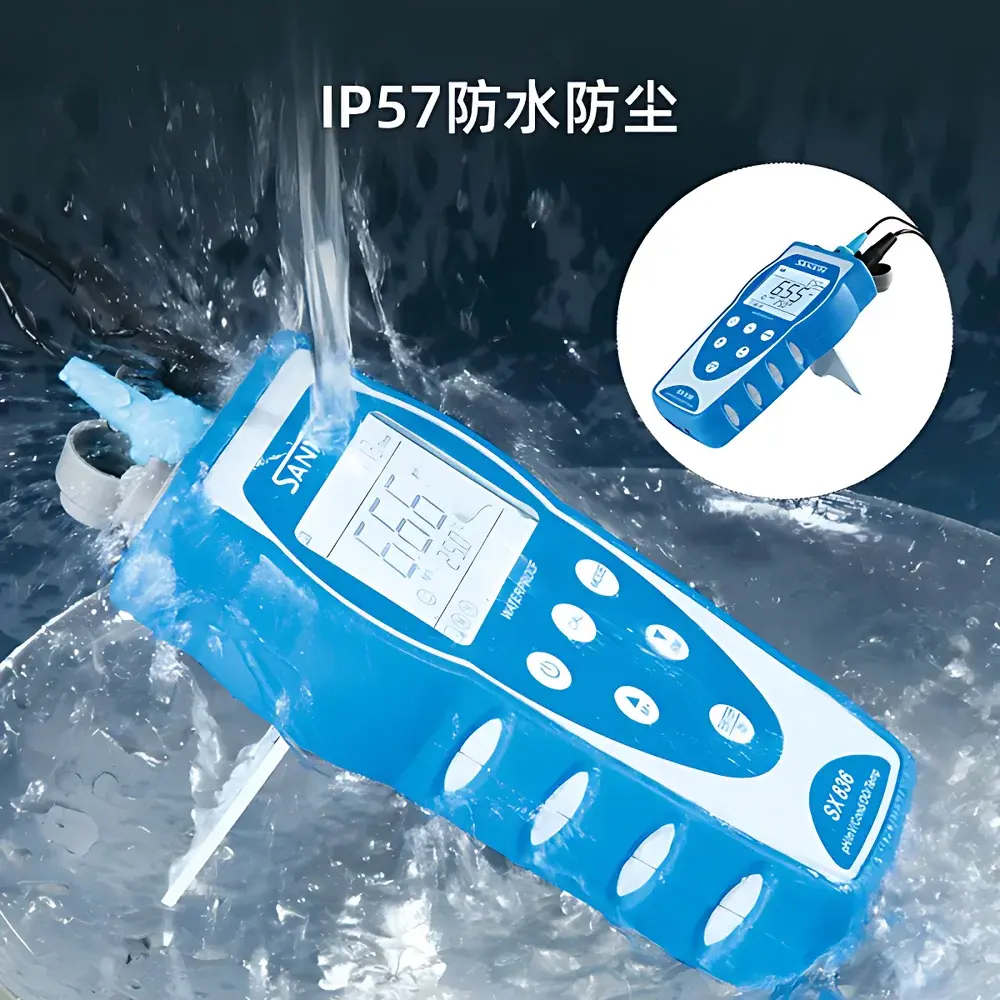

• True portable architecture with IP57-rated enclosure—dust-protected and submersible up to 1 m for 30 minutes—enabling operation in humid, outdoor, or splash-prone environments.
• Intelligent auto-calibration system supporting 1–3 point calibration with real-time buffer recognition across three international standard series: USA (4.01, 7.00, 10.01), NIST (4.005, 6.865, 9.180), and CH (4.00, 6.86, 9.18), plus user-defined buffers.
• Advanced temperature compensation algorithms—including non-linear compensation optimized for low-ionic-strength samples—ensuring metrological rigor in pure water and ammonia-dosed water systems common in power generation and semiconductor ultrapure water (UPW) loops.
• Dual display modes: “Stable Read” for continuous monitoring and “Auto-Hold” for capturing transient endpoints—both configurable via intuitive menu navigation.
• Integrated dual-power architecture: operable on three AA alkaline cells (typical 200+ hours runtime) or externally powered via USB 5 V DC—eliminating downtime during extended field campaigns.
• Ergonomic rubberized housing with fold-out stand allows seamless transition from handheld to benchtop use without accessory dependency.

Sample Compatibility & Compliance

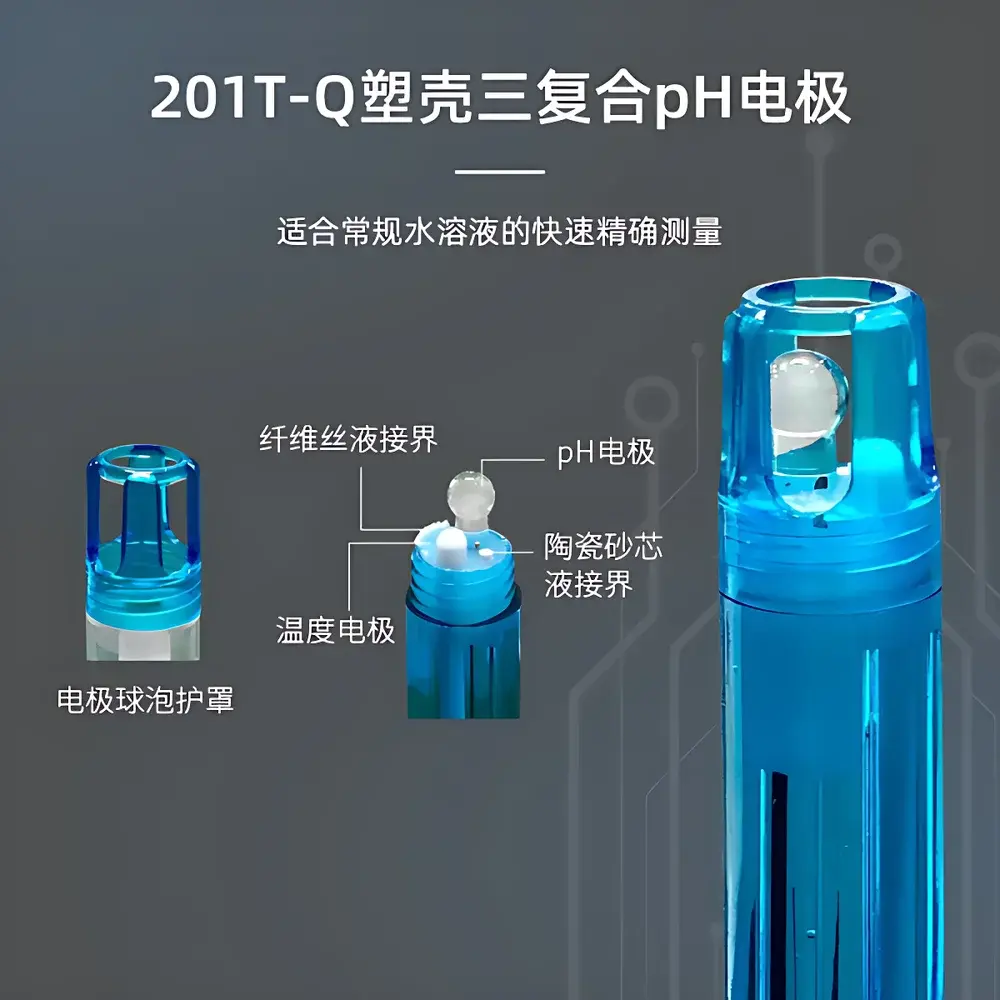

The SX811 is compatible with aqueous and mildly aggressive liquid samples within conductivity ranges typical of municipal water, cooling tower fluids, wastewater influents, and clean-in-place (CIP) rinse solutions. It supports direct measurement of low-conductivity samples (≥5 µS/cm) when used with the included 201T-Q combination electrode—a gel-filled, double-junction sensor with Ag/AgCl reference system and low-resistance glass membrane. All firmware and calibration logic comply with GLP (Good Laboratory Practice) requirements: timestamps are hardware-generated and immutable; calibration events log date, time, buffer IDs, slope (%), and offset (mV); and stored records include full metadata (sample ID, operator, location tag if entered). While not FDA 21 CFR Part 11–certified out-of-the-box, audit trails meet baseline GMP documentation expectations for non-critical QC checks in regulated facilities.

Software & Data Management

PC-Link communication software enables bidirectional data exchange via USB interface. Users can export CSV-formatted datasets containing measurement ID, date/time stamp (RTC-synchronized), pH/mV values, temperature, electrode status, and calibration history. The software supports batch annotation, report generation (PDF/Excel), and trend visualization over time. Internal memory retains 500 measurement records with automatic overwrite protection—each entry includes instrument serial number, firmware version, and power source indicator (battery/USB). All stored data survive power loss due to non-volatile flash memory architecture. Firmware updates are delivered via signed HEX files to maintain integrity and traceability.

Applications

• Power industry: Monitoring condensate polishing units, steam cycle chemistry (e.g., AVT-R, OT), and cation conductivity correlation.
• Water treatment: Field verification of disinfection efficacy (free chlorine vs. pH), coagulant dosing control, and membrane system feed characterization.
• Environmental compliance: EPA Method 150.1–aligned surface water and groundwater pH screening at sampling sites.
• Education & research labs: Teaching core electrochemical concepts—Nernst equation derivation, junction potential effects, and buffer selection criteria.
• Food & beverage QA: Spot-checking rinse water pH in hygienic processing lines prior to microbial swabbing.

FAQ

What calibration standards does the SX811 recognize automatically?
The meter auto-identifies 12 pre-programmed buffer solutions across three regional series: USA (pH 4.01, 7.00, 10.01), NIST (pH 4.005, 6.865, 9.180), and CH (pH 4.00, 6.86, 9.18). Custom buffers may be defined manually with known nominal values.
Does the SX811 support temperature compensation for pure water measurements?
Yes—it includes dedicated pure water and ammonia-added pure water pH modes with non-linear temperature compensation algorithms aligned with IAPWS guidelines for low-ionic-strength systems.
Is the internal clock battery-backed?
No—the real-time clock (RTC) is powered by the main AA batteries or USB supply; time/date stamps remain accurate only while power is present, but all logged records retain their original timestamps upon storage.
Can the SX811 be used with electrodes other than the 201T-Q?
It accepts any BNC-compatible pH electrode with standard Ag/AgCl reference; however, optimal performance—including automatic temperature compensation and diagnostic feedback—is guaranteed only with SANXIN-certified sensors.
What is the warranty coverage and service support structure?
SANXIN provides a 24-month limited warranty covering material and workmanship defects; technical documentation, firmware patches, and calibration certificate templates are available via registered download portal with instrument serial verification.
