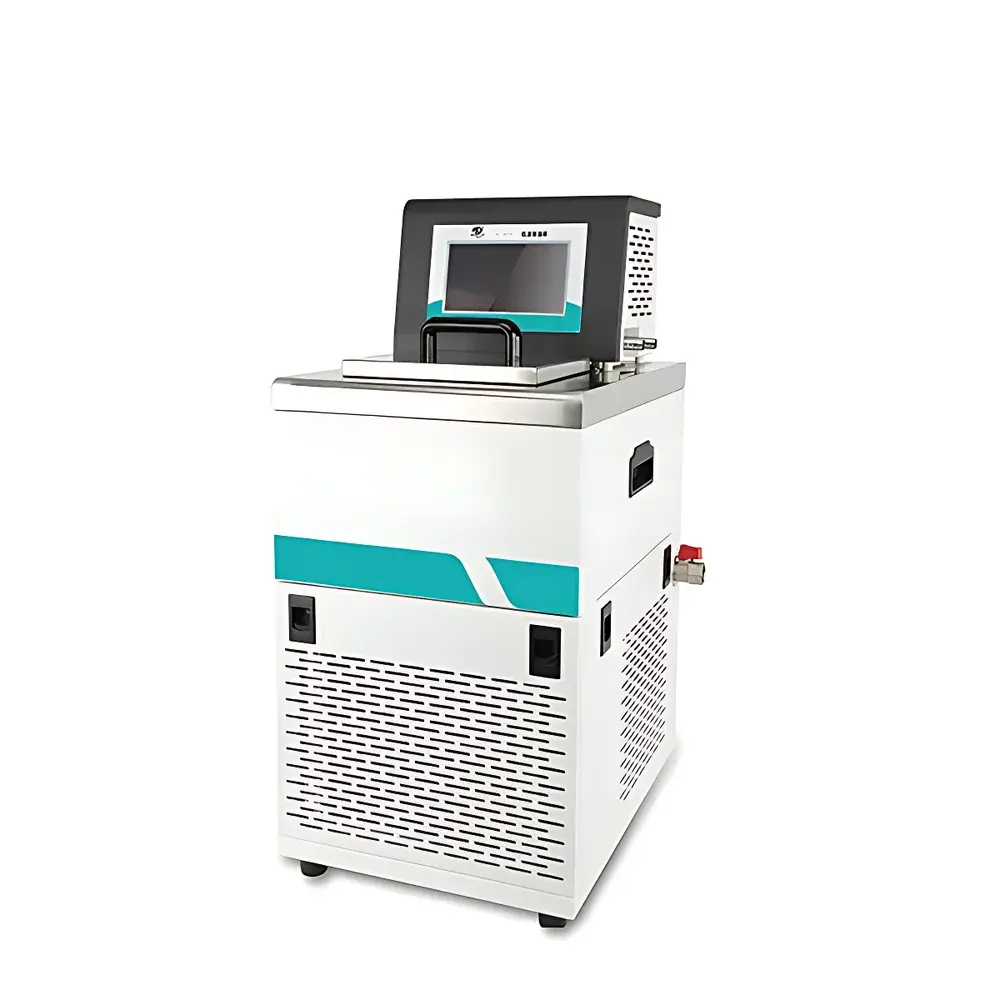

Scientz DC-3015 Low-Temperature Constant Temperature Bath

Overview

The Scientz DC-3015 Low-Temperature Constant Temperature Bath is an engineered thermal management system designed for precision temperature control in laboratory and industrial R&D environments. Based on a closed-loop, air-cooled compressor refrigeration architecture with non-CFC refrigerant, the unit delivers stable, uniform thermal conditions across its full operational range of −30 °C to +100 °C. Its core function is to maintain a highly reproducible liquid medium—water or silicone oil—at a user-defined setpoint, enabling accurate thermal conditioning of samples, calibration standards, sensors, or external equipment via internal bath immersion or external circulation. The system operates on fundamental principles of convective heat transfer and feedback-controlled thermoregulation, integrating real-time thermal load assessment with adaptive power modulation to minimize energy consumption while preserving ±0.05 °C stability—a specification aligned with ISO/IEC 17025-compliant temperature validation protocols for analytical instrumentation.

Key Features

• Non-ozone-depleting refrigeration system compliant with international environmental directives (e.g., Montreal Protocol Annexes and EU F-Gas Regulation)
• 7-inch high-resolution TFT touchscreen interface with intuitive soft-key navigation and multi-language support (English default)
• Self-tuning PID algorithm with fuzzy logic adaptation—dynamically distinguishes between ambient thermal drift and process-induced load changes to optimize heating/cooling actuation
• Dual-mode circulation: internal bath homogenization plus externally routed fluid delivery (0–20 L/min, DC-controlled pump, 5 m max head) for secondary temperature staging or jacketed reactor coupling
• Comprehensive safety architecture: programmable upper/lower temperature limits, audible/visual over-temperature alarm, automatic compressor shutdown during thermal fault, and 3-minute anti-short-cycling delay upon power restoration
• Rugged stainless-steel bath chamber (300 × 250 × 200 mm internal volume) with corrosion-resistant insulation and low-thermal-loss lid design

Sample Compatibility & Compliance

The DC-3015 accommodates a broad spectrum of sample formats—including glassware (e.g., flasks, cuvettes, viscometer spindles), metal probes, optical cells, and small-scale bioreactors—provided immersion depth and chemical compatibility with water or compatible heat-transfer fluids (e.g., ethylene glycol/water mixtures, silicone oils up to 100 °C) are observed. It meets structural and electrical safety requirements per IEC 61010-1:2010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use). While not certified as a medical device, its temperature accuracy, repeatability, and audit-ready control logic support GLP and GMP-aligned workflows in QC labs conducting USP thermal validation, ASTM E2877-22 bath uniformity testing, or ISO 17025 method verification where traceable thermal conditioning is required.

Software & Data Management

The embedded controller supports real-time temperature logging at user-selectable intervals (1 s to 60 min), with data exportable via USB to CSV format for post-processing in Excel, MATLAB, or LIMS platforms. Though no proprietary PC software is bundled, the unit’s RS-485 serial interface (Modbus RTU protocol) enables integration into centralized building management systems (BMS) or SCADA architectures for remote monitoring and alarm forwarding. All parameter settings—including setpoints, alarm thresholds, pump speed profiles, and PID coefficients—are stored with non-volatile memory retention. Audit trail functionality includes timestamped records of setpoint changes, alarm events, and manual overrides—facilitating 21 CFR Part 11–aligned documentation when paired with validated third-party data acquisition software.

Applications

• Calibration of thermometers, RTDs, and thermocouples against NIST-traceable references
• Viscosity measurements using rotational or capillary viscometers requiring precise thermal equilibration
• Stability testing of pharmaceutical formulations per ICH Q1A(R3) guidelines
• Controlled-rate cooling/heating cycles in polymer crystallinity studies (DSC sample prep)
• Temperature-dependent electrochemical cell characterization (e.g., battery electrolyte conductivity)
• Long-duration enzyme kinetics assays where reaction rate is highly temperature-sensitive
• Environmental stress screening of electronic components (e.g., thermal cycling per MIL-STD-810)

FAQ

What types of heat-transfer fluids are compatible with the DC-3015?

Deionized water is recommended for operation between 0 °C and 80 °C; for sub-zero use, a 30–40% ethylene glycol/water mixture is standard. Silicone oils (e.g., Dow Corning 200 Fluid) may be used up to 100 °C but require verification of pump seal compatibility.
Can the DC-3015 be integrated into automated lab systems?

Yes—via its RS-485 port and Modbus RTU implementation, it supports bidirectional communication with PLCs, LabVIEW, or custom Python-based control scripts for synchronized multi-instrument workflows.
Is external circulation flow rate adjustable during operation?

Yes—the DC-controlled pump allows continuous, stepless flow adjustment from 0 to 20 L/min directly from the touchscreen interface without interrupting temperature control.
Does the unit comply with noise emission standards for shared laboratory spaces?

At rated load, sound pressure level is ≤58 dB(A) at 1 m distance—within typical academic and industrial lab ambient noise limits per ISO 7779 and ANSI S1.13.
How is temperature uniformity verified across the bath chamber?

Scientz provides a factory calibration certificate referencing 9-point spatial mapping (per ASTM E2877-22); users may perform in-house verification using calibrated PT100 probes positioned at center, corners, and mid-height locations.
