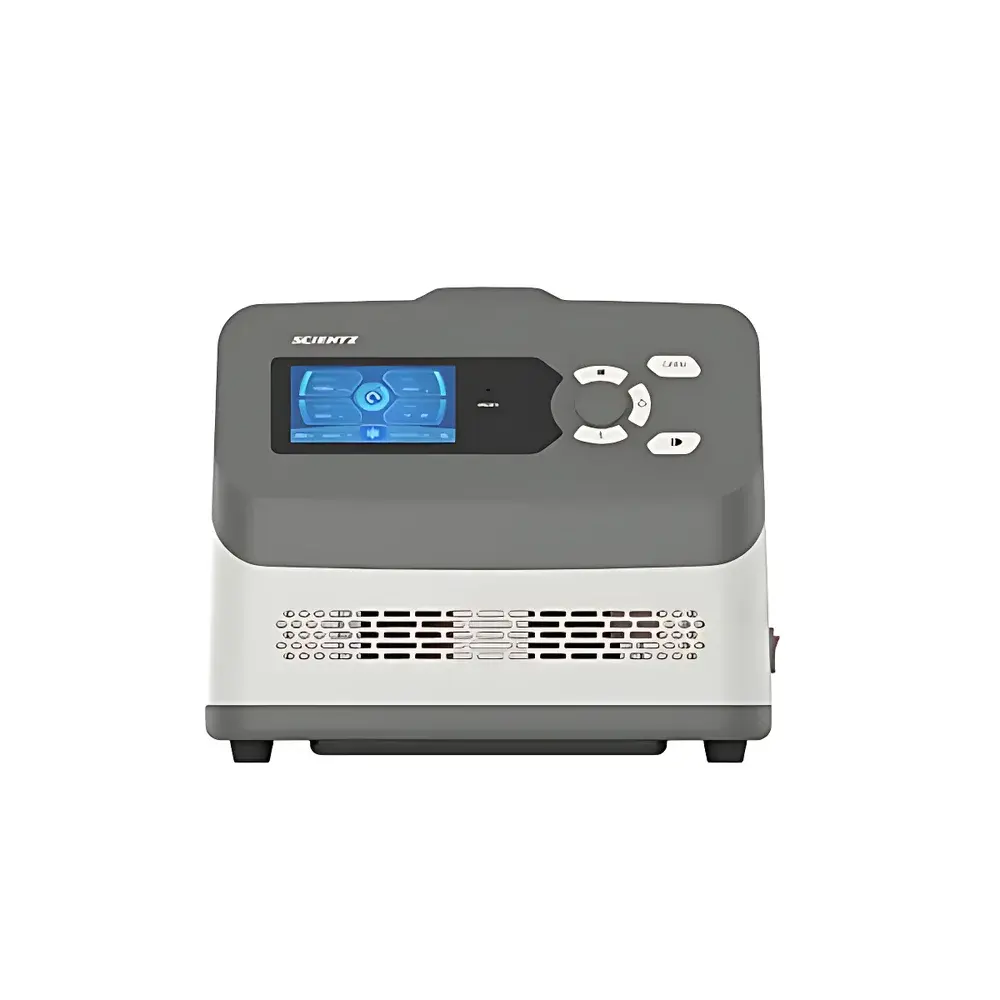

Scientz HSC-2015L Benchtop High-Speed Refrigerated Centrifuge

Overview

The Scientz HSC-2015L is a benchtop high-speed refrigerated centrifuge engineered for precise, reproducible separation of thermolabile biological macromolecules—including proteins, nucleic acids, subcellular organelles, and viral particles—under strictly controlled low-temperature conditions. Operating on the principle of sedimentation under centrifugal force (RCF), the HSC-2015L delivers up to 21,400 × g at 15,000 rpm, enabling rapid pelleting and stratification of samples while maintaining integrity through active thermal regulation. Its compact footprint (385 × 608 × 318 mm) and integrated refrigeration system make it suitable for shared core facilities, QC laboratories, and biosafety level 2 (BSL-2) environments where space efficiency and temperature stability are critical. The instrument complies with IEC 61010-1:2010 safety standards for laboratory electrical equipment and incorporates mechanical and electronic safeguards aligned with ISO 13485 quality management principles for in vitro diagnostic support workflows.

Key Features

• High-efficiency refrigeration system featuring an imported hermetic compressor, achieving +4°C operation even at maximum speed (15,000 rpm) and cooling from ambient to +4°C in under 6 minutes
• Dual-stage mechanical damping architecture combined with a brushless DC motor and precision-balanced rotor assembly ensures operational stability and noise levels below 58 dB(A)
• Hermetically sealed fixed-angle rotors—available in three configurations (0.2 mL PCR strips, 2.0 mL microtubes, and 5.0 mL conical tubes)—support sample volumes ranging from 0.2 mL to 5.0 mL with full compatibility for aerosol-tight centrifugation
• SOFT deceleration mode minimizes resuspension of delicate pellets by applying programmable ramp-down profiles, essential for RNA isolation, membrane vesicle purification, and cryopreserved cell processing
• Intelligent self-diagnostic firmware continuously monitors rotor imbalance, temperature deviation, lid interlock status, and drive anomalies, displaying real-time alerts without interrupting ongoing runs
• Emergency mechanical door release mechanism enables safe access during power failure or system lockout, satisfying ISO/IEC 17025 clause 5.4.2 requirements for uninterrupted sample recovery
• Corrosion-resistant stainless-steel centrifuge chamber treated with electropolished passivation enhances longevity in humid or reagent-exposed environments common in molecular biology and clinical chemistry labs

Sample Compatibility & Compliance

The HSC-2015L accommodates standard polypropylene and polycarbonate tubes conforming to ANSI/SLAS dimensional specifications (e.g., 0.2 mL PCR strips, 1.5–2.0 mL microcentrifuge tubes, and 5.0 mL conical tubes). All rotors meet ISO 15195:2019 requirements for rotor traceability and are validated for use with common biological buffers (e.g., Tris-HCl, PBS, guanidinium thiocyanate solutions). The instrument supports GLP-compliant workflows via time-stamped event logging (lid open/close, temperature setpoint changes, acceleration/deceleration profiles) and is compatible with external audit-ready data export protocols. It is routinely employed in laboratories adhering to USP , CLSI EP25-A, and ISO/IEC 17025 accreditation frameworks.

Software & Data Management

The HSC-2015L features an embedded 4.3-inch capacitive touchscreen interface with intuitive icon-driven navigation. All run parameters—including speed (rpm), RCF (×g), time, temperature, acceleration/deceleration rates, and SOFT mode activation—are programmable and stored in non-volatile memory. Each protocol is assigned a unique ID and timestamp; up to 99 user-defined methods can be saved locally. Audit-trail functionality records operator login (if enabled via optional network module), parameter modifications during runtime, and fault events with millisecond resolution. Data export is supported via USB 2.0 port in CSV format, facilitating integration with LIMS platforms and statistical process control (SPC) software used in pharmaceutical QC and food safety testing.

Applications

• Isolation of plasmid DNA, genomic DNA, and total RNA from mammalian, bacterial, and plant lysates under chilled conditions to suppress nuclease activity
• Purification of extracellular vesicles (exosomes, microvesicles) and ribonucleoprotein complexes using differential ultracentrifugation protocols
• Clarification of cell lysates prior to SDS-PAGE or mass spectrometry analysis
• Concentration of viral vectors and bacteriophages in gene therapy and vaccine development pipelines
• Routine hematological separations—including PBMC isolation and platelet-rich plasma (PRP) preparation—in clinical diagnostics and transfusion medicine
• Environmental microbiology workflows involving soil extract centrifugation and waterborne pathogen concentration

FAQ

What is the minimum sample volume supported by the HSC-2015L?
The instrument accepts 0.2 mL PCR strips (4×8 configuration), enabling high-throughput nucleic acid processing with minimal reagent consumption.
Can the centrifuge maintain +4°C during extended high-speed runs?
Yes—the imported compressor and optimized heat exchange design ensure sustained thermal control at +4°C across all speeds up to 15,000 rpm and durations up to 99 minutes.
Are rotors autoclavable?
Fixed-angle rotors are not autoclavable; however, they are compatible with 70% ethanol wipe disinfection and validated for repeated use with aqueous and organic solvent-based buffers.
Does the HSC-2015L support remote monitoring or network connectivity?
Standard configuration includes local touchscreen control only; optional Ethernet or RS-485 modules enable integration into centralized lab automation systems upon request.
How is rotor imbalance detected and managed?
Vibration sensors coupled with motor current profiling detect asymmetry in real time; the system automatically halts acceleration and displays error code R01 if imbalance exceeds ISO 21501-4 thresholds.
