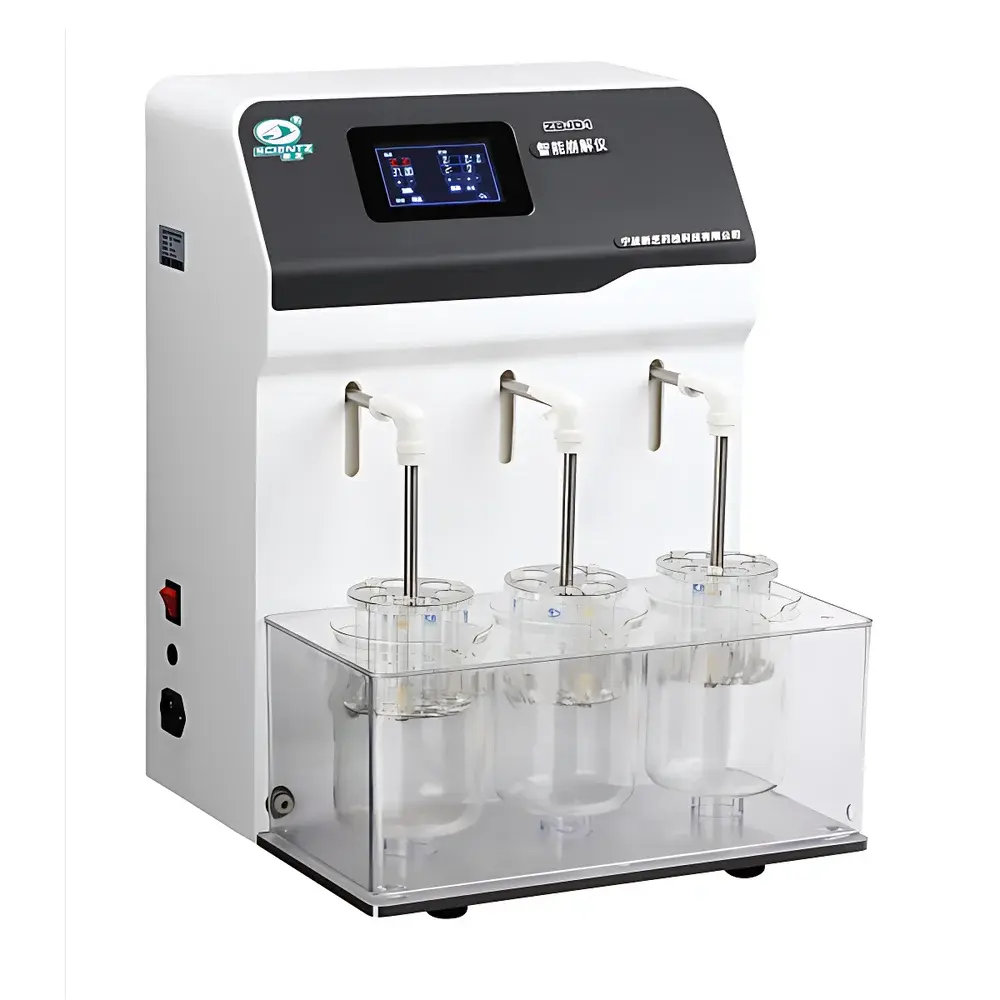

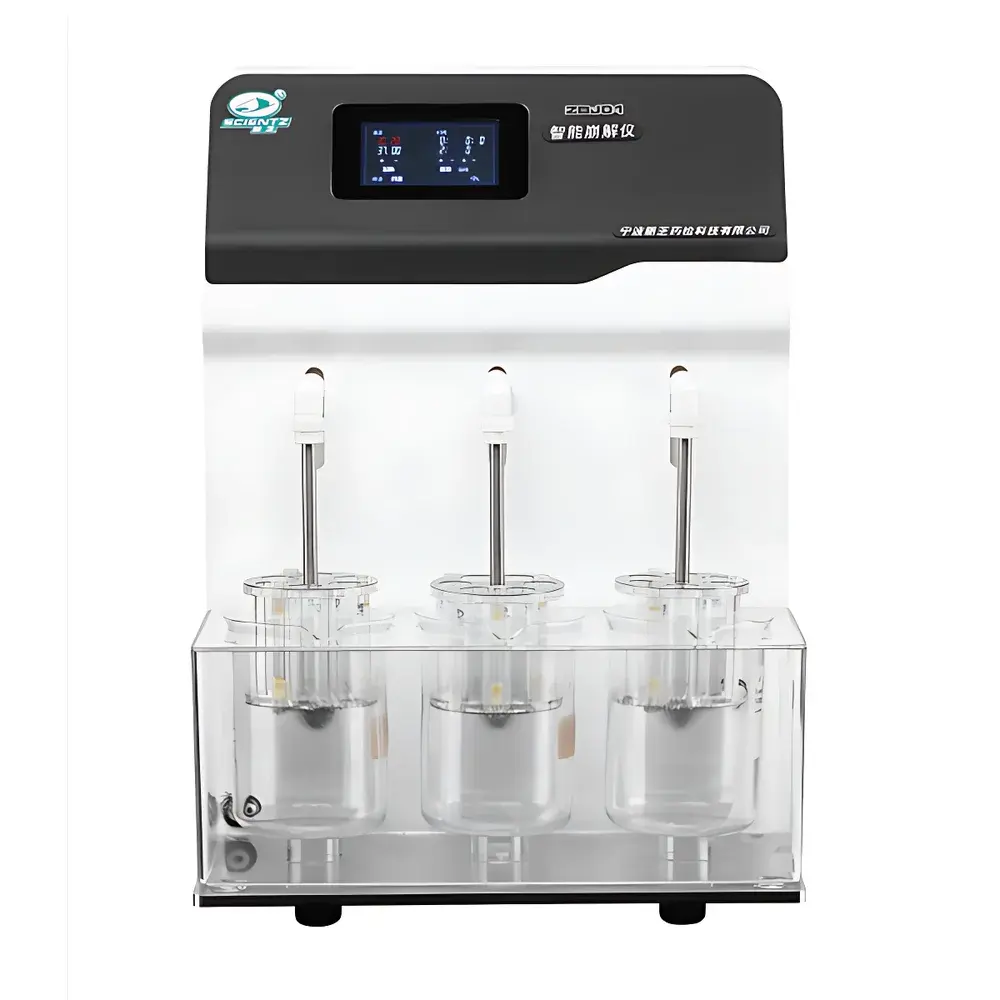

Scientz ZBJ01 Intelligent Disintegration Tester

Overview

The Scientz ZBJ01 Intelligent Disintegration Tester is a fully integrated, GMP-compliant pharmaceutical testing instrument engineered for precise and reproducible determination of tablet, capsule, and suppository disintegration time in accordance with USP <701>, Ph. Eur. 2.9.1, and ChP 0921. It operates on the principle of immersion-based mechanical agitation under controlled temperature and fluid dynamics: three independently regulated test stations simultaneously immerse dosage forms in simulated gastric or intestinal media (e.g., water, 0.1 N HCl, or phosphate buffer), while vertical up-and-down motion of stainless-steel baskets—driven by a synchronized cam mechanism—mimics physiological peristaltic action. The system’s monolithic water bath architecture ensures thermal homogeneity across all stations, minimizing inter-bath drift and supporting long-duration tests (up to 6 hours) without manual intervention.

Key Features

• Triple-station design: Three independent disintegration units operate concurrently, enabling parallel testing of identical or heterogeneous samples—significantly improving lab throughput and statistical robustness.
• Monolithic thermostatic water bath: Seamless stainless-steel construction eliminates thermal gradients; combined with a brushless DC circulation pump and PID-controlled heating, it maintains ±0.3 °C stability over 24 h at 37.0 ±0.5 °C (standard pharmacopeial condition).
• Pt1000 high-accuracy temperature sensing: Industrial-grade platinum resistance thermometers (IEC 60751 Class A) provide traceable, NIST-compatible calibration with <0.1 °C repeatability per station.
• Tool-free basket mounting system: Patented quick-release basket clamps allow full disassembly and reinstallation in <15 seconds—critical for cleaning validation and cross-contamination control in shared QC environments.
• Integrated LED illumination: Individual cold-white LED arrays mounted beneath each basket provide shadow-free, glare-free visualization—enabling real-time visual endpoint assessment without opening the bath chamber.
• Regulatory-ready software architecture: Embedded touchscreen interface supports role-based user authentication (admin/operator/auditor), electronic signatures, and full audit trail logging compliant with FDA 21 CFR Part 11 Annex 11 requirements.

Sample Compatibility & Compliance

The ZBJ01 accommodates standard USP/Ph. Eur./ChP-compliant baskets (22 mm inner diameter, 78 mm height) and supports all common dosage forms—including immediate-release tablets, film-coated tablets, enteric-coated capsules, and effervescent formulations. Optional accessories include extended-height baskets (for large-diameter tablets), sinker discs (for floating dosage forms), and alternative media reservoirs for non-aqueous solvents. All wetted components are electropolished 316L stainless steel or food-grade PTFE-coated materials, meeting ISO 13485 and EU MDR material biocompatibility criteria. The instrument is supplied with factory calibration certificates traceable to national metrology institutes and includes IQ/OQ documentation templates for GxP validation.

Software & Data Management

The embedded Android-based HMI features a 7-inch capacitive color touchscreen with intuitive icon-driven navigation and multilingual UI (English, Spanish, Chinese). Test methods are stored as encrypted XML profiles, each containing temperature setpoint, cycle count, dwell time, and pass/fail logic. All events—including login/logout, parameter changes, basket insertion/removal, and endpoint detection—are timestamped, user-tagged, and archived locally on industrial-grade eMMC storage (16 GB, write-protected). Data export is supported via USB 2.0 (CSV/Excel) or optional Ethernet/Wi-Fi module for LIMS integration. Audit trails retain full history for ≥10 years and cannot be edited or deleted—ensuring ALCOA+ data integrity (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• QC release testing of solid oral dosage forms against pharmacopeial disintegration limits
• Stability-indicating method development for modified-release formulations
• Comparative dissolution–disintegration correlation studies during formulation optimization
• Process validation support for tablet compression and coating operations
• Regulatory submission dossier preparation (e.g., ANDA, MA, CMC sections)
• Training and demonstration in GMP-compliant academic and contract research laboratories

FAQ

Does the ZBJ01 comply with 21 CFR Part 11 requirements for electronic records and signatures?
Yes—the system implements full Part 11 controls including unique user IDs, role-based permissions, biometric-ready authentication hooks, immutable audit trails, and electronic signature capture with reason-for-change logging.
Can the instrument be validated for GMP use out-of-the-box?
It ships with comprehensive IQ/OQ protocol templates, factory calibration reports, and material certifications—enabling rapid installation and operational qualification per ASTM E2500 and ISPE GAMP5 guidelines.
Is remote monitoring or network connectivity supported?
Standard configuration includes USB data export; optional Ethernet or Wi-Fi modules enable secure HTTP/HTTPS API access for centralized monitoring and automated data ingestion into LIMS or MES platforms.
What maintenance intervals are recommended for routine operation?
Daily visual inspection of baskets and seals; quarterly verification of temperature uniformity and timing accuracy using NIST-traceable standards; annual recalibration of Pt1000 sensors and mechanical stroke alignment.
Are replacement parts and service support available globally?
Scientz maintains authorized service partners in North America, EU, and APAC regions; all critical spares—including baskets, heating elements, and touchscreen assemblies—are stocked with ≤5-business-day lead time.
