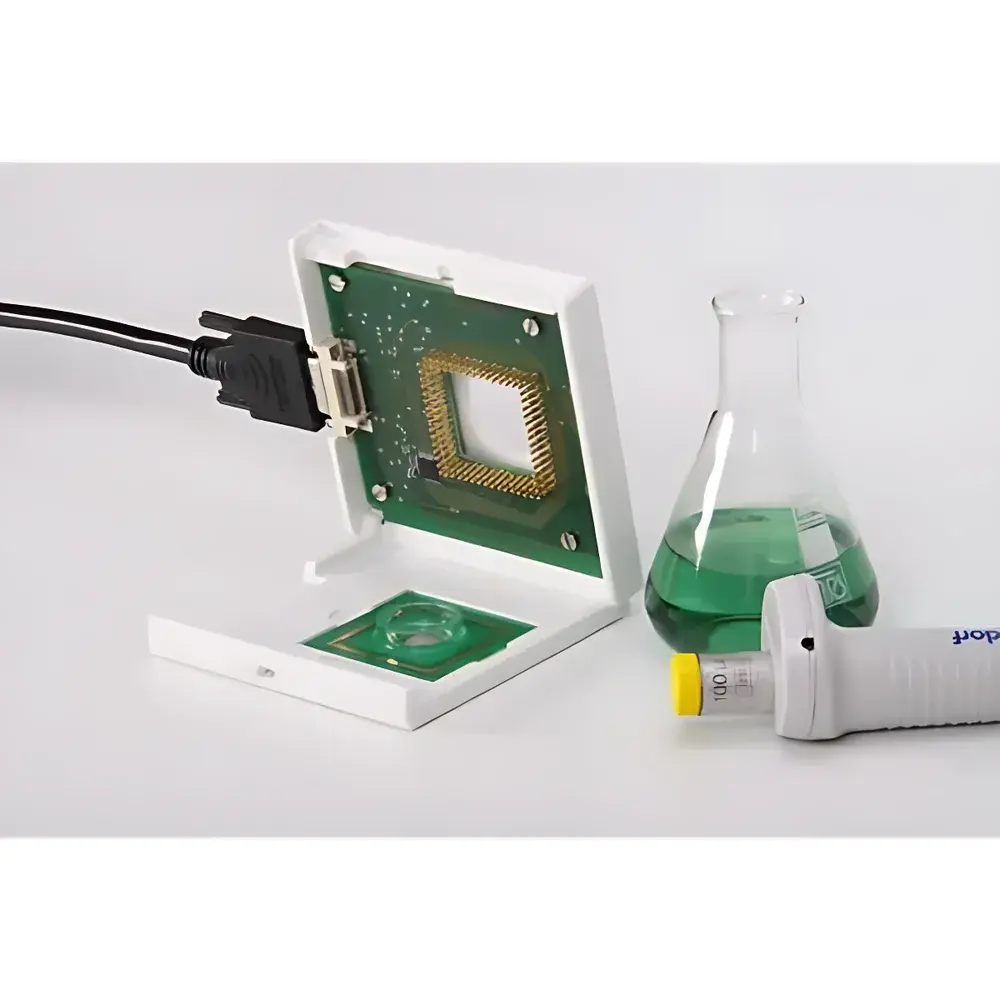

Sciospec MEArack Multi-Electrode Array Impedance Analyzer & Tomography System

Overview

The Sciospec MEArack is a purpose-engineered multi-electrode array (MEA) impedance analyzer and electrical impedance tomography (EIT) platform designed for label-free, real-time monitoring of cellular behavior in vitro. It operates on the principle of broadband electrical impedance spectroscopy (EIS), applying small-amplitude AC excitation signals (typically 1 mV–100 mV RMS, 1 Hz–10 MHz) across defined electrode pairs within an MEA substrate and measuring the complex impedance response (Z* = Z′ + jZ″). This enables quantitative assessment of cell attachment, spreading, monolayer integrity, barrier function (e.g., TEER), and dynamic responses to pharmacological or toxicological stimuli—without requiring fluorescent dyes or genetic modification. Unlike conventional single-channel impedance systems, the MEArack integrates a synchronized 64-channel analog multiplexer and high-precision current-source-based measurement architecture, allowing parallel, time-synchronized acquisition across all 60 active gold-plated contact points. Its compact form factor and optically transparent top/bottom windows permit simultaneous use with inverted microscopes, phase-contrast imaging, fluorescence microscopy, or optogenetic stimulation setups—enabling true multimodal correlative analysis.

Key Features

• 64-channel analog multiplexing architecture with <100 ns channel switching synchronization, ensuring temporal coherence across all impedance measurements.
• 60 spring-loaded, low-noise gold electrode contacts arranged in configurable layouts (e.g., 8×8, 10×6), compatible with standard 60-, 128-, and 256-electrode MEA substrates from Axion BioSystems, MultiChannel Systems, and Alpha MED Sciences.
• Broadband impedance measurement range: 10 mΩ to 100 MΩ, with phase resolution <0.1° and magnitude accuracy ±0.3% (at 1 kHz, 1 V signal).
• Integrated optical access: 34 mm clear aperture top window and 25 mm bottom window (standard BK7 glass, AR-coated optional), enabling co-localized optical-electrical interrogation.
• Fully integrated graphical user interface (Sciospec Control Suite v4.2+), supporting real-time impedance mapping, time-series trending, FFT-based noise analysis, and batch export in HDF5/CSV formats.
• Modular expansion capability via standardized D-Sub 37-pin I/O port: supports external temperature controllers (±0.1°C stability), microfluidic pressure drivers, and TTL-synchronized stimulus generators.

Sample Compatibility & Compliance

The MEArack interfaces directly with commercially available sterile, tissue-culture-treated MEA chips fabricated on glass, silicon, or flexible polymer substrates. Supported electrode geometries include planar point electrodes (diameter 10–50 µm), interdigitated electrodes (IDEs) with 5–50 µm line/space resolution, and custom topographies such as micropillars or microgrooves for guided neurite outgrowth. All hardware and firmware comply with IEC 61000-4 electromagnetic compatibility standards and are CE-marked for laboratory use. When deployed in regulated environments (e.g., preclinical safety pharmacology or contract research organizations), the system supports 21 CFR Part 11-compliant operation through optional validation packages—including electronic signature enforcement, immutable audit trails, and role-based access control—fully aligned with GLP and ISO/IEC 17025 documentation requirements.

Software & Data Management

Sciospec Control Suite provides native support for impedance tomography reconstruction algorithms (including GREIT and JAC), enabling 2D conductivity distribution mapping from boundary voltage measurements. Raw impedance spectra are stored in hierarchical HDF5 containers with embedded metadata (timestamp, electrode configuration, excitation parameters, environmental sensor readings). The software includes built-in statistical modules for coefficient-of-variation (CV) analysis across electrode arrays, outlier detection via Mahalanobis distance, and automated baseline correction using robust LOESS regression. Data export conforms to MIAME and MIAPE electrophysiology reporting standards. API access (Python/C++ SDK) allows integration into custom analysis pipelines, including machine learning frameworks for phenotype classification or impedance-based biomarker discovery.

Applications

• Real-time monitoring of epithelial/endothelial barrier integrity (e.g., Caco-2, hBMEC monolayers) for drug permeability and neurotoxicity screening.
• Long-term electrophysiological phenotyping of human iPSC-derived cardiomyocytes and neurons, including beat-to-beat impedance variability and network synchrony metrics.
• Label-free cytotoxicity assays under dynamic flow conditions using integrated microfluidic MEA cartridges.
• Development and validation of impedance-based biosensors for pathogen detection, where binding-induced changes in interfacial capacitance are resolved at sub-pF sensitivity.
• Correlative live-cell imaging studies combining impedance-derived morphological dynamics with calcium flux (Fluo-4), mitochondrial potential (TMRM), or membrane order (Laurdan) readouts.

FAQ

What types of MEA chips are natively supported?
The MEArack supports industry-standard 60-, 128-, and 256-electrode chips from Axion BioSystems (Maestro platforms), MultiChannel Systems (MEA1060), and Alpha MED Sciences (MED64 series), with mechanical adapters available for non-standard footprints.
Can the system perform simultaneous impedance and extracellular recording?
Yes—when paired with Sciospec’s optional high-impedance headstage module (input impedance >10¹² Ω, input capacitance <2 pF), the MEArack enables concurrent impedance spectroscopy and spontaneous/evoked field potential acquisition on shared electrodes.
Is temperature control integrated or optional?
Temperature regulation is provided via an optional accessory module (TCU-MEA) offering Peltier-based control from 20°C to 45°C with ±0.1°C stability and real-time feedback to the main software interface.
How is calibration performed?
Factory calibration uses NIST-traceable precision resistors and capacitors across 12 frequency decades; end-user verification is supported via included 3-element calibration kit (R, C, L standards) and automated self-test routines.
Does the system support impedance tomography reconstruction?
Yes—the included EIT module implements GREIT and JAC algorithms for 2D conductivity mapping, with optional GPU-accelerated processing for real-time reconstructions at >10 frames/second.
