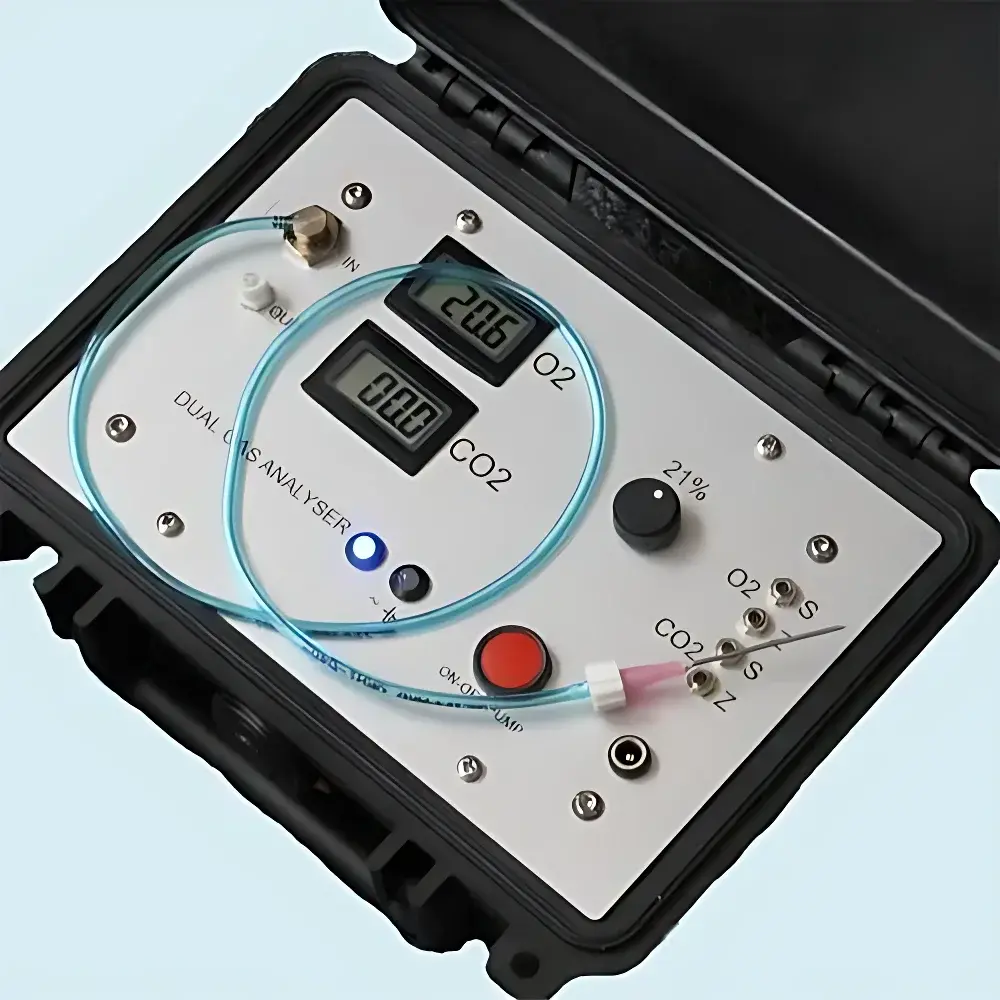

SCS SCS354 Dual-Gas Headspace Analyzer
| Brand | SCS |
|---|---|
| Origin | USA |
| Model | SCS354 |
| Gas Detection Range | O₂: 0–25% v/v, CO₂: 0–20% v/v |
| Sample Volume | 30 mL |
| Resolution | 0.1% (O₂ and CO₂) |
| Response Time | ≤15 s |
| Sensor Technology | Electrochemical O₂ cell + NDIR CO₂ sensor |
| Calibration Drift | <0.1% per month (typical, under stable ambient conditions) |
| Portability | Handheld, battery-operated design |
| Compliance | Designed for MAP quality control in accordance with ASTM F2096, ISO 11607-2, and USDA/FSIS guidance for modified atmosphere packaging verification |
Overview
The SCS SCS354 Dual-Gas Headspace Analyzer is an engineered field-deployable instrument designed specifically for rapid, non-destructive quantification of oxygen (O₂) and carbon dioxide (CO₂) concentrations within the headspace of modified atmosphere packaging (MAP) used extensively in fresh produce, meat, dairy, and ready-to-eat food applications. Operating on dual-sensor electrochemical (O₂) and non-dispersive infrared (NDIR) (CO₂) detection principles, the SCS354 delivers trace-level accuracy and high reproducibility without requiring carrier gases or external power sources. Its compact, ruggedized housing meets IP54 ingress protection standards, enabling reliable operation in cold storage rooms, production line environments, and third-party inspection labs. The analyzer is calibrated at the factory against NIST-traceable gas standards and maintains measurement stability across ambient temperatures from 5 °C to 40 °C—critical for post-harvest quality assurance workflows where thermal gradients are common.
Key Features
- Simultaneous real-time measurement of O₂ and CO₂ in a single 30 mL headspace sample—no gas splitting or sequential analysis required
- Electrochemical O₂ sensor with extended service life (>2 years typical), low cross-sensitivity to CO, NOₓ, and humidity; NDIR CO₂ sensor with integrated temperature and pressure compensation
- Integrated diaphragm sampling pump with adjustable flow rate (10–50 mL/min), eliminating manual syringe aspiration and reducing operator-induced variability
- On-board data logging (up to 1,000 measurements with timestamp, sample ID, and environmental metadata)
- Backlit graphical LCD display with intuitive menu navigation and real-time trend visualization
- Rechargeable Li-ion battery providing >8 hours of continuous operation; USB-C interface for firmware updates and data export
- Zero and span calibration accessible via front-panel controls using certified calibration gases (O₂ 0.0% and 20.9%, CO₂ 0.0% and 10.0%)
Sample Compatibility & Compliance
The SCS354 accommodates standard MAP configurations including sealed trays, vacuum-sealed pouches, thermoformed clamshells, and rigid plastic containers. A universal septum-piercing needle kit (included) enables direct headspace penetration without package opening—preserving integrity for subsequent shelf-life testing. The analyzer supports compliance-driven workflows aligned with FDA Food Safety Modernization Act (FSMA) preventive controls, USDA-FSIS Directive 7120.1 for MAP verification, and EU Regulation (EC) No 1935/2004 on materials in contact with food. Measurement uncertainty (k=2) is validated per ISO/IEC 17025 procedures by SCS’s accredited calibration laboratory. Instrument logs retain full audit trails meeting GLP/GMP documentation requirements, including user ID, calibration history, and environmental condition stamps.
Software & Data Management
Data export is supported via USB mass storage mode or optional Bluetooth 5.0 wireless transfer to the SCS Analytics Suite (Windows/macOS compatible). The software provides automated report generation compliant with ISO 22000 Annex SL structure, including statistical process control (SPC) charts, batch-level pass/fail flagging against user-defined O₂/CO₂ specification limits (e.g., O₂ ≤1.5%, CO₂ ≥12%), and PDF export with digital signature capability. Audit trail functionality records all configuration changes, calibration events, and data modifications in immutable format—fully aligned with FDA 21 CFR Part 11 electronic record and signature requirements.
Applications
- Verification of initial gas flush efficacy during MAP line start-up and changeovers
- Routine in-process checks at packing stations to detect seal integrity failures or gas mixer drift
- Stability monitoring of headspace composition over time in accelerated shelf-life studies
- Supplier qualification audits for contract packagers supplying pre-cut salads or fresh-cut fruit
- Root cause analysis of premature spoilage linked to residual O₂ ingress or CO₂ depletion
- Supporting HACCP plan validation for Critical Control Points related to atmospheric integrity
FAQ
What gas standards are required for routine calibration?
Certified zero air (O₂ 0.0%, CO₂ 0.0%) and span gases (O₂ 20.9%, CO₂ 10.0% in N₂ balance) traceable to NIST SRM 2659a or equivalent.
Can the SCS354 measure other gases such as N₂ or Ar?
No—the instrument is optimized exclusively for O₂ and CO₂ quantification in food-grade MAP environments; it does not support multi-gas expansion modules.
Is the sampling needle compatible with all common MAP film thicknesses?
Yes—the included stainless-steel needle (22G × 1.5″) penetrates films up to 250 µm thick, including multilayer PET/PE, PP, and EVOH barrier laminates.
How often should field calibration be performed?
Daily zero calibration is recommended before first use; span calibration every 8 hours or after exposure to extreme humidity or temperature shifts (>10 °C deviation).
Does the device meet regulatory requirements for export-controlled food facilities?
Yes—SCS354 units shipped to EU, Canada, Australia, and GCC countries include CE, ICES-003, RCM, and IECEE CB Scheme certifications; RoHS and REACH declarations are available upon request.
