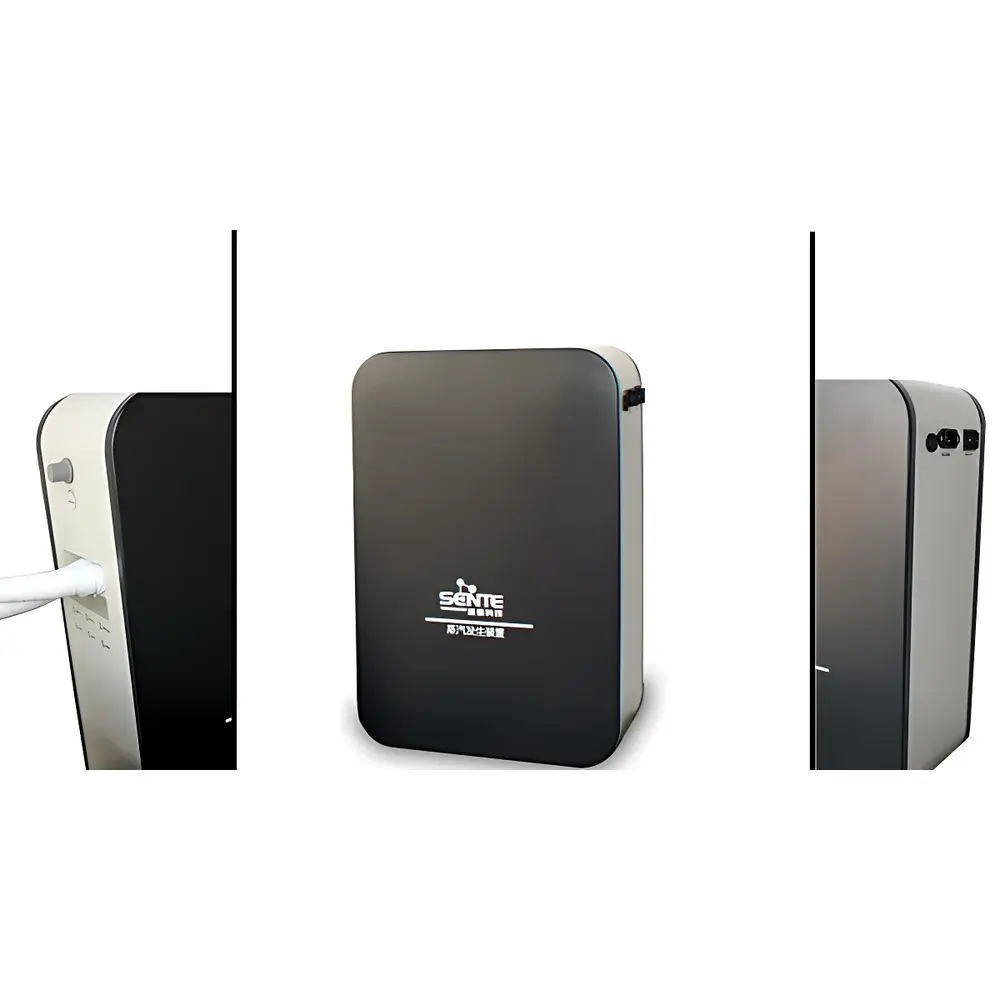

SENTE STER02 Intelligent Steam Generator

Overview

The SENTE STER02 Intelligent Steam Generator is an engineered solution for laboratories requiring precise, reproducible, and uninterrupted steam supply in steam distillation workflows. Unlike conventional glassware-based steam generation setups—which suffer from thermal instability, operator dependency, dry-run risk, and back-siphoning—the STER02 employs a closed-loop, pressure-regulated boiler system with integrated level sensing and PID-controlled heating. It generates saturated, particle-free steam at near-atmospheric pressure (≤100 kPa gauge), optimized for compatibility with downstream distillation modules such as the ST106-1RW Intelligent Integrated Distillation System. The device delivers six independent steam streams, each thermally isolated and individually valved, enabling parallel or staggered distillation runs without cross-contamination or flow interference. Its design adheres to fundamental principles of vapor-phase mass transfer, ensuring consistent steam quality essential for quantitative recovery of volatile analytes—including acetic acid, propionic acid, sulfur dioxide, volatile basic nitrogen (VBN), and cation exchange capacity (CEC) determinations.

Key Features

• Multi-channel steam output: Six dedicated steam outlets, each equipped with solenoid valves and real-time status indicators for individual on/off control and monitoring.
• Dry-run protection architecture: Ultrasonic water-level sensors continuously monitor reservoir volume; automatic shutdown and audible/visual alarm activate when level falls below operational threshold.
• Intelligent auto-refill system: Integrates with external deionized or purified water supply (e.g., Grade I water source) via gravity-fed or low-pressure inlet—refills only to pre-calibrated operational level, preventing overflow or thermal shock.
• Anti-siphon (anti-backflow) mechanism: Built-in check valves and differential pressure management eliminate condensate reflux into the boiler chamber—a critical safeguard for maintaining steam purity and extending heater lifespan.
• Rugged stainless-steel boiler core: Constructed from electropolished 316L stainless steel, resistant to scaling and corrosion under repeated thermal cycling; compatible with daily use in GLP-compliant environments.
• Front-panel digital interface: LED display shows real-time water level, operating temperature (98–100 °C range), active channel status, and fault codes—no PC required for basic operation.

Sample Compatibility & Compliance

The STER02 is designed exclusively for generating steam from pre-purified water sources meeting Grade I specifications per GB/T 6682–2008 (equivalent to ISO 3696:1987 Class 1 and ASTM D1193–06 Type I). It does not purify feed water; users must supply water with TOC < 5 ppb, silica < 1 ppb, and bacterial count 0.1 µm) relies entirely on upstream water purification integrity.

Software & Data Management

The STER02 operates as a standalone hardware platform with no embedded firmware-based data logging or remote connectivity. All operational parameters are monitored locally via front-panel indicators; no audit trail, electronic records, or 21 CFR Part 11 compliance features are included. For labs requiring traceability, integration with external Lab Information Management Systems (LIMS) is achievable only through optional analog signal outputs (0–10 V or 4–20 mA) for water level and temperature—configured via factory-set jumper options. User documentation includes calibration procedures for level sensor verification and preventive maintenance schedules aligned with ISO/IEC 17025:2017 clause 6.4.10 (equipment verification).

Applications

• Food safety testing: Quantitative steam distillation of sodium acetate, calcium propionate, and volatile basic nitrogen in dairy, meat, and bakery products per GB 5009 series standards.
• Pharmaceutical analysis: SO₂ residue determination in herbal materials using ChP 2015 General Chapter 2330 (Ion Chromatography Method II), where steam purity directly impacts chromatographic peak shape and recovery accuracy.
• Environmental soil testing: Cation exchange capacity (CEC) measurement via ammonium acetate–steam displacement, per ISO 11260 and USDA Soil Survey Laboratory Methods Manual.
• Research-scale method development: Enables controlled evaluation of steam-to-sample ratio, distillation time, and condensate collection efficiency across multi-vessel configurations.

FAQ

Does the STER02 generate purified steam, or must feed water be pre-purified?
Feed water must meet Grade I ultra-pure specifications prior to introduction—no onboard purification is performed.
Can steam temperature be adjusted above 100 °C?
No. The system operates at atmospheric saturation conditions (98–100 °C); it is not a pressurized steam generator.
Is the unit compatible with third-party distillation apparatuses beyond ST106-1RW?
Yes—any distillation module accepting 6–8 mm OD stainless steel or PTFE steam tubing and rated for ≤100 °C saturated steam input is mechanically and thermally compatible.
What maintenance intervals are recommended?
Boiler descaling every 200 operating hours (or quarterly, whichever occurs first) using 2% citric acid solution; water-level sensor cleaning biweekly with lint-free swab and deionized water.
Does the STER02 support GMP/GLP documentation packages?
It provides a Factory Acceptance Test (FAT) report and calibration certificate for water-level sensor; full qualification (IQ/OQ/PQ) must be conducted by the end user per their internal SOPs.
