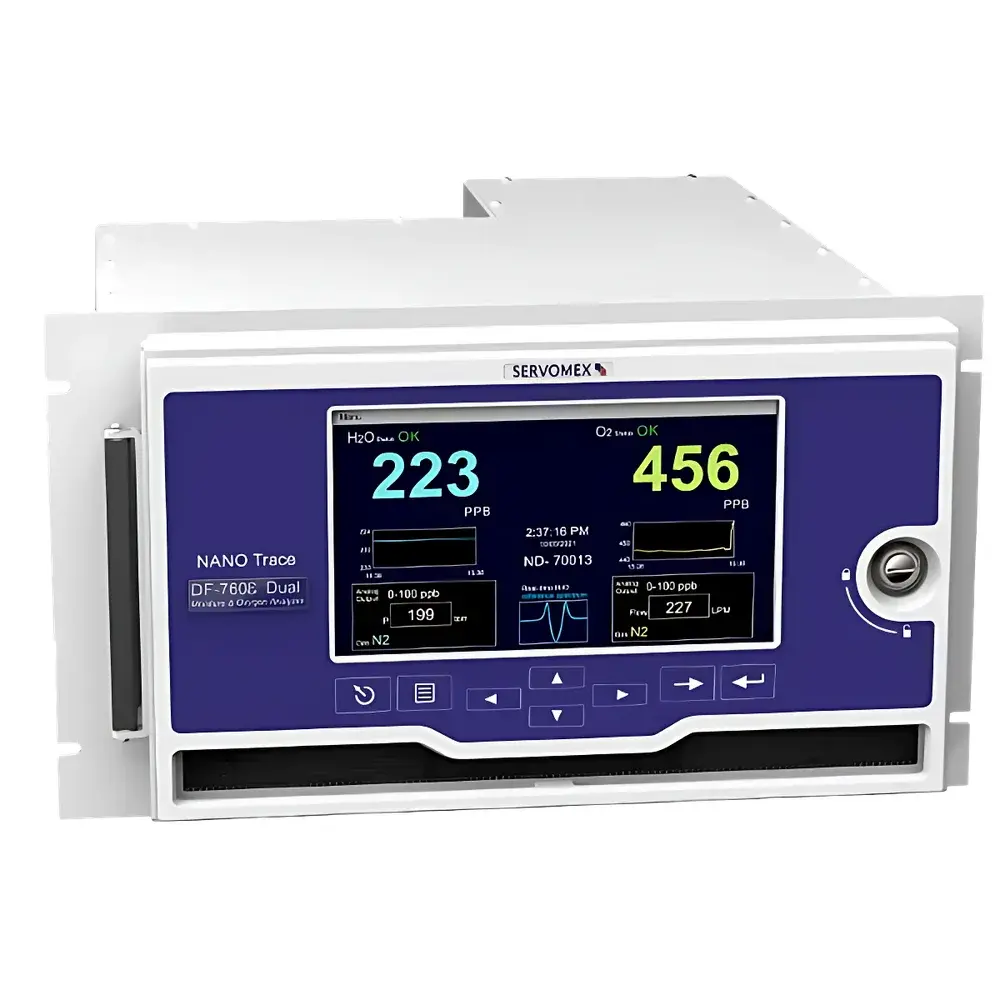

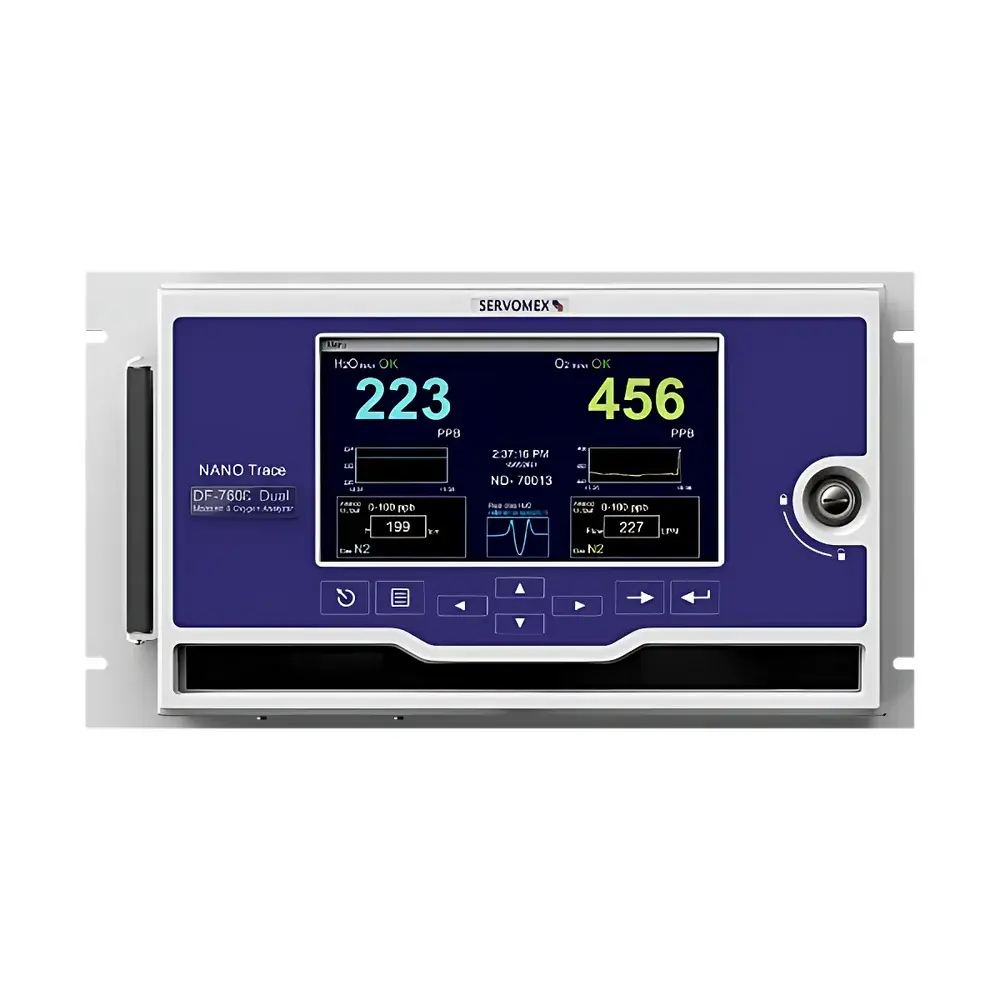

Servomex NanoTrace DF-760E Ultra-Trace Moisture and Oxygen Analyzer
| Brand | Servomex |
|---|---|
| Origin | USA |
| Model | NanoTrace DF-760E |
| Sensor Technology | Tunable Diode Laser Absorption Spectroscopy (TDLAS) for H₂O |
| Measurement Range | H₂O: 0–20 ppm to 0–2 ppb |
| O₂ | 0–20 ppm to 0–1 ppb |
| Response Time | <3 min @ 1 L/min (H₂O), <15 s @ 1 L/min (O₂) |
| Detection Limit | 100 ppt (H₂O) |
| Warranty | 5 years (O₂ sensor) |
| Gas Compatibility | N₂, H₂, He, Ar, O₂, and other high-purity electronic-grade gases |
| Certifications | Compliant with SEMI F57, ASTM D7443, ISO 8573-8, and suitable for FDA 21 CFR Part 11 environments with optional audit trail and user access control |
Overview
The Servomex NanoTrace DF-760E is an ultra-trace dual-parameter analyzer engineered for simultaneous, real-time quantification of moisture (H₂O) and oxygen (O₂) in high-purity electronic-grade process gases. It integrates two complementary, non-invasive sensing principles: tunable diode laser absorption spectroscopy (TDLAS) for sub-part-per-quadrillion (ppt) moisture detection, and a long-life electrochemical sensor for stable, non-consumptive oxygen measurement. Unlike traditional coulometric or chilled-mirror hygrometers, the DF-760E eliminates consumables, calibration drift, and cross-sensitivity to condensable hydrocarbons—critical advantages in semiconductor fab gas delivery systems where background purity exceeds 99.9999% (6N). Its optical path is sealed and temperature-stabilized, ensuring immunity to vibration, pressure fluctuation, and particulate interference. The instrument operates continuously under flow rates from 0.5 to 2.0 L/min, with full traceability to NIST-traceable standards via factory-certified calibration protocols.
Key Features
- Ultra-low detection limit of 100 ppt for H₂O using wavelength-scanned TDLAS at near-infrared absorption lines (e.g., 1368 nm), delivering inherent specificity and zero baseline drift
- Non-consumptive electrochemical O₂ sensor with 5-year warranty—no electrolyte replacement, no membrane degradation, and minimal zero-point drift (<±50 ppt/month)
- Modular Gen VII electronics architecture: field-replaceable laser module, CPU board, SSD, display assembly, gas filter cartridge, and pneumatic manifold—reducing mean time to repair (MTTR) to under 30 minutes
- Multi-gas compatibility validated per SEMI F57 guidelines: fully characterized performance across N₂, H₂, He, Ar, and O₂ carrier streams without reconfiguration or software recalibration
- Ruggedized aluminum enclosure rated IP65, designed for cleanroom-adjacent installation (Class 1000 ambient) and compliant with IEC 61000-6-2/6-4 EMC requirements
Sample Compatibility & Compliance
The DF-760E is qualified for use in Class 10 and Class 100 semiconductor manufacturing environments, supporting continuous monitoring of bulk gas supply lines feeding etch, deposition, and lithography tools. It meets the analytical rigor required by ISO 8573-8:2014 (compressed air purity — Part 8: Determination of solid particle, water and oil content) and ASTM D7443-22 (standard test method for trace moisture in gaseous samples by laser absorption). When configured with optional secure logging and role-based access control, the analyzer satisfies data integrity requirements of FDA 21 CFR Part 11 and EU Annex 11 for GMP-regulated gas qualification. All wetted materials—including 316L stainless steel gas path, electropolished fittings, and PFA-lined sample lines—are certified to SEMI C12 and ASTM A269 standards for ultra-high-purity service.
Software & Data Management
The embedded firmware supports dual-channel analog outputs (4–20 mA), Modbus TCP/IP, and EtherNet/IP for integration into DCS/SCADA platforms. The optional NanoTrace Connect software provides real-time trending, alarm management (configurable high/low and rate-of-change thresholds), and automated report generation compliant with GLP audit trails. Data storage includes timestamped raw absorbance spectra (for H₂O), sensor voltage logs (for O₂), and system health diagnostics—retained locally on encrypted SSD for ≥12 months. Remote firmware updates are authenticated via TLS 1.2, and all configuration changes are logged with user ID, timestamp, and pre-/post-value deltas.
Applications
- Real-time monitoring of nitrogen, hydrogen, and argon purge gases in wafer fabrication tool chambers
- Leak detection and integrity verification of gas distribution systems using dynamic O₂ ingress profiling
- Qualification of cylinder gas lots prior to inlet into bulk gas cabinets (BGCs)
- Validation of point-of-use purifiers and getter beds via differential moisture/O₂ breakthrough analysis
- Supporting ISO/IEC 17025 accredited calibration laboratories performing traceable gas purity certification
FAQ
Does the DF-760E require periodic sensor replacement or electrolyte refilling?
No—the O₂ sensor is non-consumptive and warrantied for five years; the TDLAS optical path contains no consumables or replaceable optical components during normal operation.
Can the analyzer be used for helium-based specialty gas blends?
Yes—performance has been verified across He matrices with <0.1% CO₂ and <1 ppm total hydrocarbons, per SEMI F57 Annex B validation protocols.
Is remote diagnostics supported?
Yes—via secure HTTPS interface and SNMPv3 traps; OEM-level diagnostic logs (including laser drive current, photodiode gain, and thermal stabilization error) are accessible through authenticated API endpoints.
How is measurement uncertainty quantified?
Total expanded uncertainty (k=2) is ±3% of reading for H₂O (≥100 ppt) and ±2% of reading for O₂ (≥100 ppt), as documented in the Certificate of Conformance shipped with each unit.
What certifications accompany shipment?
Each unit ships with NIST-traceable calibration certificate, RoHS/REACH declaration, CE marking documentation, and SEMI-compliance statement signed by Servomex Quality Assurance.
