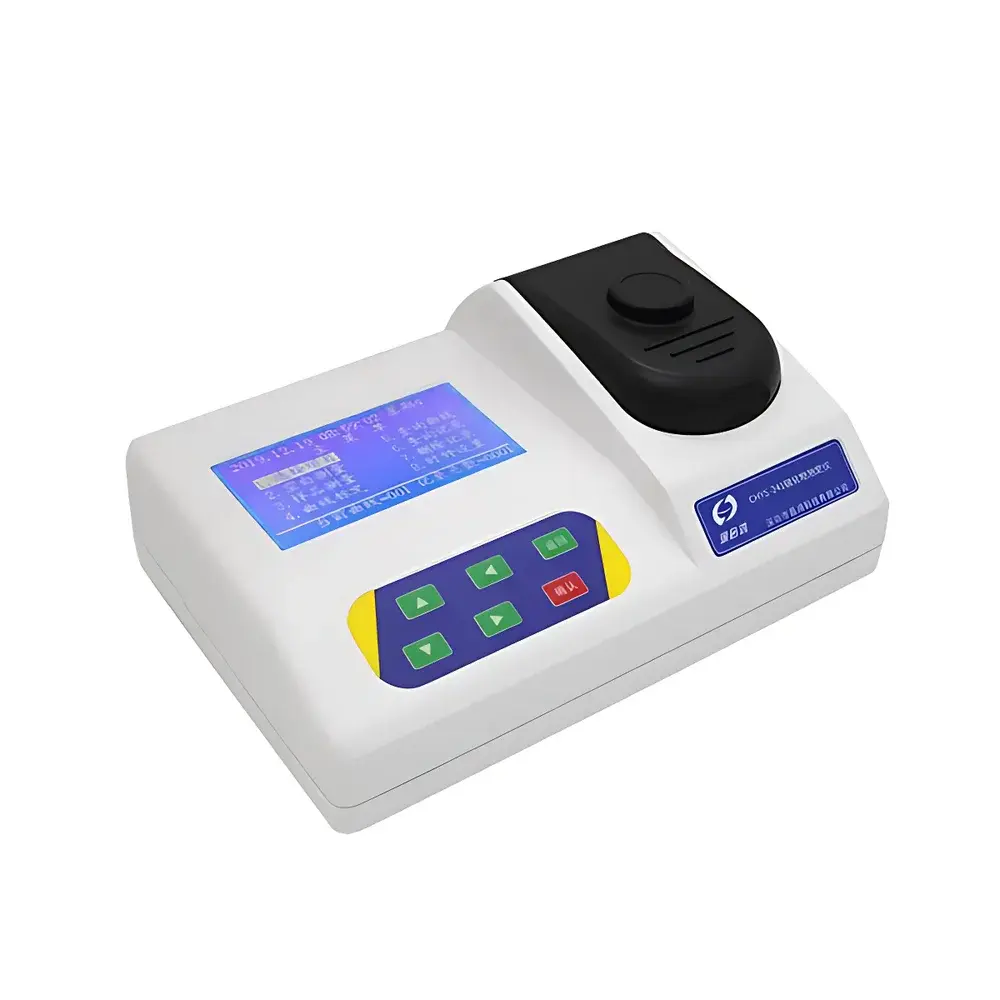

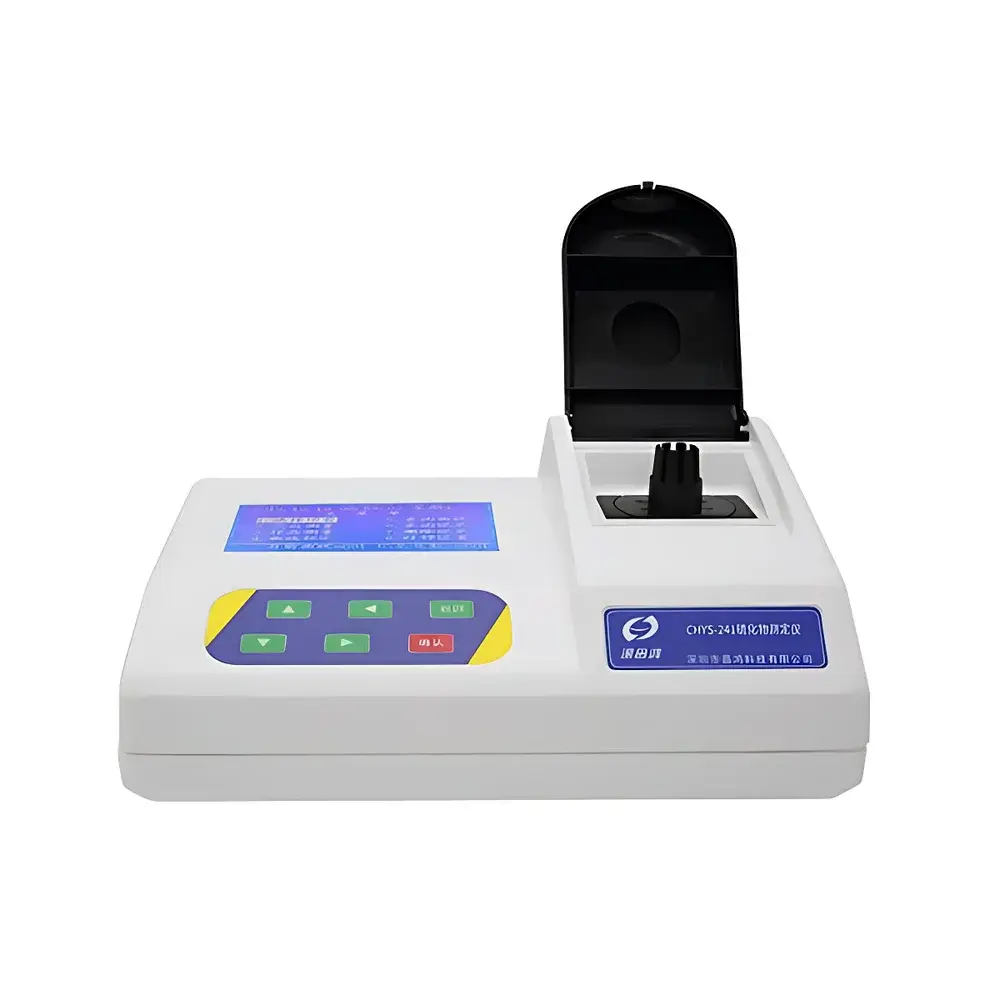

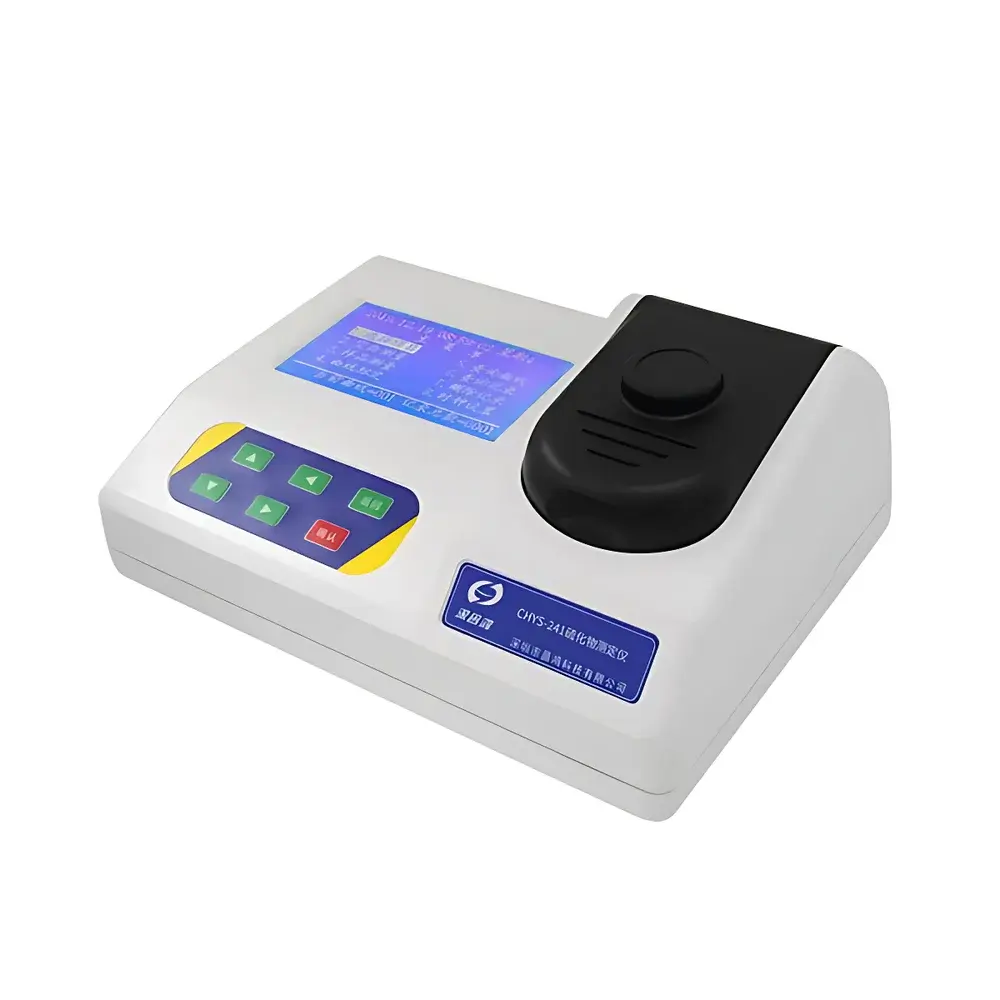

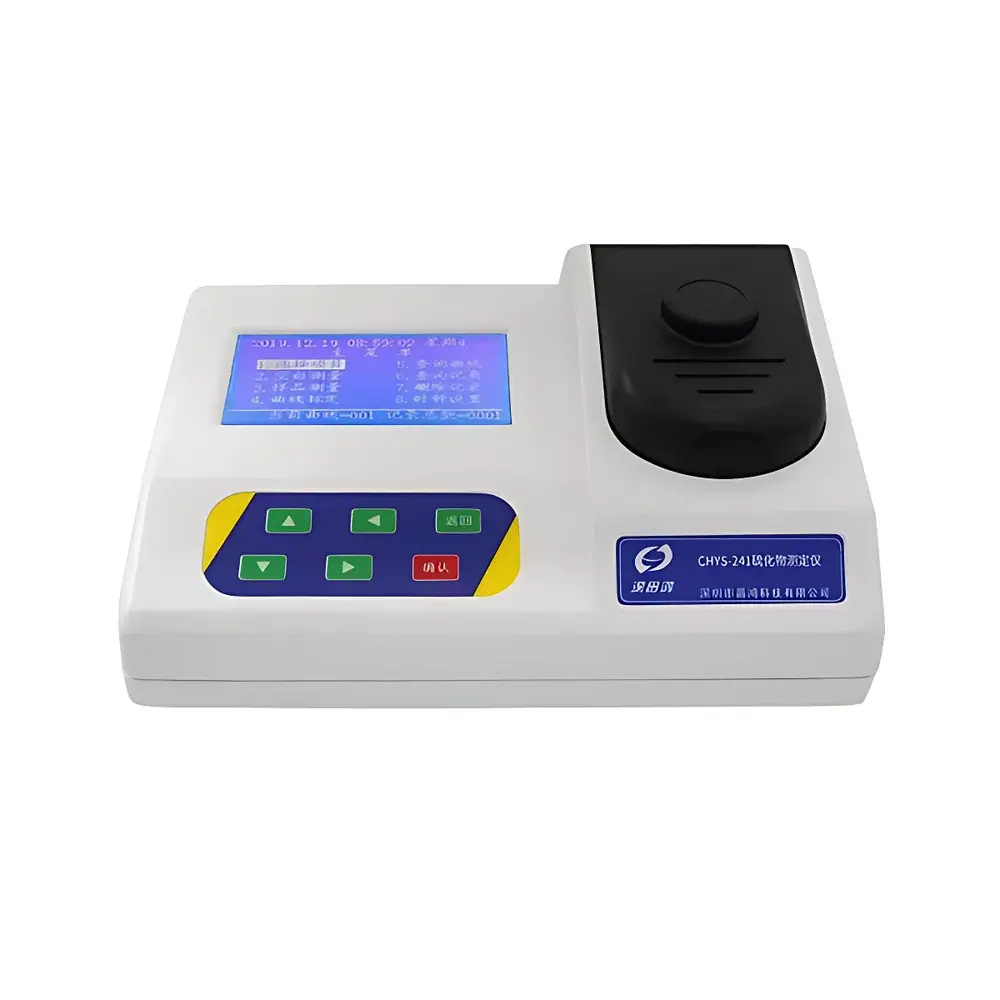

Shenchanghong CHYS-241 Sulfide Analyzer

Overview

The Shenchanghong CHYS-241 Sulfide Analyzer is a benchtop spectrophotometric instrument engineered for the quantitative determination of total dissolved sulfide (as S²⁻) in clear, suspended-particle-free aqueous samples. It operates on the principle of methylene blue colorimetry—where sulfide ions react with N,N-dimethyl-p-phenylenediamine sulfate and ferric chloride under acidic conditions to form a stable, quantifiable blue chromophore (methylene blue) with peak absorbance at 665 nm. This method conforms to standard environmental analytical protocols including EPA Method 376.1 and ISO 10585:1991 (Water quality — Determination of sulfide — Methylene blue spectrophotometric method). Designed for routine analysis in municipal water laboratories, environmental monitoring stations, and wastewater treatment QC facilities, the CHYS-241 delivers reliable, trace-level sulfide quantification within the legally relevant range for drinking water (WHO guideline: ≤ 0.02 mg/L) and effluent discharge limits (e.g., China’s GB 8978–1996 Class I: ≤ 1.0 mg/L).

Key Features

• High-stability optical system featuring a long-life (≥100,000 h), high-luminance imported LED light source coupled with precision narrow-band interference filters—ensuring minimal spectral drift and immunity to ambient light interference.
• Integrated 16-bit low-power microcontroller architecture enabling precise photometric signal acquisition, real-time baseline correction, and robust thermal compensation across ambient temperatures (10–35 °C).
• Backlit monochrome LCD display with full Chinese-language menu navigation—optimized for operator efficiency in bilingual laboratory environments without requiring English fluency.
• Dual calibration capability: pre-loaded factory-certified calibration curve (NIST-traceable standards) plus up to 10 user-defined calibration sets stored in non-volatile memory for method-specific validation or matrix-matched standardization.
• Durable housing constructed from post-molded ABS polymer—resistant to corrosion from common reagents (e.g., HCl, FeCl₃, DPD reagent) and mechanically stable during daily transport between lab benches and field deployment carts.
• Low thermal load design (30 W max power draw) and compact footprint (266 × 200 × 130 mm) enable seamless integration into space-constrained QA/QC labs or mobile environmental testing units.

Sample Compatibility & Compliance

The CHYS-241 is validated for use with clarified liquid matrices meeting ISO 5667-3:2018 criteria for sample pretreatment: potable water, surface water (rivers, lakes), groundwater, and treated wastewater effluents free of turbidity (>90% transmittance at 665 nm) and suspended solids (<5 mg/L). Samples must be preserved with zinc acetate and sodium hydroxide (per ASTM D3590) prior to analysis and analyzed within 24 hours. The instrument supports compliance with national regulatory frameworks including China’s HJ 482–2009 (Environmental Monitoring Technical Specification for Sulfide in Water) and international quality management systems—its data integrity architecture aligns with GLP documentation requirements, and its fixed-wavelength photometry eliminates wavelength calibration drift concerns inherent in scanning spectrophotometers.

Software & Data Management

Data output is managed via internal flash memory capable of storing ≥500 test records, each timestamped and tagged with operator ID, calibration batch number, and raw absorbance values. No proprietary software or USB drivers are required; results export via optional RS-232 serial interface (ASCII format) compatible with LIMS platforms such as LabWare LIMS or Thermo Fisher SampleManager. Audit trails—including calibration history, zero-point verification logs, and error flags (e.g., “out-of-range absorbance”, “reagent expiration warning”)—are retained for ≥12 months and support internal QA reviews. While not FDA 21 CFR Part 11-compliant out-of-the-box (lacking electronic signature modules), the device meets core ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) when operated with controlled procedural documentation.

Applications

• Drinking water safety verification per GB 5749–2022 (China’s Sanitary Standard for Drinking Water, limit: 0.02 mg/L).
• Effluent compliance monitoring at municipal WWTPs against discharge permits (e.g., HJ 970–2018).
• Groundwater contamination assessment near industrial sites or landfills where sulfate-reducing bacteria activity may elevate sulfide levels.
• Educational laboratories conducting EPA Method 376.1 validation exercises and undergraduate environmental chemistry experiments.
• Field-deployable backup unit for emergency response teams assessing odor-causing compounds in stormwater overflows.

FAQ

What sample pretreatment is required before analysis?
Samples must be preserved immediately upon collection with zinc acetate and NaOH, then filtered through a 0.45 µm membrane filter if turbid. Acidification is performed just prior to analysis per HJ 482–2009.
Can the CHYS-241 measure sulfide in seawater?
No—high chloride interference suppresses methylene blue formation. For saline matrices, distillation pretreatment (per ISO 10585 Annex B) is mandatory prior to CHYS-241 analysis.
Is periodic wavelength calibration necessary?
No—the fixed 665 nm LED source eliminates wavelength drift; only annual photometric verification using neutral density filters is recommended.
How often should the factory calibration curve be re-verified?
At minimum, before each analytical batch—and whenever reagent lots change or after instrument transport—as per ISO/IEC 17025:2017 Clause 7.7.1.
Does the instrument support automatic dilution?
No—samples exceeding 1.00 mg/L require manual dilution with sulfide-free deionized water and subsequent recalculation; the CHYS-241 does not integrate fluidic automation.
