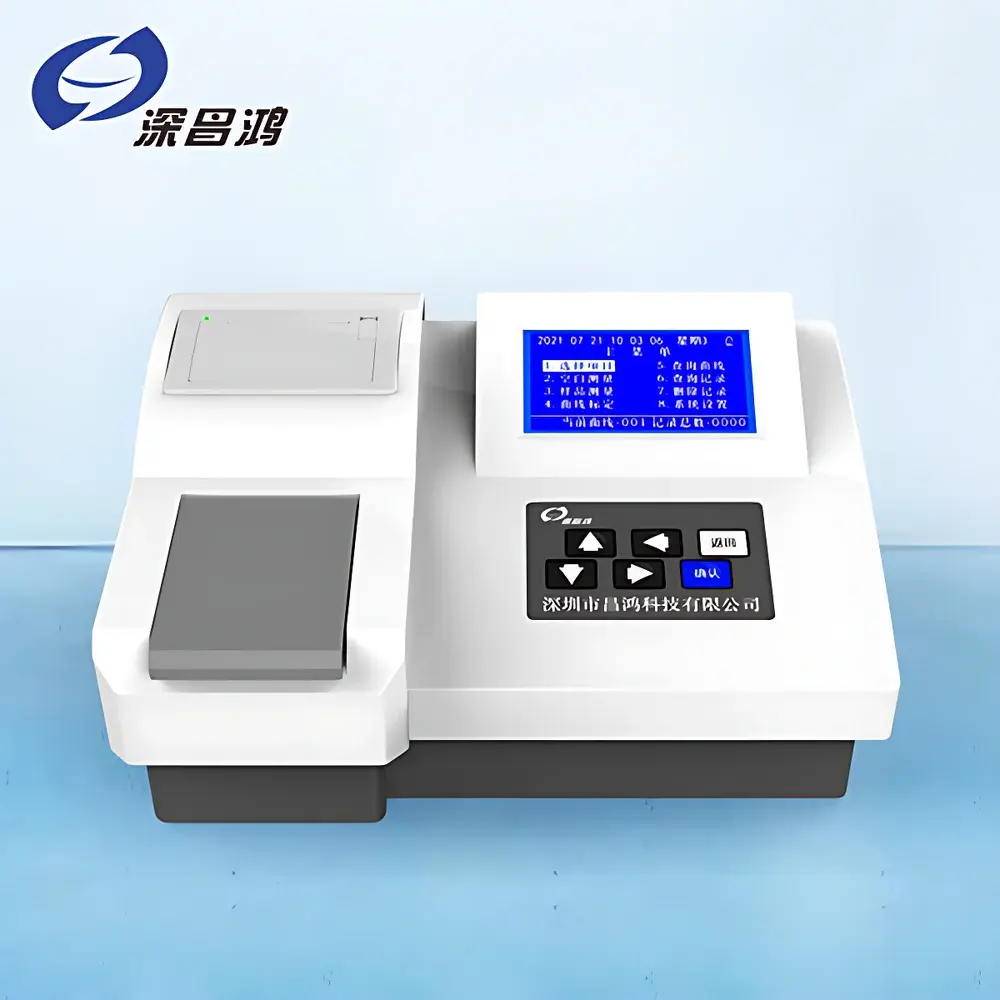

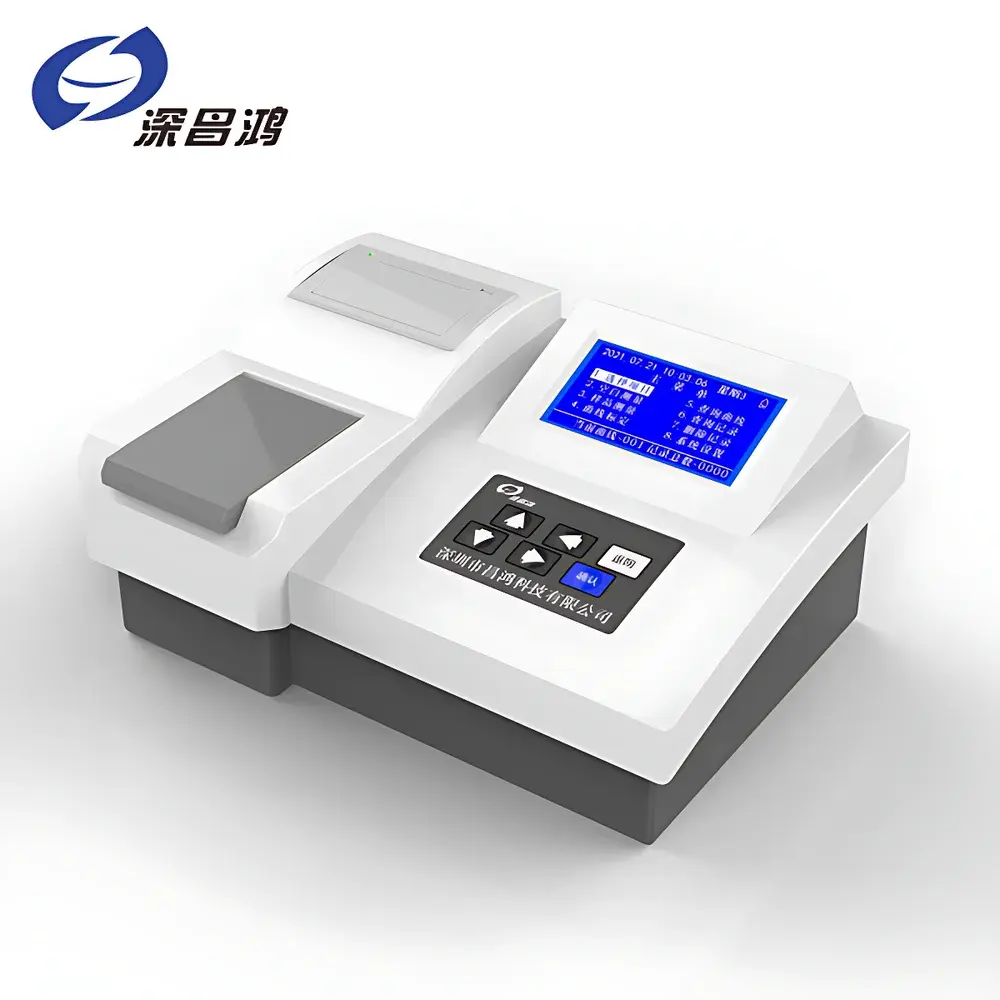

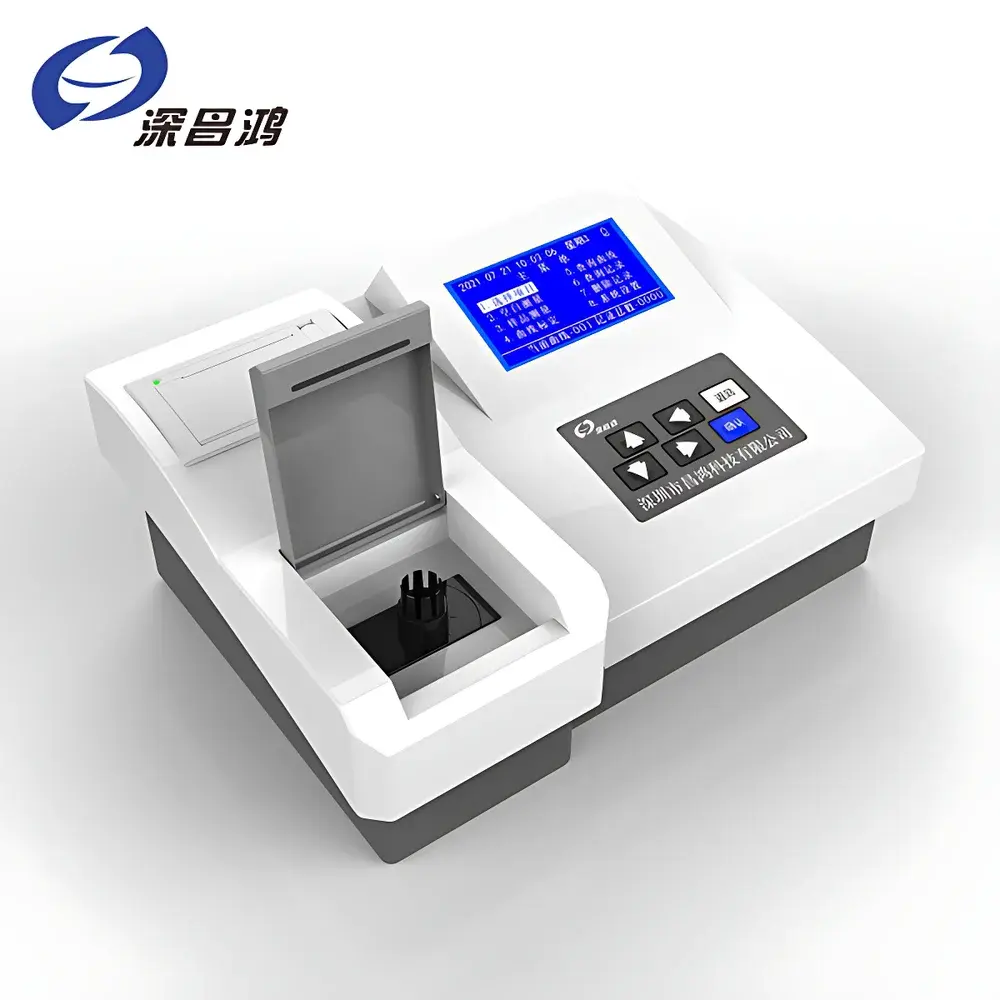

Shenchanghong TN-3A Total Nitrogen Analyzer

Overview

The Shenchanghong TN-3A Total Nitrogen Analyzer is a dedicated laboratory spectrophotometric instrument engineered for accurate, reliable quantification of total nitrogen (TN) in aqueous environmental samples. It operates on the fundamental principle of ultraviolet–visible (UV-Vis) absorption spectroscopy, applying the Lambert-Beer law to correlate measured absorbance at specific wavelengths—typically in the 220 nm and 275 nm spectral regions—with TN concentration after high-temperature alkaline persulfate digestion. This method conforms to standard protocols referenced in ISO 11908:2015 (Water quality — Determination of total nitrogen — Alkaline persulfate oxidation spectrophotometric method) and aligns with U.S. EPA Method 351.2 for total Kjeldahl nitrogen (TKN) and oxidizable nitrogen species. The system separates digestion and optical measurement functions into two physically independent modules—a design choice that eliminates thermal interference, ensures long-term photometric stability, and supports strict analytical traceability required in regulated environmental testing environments.

Key Features

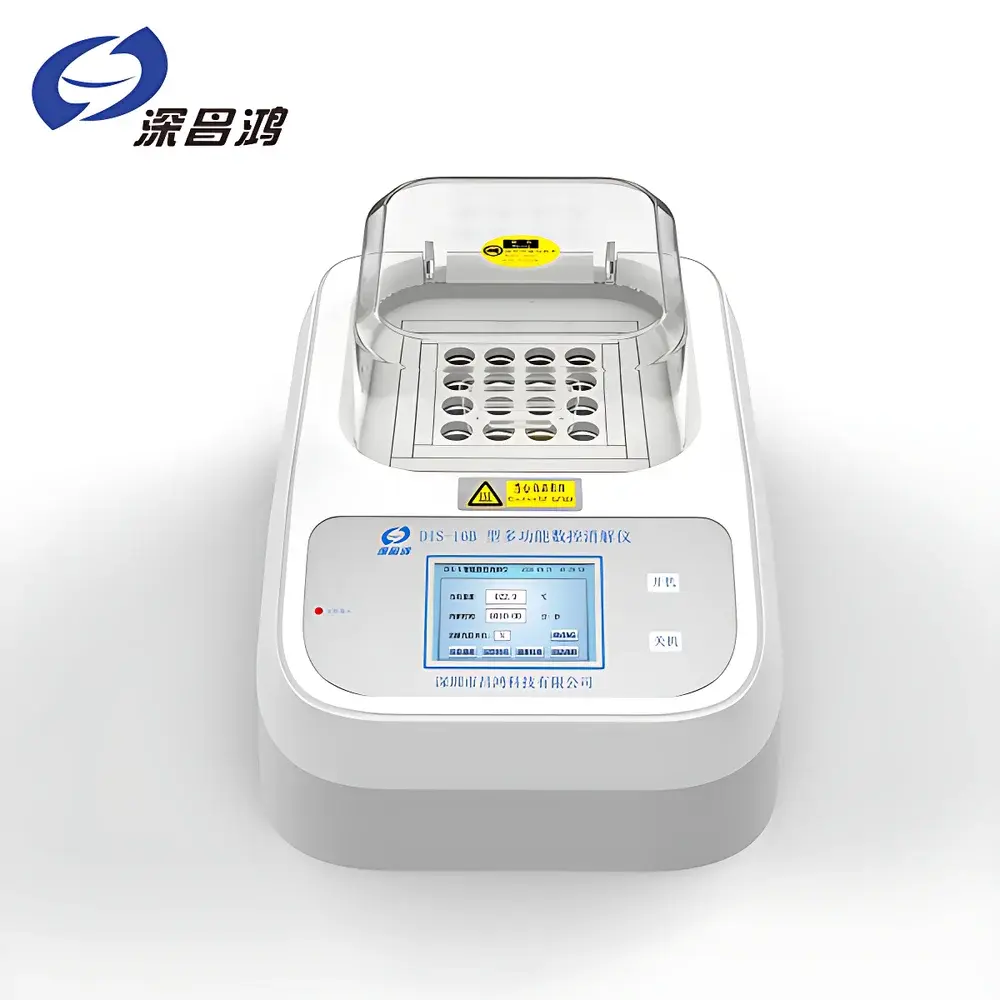

• Dual-module architecture: Independent digestion unit (with PID-controlled heating up to 200 °C) and spectrophotometric analyzer—prevents thermal drift during absorbance measurement and enhances inter-run reproducibility.
• High-stability optical system: Features imported U.S.-sourced long-life LED light source (rated >100,000 hours), narrow-band interference filters, and cold-light illumination—minimizing baseline drift (<0.002 A/20 min) and enabling consistent performance across extended operation cycles.
• Flexible digestion control: Programmable temperature (ambient to 200 °C) and time (1–120 min) settings allow adaptation to alternative oxidation protocols (e.g., for nitrate/nitrite interference correction or method validation).
• Robust data integrity framework: Built-in non-volatile memory retains 20 user-defined calibration curves and up to 1000 measurement records; includes power-failure protection to safeguard calibration parameters and raw data.

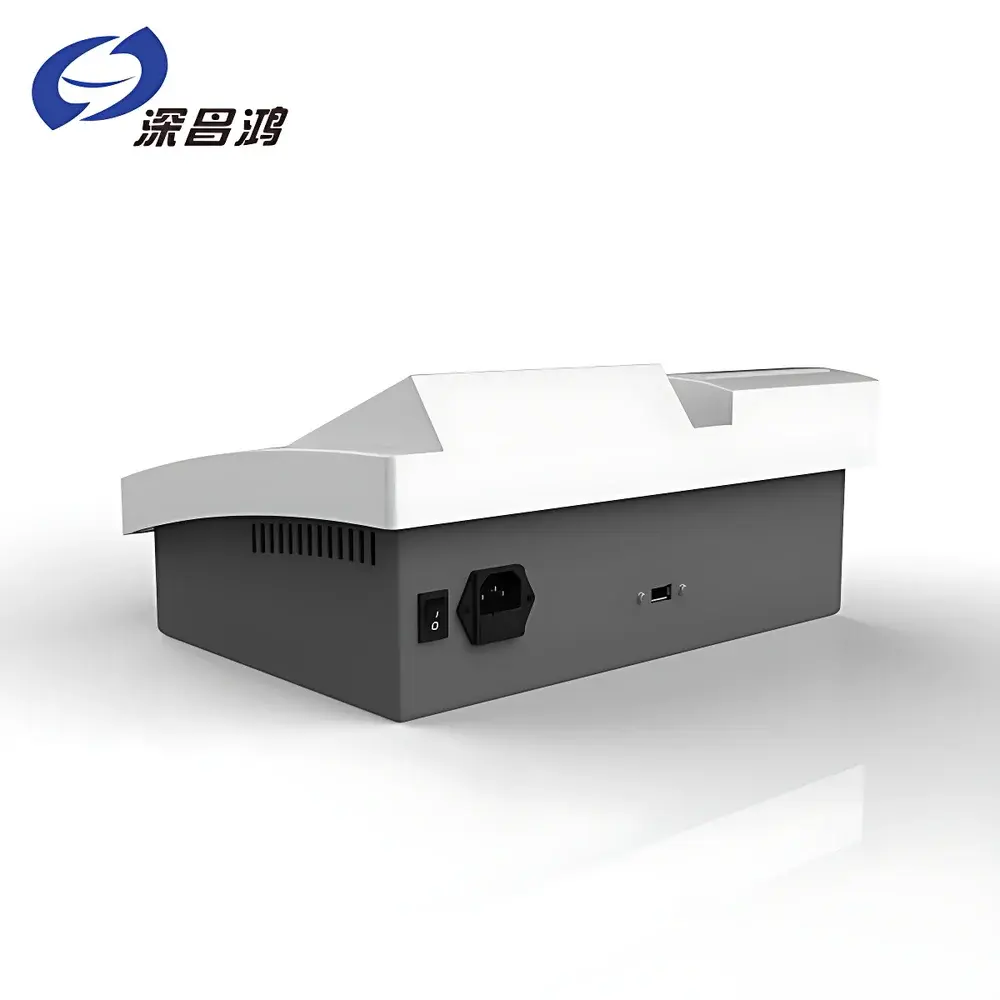

• Regulatory-ready interface: USB port enables secure export of timestamped measurement logs compliant with GLP documentation requirements; optional data acquisition software supports audit trail generation and CSV export for LIMS integration.
• Ergonomic human-machine interface: Backlit LCD display with bilingual (Chinese/English) menu navigation, intuitive soft-key operation, and on-screen real-time digestion progress monitoring.

Sample Compatibility & Compliance

The TN-3A is validated for use with surface water, groundwater, wastewater effluent, and treated municipal discharges. Its dual-range detection capability (0.05–10 mg/L and 10–100 mg/L) accommodates both low-concentration natural waters and high-load industrial influents, with dilution functionality extending effective upper limits. All digestion vessels are made from borosilicate glass resistant to alkaline persulfate corrosion at 125 °C. The instrument meets GB/T 32203–2015 (Chinese national standard for water quality analyzers) and supports compliance with ISO/IEC 17025:2017 clause 7.2.2 (method validation) when operated with certified reference materials (CRMs) and documented uncertainty budgets. While not FDA 21 CFR Part 11–certified out-of-the-box, its data export architecture allows integration with validated third-party electronic lab notebook (ELN) systems supporting electronic signatures and audit trails.

Software & Data Management

Data collection and reporting are supported via included Windows-compatible software distributed on optical disc. The application enables curve fitting (linear, quadratic, or polynomial), automatic range-switching between low- and high-concentration modes, and generation of QC reports including spike recovery, blank subtraction, and within-run precision statistics. Raw absorbance values, digestion timestamps, operator ID fields, and calibration history are stored with embedded metadata. Export formats include .csv and .xlsx, facilitating import into statistical analysis platforms (e.g., Minitab, JMP) or regulatory submission packages. No cloud connectivity or remote access is implemented—ensuring full local data sovereignty and alignment with institutional cybersecurity policies.

Applications

• Environmental monitoring agencies conducting routine TN surveillance under national water quality standards (e.g., China’s GB 3838–2002 Class III–V criteria).
• Wastewater treatment plants performing daily influent/effluent TN verification prior to discharge permitting compliance checks.
• Academic and research laboratories studying nitrogen cycling in aquatic ecosystems, eutrophication modeling, or denitrification kinetics.
• Third-party testing labs requiring ISO/IEC 17025–accredited TN determination for client reporting and interlaboratory comparison studies.
• Industrial facilities implementing internal water stewardship programs aligned with CDP Water Security or SASB Environmental Standards.

FAQ

What digestion method does the TN-3A employ?
It uses alkaline potassium persulfate oxidation at 125 °C for 30 minutes, converting all nitrogen species (organic N, NH₄⁺, NO₂⁻, NO₃⁻) to nitrate prior to UV absorbance measurement.
Can the instrument measure total phosphorus as well?
No—the TN-3A is purpose-built for total nitrogen only. Shenchanghong offers separate TP-3A and combined TP/TN models for multi-parameter analysis.
Is method validation documentation provided?
Yes—factory test reports include linearity (R² ≥ 0.999), limit of detection (LOD = 0.02 mg/L), and precision (RSD ≤ 2.1% at 5 mg/L) verified using NIST-traceable potassium nitrate CRMs.
How is calibration performed?
Users select from 20 preloaded curves or create custom calibrations using at least three standard concentrations; slope and intercept are automatically calculated and stored with date/time stamps.
What maintenance is required for long-term accuracy?
Annual verification of optical path integrity and digestion temperature uniformity is recommended; replacement of digestion tubes every 500 cycles maintains consistent UV transmission.
