Shenkai SKY1003-IVA Fully Automated Kinematic Viscosity Tester

Overview

The Shenkai SKY1003-IVA Fully Automated Kinematic Viscosity Tester is an engineered solution for precise, repeatable, and regulatory-compliant kinematic viscosity measurement of petroleum-based fluids in accordance with ASTM D445, ISO 3104, GB/T 265, and related international standards. It operates on the capillary efflux principle—measuring the time required for a fixed volume of liquid to flow under gravity through a calibrated Ubbelohde-type capillary viscometer immersed in a thermostatically controlled bath. This method remains the globally accepted reference for kinematic viscosity determination in refinery QC, lubricant formulation, and used-oil analysis laboratories. The SKY1003-IVA integrates advanced thermal management, intelligent sample handling, and metrologically traceable timing to deliver measurement reproducibility within ±0.35% RSD across its full 0.5–10,000 mm²/s range—meeting or exceeding the precision requirements specified in ASTM D445 Annex A1 for manual and automated systems.

Key Features

• iSKvator™ automation architecture enabling fully unattended operation: automatic sample aspiration, bath temperature equilibration, capillary immersion, efflux timing, post-test solvent rinse, and air-drying of the viscometer—eliminating operator intervention between runs.
• Proprietary modified Ubbelohde capillary viscometers with 100× viscosity range coverage per tube, reducing tube-change frequency and calibration overhead.

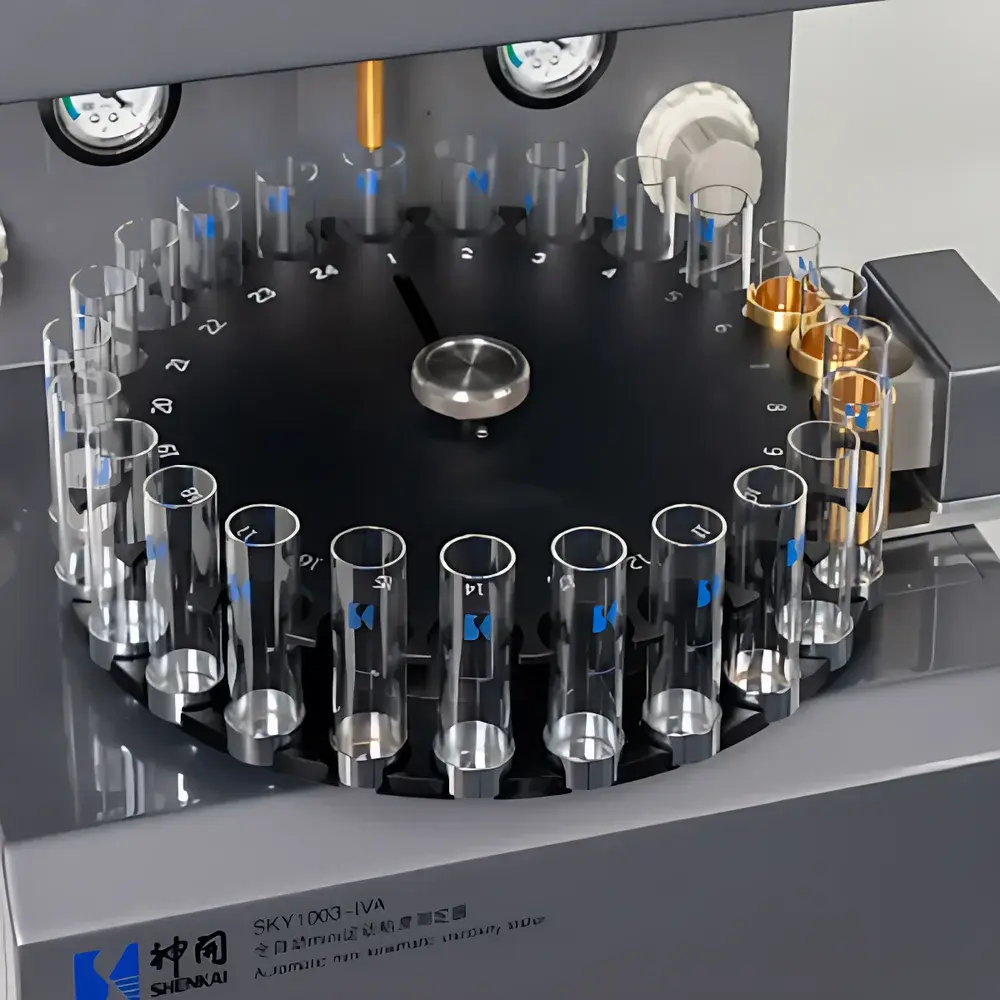

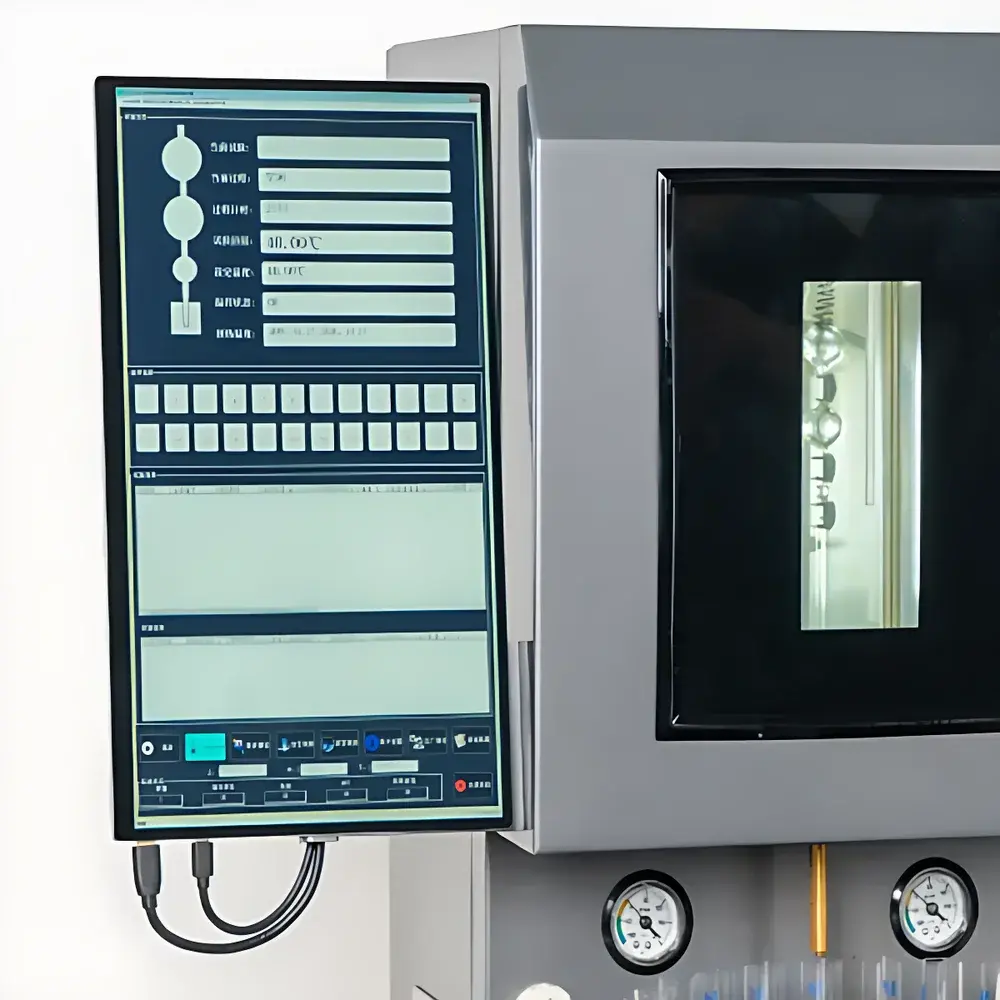

• 24-position carousel auto-sampler with queue management logic—supports priority insertion, batch reordering, and real-time status feedback via the integrated 15.6″ capacitive touchscreen HMI.
• Dual-zone preheating system (central + lateral) optimized for waxy crudes and high-viscosity residuals, enabling controlled thermal conditioning prior to capillary introduction without premature gelation or sediment disturbance.
• NTC-based high-stability temperature sensing with active drift compensation—immune to optical interference from sample color, turbidity, or ambient lighting, ensuring consistent performance across transparent, dyed, and opaque samples.
• Dual-solvent programmable cleaning module with adjustable dwell time, flow rate, and cycle count—compatible with chlorinated, aromatic, and polar solvents—including aggressive agents such as xylene and trichloroethylene.
• Filtered dry-air drying system maintaining residual solvent levels below 5 ppm—critical for preserving capillary geometry integrity and preventing carryover-induced bias in sequential measurements.

Sample Compatibility & Compliance

The SKY1003-IVA is validated for kinematic viscosity testing of crude oils, distillates (gasoline, kerosene, diesel), residual fuels (IFO 180, IFO 380), base oils, finished lubricants, additive packages, and in-service engine/oil samples—including heavily degraded or sludge-laden specimens. Its robust construction incorporates chemical-resistant wetted materials (e.g., PTFE-lined valves, borosilicate glass viscometers, stainless-steel bath housing), enabling safe use with common cleaning solvents per ASTM D445 Section 7.2. All firmware and data handling routines comply with GLP and GMP documentation requirements: audit trails record user ID, timestamp, parameter modifications, calibration events, and raw efflux times. Optional 21 CFR Part 11 compliance mode provides electronic signature support, role-based access control, and immutable data archiving—facilitating FDA-regulated lubricant stability studies and API licensing submissions.

Software & Data Management

The embedded Windows-based operating system hosts a dedicated viscosity analysis suite supporting full instrument configuration, method development, and result reporting. Key software capabilities include: automatic viscosity index (VI) calculation per ASTM D2270; multi-point temperature calibration of both bath and NTC sensors; individual capillary constant verification and correction; customizable test templates with conditional logic (e.g., “if viscosity > 500 cSt, activate lateral preheat”); and LIMS integration via TCP/IP or USB export (CSV, PDF, XML). All raw timing data, temperature logs, and event sequences are timestamped and stored locally with SHA-256 hash integrity verification. Historical datasets support statistical process control (SPC) charting, trend analysis, and deviation flagging against user-defined specification limits.

Applications

This instrument serves core quality control and research functions across upstream, midstream, and downstream petroleum operations. Typical use cases include: incoming inspection of crude blends and feedstocks; viscosity grading of lubricant basestocks per ISO VG classification; oxidative stability assessment via viscosity change monitoring in ASTM D943 or D2272 tests; evaluation of fuel thinning/thickening during cold soak or thermal aging; and forensic analysis of engine oil degradation in field service labs. Its rapid 10–15 minute cycle time (including cleaning and drying) enables high-throughput screening in contract testing laboratories accredited to ISO/IEC 17025.

FAQ

What standards does the SKY1003-IVA fully support?
ASTM D445, ASTM D446, ISO 3104, ISO 3105, IP 71, GB/T 265, and GB/T 30515—with documented validation reports available upon request.
Can the instrument handle highly viscous or wax-prone samples without manual intervention?
Yes—its dual-zone preheating system (RT–95 °C) and programmable thermal ramp profiles prevent wax crystallization during aspiration and ensure homogeneous sample delivery to the capillary.
Is external PC connectivity required for routine operation?
No—the integrated industrial-grade computer and touchscreen interface enable standalone method execution, data review, and report generation without any external host device.
How is measurement traceability maintained across multiple capillary viscometers?
Each viscometer is individually certified with a unique calibration constant; the software enforces mandatory constant entry and cross-references it against logged efflux times to compute kinematic viscosity per ν = C × t.
What maintenance intervals are recommended for long-term accuracy?
Capillary verification every 6 months (or after 500 tests), NTC sensor calibration annually, and bath fluid replacement every 24 months—procedures aligned with ISO/IEC 17025 clause 6.4.6.
