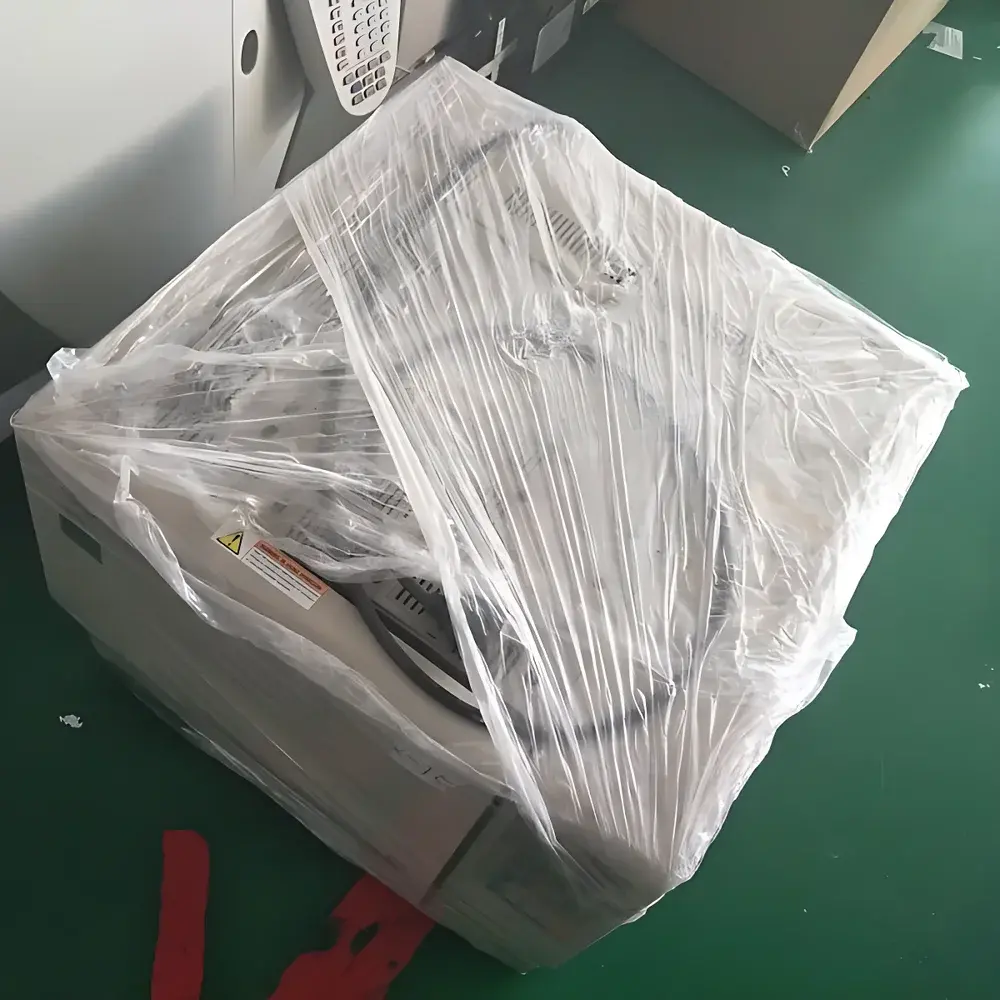

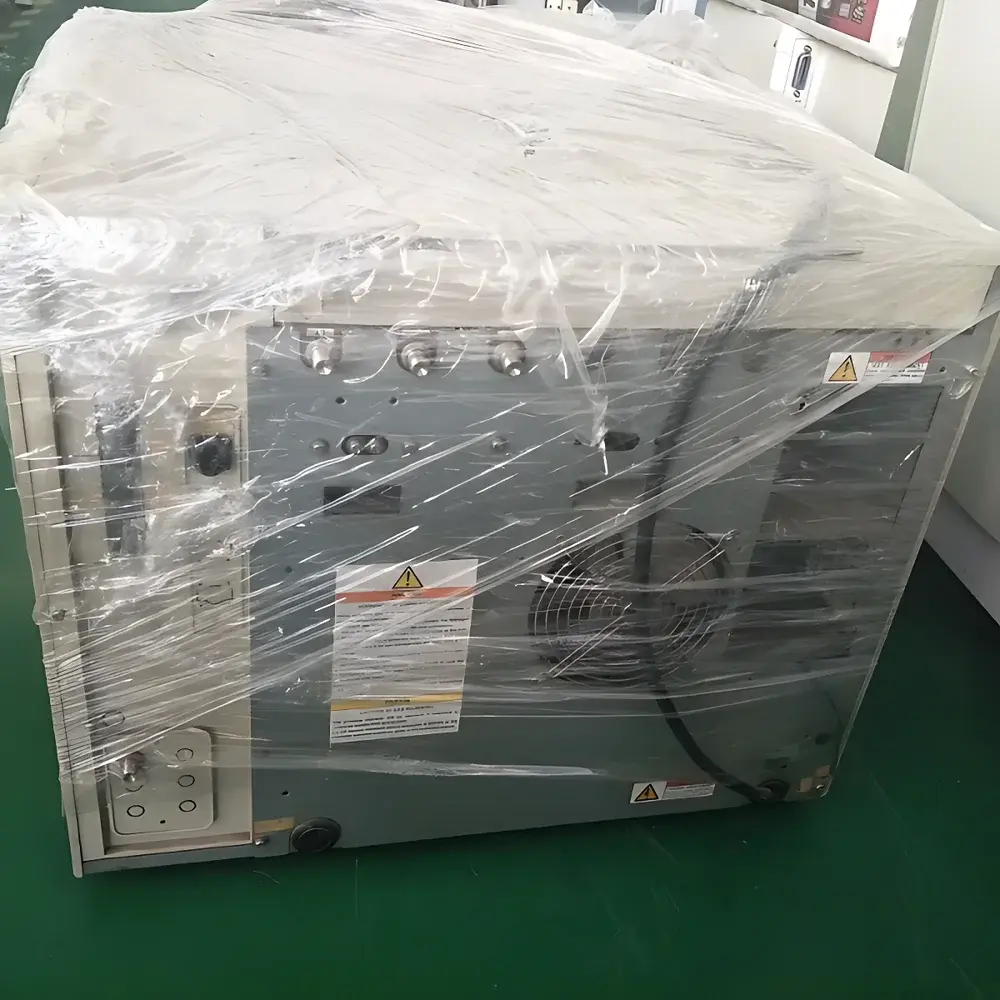

Shimadzu GC-17A Gas Chromatograph Maintenance and Repair Service

Overview

The Shimadzu GC-17A is a high-performance gas chromatograph originally introduced in the late 1990s, engineered for robust routine analysis in QC laboratories, environmental testing facilities, and petrochemical R&D environments. As a legacy platform built on Shimadzu’s proprietary Advanced Pressure Control (APC) and Advanced Flow Control (AFC) architecture, the GC-17A employs dual digital pressure/flow regulation to deliver precise, reproducible carrier gas management—critical for method transfer, retention time stability, and quantitative accuracy. Its all-electronic pneumatic control system eliminates mechanical regulators and analog solenoids, enabling programmable multi-segment pressure, flow, and temperature ramps. Though discontinued by Shimadzu, the GC-17A remains widely deployed globally due to its mechanical durability, modular design, and compatibility with CLASS-GC10 data systems and C-R7A integrators. This service offering focuses exclusively on post-warranty technical support—including diagnostics, component-level repair, firmware recovery, and full-system refurbishment—performed by engineers certified in Shimadzu legacy instrumentation.

Key Features

• Full APC/AFC pneumatic architecture: Digital control of inlet pressure, split ratio, makeup gas, and detector gases (H₂, air, N₂)
• High-temperature oven: Capable of ramping to 450 °C with ±0.01 °C isothermal stability
• Dual FID configuration with auto-ignition and wide linear dynamic range (10⁷)
• Micro-cell TCD with enhanced sensitivity for permanent gas analysis (detection limit < 10 ppm)
• Programmable thermal gradients: Up to five temperature segments, five pressure segments, and five flow segments per run
• Integrated auto-start and auto-shutdown functions to reduce operator intervention and energy consumption
• Native compatibility with Shimadzu CLASS-GC10 software and C-R7A chromatographic integrators via RS-232 or optical fiber interface
• Modular design supporting AOC-20i (6-position) or AOC-20s (100-position) autosamplers

Sample Compatibility & Compliance

The GC-17A supports standard capillary and packed column configurations (0.1–0.53 mm ID, up to 60 m), accommodating common stationary phases including polydimethylsiloxane (DB-1, HP-1), polar cyanopropylphenyl (DB-1301, HP-624), and porous polymer PLOT columns (Al₂O₃/KCl, MS 5A). Its detector outputs meet ASTM D3606 (benzene/toluene in gasoline), ISO 8573-5 (compressed air hydrocarbon testing), and EPA Method 8021B (halogenated organics) requirements when operated under validated conditions. All maintenance procedures adhere to GLP principles: technicians document every diagnostic step, part replacement, calibration point, and functional verification test. Full audit trails—including pressure decay logs, baseline noise reports, and retention time repeatability metrics—are retained for regulatory review. While not 21 CFR Part 11–compliant out-of-the-box, optional CLASS-GC10 upgrades with electronic signatures and user access controls are available upon request.

Software & Data Management

Maintenance includes firmware integrity verification and restoration of original GC-17A operating firmware (v3.x series). The service covers reinstallation and configuration of Shimadzu’s native GC-17A Chinese-language remote control software, ensuring full bidirectional communication between host PC and instrument modules. For laboratories transitioning to modern platforms, we provide raw data export from C-R7A memory cards (via RS-232 or parallel port) into ASCII or CSV formats compatible with OpenLab CDS, Chromeleon, or custom Python-based processing pipelines. All software reinstalls include license validation, driver updates, and network stack verification for TCP/IP-enabled CLASS-GC10 deployments. No third-party or cracked software is installed; only Shimadzu-authorized binaries are used.

Applications

• Hydrocarbon profiling in fuels and lubricants (ASTM D5186, D6730)
• Volatile organic compound (VOC) analysis in ambient air and workplace monitoring (NIOSH 1501, OSHA 21)
• Residual solvent quantification in pharmaceutical excipients (ICH Q3C)
• Trace impurity detection in industrial gases (ISO 8573-5, CGA G-4.1)
• Monomer purity assessment in polymer manufacturing (e.g., vinyl chloride, styrene)
• Food flavor and fragrance compound screening using headspace-GC/FID

FAQ

Do you stock original Shimadzu GC-17A spare parts?
Yes—we maintain an inventory of critical OEM components including APC solenoid valves, FID jet assemblies, oven fan motors, column oven heaters, and main PCBs sourced from decommissioned units and authorized surplus channels.
Can you restore a non-booting GC-17A with corrupted firmware?
Yes. Our technicians perform low-level EEPROM reprogramming and flash memory recovery using Shimadzu’s proprietary JTAG interfaces and factory service utilities.
Is on-site repair available outside Beijing?
On-site support is offered across Tier-1 Chinese cities (Shanghai, Guangzhou, Shenzhen, Tianjin) with 48-hour dispatch; remote diagnostics and shipping logistics coordination are included for all other locations.
What documentation is provided after service completion?
A signed Certificate of Performance Verification is issued, listing all replaced parts (with serial numbers where applicable), calibration constants, pressure/flow test results, and baseline noise/retention time repeatability data per ICH Q2(R2) guidelines.
Do you offer extended warranty or service contracts?
Yes—annual preventive maintenance agreements include two scheduled visits, priority response SLA (12-hour remote, 48-hour on-site), and discounted labor rates for unplanned repairs.
