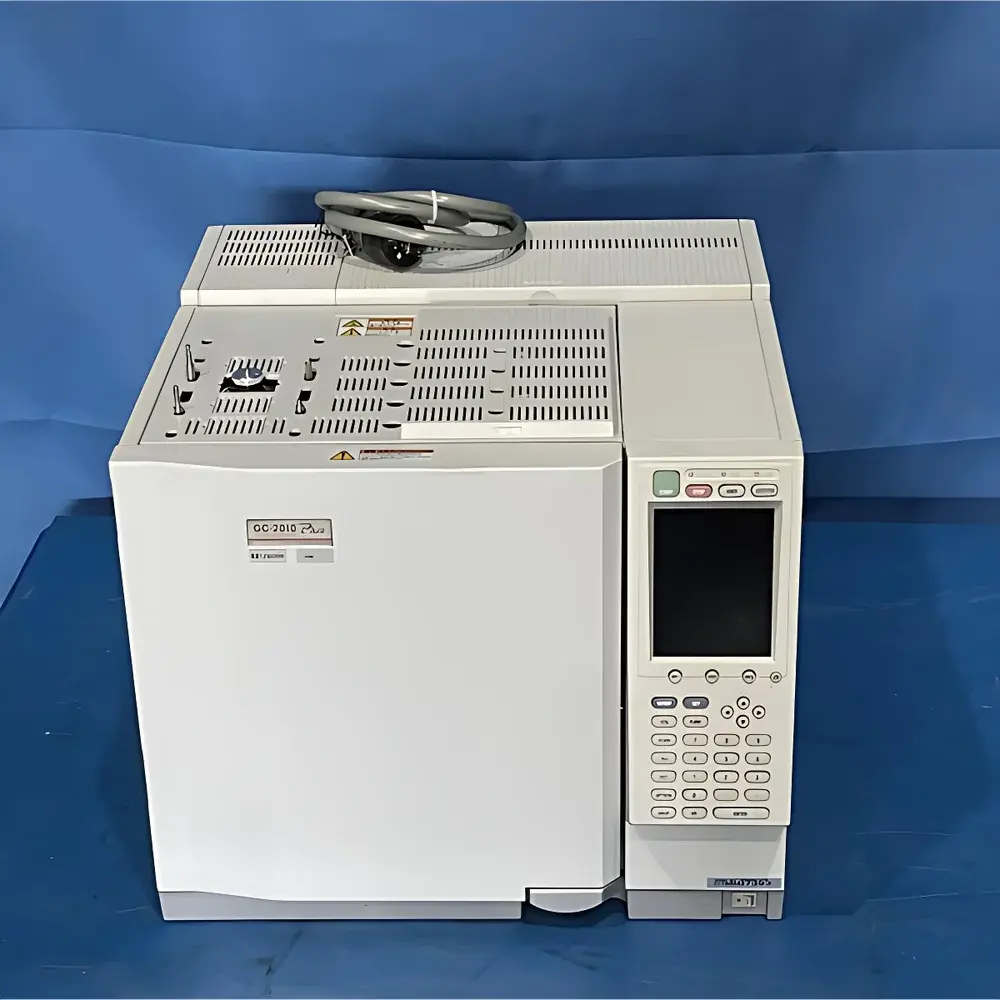

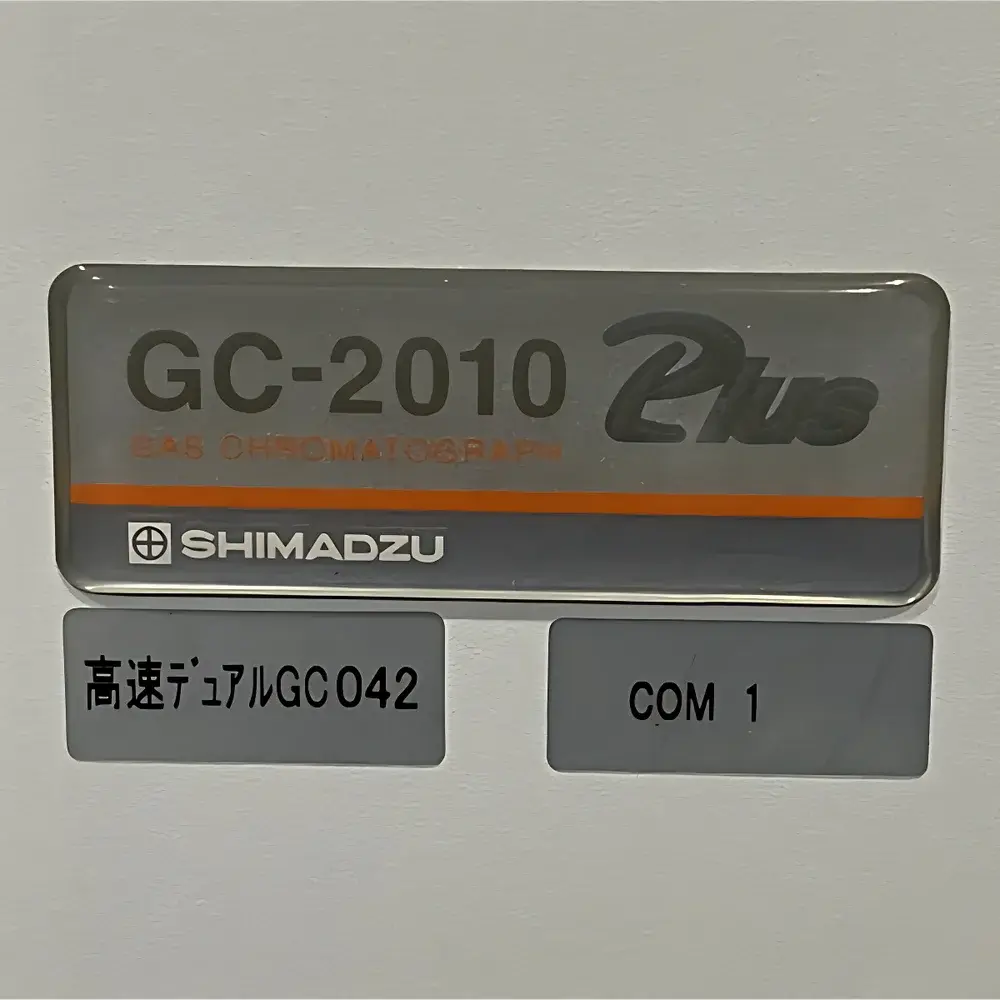

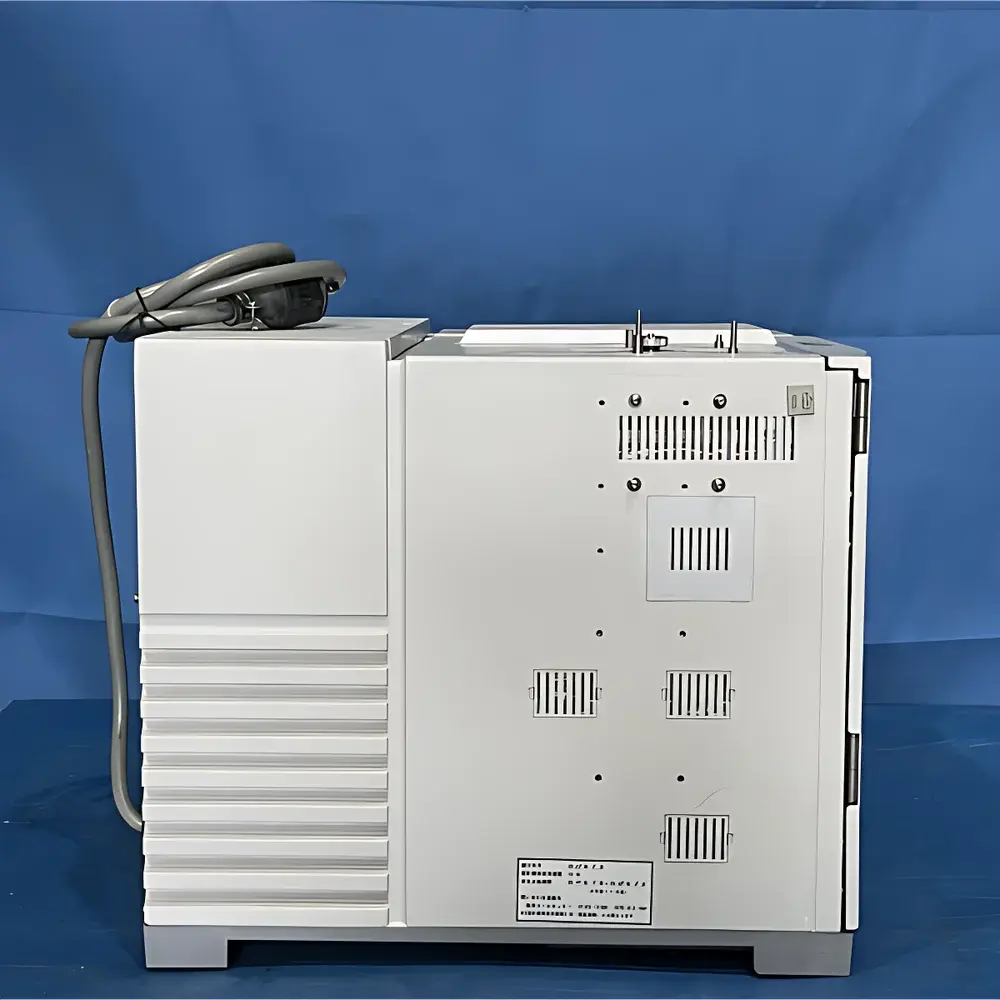

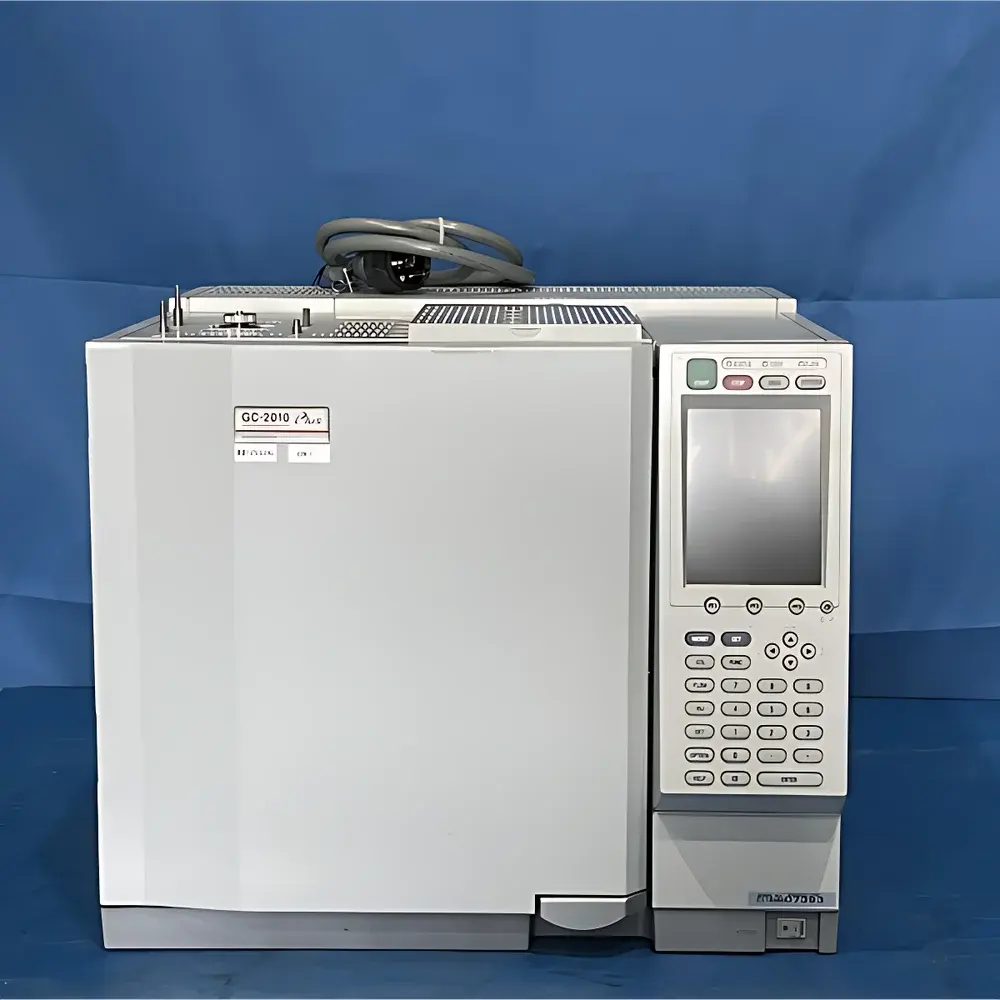

Shimadzu GC-2010Plus Used Gas Chromatograph

Overview

The Shimadzu GC-2010Plus is a high-performance, modular gas chromatograph originally engineered for demanding routine and regulatory-compliant analysis in environmental, food safety, pharmaceutical, and agrochemical laboratories. As a used instrument sourced directly from Japanese laboratory decommissioning channels, this GC-2010Plus retains full mechanical integrity and firmware compatibility with Shimadzu’s Class Analyst and LabSolutions software ecosystems. Its core architecture is based on precise pneumatic control via Advanced Flow Controller (AFC) technology, enabling reproducible carrier gas linear velocity maintenance across temperature ramps—a critical requirement for retention time stability in multi-method workflows. The system employs proven column oven design with dual independent cooling fans and optimized airflow dynamics, achieving rapid thermal equilibration (450°C → 50°C in ≤3.4 minutes), which significantly reduces cycle time in high-throughput screening applications such as pesticide residue testing per NY/T 761–2008.

Key Features

• Rapid Column Oven Cooling: Integrated high-efficiency fan array and thermally isolated chamber design enable sub-4-minute cooldown from maximum operating temperature—critical for labs running >50 injections/day.
• Advanced Flow Technology (AFT): Includes programmable backflush capability to expel late-eluting interferences after target analyte detection, reducing total run time and column contamination without compromising peak integrity.

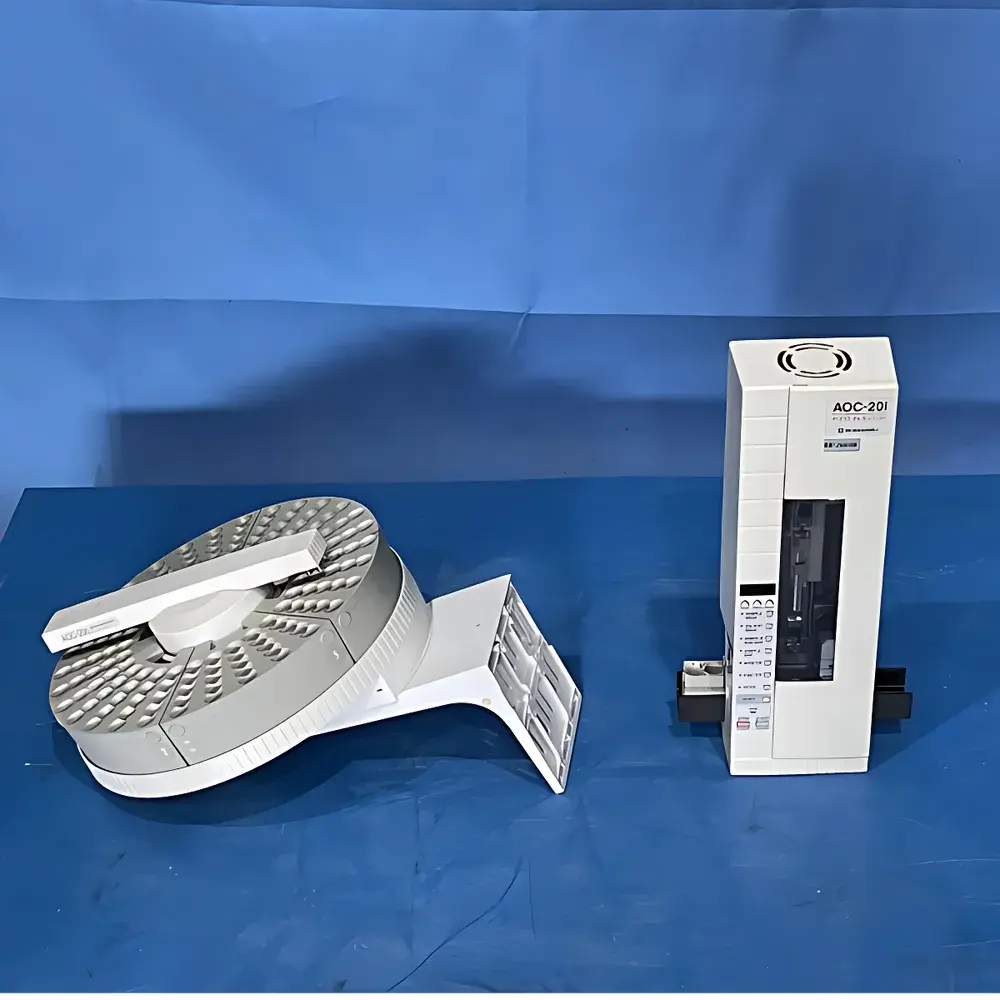

• Dual Independent Autosampling: Configured with two AOC-20i liquid samplers and one AOC-20s solid-phase microextraction (SPME) or headspace-compatible autosampler, supporting parallel injection sequences and method-independent sample introduction.
• Multi-Detector Flexibility: Supports up to four independently temperature-controlled detectors (FID, ECD, FPD, TCD, FTD/NPD) with electronic pressure control (APC), allowing simultaneous acquisition of complementary selectivity data for confirmatory analysis.
• Comprehensive Self-Diagnostic Suite: Real-time monitoring of heater circuits, sensor calibration status, gas supply pressures, and valve actuation cycles—generating audit-ready logs for GLP/GMP environments.
• Carrier Gas Conservation Mode: Automatically modulates split flow post-injection (e.g., from 50 mL/min to 5 mL/min), reducing helium or hydrogen consumption by >90% per analysis without affecting sensitivity or resolution.
• Enhanced Safety Architecture: Hydrogen inlet fittings use left-hand (reverse) thread specification with engraved directional indicators to prevent misconnection—a hardware-level safeguard aligned with ISO/IEC 80079-36 explosion protection guidelines.

Sample Compatibility & Compliance

The GC-2010Plus accommodates diverse sample introduction modalities—including split/splitless, on-column, programmed temperature vaporization (PTV), and direct injection—making it suitable for volatile organic compounds (VOCs), semi-volatiles (SVOCs), residual solvents, fatty acid methyl esters (FAMEs), and multiclass pesticide residues. Its detector sensitivity profiles meet or exceed minimum performance criteria outlined in ASTM D3612 (FID for hydrocarbons), EPA Method 8081B (ECD for organochlorines), and ISO 11843-2 (detection limit validation). When operated with LabSolutions CS v5.9x or later and configured with 21 CFR Part 11-compliant user access controls, electronic signatures, and immutable audit trails, the system satisfies analytical data integrity requirements for regulated quality control laboratories.

Software & Data Management

Instrument control, sequence management, and quantitative reporting are executed through Shimadzu’s LabSolutions platform (GC-only or GC/MS versions). Raw data files (.gcd) are stored in vendor-neutral format compatible with third-party processing tools including Chromeleon CDS and OpenLab CDS. All method parameters—including oven ramp profiles, detector gain settings, AFC pressure/flow programs, and integration event tables—are fully exportable/importable as XML templates. Audit trail functionality records operator ID, timestamp, parameter changes, and result modifications with cryptographic hashing to ensure non-repudiation—essential for FDA inspection readiness and internal QA review processes.

Applications

• Multi-residue pesticide analysis in fruits, vegetables, and grains per NY/T 761–2008 and EU SANTE/11312/2021 guidelines
• Volatile impurity profiling in pharmaceutical intermediates (ICH Q3C)
• Hydrocarbon speciation in petrochemical feedstocks (ASTM D5186, D6730)
• Residual monomer quantification in polymer manufacturing (ISO 10567)
• Environmental monitoring of PCBs, PAHs, and chlorinated benzenes in soil/water extracts (EPA 8082, 8270)
• Flavor and fragrance compound identification using FID/FPD dual detection

FAQ

Is this GC-2010Plus unit certified for use in GLP or GMP environments?
Yes—when deployed with LabSolutions CS v5.9+ and configured with role-based access control, electronic signatures, and enabled audit trail logging, the system meets core technical requirements of OECD GLP Principles and FDA 21 CFR Part 11.
What documentation accompanies the used instrument?
Each unit ships with original factory calibration certificates (where available), complete service history log (if provided by prior owner), Shimadzu hardware manuals (English), and verified firmware version report.
Can I upgrade the detector configuration post-purchase?
All detector bays and gas lines are mechanically and electrically compatible with current Shimadzu GC detector modules; upgrades require only physical installation and firmware license activation.
Does the system include a computer and software license?
No—LabSolutions software licensing and host PC procurement are customer-responsible; however, we provide verified hardware compatibility specifications and installation support guidance.
What is the expected remaining service life of a used GC-2010Plus?
Units sourced from low-utilization academic or government labs typically retain >70,000 operational hours on critical subsystems (oven heater, AFC valves, detector filaments); full preventive maintenance and component refurbishment options are available upon request.
