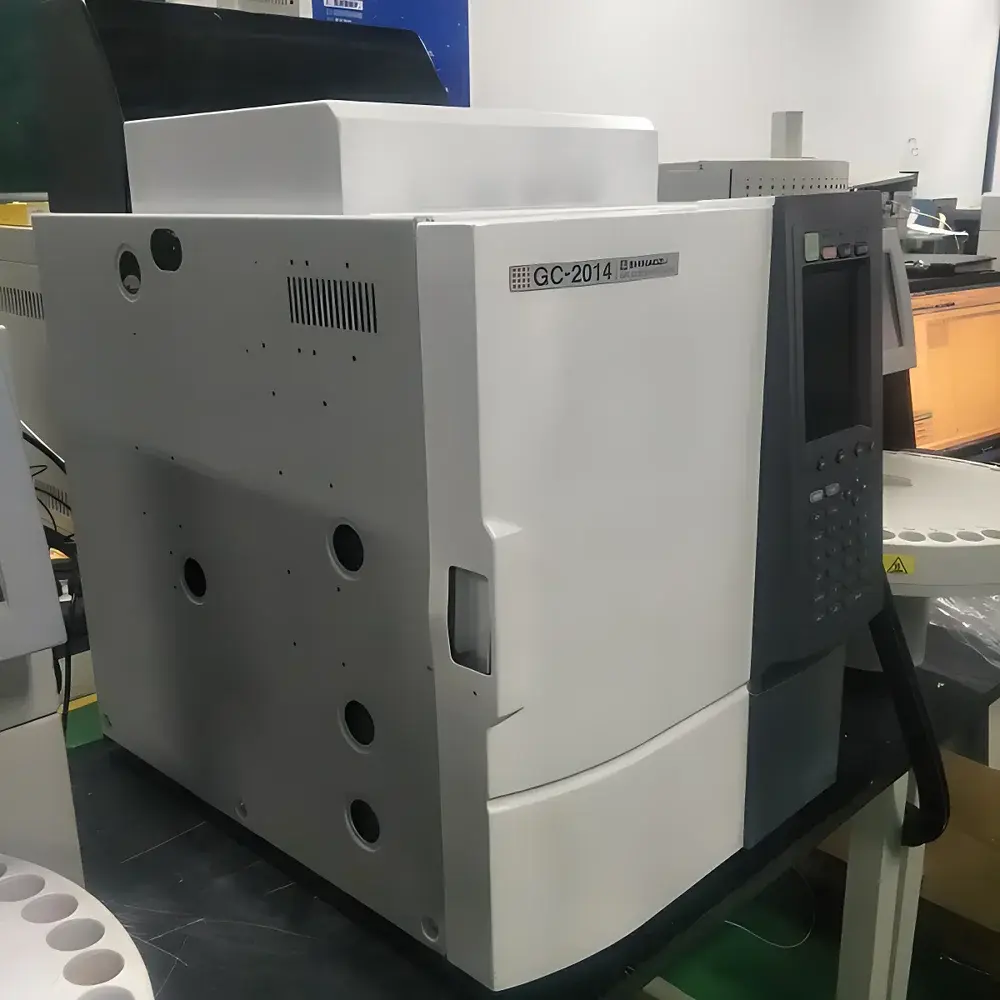

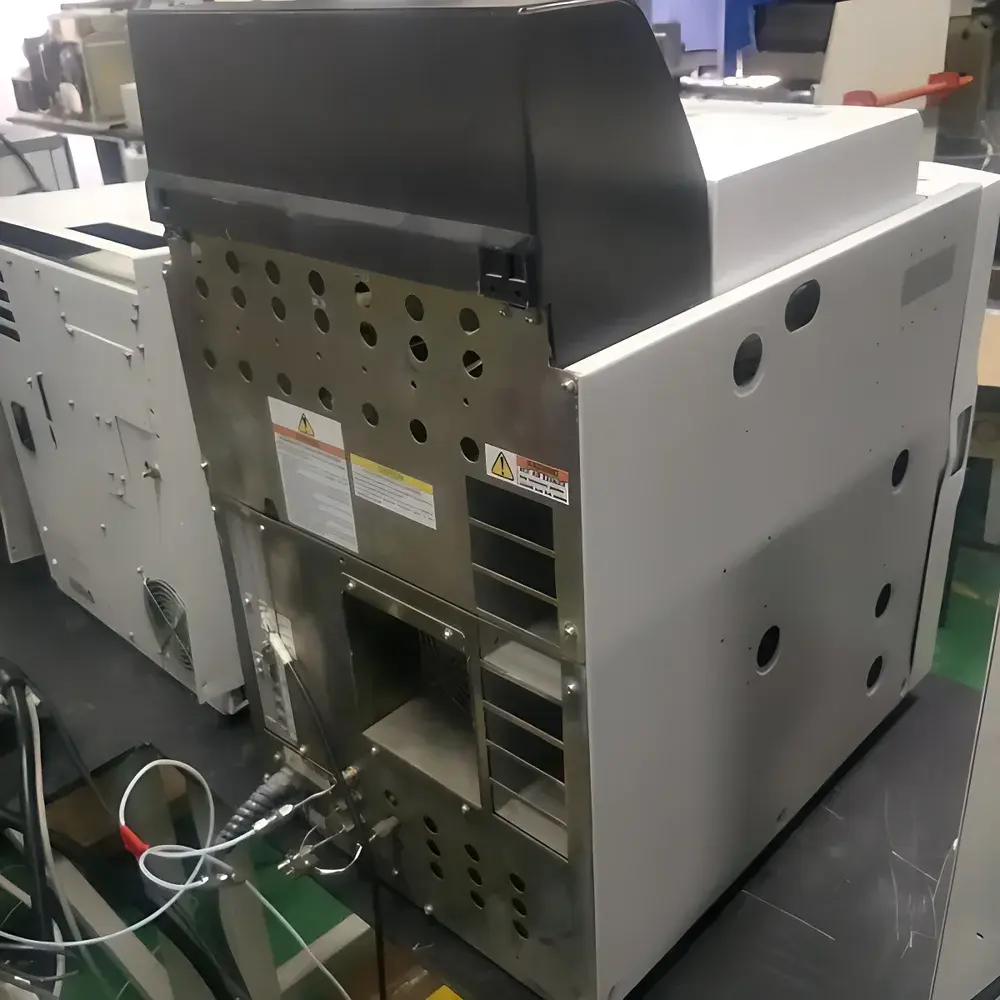

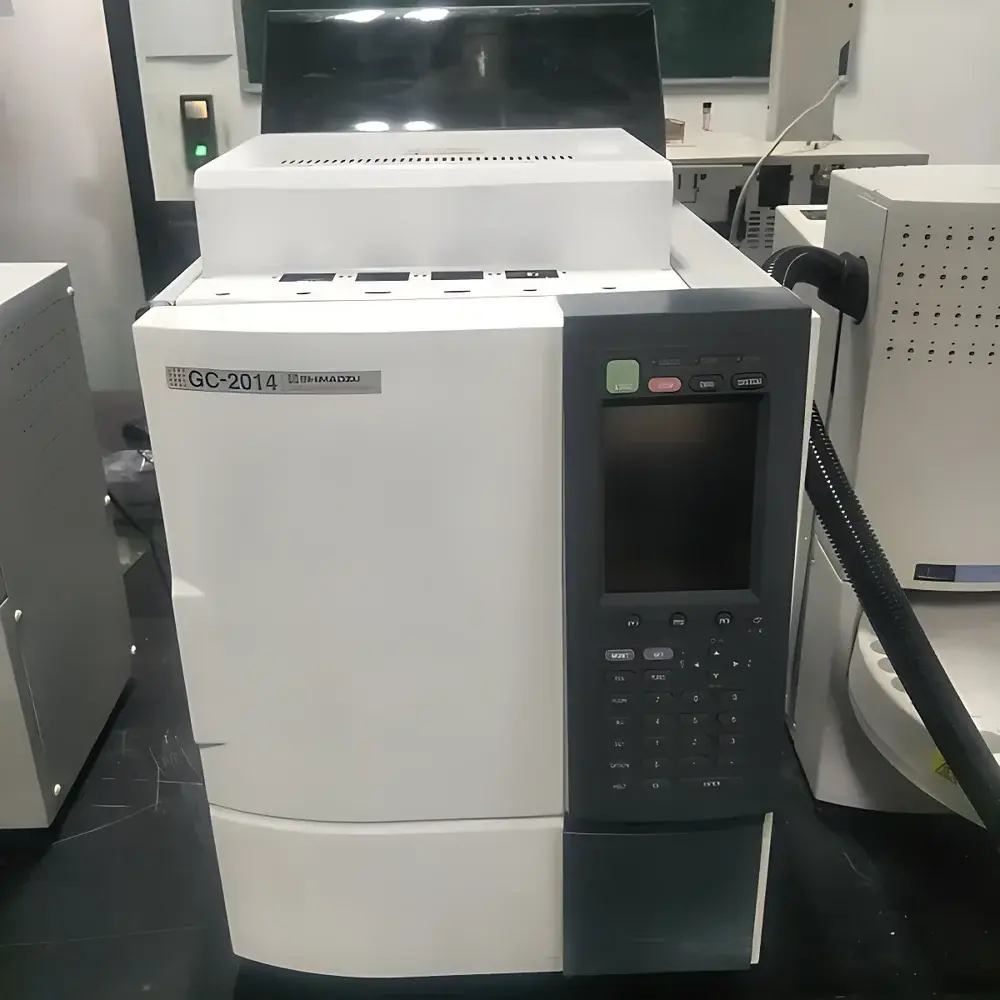

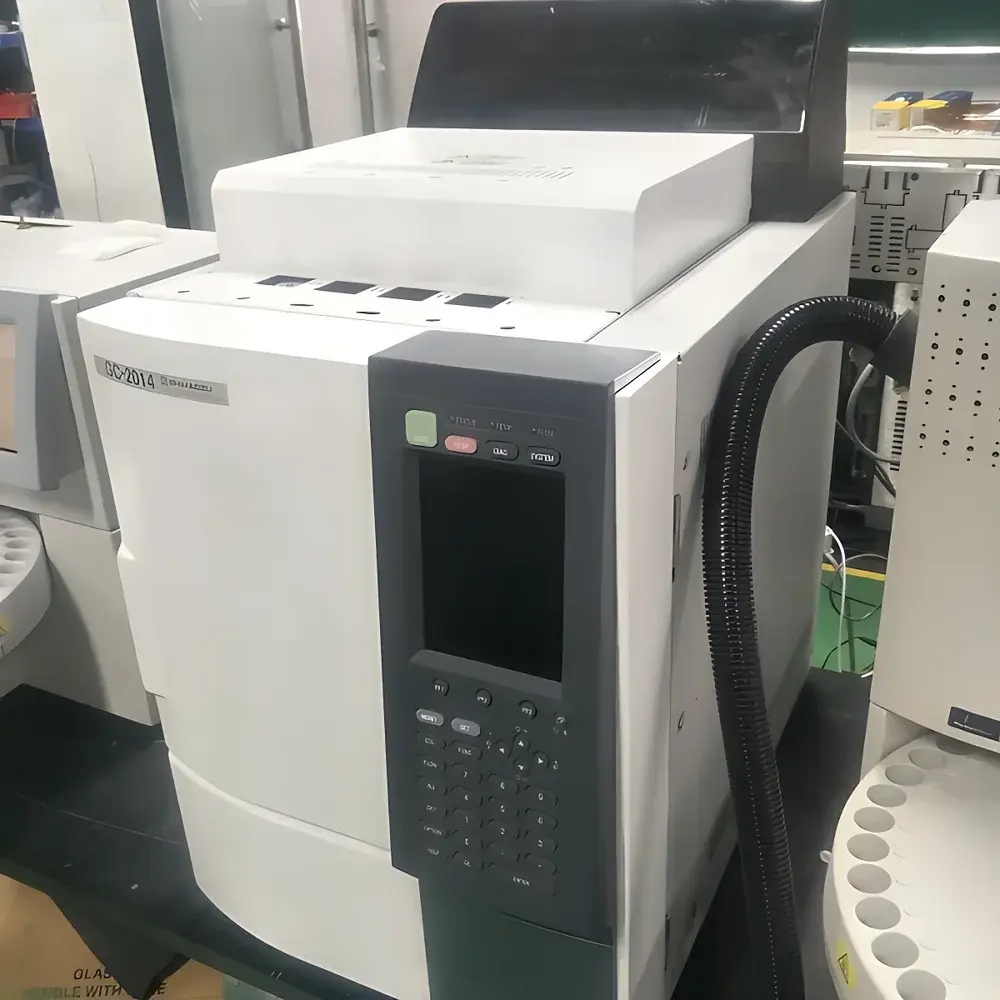

Shimadzu GC-2014 Used Gas Chromatograph

Overview

The Shimadzu GC-2014 is a robust, benchtop gas chromatograph engineered for precision separation and quantitative analysis of volatile and semi-volatile organic compounds in research, quality control, and regulatory testing laboratories. Built upon Shimadzu’s proven GC platform architecture, the GC-2014 employs capillary column technology with temperature-programmed oven control and high-stability detectors—including Flame Ionization (FID), Thermal Conductivity (TCD), Electron Capture (ECD), and Nitrogen-Phosphorus (NPD)—to deliver reproducible retention times and linear dynamic response across diverse sample matrices. Its design reflects mid-2010s engineering standards for reliability, ease of maintenance, and compatibility with established analytical workflows in pharmaceutical QC, environmental monitoring (e.g., EPA Method 8260/8270), food safety (e.g., pesticide residue screening), and polymer additive profiling. As a pre-2016 instrument, it predates full integration with modern cloud-based LIMS ecosystems but remains fully functional within validated on-premise data systems compliant with GLP and GMP documentation practices.

Key Features

• Modular detector configuration supporting FID, TCD, ECD, and NPD—enabling method flexibility without hardware replacement
• Programmable oven with ramp rates from 0.1 to 120 °C/min and precise isothermal hold capability (±0.1 °C stability)
• Electronic Pressure Control (EPC) on injector and detector modules (available on upgraded configurations) for enhanced method transferability and retention time reproducibility
• Split/splitless injection system with adjustable liner geometry and septum purge flow control
• Integrated GCsolution software (v2.x series) for instrument control, peak integration, calibration curve generation, and report export in PDF/CSV formats
• Compliance-ready audit trail functionality (when operated under controlled user permissions and timestamped acquisition logs)
• Backward-compatible with legacy Shimadzu consumables, including glass and fused-silica liners, septa, and column ferrules

Sample Compatibility & Compliance

The GC-2014 accommodates liquid, gaseous, and headspace-derived samples via standard 10–100 µL syringe injection or optional autosampler (e.g., AOC-20i). It supports ASTM D3606 (gasoline aromatics), USP (residual solvents), and ISO 11843-2 (detection limit validation) methodologies when paired with appropriate column chemistry (e.g., DB-5ms, HP-INNOWAX) and detector selection. While not natively 21 CFR Part 11-compliant due to its pre-2017 firmware architecture, the system can be deployed in environments adhering to ALCOA+ data integrity principles through procedural controls—including manual signature logs, secure network segmentation, and periodic electronic record verification per ISO/IEC 17025 Clause 7.5.2.

Software & Data Management

GCsolution v2.x provides full instrument control, real-time chromatogram display, automated peak detection, and customizable reporting templates. Raw data files (.gcd) are stored locally in structured directories with embedded acquisition metadata (date/time, method name, operator ID). Integration with third-party CDS platforms (e.g., OpenLab CDS, Chromeleon) is achievable via ASCII export or vendor-supplied SDK interfaces. For regulated labs, data archiving follows a 3-2-1 backup strategy: primary acquisition drive, mirrored NAS storage, and quarterly LTO tape backups—aligned with FDA guidance on electronic records retention.

Applications

• Pharmaceutical: Residual solvent quantification in APIs and excipients per ICH Q3C guidelines
• Environmental: Chlorinated hydrocarbon analysis in soil/water extracts (EPA 8081B, 8270D)
• Food & Beverage: Flavor compound profiling, ethanol content verification, and mycotoxin derivatization analysis
• Petrochemical: Hydrocarbon group-type analysis (PIONA) in gasoline and naphtha fractions
• Academic Research: Reaction monitoring, polymer degradation product identification, and essential oil composition mapping

FAQ

Is the GC-2014 compatible with current Windows operating systems?
Yes—GCsolution v2.5x and later support Windows 10 (64-bit) with appropriate driver updates and .NET Framework 3.5 enabled.
Can this unit be qualified for GMP use?
Yes—IQ/OQ protocols are available from third-party service providers; PQ must be performed using site-specific reference standards and SOPs.
What maintenance intervals are recommended for long-term reliability?
Injector liner replacement every 100–200 injections; column trimming every 2–3 months; detector cleaning per manufacturer guidelines (e.g., FID jet polishing quarterly); annual vacuum pump oil change.
Does the system include a certificate of calibration or performance verification?
Each refurbished unit undergoes baseline performance verification (retention time repeatability, sensitivity check, baseline noise assessment) prior to shipment, documented in a Certificate of Operational Verification.
Are spare parts and technical support still available?
Shimadzu maintains global spare parts logistics for GC-2014 components through authorized distributors; field service engineers remain accessible for remote diagnostics and on-site support contracts.
