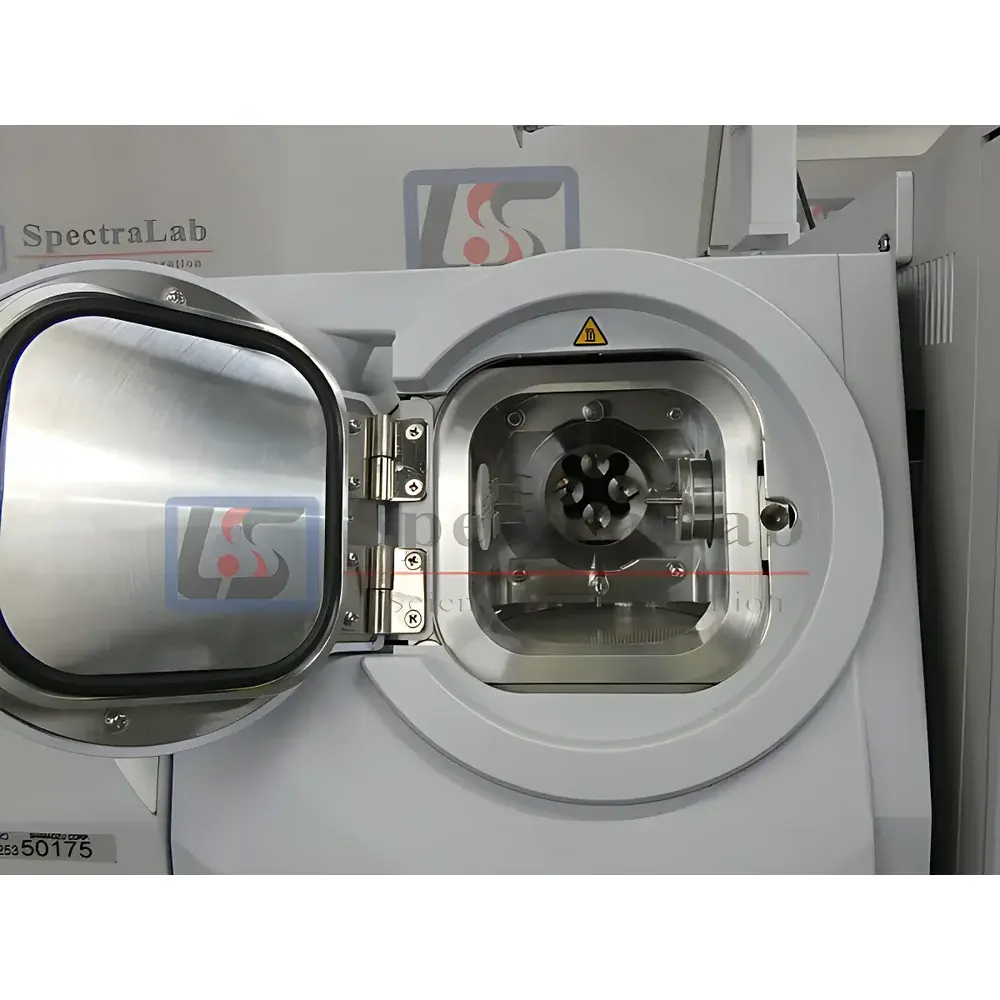

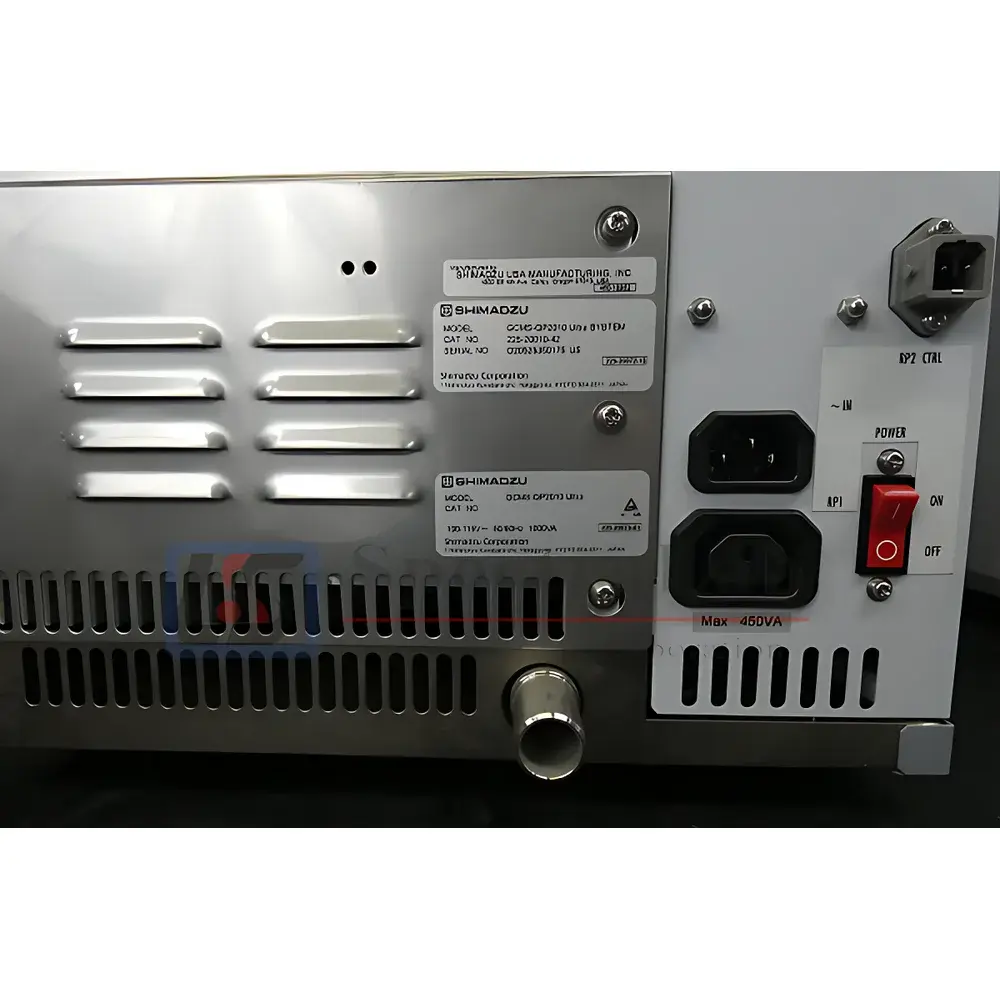

Shimadzu GCMS-QP2010 Ultra Gas Chromatograph-Mass Spectrometer (Used, Refurbished)

Overview

The Shimadzu GCMS-QP2010 Ultra is a high-performance quadrupole gas chromatography–mass spectrometry (GC-MS) system engineered for demanding routine and research applications in environmental, pharmaceutical, food safety, forensic, and clinical laboratories. As the flagship upgrade to the GCMS-QP2010 Plus platform, the QP2010 Ultra integrates proprietary hardware and firmware innovations—including the Advanced Scanning Speed Protocol (ASSP™)—to deliver industry-leading scan speed (up to 20,000 u/sec) without compromising mass spectral fidelity or detection sensitivity. Its core measurement principle relies on electron ionization (EI) of thermally volatile and semi-volatile analytes separated by capillary GC, followed by mass analysis using a temperature-stabilized quadrupole mass filter with real-time analog-to-digital conversion. The system operates under high vacuum (≤1×10⁻⁵ Pa), maintained by a dedicated turbo-molecular pump, ensuring stable ion transmission and low chemical noise across extended acquisition periods.

Key Features

• ASSP™ Technology: Enables ultra-fast scanning (≥10,000 u/sec) while preserving full-scan sensitivity and mass accuracy—critical for fast-GC and comprehensive two-dimensional GC (GC×GC) workflows.
• FASST (Fast Automated SIM and Scan Technique): Acquires full-scan and selected-ion monitoring (SIM) data simultaneously within a single run; ASSP™ reduces SIM dwell time by up to 5×, allowing more target ions per unit time without signal loss.
• High-Efficiency Ion Source: Features optimized ion optics and uniform temperature distribution across the ionization chamber, enhancing ion transmission efficiency and long-term signal stability.
• Easy sTop Functionality: Permits maintenance of the inlet system (e.g., liner replacement, septum change) without venting the mass spectrometer vacuum—reducing instrument downtime by >90% compared to conventional procedures.
• Dual-Column MS Interface (Optional): Supports simultaneous connection of two narrow-bore capillary columns (e.g., polar/non-polar), enabling method flexibility without mechanical column switching or revalidation.
• Eco Mode: Dynamically reduces filament current, detector gain, and carrier gas flow during standby, lowering power consumption by up to 40% and helium/nitrogen usage by ≥30%—quantifiable via built-in environmental impact calculator.

Sample Compatibility & Compliance

The GCMS-QP2010 Ultra is validated for analysis of volatile and semi-volatile organic compounds (VOCs/SVOCs) including pesticides, PAHs, PCBs, phthalates, residual solvents, and flavor/aroma compounds. It supports standard EI and optional CI (chemical ionization) modes. All refurbished units undergo full functional verification against Shimadzu-recommended performance criteria: resolution ≥1,000 (at m/z 502), sensitivity ≥100:1 S/N (1 pg OFN in scan mode), retention time repeatability ≤0.02 min (RSD < 0.5%), and mass accuracy ≤0.1 u. Systems comply with ISO/IEC 17025 technical requirements for calibration and verification of used analytical instruments. Data integrity is supported through GCMSsolution software’s audit-trail-enabled operation, consistent with FDA 21 CFR Part 11 expectations for electronic records in regulated environments.

Software & Data Management

Controlled exclusively by Shimadzu’s GCMSsolution v4.x (or later), the platform provides integrated instrument control, real-time data acquisition, library searching (NIST/EPA/Wiley), quantitative reporting (internal/external standard, isotope dilution), and customizable report templates. Raw data files (.qgd) are stored in vendor-neutral formats compatible with third-party processing tools (e.g., AMDIS, Compound Discoverer). The software includes GLP-compliant features: user-level access control, electronic signatures, full audit trail (user action, timestamp, parameter change), and automatic backup configuration. All refurbished systems ship with licensed, activation-validated software and complete digital documentation (operation manual, maintenance log, verification report).

Applications

This system is routinely deployed in accredited testing laboratories for compliance with ASTM D5845 (gasoline oxygenates), EPA Method 8270D (semivolatiles), USP (residual solvents), and ISO 17025-accredited environmental testing. Its speed and sensitivity make it especially suitable for high-throughput screening in food contaminant labs (e.g., mycotoxins, veterinary drug residues), forensic toxicology (drugs of abuse profiling), and polymer additive analysis (IUPAC-defined migration testing). The dual-column option supports orthogonal method development for complex matrices such as essential oils or petrochemical fractions.

FAQ

Is this a factory-refurbished unit or dealer-refurbished?
All GCMS-QP2010 Ultra systems are technically refurbished by SpectraLab Scientific’s ISO 9001-certified service team, including full disassembly, component-level inspection, replacement of consumables (ion source, filaments, detector, seals), vacuum system bake-out, and multi-point performance validation.
What documentation accompanies the instrument?
Each unit ships with a Certificate of Performance Verification, detailed maintenance history, GCMSsolution software license certificate, original Shimadzu operation manuals (English), and a traceable calibration record aligned with NIST-traceable standards.
Can the system be configured for regulatory compliance (e.g., 21 CFR Part 11)?
Yes—GCMSsolution supports 21 CFR Part 11 compliance when deployed with validated IT infrastructure, including domain-based user authentication, electronic signatures, and immutable audit trails. Implementation guidance and IQ/OQ documentation templates are available upon request.
What is included in the 6-month warranty?
The warranty covers parts and labor for defects in materials or workmanship under normal laboratory use. Exclusions include consumables (columns, septa, liners), damage from improper installation or environmental conditions, and software customization beyond factory defaults.
Is remote support available post-installation?
Yes—SpectraLab provides complimentary remote diagnostics and troubleshooting for 90 days following commissioning, plus optional annual service contracts with priority response and preventive maintenance visits.
