Shimadzu LC-10A HPLC System Maintenance & Repair Service by Jingke Ruida

Overview

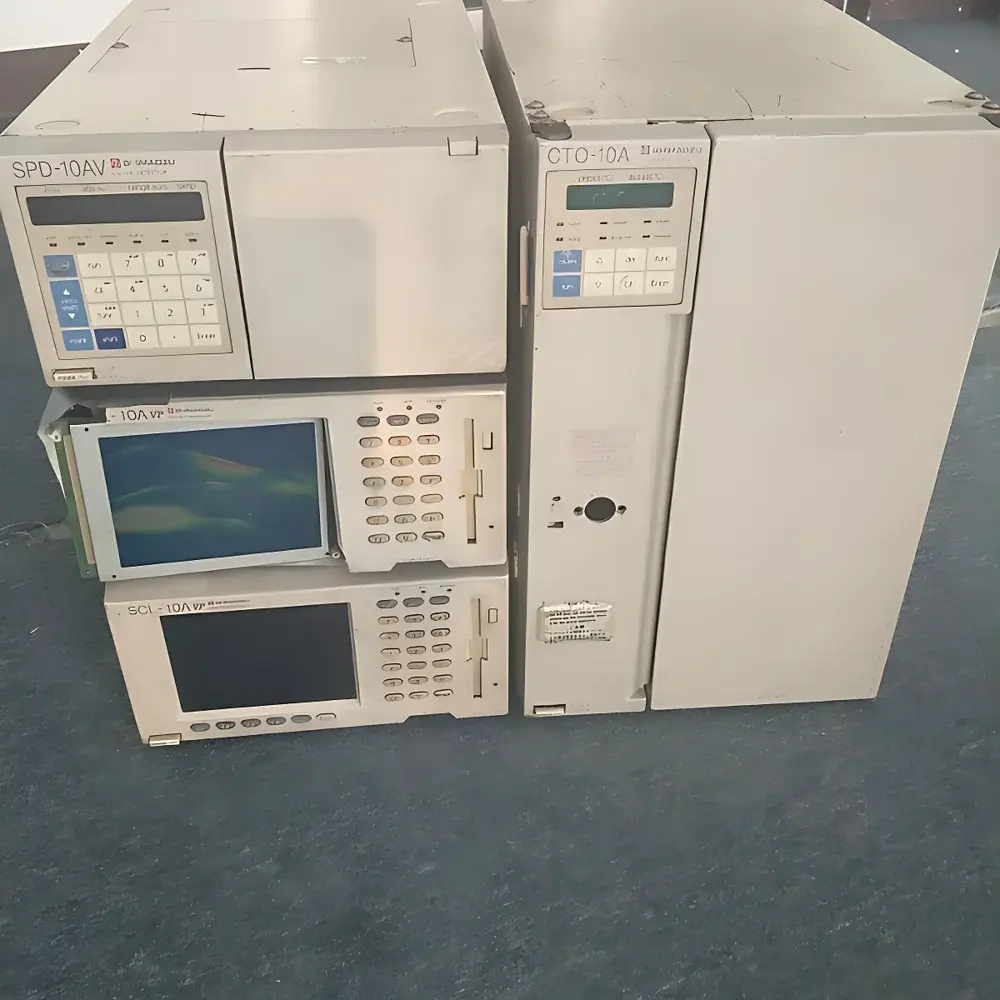

The Shimadzu LC-10A is a legacy high-performance liquid chromatography (HPLC) system originally introduced in the late 1990s as part of the LC-VP series. Engineered for robustness and modularity, it features dual-piston reciprocating pumps (LC-10ATvp or LC-10ADvp), UV-Vis (SPD-10Avp), photodiode array (SPD-M10Avp), fluorescence (RF-10AXL), refractive index (RID-10A), and conductivity (CDD-10A) detection options, alongside versatile autosamplers (SIL-10ADvp, SIL-HT, SIL-10AF) and column ovens (CTO-10ACvp, CTO-10Avp). Though discontinued by Shimadzu, the LC-10A remains widely deployed in academic labs, QC facilities, and contract research organizations across China and Southeast Asia due to its mechanical durability, well-documented architecture, and compatibility with CLASS-VP 6.1 software and legacy data processors (C-R7A/C-R8A). This service offering—provided by Jingke Ruida, an ISO 9001-certified domestic service partner based in Beijing—focuses exclusively on comprehensive maintenance, fault diagnostics, component-level repair, and system refurbishment of installed or bench-serviced LC-10A instruments.

Key Features

• On-site or depot-based repair with ≤12-hour initial response window for urgent cases
• Full-system diagnostic protocol including pressure stability verification (0–40 MPa range), baseline noise assessment (<0.5 mAU RMS), lamp energy calibration (D2 & W lamp intensity), and gradient accuracy validation per ASTM D7534
• Replacement of wear-prone components: pump seals, check valves, purge valve assemblies, flow cell windows, and detector deuterium/tungsten lamps
• Circuit board inspection and cleaning using ESD-safe protocols; reflow soldering where applicable per IPC-A-610 Class 2 standards
• Mechanical recalibration of autosampler syringe drive, needle positioning, and injection volume verification (1–100 µL range) traceable to NIM-certified volumetric standards
• Firmware consistency check and optional CLASS-VP 6.1 configuration audit for method transfer integrity and audit trail compliance

Sample Compatibility & Compliance

This service supports all standard LC-10A configurations operating under reversed-phase, normal-phase, ion-exchange, and size-exclusion chromatographic modes. It maintains full compatibility with common mobile phases (acetonitrile, methanol, aqueous buffers pH 2–8), stainless steel and PEEK capillaries (0.13–0.25 mm ID), and columns up to 250 × 4.6 mm. All maintenance procedures adhere to GLP-aligned documentation practices: each service report includes technician ID, date/time stamps, observed symptoms, test parameters, replaced parts (with serial numbers where applicable), pre- and post-service performance metrics, and signature-verified acceptance criteria. While the LC-10A itself does not natively support 21 CFR Part 11, Jingke Ruida provides supplementary logbook templates and electronic record retention guidance compatible with FDA-regulated environments requiring retrospective validation support.

Software & Data Management

Jingke Ruida technicians perform CLASS-VP 6.1 workstation health checks—including LAN communication stability, method file integrity verification, peak integration parameter consistency, and raw data archive integrity (using *.chd and *.seq formats). Where legacy hardware interfaces (e.g., GPIB-to-USB adapters or aging ISA-bus data acquisition cards) exhibit instability, certified replacements compliant with Shimadzu’s original interface specifications are offered. No third-party software installation or firmware modification is performed without written client authorization. All diagnostic logs and calibration records are delivered in PDF format with embedded metadata (creation date, instrument ID, technician ID) to support internal QA review and external audit readiness.

Applications

This maintenance service sustains reliable operation of LC-10A systems used in pharmaceutical impurity profiling (per ICH Q2(R2)), food additive quantification (GB 5009 series), environmental pollutant analysis (e.g., PAHs per GB/T 19488), traditional Chinese medicine fingerprinting, and polymer molecular weight distribution studies. Its emphasis on mechanical longevity and reproducible gradient delivery makes it particularly suitable for laboratories maintaining long-term stability-indicating methods where system equivalence across decades of data is critical. The service also supports decommissioning workflows—including data migration from CLASS-VP to modern platforms via ASCII export—and partial system repurposing (e.g., converting a UV-only LC-10A into a fluorescence-coupled system via RF-10AXL integration).

FAQ

Does this service include replacement parts, or are they billed separately?
Parts are quoted and approved prior to replacement. Common consumables (seals, fuses, lamps) are included in the base service fee; major assemblies (pump heads, detector flow cells, autosampler valves) incur additional cost based on OEM or qualified alternative sourcing.

Can you calibrate the LC-10A to meet ISO/IEC 17025 requirements?
While full ISO/IEC 17025 accreditation applies to testing laboratories—not service providers—our calibration procedures follow traceable methodologies aligned with ISO 17025 clause 6.5. We supply measurement uncertainty estimates for pressure (±0.2% FS), flow rate (±0.5% RSD), and UV absorbance (±1.5% at 254 nm) upon request.

Do you support remote diagnostics before dispatching a technician?
Yes. Clients may share CLASS-VP error logs, pressure profiles, and chromatograms via secure file transfer. Preliminary root-cause analysis is provided within 4 business hours.
