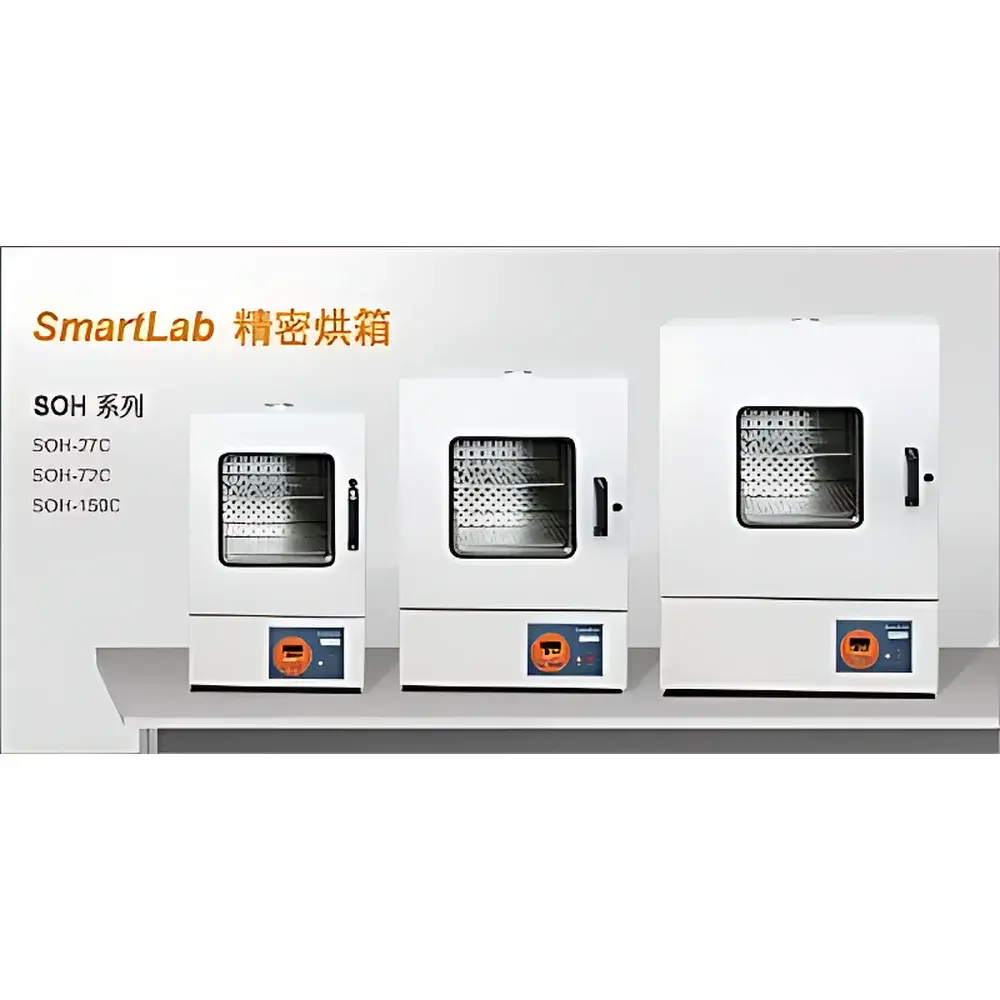

SmartLab SOH-27C Precision Drying Oven

Overview

The SmartLab SOH-27C Precision Drying Oven is a benchtop-grade thermal processing instrument engineered for laboratories requiring high-stability, repeatable temperature control in applications such as moisture content determination, thermal stability testing, polymer curing, pre- and post-weighing drying of samples, and controlled dehydration of biological or pharmaceutical materials. It operates on the principle of forced-air convection heating, utilizing a robust axial fan and optimized internal airflow geometry to achieve uniform thermal distribution across its 27-liter stainless-steel chamber. The oven’s core design prioritizes metrological integrity—its ±0.1 °C temperature fluctuation specification reflects stringent thermal stability under steady-state conditions, while its rapid recovery performance after door opening (<3 minutes to reattain 70 °C following a 30-second access) ensures minimal process interruption during routine sample handling. Built and quality-assured in Taiwan, the SOH-27C complies with IEC 61010-1 safety standards for laboratory electrical equipment and incorporates dual independent overtemperature protection circuits to meet GLP-aligned operational safety requirements.

Key Features

• Benchtop footprint (420 × 500 × 650 mm) optimized for space-constrained lab environments without compromising chamber volume (300 × 300 × 300 mm internal dimensions)
• High-resolution 0.1 °C digital temperature display and programmable PID controller with user-adjustable P/I/D parameters for application-specific tuning
• Forced hot-air circulation system delivering ±1% temperature uniformity across the entire working chamber per ISO 17025-relevant validation protocols
• Double-wall insulated construction with high-density mineral wool and seamless stainless-steel inner chamber (SUS304) for corrosion resistance and long-term dimensional stability
• Integrated 1–99 h 59 min mechanical timer with auto-shutdown function, supporting unattended operation for standardized drying cycles
• Dual safety mechanisms: primary solid-state relay control + secondary bimetallic overtemperature cutoff (adjustable up to 320 °C), independently wired and certified to EN 60519-1
• Front-access single right-hinged door with 250 × 250 mm tempered glass observation window and silicone gasket seal for visual monitoring without thermal loss

Sample Compatibility & Compliance

The SOH-27C accommodates standard laboratory ware including porcelain crucibles, aluminum weighing dishes, glass Petri dishes, and polymer trays up to 280 mm in width or height. Its ambient-to-300 °C operating range supports ASTM D2240 (Shore hardness conditioning), ISO 293 (thermoplastic compression molding prep), USP (water conductivity test sample drying), and pharmacopeial residual solvent removal protocols. Chamber uniformity data is traceable to NIST-calibrated reference thermocouples and conforms to the thermal mapping methodology outlined in EU Annex 15 and FDA Process Validation Guidance. All electrical components meet CE marking requirements; the unit carries full RoHS and REACH compliance documentation upon request.

Software & Data Management

While the base SOH-27C operates via standalone touchscreen interface, optional RS232 serial output enables connection to external data loggers or LIMS platforms for audit-trail-capable temperature recording. When integrated with compliant third-party software (e.g., LabVIEW or custom Python-based acquisition scripts), the oven supports timestamped logging of setpoint, actual temperature, elapsed time, and alarm status—meeting 21 CFR Part 11 requirements when deployed with appropriate electronic signature and audit trail configurations. Firmware updates are delivered via secure USB interface; version history and calibration logs are retained in non-volatile memory for GMP traceability.

Applications

• Moisture analysis per AOAC 950.46 and ISO 5530-1 using gravimetric drying at defined temperatures (e.g., 105 °C for cereal grains)
• Pre-drying of filter papers and membrane filters prior to particulate matter quantification (EPA Method 160.1)
• Thermal aging studies of elastomers and composites per ASTM D573 and ISO 188
• Residual solvent evaporation in API synthesis intermediates under cGMP-controlled environments
• Conditioning of reference standards and calibration weights per ISO 16063-21
• Stabilization of hygroscopic reagents (e.g., anhydrous salts, metal oxides) prior to analytical weighing

FAQ

What is the maximum safe operating temperature for continuous use?
The SOH-27C is rated for continuous operation up to 300 °C. Sustained use above 280 °C requires periodic verification of fan motor thermal protection and gasket integrity.
Can the oven be validated for IQ/OQ/PQ protocols?
Yes—the unit ships with a factory-verified temperature uniformity report and supports third-party qualification using calibrated Class A PT100 probes. Documentation templates for IQ/OQ are available upon request.
Is the interior chamber compatible with aggressive solvents or acidic vapors?
The SUS304 stainless-steel chamber resists mild organic solvents and dilute acids; however, prolonged exposure to halogenated or strong oxidizing agents (e.g., HNO₃ fumes) is not recommended without additional corrosion-resistant lining.
Does the SOH-27C support multi-step temperature ramping?
The standard model features single-setpoint control. Multi-segment programmable operation is available in the optional SOH-27C-PC variant with RS232 and dedicated profile software.
What maintenance intervals are recommended?
Fan filter cleaning every 3 months; annual verification of temperature sensor drift against a NIST-traceable reference; biannual inspection of door gasket compression force and seal integrity.
