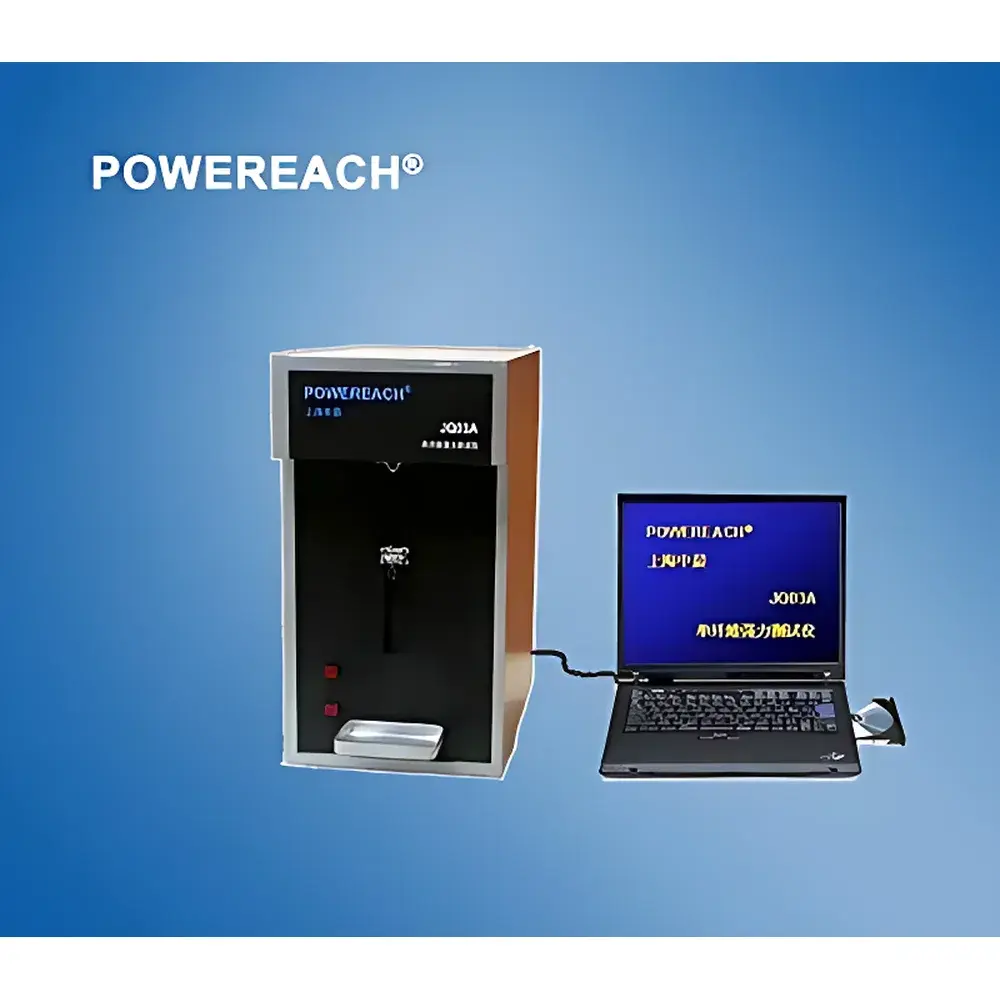

JQ03B Single-Fiber Length Measuring Instrument

Overview

The JQ03B Single-Fiber Length Measuring Instrument is a precision-engineered device designed for the standardized quantification of individual fiber length distribution in textile raw materials and processed products. It operates on the principle of controlled mechanical separation and optical–mechanical registration: fibers are individually presented between pneumatically actuated clamps, stretched across a calibrated rotating drum with defined gauge length, and their endpoints registered via high-resolution positional encoding synchronized with drum rotation. This methodology ensures traceable, repeatable measurement compliant with internationally recognized wool and fiber testing protocols—including ISO 6989 and IWTO-DRAFT-TM-5-97—specifically addressing length distribution analysis of fibers extracted from yarns or fabrics. Unlike universal tensile testers, the JQ03B is purpose-built for discrete single-fiber geometry characterization—not mechanical strength—and thus delivers metrological integrity where dimensional fidelity is paramount.

Key Features

• Pneumatic auto-clamping system eliminates manual handling with tweezers, reducing operator-induced variability and improving throughput consistency.
• Tension-triggered drum stop mechanism ensures immediate cessation upon fiber breakage or slippage, preserving measurement integrity and enhancing operator safety.
• Variable-speed stepper motor drive enables precise control over drum rotational velocity, supporting both slow-speed high-resolution acquisition (0.5 mm length resolution) and rapid sequential measurements.
• Computer-integrated control architecture manages full test sequencing, real-time position logging, and automatic data capture—including timestamp, fiber ID, length value, and event flags (e.g., break, slip).
• Gauge length adjustable within 5–300 mm range, accommodating staple fibers from short cotton lint to long wool and specialty synthetic filaments.
• Export-ready data format (CSV/Excel-compatible) supports post-acquisition statistical analysis of length histograms, upper quartile (UQL), mean length, coefficient of variation (CV%), and span lengths (e.g., 2.5%, 50%).

Sample Compatibility & Compliance

The JQ03B is validated for use with natural fibers (wool, cotton, flax, silk), regenerated cellulose (viscose, lyocell), and synthetic staple fibers (polyester, nylon, acrylic). It accepts fibers extracted manually or via standardized combing/drafting procedures per ISO 137 and IWTO TM-5. The instrument satisfies metrological requirements outlined in ISO/IEC 17025 for calibration traceability when operated within specified environmental conditions (20 ± 2°C, 65 ± 5% RH). Its measurement protocol aligns with GLP-relevant documentation practices, including audit-trail-enabled software logs and user-access-controlled parameter locking—facilitating regulatory readiness for laboratories operating under textile quality assurance frameworks (e.g., OEKO-TEX®, GOTS, or brand-specific vendor certification programs).

Software & Data Management

The embedded Windows-based application provides intuitive workflow navigation: sample batch setup, real-time length display, pass/fail threshold alerts, and automated report generation. All raw positional data—including drum encoder ticks, clamp activation timestamps, and tension-event markers—are stored with metadata (operator ID, date/time, ambient conditions). Export functions support direct integration into LIMS environments and third-party statistical packages (e.g., JMP, Minitab). Audit trail functionality records all configuration changes, user logins, and data exports in tamper-evident format, meeting foundational expectations for data integrity under FDA 21 CFR Part 11 (when deployed with electronic signature add-ons) and ISO 9001 Clause 7.5.2.

Applications

• Quality control of raw wool bales prior to scouring and top production, verifying compliance with Merino or crossbred length specifications.
• Research-grade evaluation of fiber blending uniformity in spun yarn development, correlating length distribution with drafting efficiency and yarn tenacity.
• Forensic textile analysis for fiber identification in trace evidence, where length histograms serve as discriminant morphological parameters.
• Process validation in man-made fiber manufacturing, assessing cutting consistency of tow-to-staple conversion lines.
• Academic studies on fiber aging mechanisms, tracking length degradation trends under UV exposure or thermal cycling protocols.

FAQ

Does the JQ03B measure tensile strength or elongation at break?

No. The JQ03B is exclusively a length-measurement instrument. It does not apply controlled force or record load–displacement curves. For mechanical property testing, refer to dedicated single-fiber tensile testers (e.g., Favimat+, XQ-1A).
Can it handle fragile or brittle fibers such as ceramic or glass microfibers?

It is optimized for organic and polymer staple fibers with minimum tensile stability under pneumatic clamping. Fragile inorganic fibers require specialized low-force gripping solutions and are outside its validated scope.
Is calibration traceable to national standards?

Yes—length scale calibration uses NIST-traceable linear encoders; periodic verification follows internal SOPs aligned with ISO 17025 Annex A.3 requirements for dimensional metrology.
What environmental conditions are required for valid operation?

ISO 139-compliant conditioning (20 ± 2°C, 65 ± 5% RH) is mandatory prior to and during measurement to minimize hygroscopic dimensional drift in natural fibers.
Can the software interface with laboratory information management systems (LIMS)?

Yes—via configurable CSV export templates and optional OPC UA or REST API modules (available under extended support contract).
