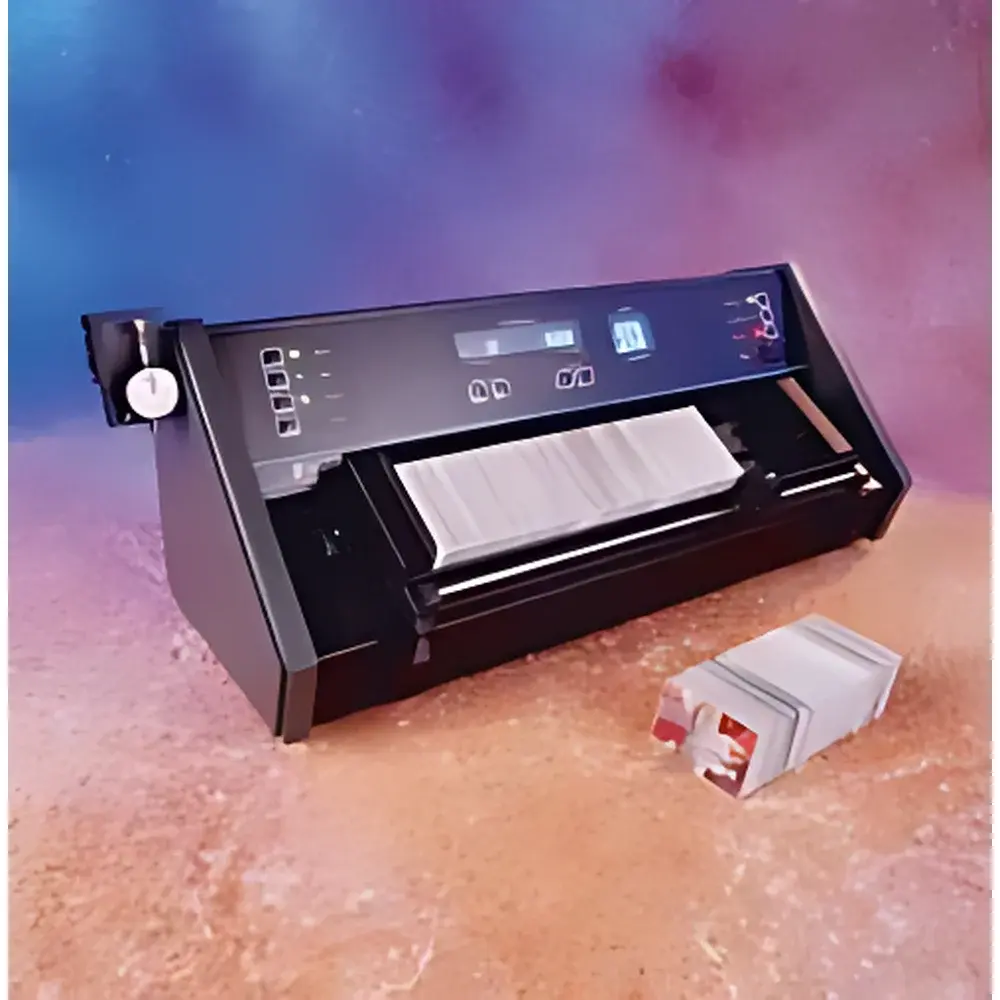

Spartanics 640 Precision Optical Card Counter

Overview

The Spartanics 640 Precision Optical Card Counter is an industrial-grade, benchtop metrology instrument engineered for high-reliability, non-contact counting of rigid and semi-rigid flat media—including smart cards, payment cards, ID badges, SIM cards, and laminated PVC/PET substrates. Unlike mechanical or capacitive counters, the 640 employs a dual-beam photoelectric detection architecture based on collimated infrared emitter–receiver pairs, operating in synchronized quadrature mode to eliminate false triggers from surface reflectivity variations, edge shadows, or minor warpage. Its measurement principle relies on real-time interruption profiling: each card passing through the counting gate generates two temporally resolved optical pulses per beam path, enabling deterministic edge detection and eliminating ambiguity caused by overlapping or skewed feed. Designed and manufactured in the United States since 1961, the system reflects four decades of refinement in optical metrology for secure document and credential manufacturing environments—where traceability, repeatability, and audit readiness are mandatory.

Key Features

• Dual high-sensitivity photoelectric sensor array with adjustable gain and ambient light compensation, optimized for low-contrast card edges and translucent substrates
• Four independent, hardware-synchronized counting channels—each with dedicated signal conditioning, debouncing logic, and overflow protection—to support redundant verification and statistical cross-checking
• Programmable preset count threshold (1–999,999 units) with audible/visual alert and automatic stop output relay
• Real-time count display via 6-digit LED panel with unit status indicators (RUN, STOP, ERROR, CAL)
• RS-232 serial interface (standard) and optional USB-C interface for bidirectional communication with host systems; supports ASCII command protocol for integration into MES or ERP workflows
• Robust aluminum chassis with ESD-safe anodized finish and IP20-rated enclosure, suitable for Class 10,000 cleanroom-adjacent production floors
• No moving parts in the sensing zone—ensuring long-term stability without recalibration under continuous 8–16 hr/day operation

Sample Compatibility & Compliance

The Spartanics 640 accommodates card stock ranging from 0.25 mm to 1.65 mm in thickness, including high-value embossed PVC cards, white-core composite cards, dark-core ABS/PVC blends, single-layer PET cards, and shrink-wrapped multi-card bundles. It maintains consistent accuracy across materials with varying optical density (OD 0.3–3.2), surface gloss (20–90 GU), and UV-blocking additives. The system complies with ISO/IEC 7810 ID-1 physical specification tolerances and meets electromagnetic compatibility requirements per IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission). While not certified for medical device manufacturing under FDA 21 CFR Part 11, its firmware supports audit-trail-enabling features—including timestamped count logs, operator ID tagging (via external keypad), and tamper-evident configuration lock—making it suitable for GLP-aligned quality control labs and ISO 9001-certified card personalization facilities.

Software & Data Management

The 640 operates autonomously but integrates seamlessly with third-party data acquisition platforms via its open ASCII command set (e.g., “CNT?”, “SET 5000”, “LOG ON”). Optional Spartanics CountLog™ utility (Windows-based) enables scheduled automated logging to CSV or SQLite databases, configurable report templates (including batch ID, timestamp, operator code, and deviation flags), and export to SPC-compatible formats for control charting. All stored logs include CRC-16 checksums and sequential record numbering to satisfy basic ALCOA+ data integrity principles (Attributable, Legible, Contemporaneous, Original, Accurate). Firmware v3.2+ supports secure configuration lockdown via password-protected setup mode—preventing unauthorized parameter changes during routine operation.

Applications

• Final quantity verification prior to packaging in financial card personalization lines (EMV, contactless, dual-interface)
• In-process counting of blank or pre-personalized cards before lamination, encoding, or hologram application
• Inventory reconciliation of archived card stock in vault environments with strict chain-of-custody protocols
• QC sampling audits in ISO/IEC 17025-accredited testing laboratories performing physical conformity assessments
• High-volume RFID tag carrier sheet counting where substrate opacity prohibits barcode-based methods

FAQ

Does the 640 require periodic calibration?
No—its optical sensing system is drift-free and does not require user-performed calibration. Factory calibration is performed using NIST-traceable step gauges and certified reference cards; recalibration is only advised after physical impact or extended exposure to >85% RH environments.
Can it count stacked or nested cards?
No. The 640 is designed exclusively for singulated, gravity-fed card transport. Stacked or nested configurations violate ISO/IEC 7810 feed geometry assumptions and will trigger error detection.
Is firmware upgrade supported in-field?
Yes—via USB flash drive using signed .bin files distributed through Spartanics’ authorized channel partners. Upgrades preserve all user-configured parameters and log history.
What safety certifications does the unit hold?
It carries UL 61010-1 and CSA C22.2 No. 61010-1 listings for electrical safety, and complies with RoHS 3 and REACH SVHC regulations.
Is technical support available outside North America?
Yes—through Spartanics’ global network of certified service partners, with remote diagnostics support available 24/5 via encrypted VNC session upon contract registration.
