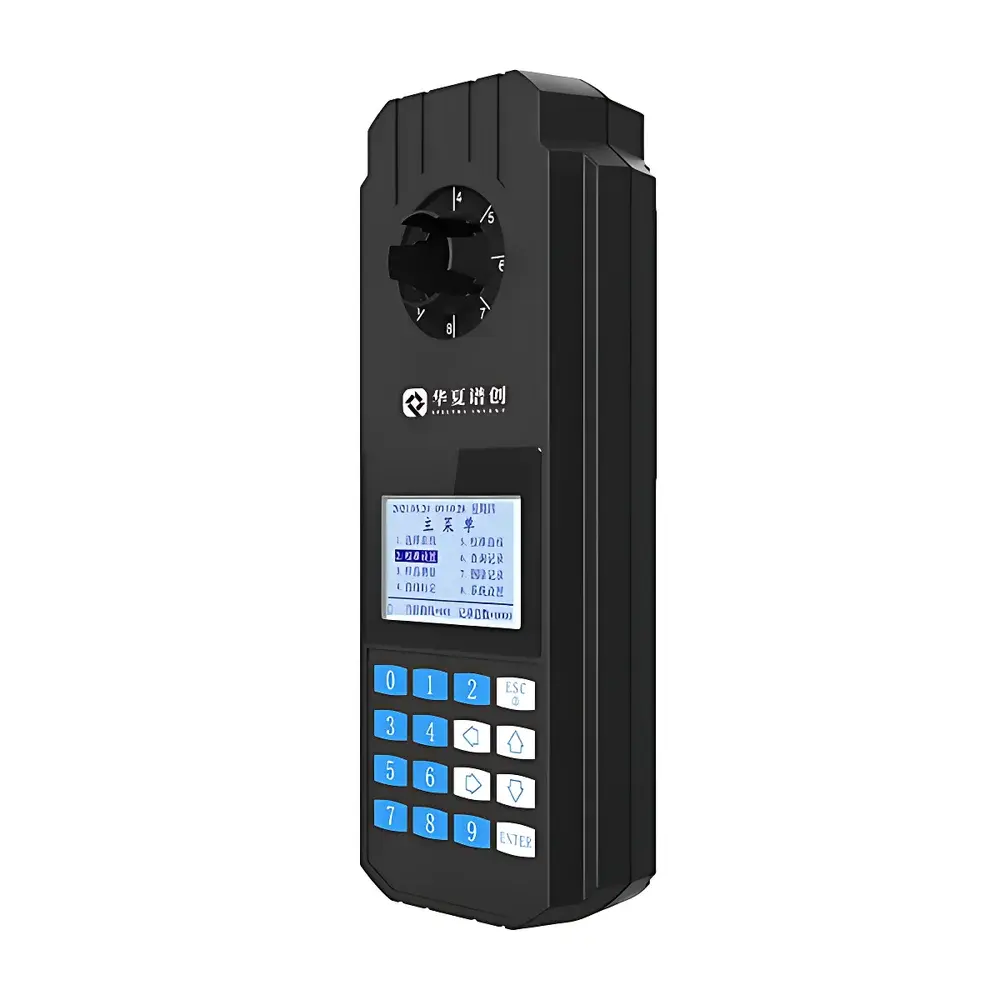

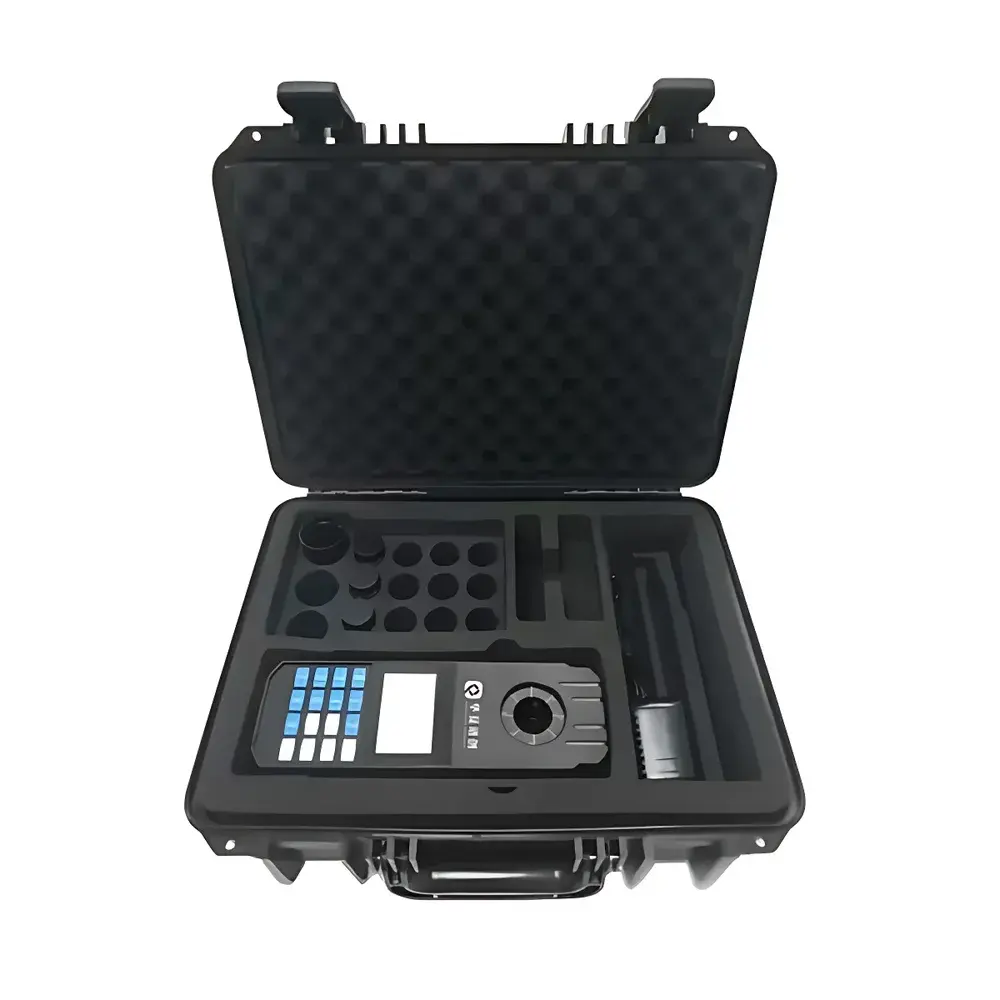

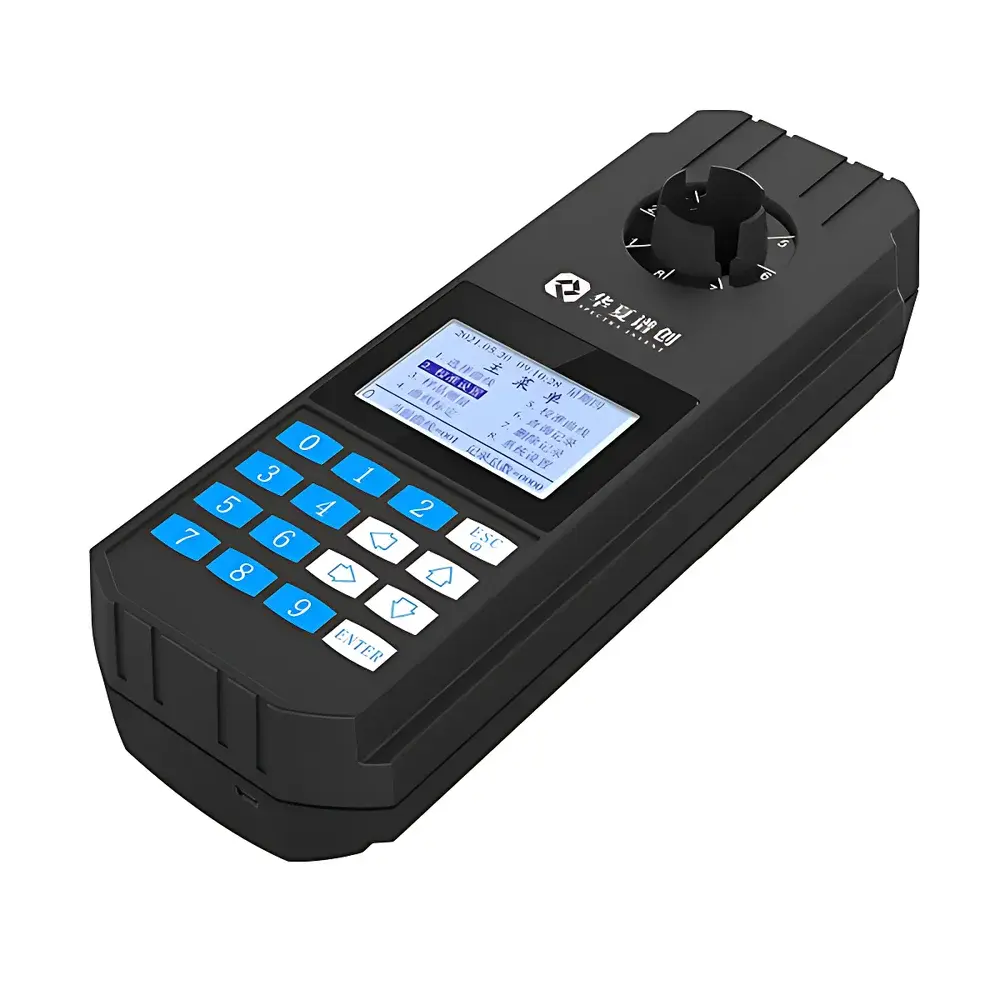

SpectraInvent HXPMP-4C / HXPMP-8C Portable Multi-Parameter Water Quality Analyzer

Overview

The SpectraInvent HXPMP-4C and HXPMP-8C are rugged, handheld multi-parameter water quality analyzers engineered for rapid, on-site assessment of drinking water, wastewater effluents, surface water, swimming pools, cooling towers, and aquaculture systems. These instruments integrate three complementary analytical modalities—colorimetric photometry, electrochemical sensing, and optical turbidimetry—within a single portable platform. Unlike benchtop spectrophotometers or single-parameter meters, the HXPMP series enables concurrent measurement of up to 72 distinct water quality parameters without requiring external reagent kits or PC-based calibration software. The system operates on standardized colorimetric chemistry (e.g., DPAP for free chlorine, phenanthroline for iron, dithizone for lead) and employs factory-calibrated, temperature-compensated electrodes for pH, dissolved oxygen, conductivity, and redox potential. Its dual-range capability for critical metals (e.g., copper, nickel, manganese, arsenic) ensures high sensitivity at trace levels while maintaining linearity across broader operational ranges—essential for compliance screening against WHO, EPA, and EU Drinking Water Directive thresholds.

Key Features

• Modular optical path with dual-wavelength LED sources (450 nm, 520 nm, 610 nm, 850 nm) and silicon photodiode detection, enabling precise absorbance ratioing and drift compensation
• Replaceable, pre-calibrated electrochemical sensors: combination pH/ORP electrode (±0.1 pH unit accuracy), Clark-type DO probe (±0.2 mg/L), and graphite-conductive cell for EC/TDS (±1.0% full-scale)
• Integrated turbidity sensor compliant with ISO 7027 using 850 nm NIR LED and 90° scatter detection (0–1000 NTU range, ≤2% F.S. error)
• On-device spectral library supporting >60 validated EPA- and ISO-aligned test methods, with built-in method selection, automatic blank correction, and auto-zero functionality
• Rugged IP67-rated housing with rubberized grip, drop-tested to 1.2 m, and operating temperature range of 0–50 °C
• Rechargeable Li-ion battery providing ≥12 hours of continuous operation; USB-C data export and optional Bluetooth 5.0 connectivity for real-time telemetry

Sample Compatibility & Compliance

The HXPMP-4C/8C is validated for use with raw surface water, treated potable water, municipal wastewater, industrial process streams, and recreational water matrices. Sample volume requirements are minimal (typically 10–20 mL for colorimetric tests; <5 mL for electrode immersion). All colorimetric assays follow standardized digestion and reaction protocols aligned with ASTM D3370 (dissolved oxygen), ASTM D1293 (pH), and EPA Methods 365.3 (phosphate), 366.1 (nitrate), and 200.7 (metals by ICP confirmation). While not certified as a primary reference instrument under ISO/IEC 17025, the analyzer meets functional performance criteria outlined in US EPA’s “Field Analytical Methods for Water Quality Monitoring” guidance (EPA/600/R-17/279) and supports audit-ready GLP documentation through timestamped, operator-ID-tagged result storage. Data integrity safeguards include electronic signature prompts, immutable audit trails, and password-protected method modification—facilitating alignment with FDA 21 CFR Part 11 principles where required.

Software & Data Management

Instrument firmware includes embedded data management tools supporting CSV export via USB mass storage mode and optional cloud synchronization through SpectraInvent’s SecureLink Connect desktop application (Windows/macOS). Each measurement record stores raw absorbance values, electrode mV outputs, temperature-compensated results, calibration history, and user-defined site metadata (GPS coordinates optional via paired smartphone). The system logs up to 5,000 test records with automatic time/date stamping and supports batch export for LIMS integration. Firmware updates are delivered via signed OTA packages, ensuring cryptographic verification and rollback protection. Exported datasets comply with ASTM E1468-22 (Standard Practice for Electronic Data Exchange in Environmental Testing) and include embedded metadata fields required for regulatory reporting under ISO 14001 and ISO 5667-3.

Applications

• Drinking water safety verification during emergency response (e.g., post-flooding, pipeline breaks) per WHO Guidelines for Drinking-water Quality
• Regulatory compliance monitoring for small water systems subject to EPA Total Coliform Rule and Lead and Copper Rule field screening
• Industrial pretreatment verification for electroplating, semiconductor fab, and pharmaceutical manufacturing effluents
• Aquaculture health management—real-time tracking of ammonia, nitrite, DO, and pH to prevent hypoxic stress events
• Swimming pool and spa maintenance per CDC Model Aquatic Health Code (MAHC) thresholds for cyanuric acid, copper, and free chlorine
• Educational field labs and environmental science coursework requiring quantitative, repeatable water analysis without lab infrastructure

FAQ

What is the difference between the HXPMP-4C and HXPMP-8C models?
The HXPMP-4C supports up to 4 simultaneous parameter measurements per test cycle, while the HXPMP-8C enables concurrent analysis of up to 8 parameters—optimized for high-throughput field surveys requiring rapid multi-analyte profiling.
Are reagents included with the instrument?
Yes—each unit ships with a starter kit containing 30+ pre-measured, vacuum-sealed reagent pouches for top-priority parameters (Cu, Fe, Cr⁶⁺, NO₃⁻, PO₄³⁻, NH₃-N, Cl₂, pH, DO, turbidity), plus calibration standards for electrodes.
Can the device be used for regulatory reporting?
While not a certified reference method instrument, its performance characteristics align with EPA-approved field screening criteria; final compliance determinations require confirmatory lab analysis per 40 CFR Part 136.
How often must electrodes be recalibrated?
pH and DO electrodes require daily two-point calibration (pH 4.01/7.00 buffers; DO zero-air saturation); conductivity cells need single-point verification weekly using 1413 µS/cm KCl standard.
Is GPS geotagging supported natively?
No—GPS metadata is added only when exporting data via Bluetooth-connected mobile devices using the SpectraInvent FieldLog app; standalone operation records only time/date and operator ID.
