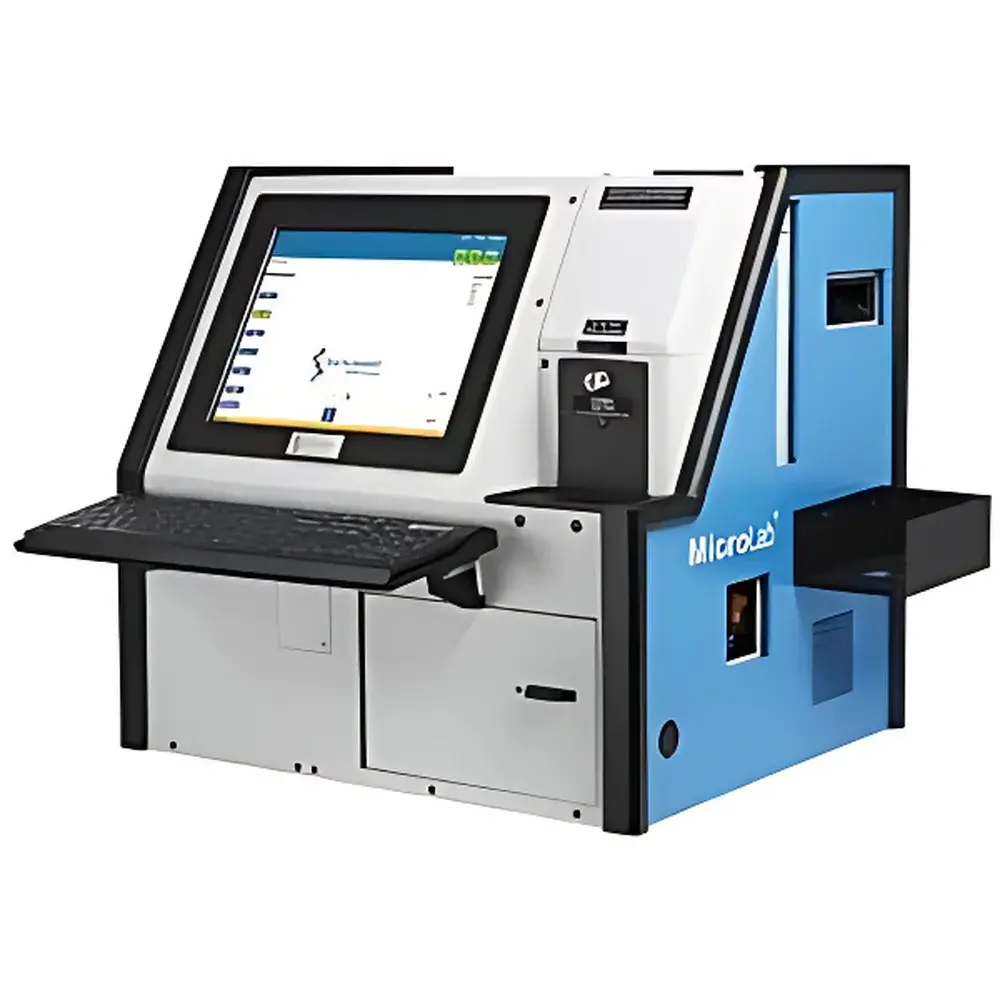

Spectro Scientific MicroLab 30 Intelligent Engine Oil Condition Monitoring System

Overview

The Spectro Scientific MicroLab 30 is an integrated, benchtop oil condition monitoring system engineered for in-field or on-site analysis of engine oils used in transportation fleets, marine vessels, power generation assets, and off-highway equipment. It employs a multi-technology platform combining atomic emission spectroscopy (AES), Fourier-transform infrared (FTIR) spectroscopy, and automated kinematic viscosity measurement to deliver comprehensive fluid health and machine condition assessment within 15 minutes per sample. Unlike traditional laboratory-based oil analysis services requiring days for turnaround, the MicroLab 30 enables real-time decision-making by quantifying wear metals, contamination species, oxidation/nitration byproducts, soot concentration, water content, glycol intrusion, total base number (TBN), and kinematic viscosity at both 40 °C and 100 °C. Its architecture is built upon ASTM D7417 — the standard test method for integrated field testing of in-service lubricants using spectrometry, infrared spectroscopy, viscosity, and particle counting — ensuring analytical rigor, inter-laboratory reproducibility, and regulatory traceability.

Key Features

• Triple-module automation: Simultaneous AES elemental analysis, FTIR-based fluid degradation profiling, and dual-temperature kinematic viscosity measurement (ASTM D445 compliant)
• Onboard expert diagnostic engine: A rule-based inference system comprising >10,000 validated logic scripts trained on over two decades of fleet maintenance data
• Automated report generation: Full-color, ISO/IEC 17025-aligned diagnostic reports with color-coded anomaly thresholds and actionable maintenance recommendations
• No operator chemistry expertise required: Intuitive touchscreen interface with guided workflows and context-aware prompts
• Calibration traceability: Factory-certified calibration standards traceable to NIST reference materials; routine verification protocols embedded in firmware
• Regulatory readiness: Audit trail logging compliant with GLP and GMP principles; optional 21 CFR Part 11 electronic signature support via Spectro’s LabLink software suite

Sample Compatibility & Compliance

The MicroLab 30 is optimized for used diesel and gasoline engine oils (SAE 5W–40, 10W–30, 15W–40, etc.), including conventional, synthetic, and low-SAPS formulations. It accepts standard 10–15 mL oil samples in clean glass vials with minimal pretreatment (no filtration or dilution required). The system complies with ASTM D7417, ASTM D6595 (rotating disc electrode AES), ASTM E2412 (FTIR oxidation/nitration), ASTM D445 (kinematic viscosity), and ISO 4406 (particle contamination grading when paired with optional particle counter module). All analytical modules undergo annual performance qualification per ISO/IEC 17025 requirements, with documented uncertainty budgets available upon request.

Software & Data Management

MicroLab 30 operates under Spectro’s proprietary LabLink software, a Windows-based platform supporting centralized database management, trend analysis across multiple assets, customizable alert thresholds, and export to CMMS/EAM systems (e.g., IBM Maximo, SAP PM) via CSV, XML, or ODBC. Data integrity safeguards include encrypted local storage, time-stamped audit logs recording every user action and instrument event, and configurable retention policies aligned with internal QA procedures. Software updates are delivered quarterly and validated against ASTM and OEM specification revisions. Remote diagnostics and firmware upgrades are supported via secure TLS-encrypted connection.

Applications

• Fleet maintenance optimization: Extending oil drain intervals based on actual fluid condition rather than fixed mileage/hour schedules
• Early fault detection: Identifying incipient bearing wear (Fe, Cr, Ni), coolant leaks (glycol, Na, K), fuel dilution (hydrocarbon bands in FTIR), and piston ring blow-by (soot accumulation)
• Generator set reliability assurance: Monitoring TBN depletion and oxidation onset in stationary power applications operating under variable load profiles
• Contractor equipment health tracking: Managing mixed-fleet assets across construction, mining, and agriculture sectors with heterogeneous OEM specifications
• Third-party oil analysis service enhancement: Adding rapid-turnaround capability to complement full-spectrum lab testing without outsourcing critical diagnostics

FAQ

What standards does the MicroLab 30 meet for regulatory compliance?

It conforms to ASTM D7417, ASTM D6595, ASTM E2412, ASTM D445, and supports documentation practices aligned with ISO/IEC 17025 and FDA 21 CFR Part 11 when configured with electronic signature modules.
Can the system analyze non-engine-oil lubricants such as hydraulic fluids or gear oils?

While optimized for engine oils, method adaptation for select hydraulic and turbine oils is possible through custom calibration and validation protocols; contact Spectro Applications Engineering for feasibility assessment.
Is external laboratory confirmation required for certification purposes?

No — the MicroLab 30 is validated as a primary testing instrument per ASTM D7417; however, periodic inter-laboratory comparison studies are recommended for long-term quality assurance.
How is calibration maintained across extended operational periods?

Daily verification using certified reference oils and quarterly full calibration with NIST-traceable standards are enforced by built-in scheduling and lockout mechanisms.
Does the expert system support OEM-specific maintenance logic?

Yes — the diagnostic ruleset includes preloaded configurations for major OEMs (Caterpillar, Cummins, Volvo Penta, MTU, GE Power) and allows customer-defined logic injection via LabLink’s scripting interface.
