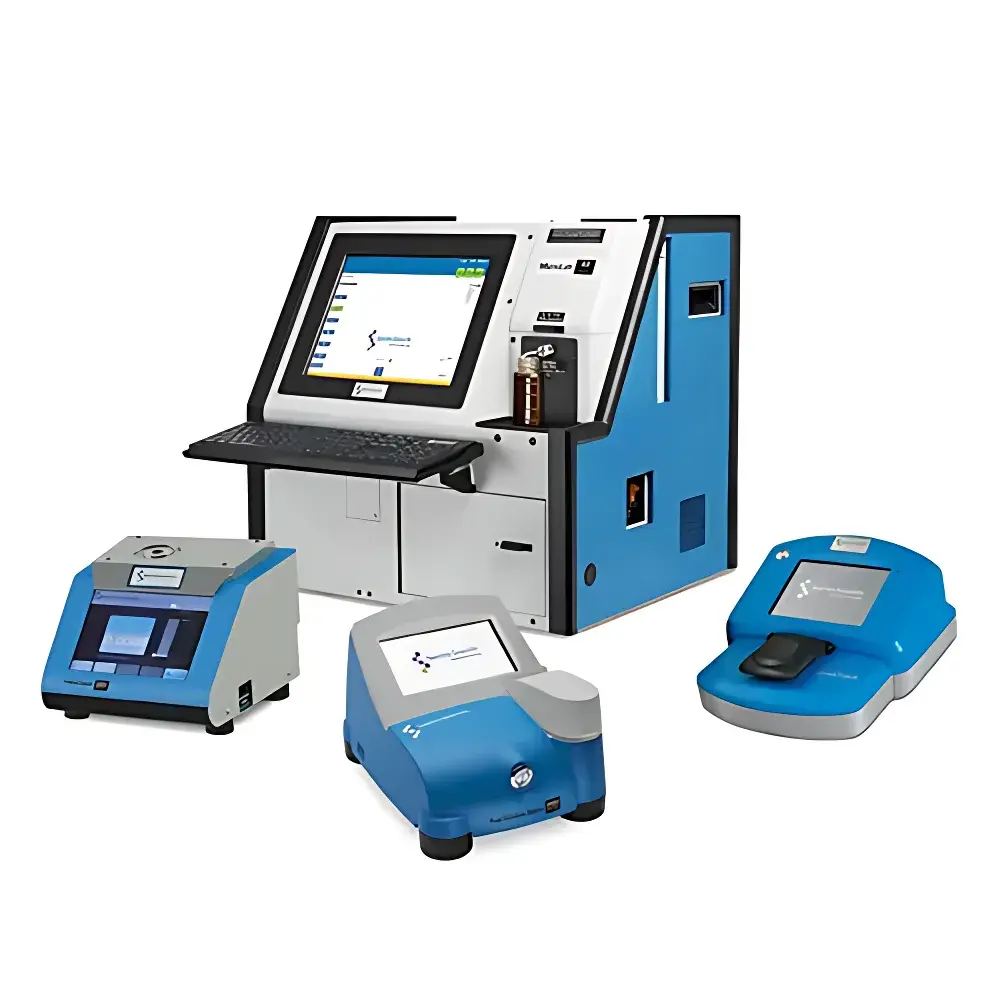

Spectro Scientific MicroLab Automated Intelligent Oil Analysis System

Overview

The Spectro Scientific MicroLab Automated Intelligent Oil Analysis System is a benchtop, fully integrated oil condition monitoring platform engineered for precision, repeatability, and operational scalability in field-deployed or centralized laboratory environments. Built upon ASTM D7417-compliant methodology, the MicroLab employs a multi-technology analytical architecture—combining rotating disc electrode (RDE) atomic emission spectroscopy (AES), Fourier-transform infrared (FTIR) spectroscopy, particle quantification via direct imaging, and viscosity measurement—to deliver simultaneous elemental, molecular, and physical characterization of lubricants and fuels. Unlike standalone analyzers requiring manual data aggregation, the MicroLab executes end-to-end analysis—from sample aspiration through spectral acquisition, algorithmic interpretation, and diagnostic reporting—in under 15 minutes, with zero operator intervention post-initiation. Its design targets fleet operators managing geographically dispersed assets—including rail locomotives, marine propulsion systems, pipeline pumping stations, and mining haul trucks—where predictive maintenance decisions must be made rapidly, consistently, and without reliance on offsite lab turnaround.

Key Features

• Fully automated workflow: Integrated fluid handling system performs sample aspiration, solvent dilution, sensor calibration, measurement, and system flush—all governed by embedded control logic.
• ASTM D7417–certified analytical engine: Simultaneous detection of wear metals (Fe, Cu, Al, Cr, Pb, Si, Na, Ca, Mg, etc.), additive elements (Zn, P, Ba, Mo), contaminants (Si, Na, B, glycol), oxidation/nitration/sulfation (FTIR), soot loading, water content, and kinematic viscosity.
• Intelligent diagnostics layer: Proprietary expert system cross-references real-time results against Spectro’s proprietary failure mode database, generating actionable recommendations—not just thresholds—such as “extend drain interval by 15%,” “inspect cylinder liner for scuffing,” or “replace turbocharger bearing assembly.”
• Unified data ingestion: Accepts and contextualizes external inputs from Spectro’s FerroCheck 2000 (ferrographic particle morphology and concentration) and FDM 6001 (fuel dilution and hydrocarbon fingerprinting), enriching root-cause analysis beyond bulk chemistry.
• Touchscreen human-machine interface (HMI): One-touch operation with guided workflows; no specialized spectroscopy or tribology training required. All calibration, QC checks, and error recovery are self-contained.
• Regulatory-ready reporting: Generates ISO/IEC 17025-aligned PDF reports featuring color-coded alerts (red = critical deviation, yellow = trending anomaly, green = within specification), timestamped audit trails, and technician-signoff fields.

Sample Compatibility & Compliance

The MicroLab supports a broad spectrum of in-service oils and fuels, including mineral and synthetic engine oils (SAE 0W–60), hydraulic fluids (ISO VG 32–150), turbine oils, gear oils, diesel and gasoline fuels, and marine crankcase lubes. It accommodates sample volumes from 3 mL to 10 mL and tolerates viscosities up to 500 cSt at 40 °C. All analytical methods comply with ASTM D7417 (Standard Test Method for Determination of Wear Metals and Contaminants in Used Lubricating Oils by Rotating Disc Electrode Atomic Emission Spectrometry), ASTM D7889 (FTIR for oxidation), and ASTM D2440 (soot). The system meets GLP and GMP documentation requirements, with full 21 CFR Part 11 compliance enabled via LubeTrak™’s electronic signature, audit trail, and user-access controls.

Software & Data Management

MicroLab operates exclusively with LubeTrak™—Spectro’s cloud-enabled, enterprise-grade oil analysis data management platform. Each MicroLab shipment includes a five-year subscription to LubeTrak™, providing secure multi-site data synchronization, historical trend visualization (e.g., Fe vs. time, oxidation slope), automated alerting (email/SMS), KPI dashboards (MTBF, % critical alerts, cost-per-analysis), and customizable report templates aligned with OEM service bulletins (e.g., Caterpillar S•O•S, Komatsu KOMTRAX). LubeTrak™ maintains immutable records of all instrument events—including calibration logs, QC failures, method revisions, and user logins—supporting internal audits and third-party regulatory inspections.

Applications

The MicroLab serves as the analytical core for condition-based maintenance programs across transportation and heavy industry. In Class I railroads, it monitors diesel-electric traction motor bearings and cooling system glycol integrity. For offshore oil platforms, it tracks gearbox oil degradation in subsea blowout preventer (BOP) control systems where unplanned downtime incurs >$500k/hour in lost production. Pipeline operators deploy MicroLab units at remote compressor stations to detect early-stage valve wear before catastrophic seal failure. Mining fleets use its engine-specific MicroLab 30 configuration to differentiate between normal piston ring wear and abnormal camshaft lobe spalling—enabling targeted component replacement rather than full engine overhauls.

FAQ

Does MicroLab require daily calibration or consumables beyond standard reagents?
No. The system performs automatic daily verification using built-in reference standards; only certified calibration oils and ASTM-grade solvents are required—no electrodes, lamps, or filters needing periodic replacement.
Can MicroLab integrate with existing CMMS or ERP systems?
Yes. LubeTrak™ provides RESTful API access and pre-built connectors for Maximo, SAP PM, and Infor EAM, enabling automatic work order generation based on diagnostic severity thresholds.
Is remote software update and technical support available?
Yes. Over-the-air firmware updates are delivered via encrypted TLS channel; remote diagnostics and screen-sharing support are provided by Spectro’s global Field Applications Engineering team.
What level of cybersecurity does the system implement?
MicroLab runs on a hardened Linux OS with disabled unused ports, mandatory password complexity, TLS 1.2+ encryption for all data in transit, and optional integration with corporate Active Directory for role-based access control.
How is data ownership and export handled under GDPR or similar regulations?
Customers retain full ownership of all generated data. LubeTrak™ supports scheduled encrypted exports (CSV, PDF, XML) and provides data deletion protocols compliant with right-to-erasure mandates.
