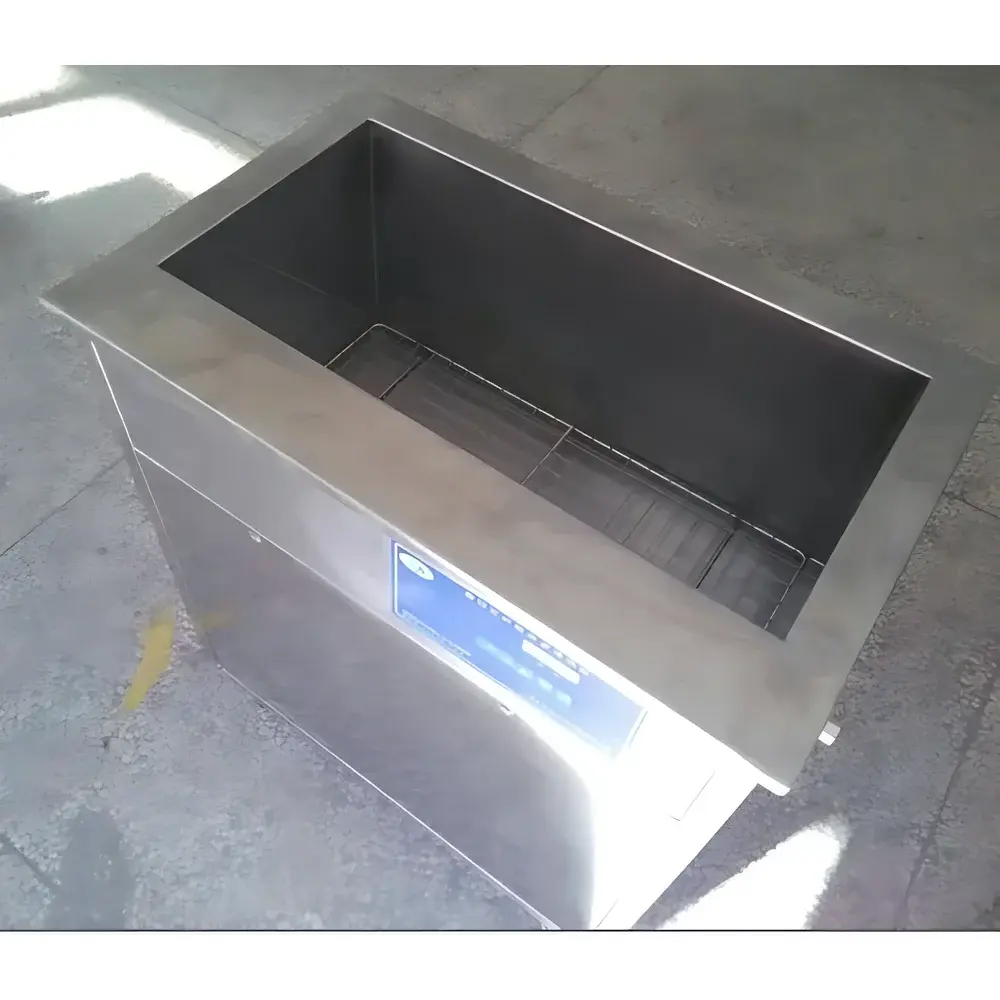

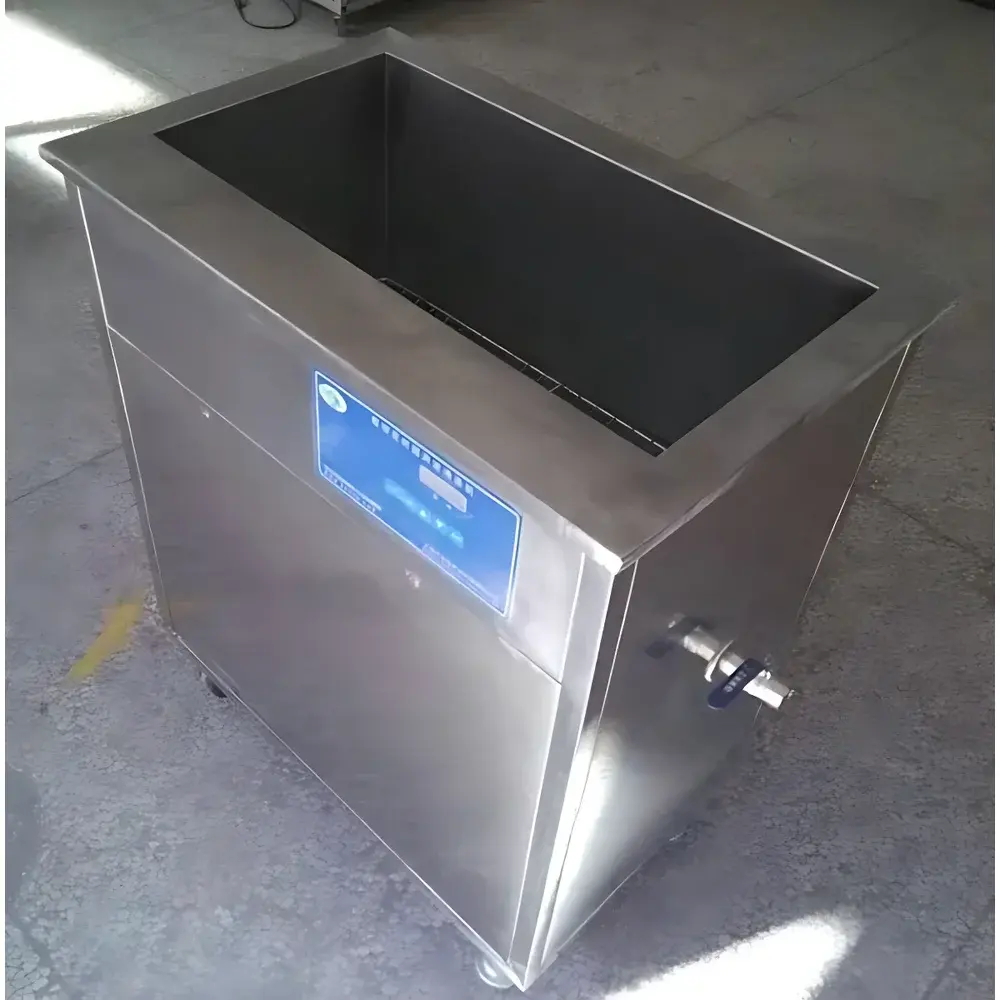

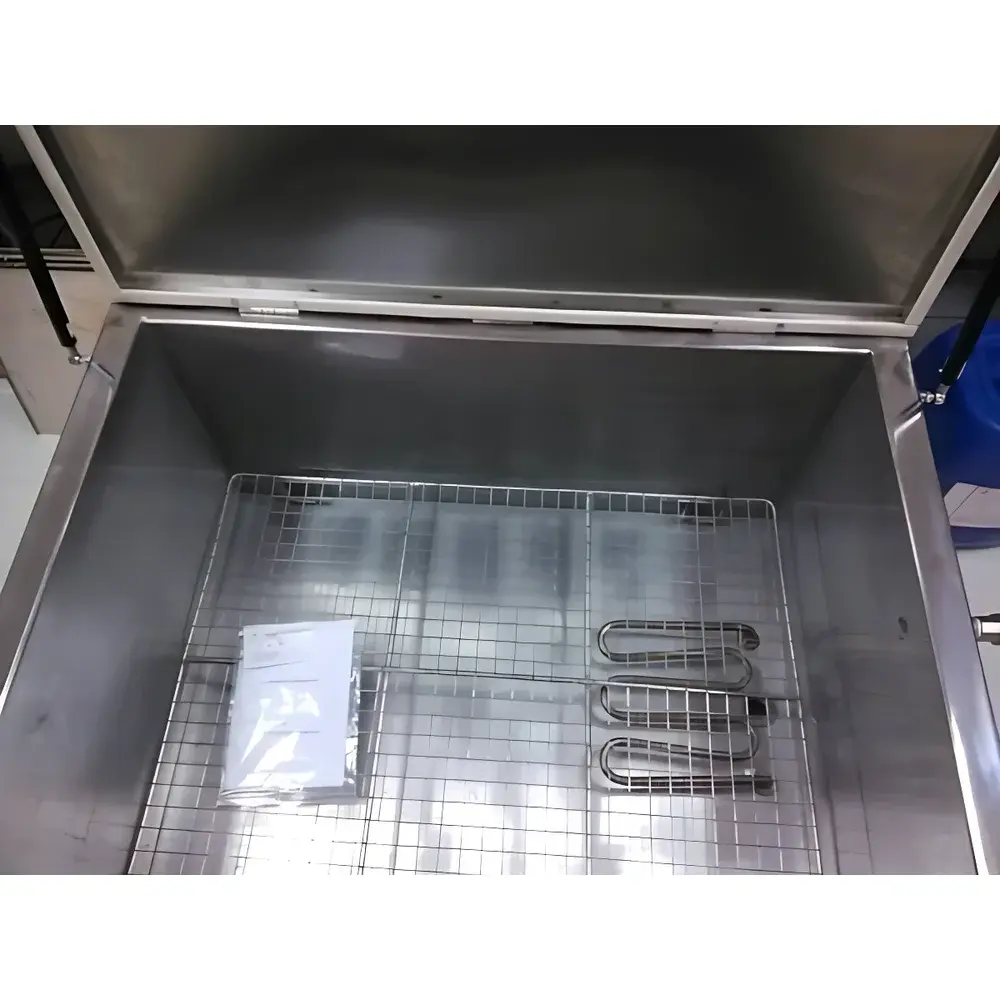

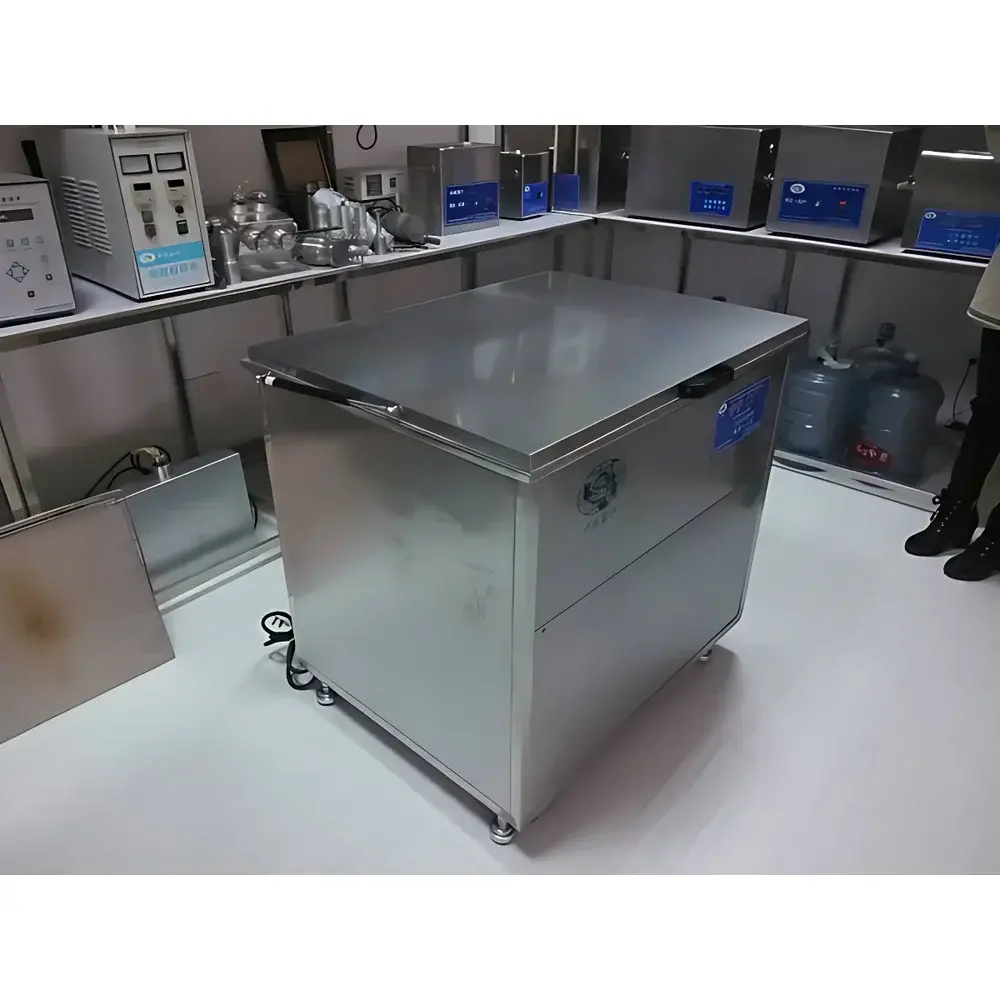

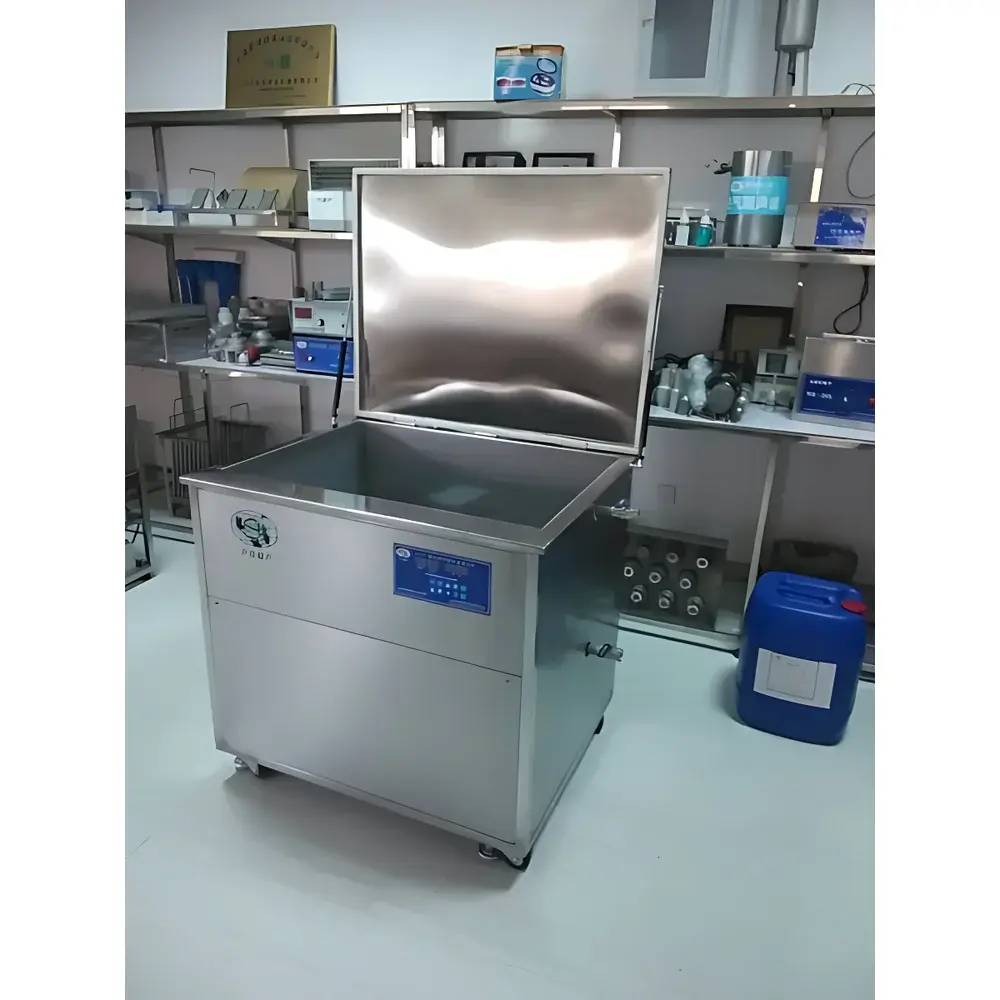

SYC Sycs SCQ-1000C 54L Benchtop Ultrasonic Cleaner with Triple-Frequency Operation and Programmable Digital Control

Overview

The SYC Sycs SCQ-1000C is a high-capacity, triple-frequency benchtop ultrasonic cleaner engineered for precision cleaning, degassing, and surface decontamination in regulated laboratory, medical device manufacturing, and R&D settings. Utilizing high-intensity piezoelectric transducers bonded via hybrid adhesive/argon-arc welding—ensuring mechanical integrity over 10-year operational cycles—the unit generates stable cavitation fields across three discrete ultrasonic frequencies (25 kHz, 40 kHz, and 60 kHz), enabling selective optimization for diverse sample geometries and contaminant types. At 54 L capacity and 1000 W nominal ultrasonic output, the SCQ-1000C bridges the performance gap between compact benchtop units and industrial-scale systems, delivering reproducible cleaning efficacy without requiring floor-standing infrastructure. Its full SUS304 stainless steel construction—including tank, lid, basket, and frame—meets stringent corrosion resistance requirements for aqueous, alkaline, and mild solvent-based cleaning protocols, and supports routine autoclave-compatible sterilization validation.

Key Features

• Triple-frequency ultrasonic generation (25 kHz / 40 kHz / 60 kHz) with independent frequency selection for tailored cavitation intensity and penetration depth
• Digital microprocessor controller with real-time display of time, temperature, power level, and active frequency
• Adjustable ultrasonic power (10–100% in 1% increments) and programmable heating (ambient to 100 °C, ±1 °C accuracy)
• Full SUS304 stainless steel tank and housing—resistant to chlorides, phosphates, and common alkaline detergents per ASTM A240
• Integrated insulated lid with ergonomic handle and acoustic damping layer, reducing ambient noise to ≤65 dB(A) at 1 m
• Dry-run protection circuit with audible/visual alert triggered when liquid level falls below transducer array threshold
• Overtemperature and overcurrent protection compliant with IEC 61000-4-5 surge immunity standards
• Manual bottom-mounted drain valve with PTFE-sealed brass fitting for controlled fluid evacuation

Sample Compatibility & Compliance

The SCQ-1000C accommodates a broad range of laboratory and industrial components, including glassware (vials, flasks, cuvettes), metal parts (surgical instruments, dental prostheses, watch mechanisms), printed circuit boards, optical lenses, and polymer-based medical devices. Its uniform energy distribution—validated via ASTM E1729-22 mapping procedures—ensures consistent cleaning across complex geometries such as lumened catheters or multi-layered microfluidic chips. The system supports cleaning validation protocols aligned with ISO 15883-1 (washer-disinfectors) and USP (ultrasonic cleaning of pharmaceutical equipment). While not certified as a Class II medical device, its materials, traceability documentation, and design controls are compatible with FDA 21 CFR Part 11–enabled quality management systems when integrated into validated lab workflows.

Software & Data Management

The SCQ-1000C operates via embedded firmware with non-volatile memory storing up to 20 user-defined cleaning programs. Each program retains frequency selection, power setpoint, temperature target, dwell time, and ramp profiles. All parameter changes are logged with timestamp and operator ID (via optional RFID badge integration). Audit trail export is supported via USB-C interface in CSV format, meeting ALCOA+ principles for data integrity. Firmware updates are performed offline using signed binary files to prevent unauthorized modification—consistent with GxP data governance expectations. No cloud connectivity or remote access capabilities are included, preserving network security boundaries in regulated facilities.

Applications

• Pre-analytical preparation of HPLC vials, GC autosampler trays, and ICP-MS sample introduction components
• Removal of polishing compounds and organic residues from optical substrates prior to thin-film deposition
• Decontamination of reusable surgical instruments in hospital central sterile supply departments (CSSD)
• Extraction support for botanical and tissue samples in natural product isolation workflows
• Degassing of solvents and resin mixtures prior to casting or coating applications
• Surface activation of MEMS devices and semiconductor wafers before bonding or metallization
• Routine maintenance of pipette tips, centrifuge rotors, and electrophoresis apparatus components

FAQ

Is the SCQ-1000C suitable for use with flammable solvents?
No. The unit is designed exclusively for aqueous and water-miscible solutions. Use with flammable or low-flashpoint solvents violates UL/IEC 61010-1 safety requirements and voids warranty.
Can multiple frequencies operate simultaneously?
No. Frequency selection is mutually exclusive; only one frequency may be active per cleaning cycle to maintain acoustic field stability and measurement repeatability.
What is the expected service life of the transducer array?
Under normal operating conditions (≤8 h/day, 5 days/week, maintained within specified temperature and duty cycle limits), the transducers exhibit >50,000 hours MTBF per MIL-HDBK-217F predictions.
Does the unit include validation documentation?
Yes—factory calibration certificates for temperature sensor and timer accuracy are provided. IQ/OQ templates compliant with ISO/IEC 17025 are available upon request for qualified customers.
Is the drain valve compatible with standard laboratory waste collection systems?
Yes. The 1/2″ NPT female outlet accepts standard PVC or stainless steel tubing and connects directly to passive gravity-fed waste lines or vacuum-assisted drainage manifolds.
