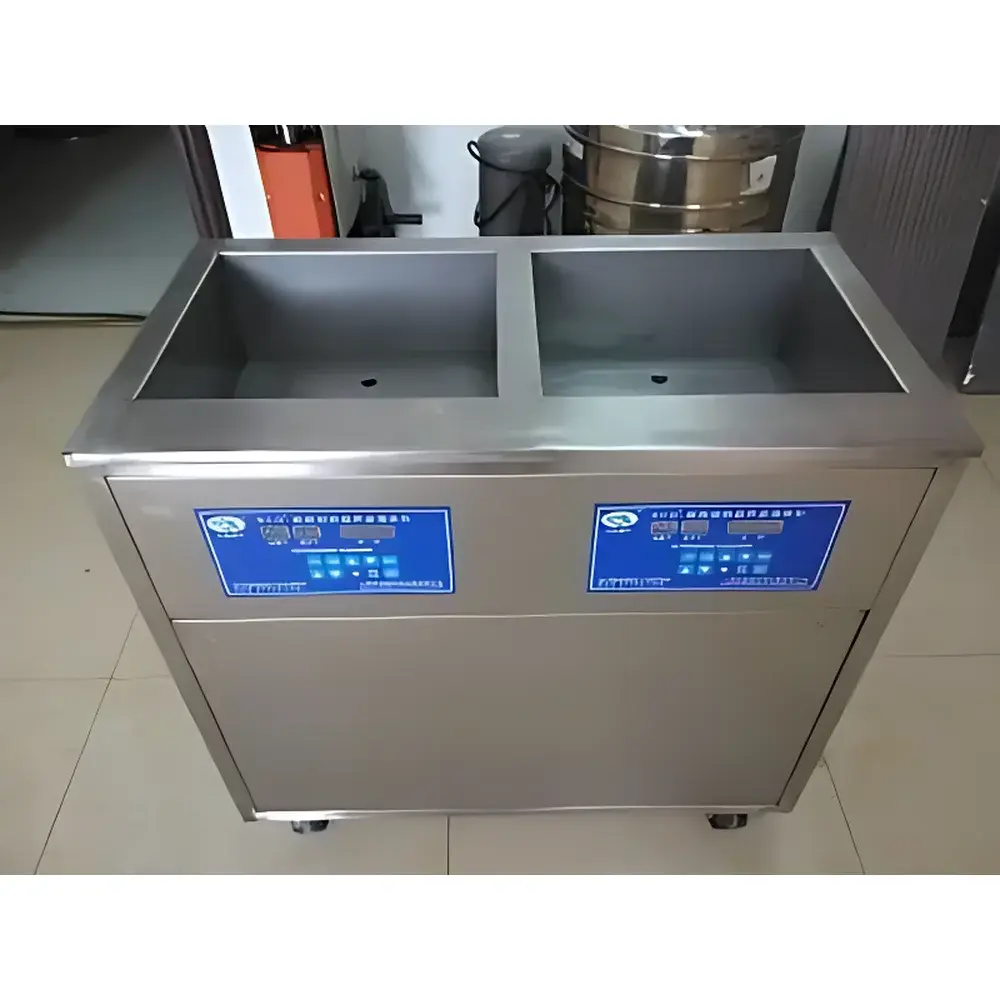

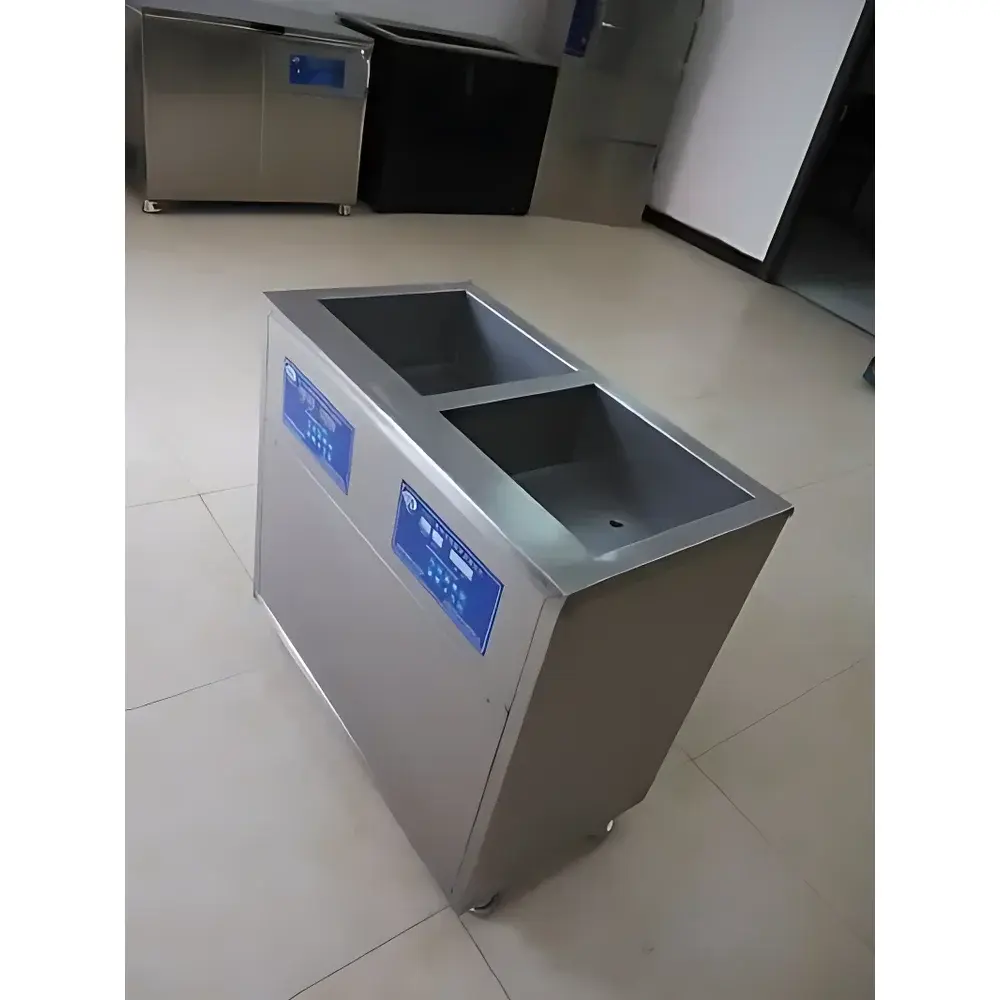

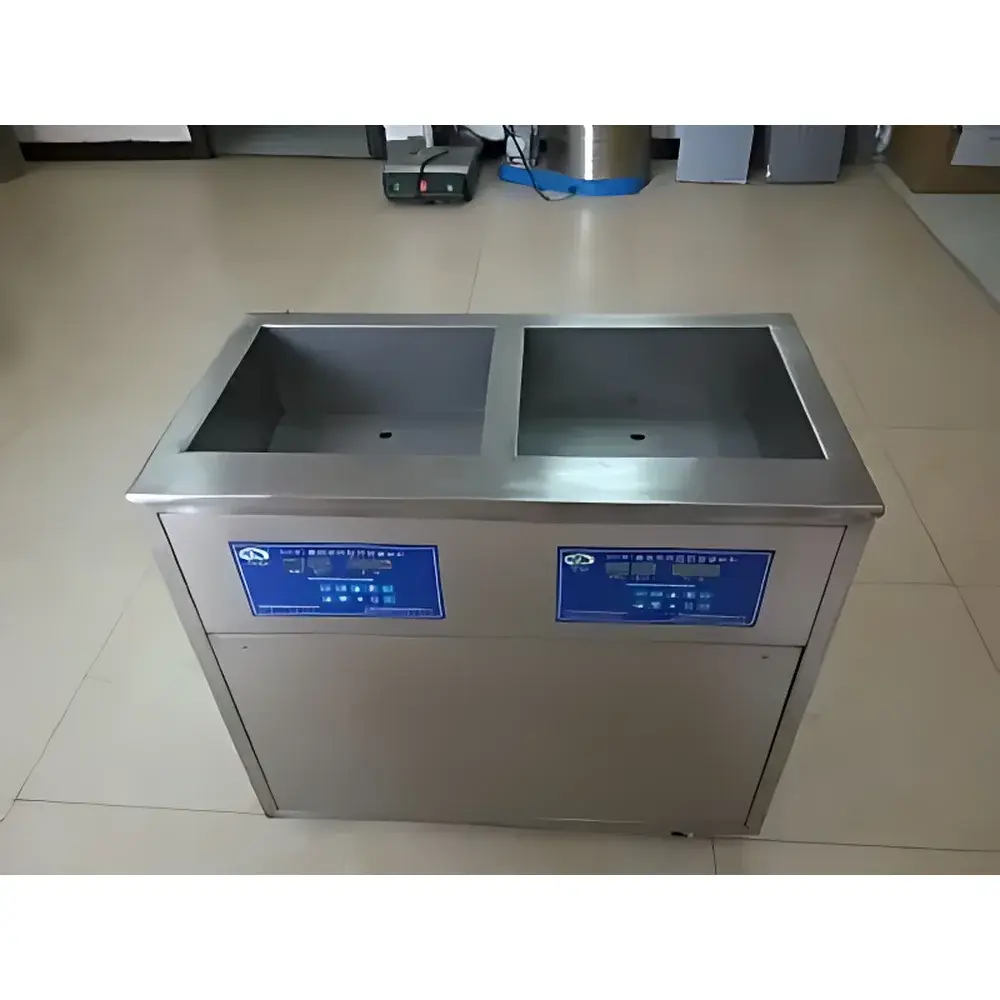

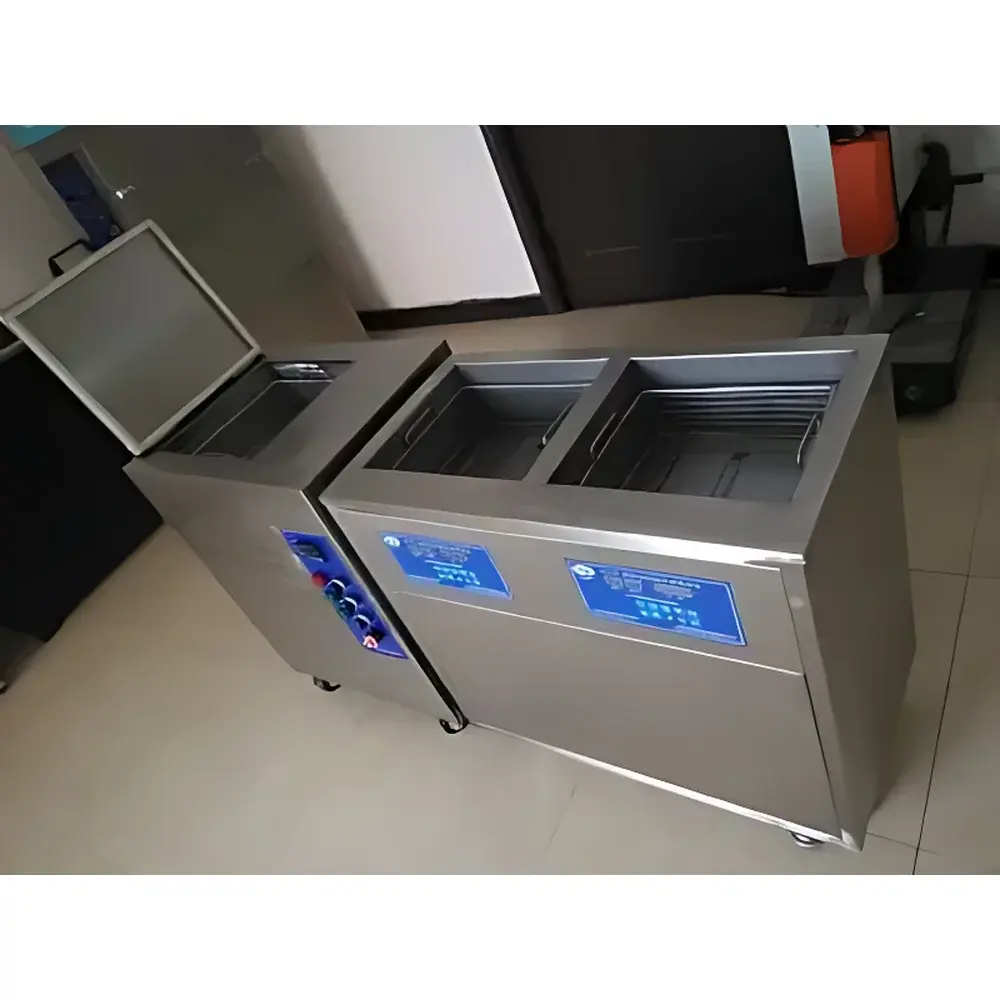

SYC Sycs SCQ-130809 Dual-Tank Digital Ultrasonic Cleaner with Heating

Overview

The SYC Sycs SCQ-130809 is a dual-tank, digitally controlled ultrasonic cleaning system engineered for precision laboratory and industrial cleaning workflows requiring sequential coarse and fine cleaning stages. Each independently operated tank employs high-intensity piezoelectric transducers operating at distinct frequencies—28 kHz for macro-scale particle removal and cavitation-driven bulk contamination clearance, and 42 kHz for higher-resolution micro-cleaning, improved surface finish, and reduced risk of damage to delicate substrates such as optical components, microelectronics, or thin-film-coated instruments. The system utilizes the physical principle of acoustic cavitation: high-frequency sound waves generate transient microbubbles in the cleaning medium that collapse violently upon implosion, producing localized shockwaves and micro-jets capable of dislodging particulate matter, organic residues, oxides, and biofilms from complex geometries—including blind holes, crevices, and porous surfaces—without mechanical abrasion. Designed for reproducible, non-destructive cleaning under controlled thermal and temporal conditions, the SCQ-130809 supports standardized cleaning validation protocols in regulated environments.

Key Features

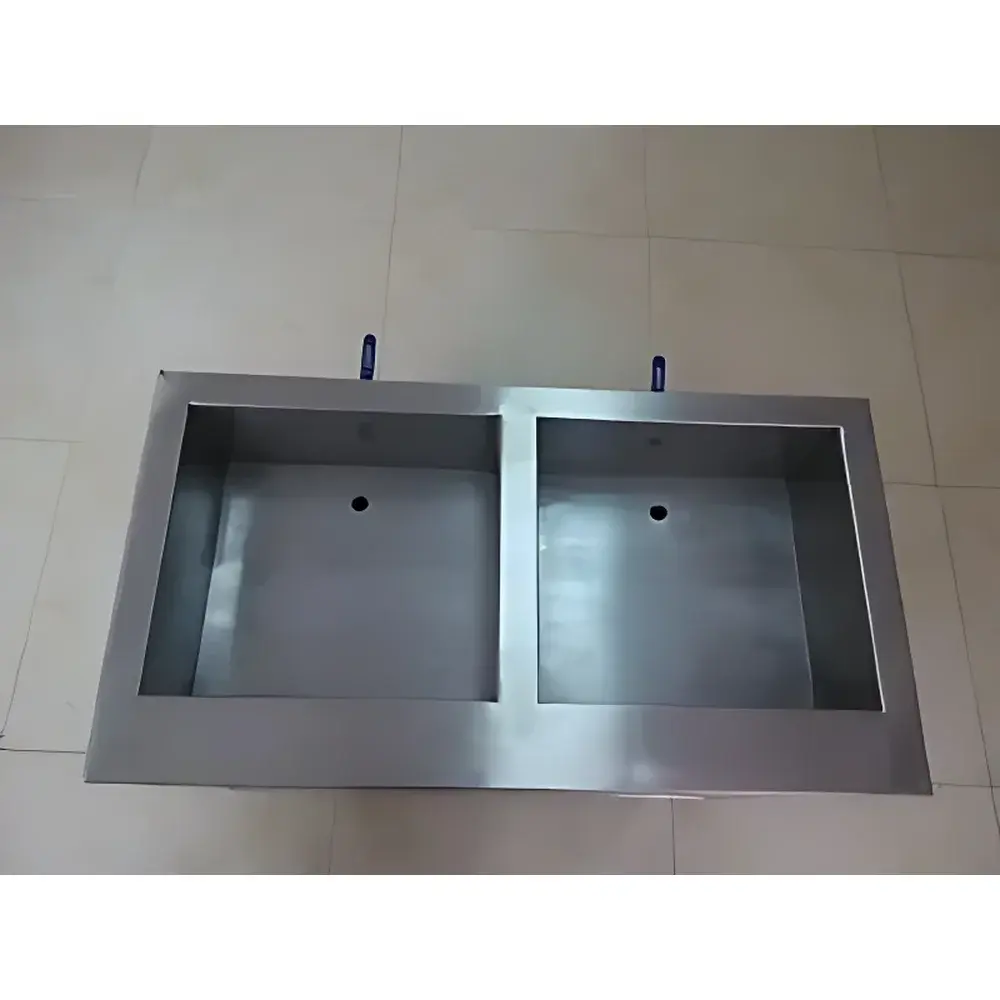

• Dual independent stainless steel tanks (SUS304, 2.0 mm wall thickness), each with 15 L capacity and identical internal dimensions (330 × 300 × 150 mm)
• Separate frequency operation: 28 kHz (Tank 1) optimized for heavy-duty degreasing and gross contaminant removal; 42 kHz (Tank 2) suited for precision rinsing, post-etch residue removal, and sensitive instrumentation
• High-output transducer array delivering 350 W per tank (700 W total ultrasonic power), enabling rapid, visually verifiable cavitation activity in aqueous and solvent-based media
• Digital temperature control (ambient to 80 °C) with 600 W heating element per tank—critical for enhancing detergent efficacy, accelerating solvent evaporation, and supporting thermally assisted cleaning processes
• Precise digital timer (1–600 minutes) with automatic shutdown and audible end-of-cycle alert
• Integrated sound-dampening lid for operator safety and noise reduction compliant with ISO 11201 occupational exposure guidelines
• Manual fill-and-drain valves with corrosion-resistant brass fittings; compatible with deionized water, ethanol, isopropanol, aqueous alkaline detergents, and low-volatility solvents
• Full stainless steel housing and lid assembly ensuring structural integrity, chemical resistance, and long-term durability in high-humidity or splash-prone lab environments

Sample Compatibility & Compliance

The SCQ-130809 accommodates a broad range of sample types without modification: glassware (vials, cuvettes, pipettes), metal components (surgical instruments, watch gears, PCBs), polymer substrates (lens housings, sensor casings), ceramics, and composite materials. Its dual-frequency architecture enables method development aligned with ASTM D2603 (Standard Test Method for Sonic Shear Stability of Lubricants) and ISO 13004 (Cleaning of medical devices). While not certified for ISO 13485 manufacturing or FDA 21 CFR Part 11 compliance out-of-the-box, the system’s repeatable thermal and temporal parameters support documentation of cleaning process validation (e.g., residual protein or endotoxin testing) required under GLP and GMP frameworks. All electrical components meet IEC 61010-1 safety standards for laboratory equipment.

Software & Data Management

This model operates via an embedded digital control panel with LED display—no external software or PC interface is included. All operational parameters (temperature setpoint, timer duration, on/off status) are manually entered and retained across power cycles. For audit readiness, users may log settings and cycle outcomes manually or integrate the unit into facility-wide environmental monitoring systems using optional analog voltage output modules (available separately). While native data export is not supported, the consistent repeatability of setpoints facilitates integration into SOP-driven workflows where traceability is maintained through laboratory notebooks or LIMS entries.

Applications

• Pre-analytical preparation of HPLC vials, GC autosampler trays, and spectrophotometer cells
• Removal of flux residues and solder paste from printed circuit boards prior to AOI inspection
• Cleaning of reusable surgical tools, dental prostheses, and ophthalmic lenses in clinical labs
• Surface activation and degassing of substrates prior to thin-film deposition or adhesive bonding
• Extraction support for botanical samples, soil matrices, and tissue homogenates in analytical chemistry
• Routine maintenance of precision optics, metrology fixtures, and calibration standards
• Decontamination of reusable PPE components (e.g., face shields, respirator parts) in biosafety Level 2 facilities

FAQ

Can this unit be used with flammable solvents such as acetone or hexane?
No. The SCQ-130809 lacks explosion-proof certification and internal vapor management systems. Only non-flammable, low-volatility solvents (e.g., isopropanol, ethanol/water blends, aqueous detergents) are recommended.
Is the heating function available in both tanks simultaneously?
Yes. Each tank has an independent 600 W heating element and digital thermostat, allowing simultaneous or staggered thermal operation.
What is the expected service life of the transducers under continuous use?
With proper maintenance (avoiding dry operation, regular descaling, and adherence to manufacturer-recommended duty cycles), transducers typically maintain >90% nominal output for ≥5,000 operational hours.
Does the unit include a degas mode?
No dedicated degas cycle is provided; however, initiating ultrasonic operation at ambient temperature for 5–10 minutes before heating achieves effective dissolved gas removal in most aqueous solutions.
Are replacement stainless steel baskets available?
Yes. Optional SUS304 mesh baskets (customizable aperture size and height) are available as accessories to optimize load distribution and minimize shadowing effects during cavitation.
