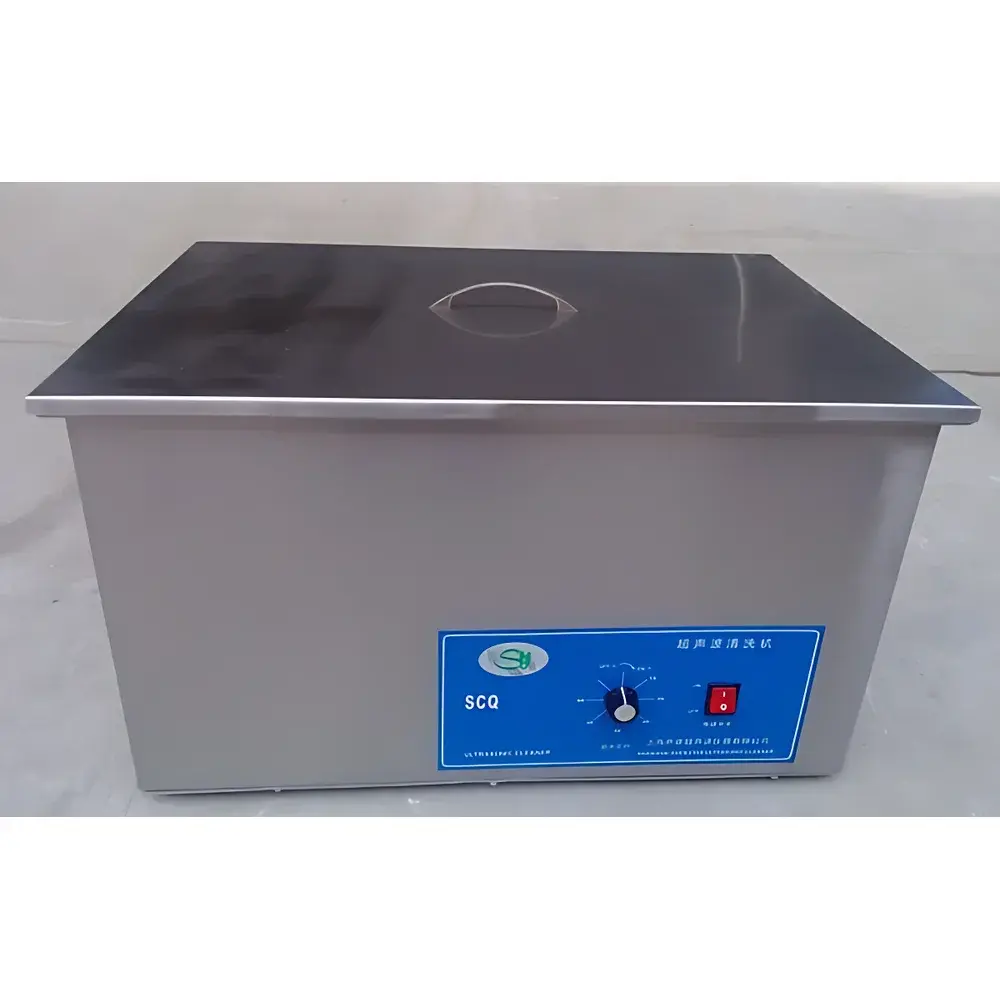

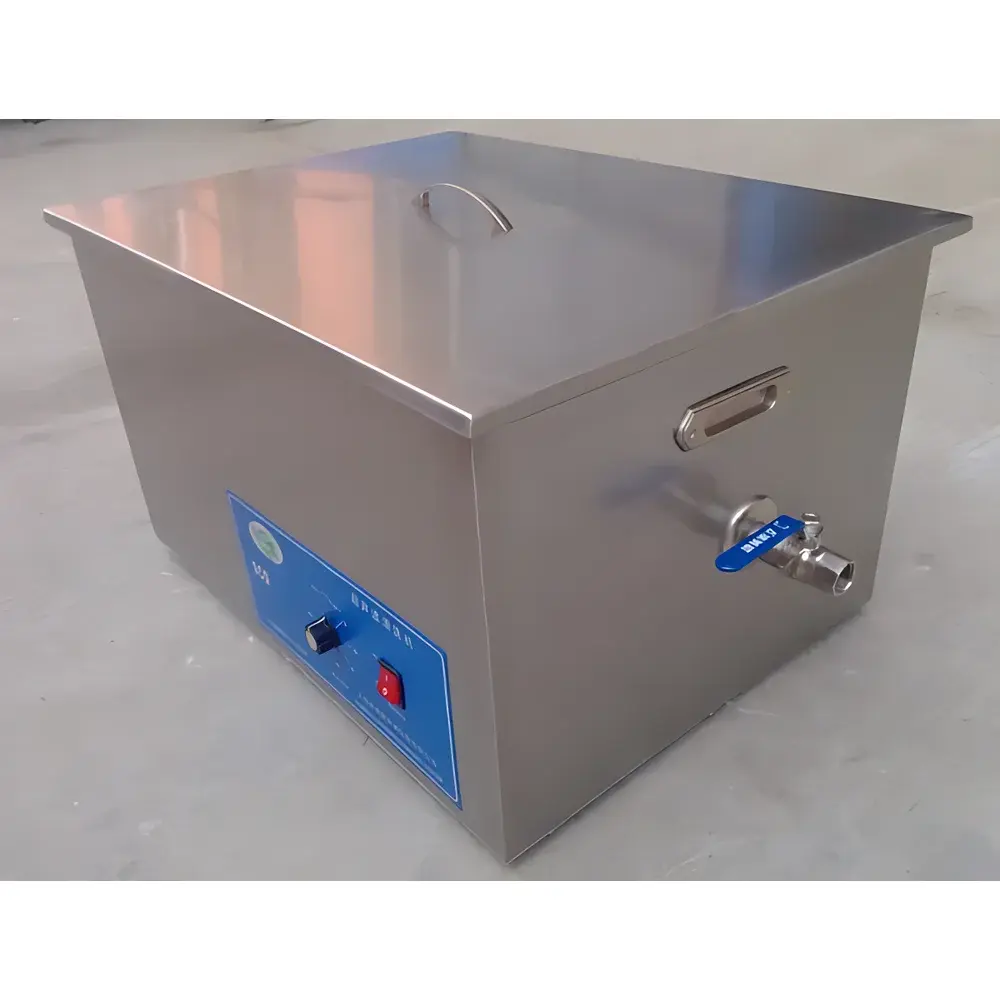

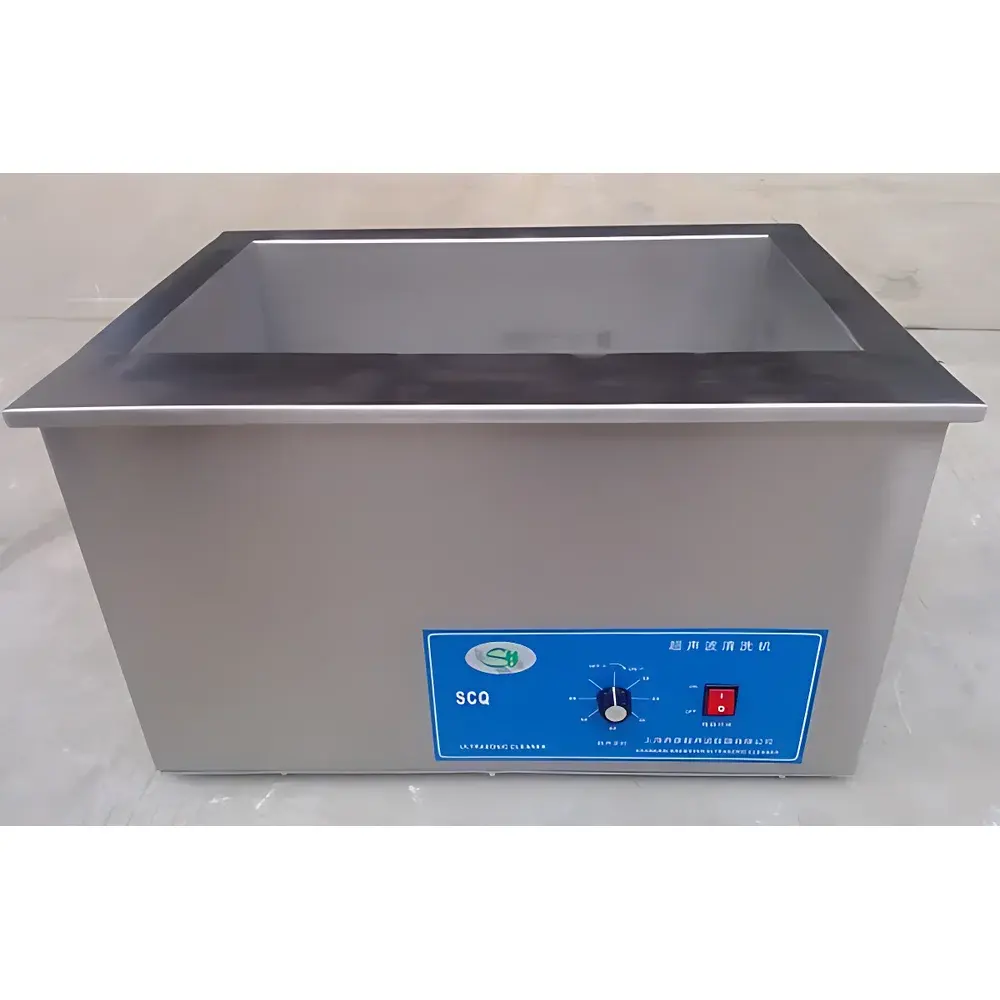

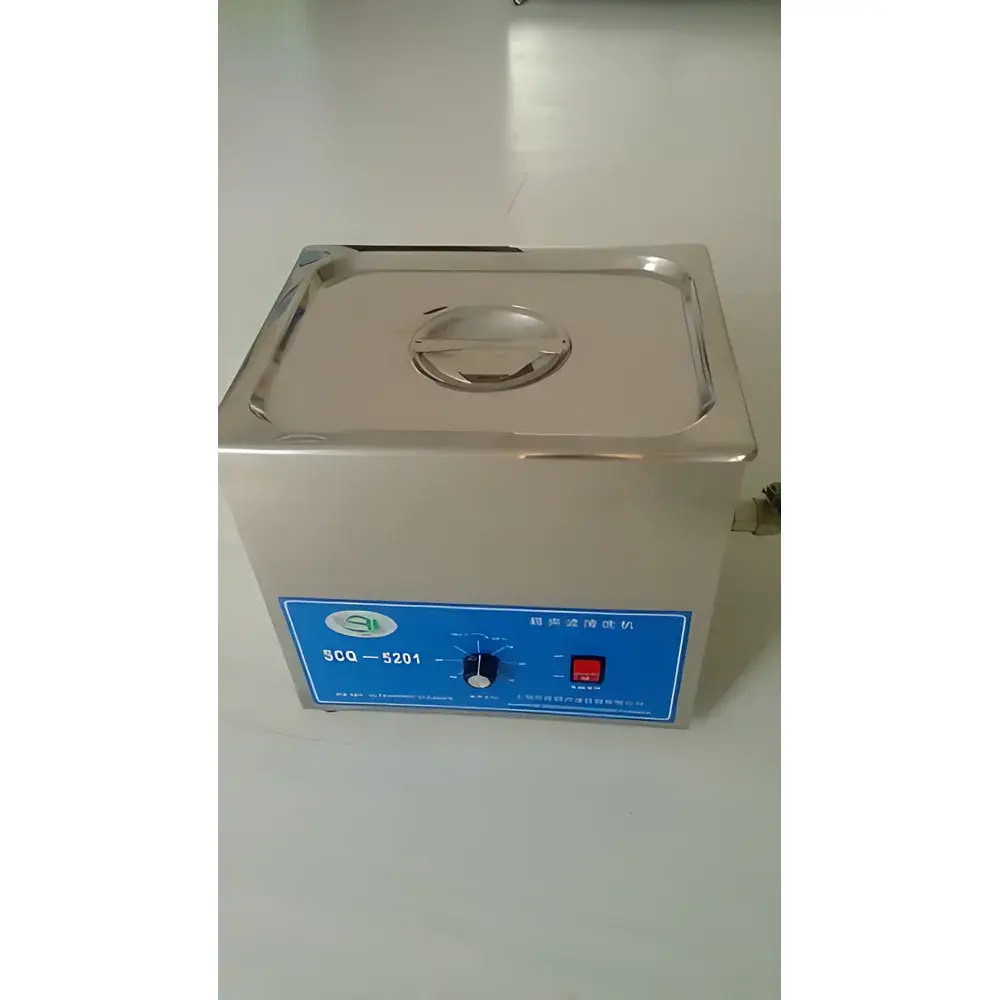

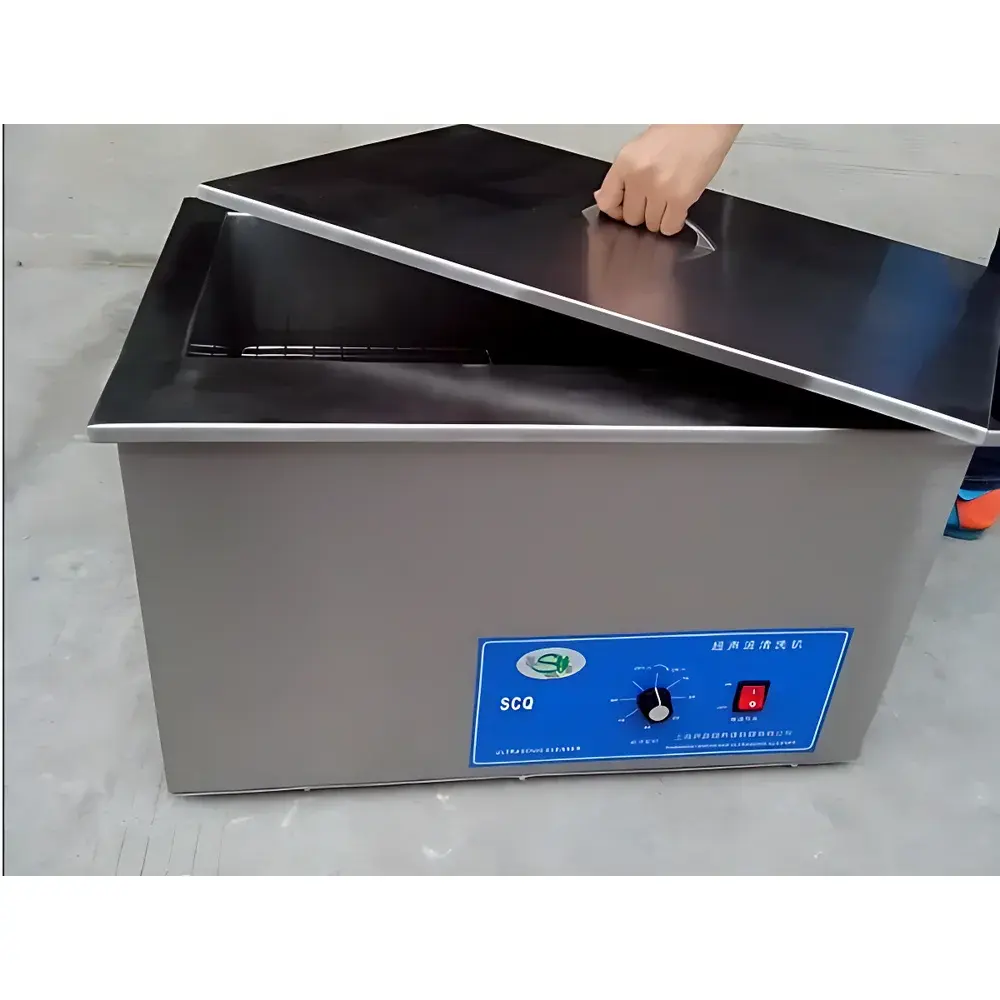

SYC Sycs SCQ-8201 500W Benchtop Ultrasonic Cleaner

Overview

The SYC Sycs SCQ-8201 is a high-capacity, benchtop ultrasonic cleaner engineered for consistent, repeatable cleaning performance in regulated laboratory and quality control environments. It operates on the principle of cavitation—where high-frequency sound waves generate microscopic vacuum bubbles in liquid media that implode with localized energy, dislodging particulate contaminants, organic residues, and biofilms from submerged surfaces. Designed specifically for pharmaceutical QC labs, medical device reprocessing units, and analytical sample preparation workflows, the SCQ-8201 delivers uniform acoustic energy distribution across its 22.5 L stainless-steel tank, supporting both aqueous and compatible non-aqueous cleaning solutions. Its robust construction, integrated thermal regulation, and programmable timing align with routine validation requirements for cleaning process reproducibility under GLP and GMP-aligned protocols.

Key Features

• Stainless-steel tank and housing (AISI 304 grade) resistant to corrosion from water, mild alkaline detergents, and common solvents—ensuring long-term structural integrity and compliance with ISO 15195 and ASTM D2603 standards for cleaning equipment durability.
• Selectable ultrasonic frequency modes (25 / 28 / 40 / 60 / 80 / 100 kHz) allow optimization for diverse sample types: lower frequencies (25–40 kHz) provide higher cavitation intensity for heavy particulate removal; higher frequencies (60–100 kHz) offer gentler, more uniform energy distribution ideal for delicate optics, microfluidic components, or coated substrates.
• Precise digital temperature control (ambient to 80 °C) enables thermally assisted cleaning without boiling or solvent degradation—critical for residue removal from stainless-steel vials, HPLC columns, and surgical instruments per ISO 15883-1 and AAMI ST35 guidelines.
• Programmable timer (1–600 minutes) supports standardized soak cycles, including multi-stage cleaning protocols requiring timed agitation, rinse, and dwell intervals.
• Integrated safety architecture includes dual thermal cutoffs, current-limiting circuitry, and automatic dry-run detection—triggering audible and visual alerts when liquid level falls below operational threshold, mitigating transducer damage risk in compliance with IEC 61000-6-3 EMC requirements.
• Acoustically insulated lid reduces ambient noise to ≤65 dB(A) at 1 m distance, meeting occupational health thresholds outlined in OSHA 29 CFR 1910.95 for continuous lab exposure.

Sample Compatibility & Compliance

The SCQ-8201 accommodates a broad range of laboratory hardware—including glassware (volumetric flasks, cuvettes, pipette tips), metal components (stainless-steel forceps, biopsy punches), ceramic substrates, and polymer-based devices (e.g., syringe filters, microtiter plates). It is routinely deployed in settings requiring adherence to USP “Cleaning and Sterilization of Laboratory Equipment”, ISO 13485 Annex C for medical device cleaning validation, and FDA 21 CFR Part 211 Subpart B (Equipment) for pharmaceutical manufacturing support. All wetted surfaces are non-leaching and compatible with common cleaning agents validated per ASTM E2577 and EN ISO 15883-5. No internal plumbing or automated fluid handling is present; manual fill/drain ensures full operator control over solution composition and disposal pathways.

Software & Data Management

As a standalone analog-digital hybrid instrument, the SCQ-8201 does not incorporate embedded software, network connectivity, or electronic data capture. All operational parameters—temperature setpoint, timer duration, and frequency selection—are configured via front-panel membrane switches with LED feedback. This design eliminates cybersecurity vulnerabilities and simplifies IQ/OQ documentation for regulated users. For audit readiness, operators may record cycle parameters manually in logbooks or integrate the unit into broader electronic batch records (EBR) via external time-stamped SOP execution. The absence of firmware or cloud dependencies ensures uninterrupted operation during power fluctuations and avoids obsolescence risks associated with proprietary OS platforms.

Applications

• Pharmaceutical QC: Cleaning of dissolution apparatus baskets, tablet friability testers, and residual solvent test vials prior to GC/HPLC analysis.
• Medical Device Manufacturing: Pre-sterilization cleaning of stainless-steel cannulas, endoscopic accessories, and orthopedic implant fixtures.
• Research Laboratories: Removal of photoresist residues from silicon wafers, degassing of nanoparticle suspensions, and sonication-assisted cell lysis in preparatory workflows.
• Environmental Testing Labs: Decontamination of field-collected sampling bottles and filter housings used in trace-metal analysis (EPA Method 1669).
• Academic Teaching Facilities: Demonstrating cavitation physics, surface tension effects, and frequency-dependent cleaning efficacy in materials science curricula.

FAQ

Is the SCQ-8201 compliant with FDA 21 CFR Part 11 for electronic records?
No—the unit has no electronic record generation capability. All operational data must be documented manually or via external systems.
Can multiple frequencies be active simultaneously?
No—only one frequency can be selected and sustained per cleaning cycle.
What is the maximum recommended cleaning solution volume?
The tank is rated for 22.5 L total capacity; optimal cavitation occurs when filled to 70–90% (16–20 L) to ensure adequate fluid coupling and transducer cooling.
Does the unit include a heater calibration certificate?
Factory calibration is performed; NIST-traceable certification is available upon request as an optional service.
Is the stainless-steel tank electropolished?
Standard finish is mechanically polished 304 SS; electropolishing is available as a custom order for enhanced passivation in high-purity applications.
