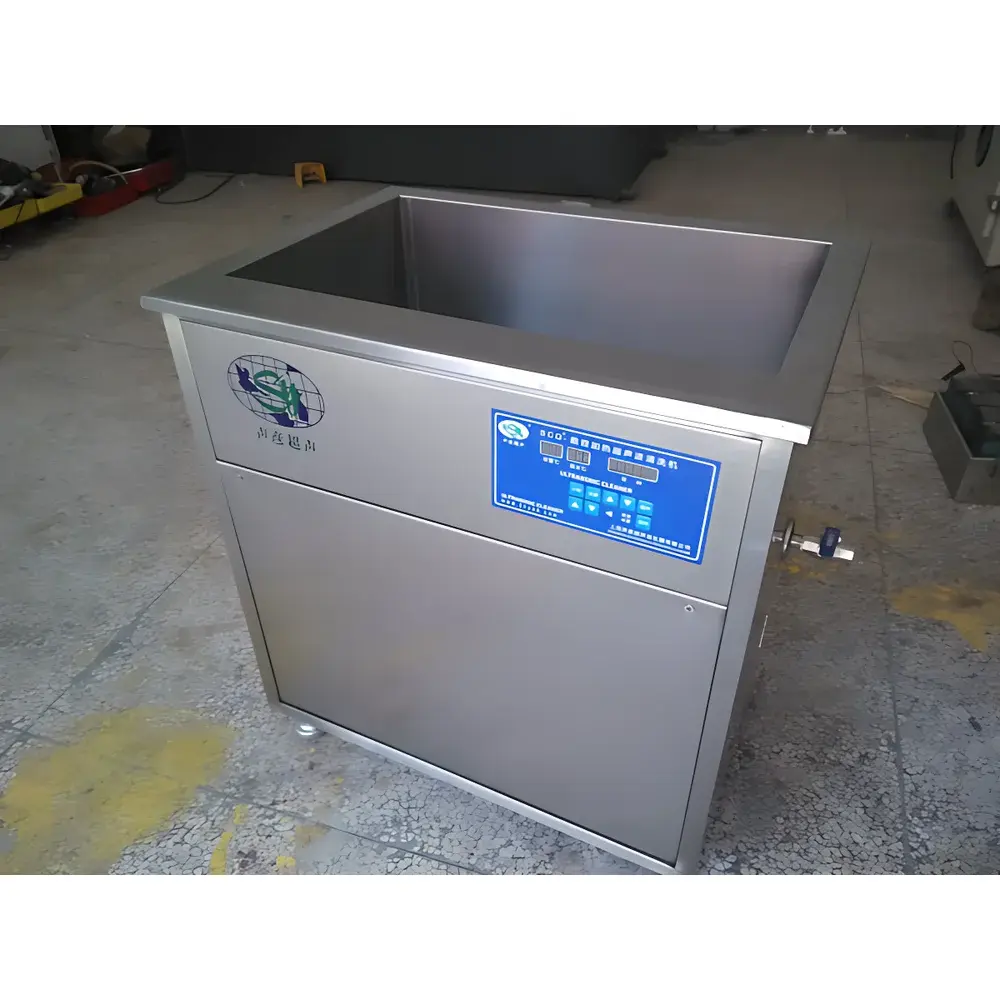

SYC Sycs SCQ-9200 36L Benchtop Ultrasonic Cleaner

Overview

The SYC Sycs SCQ-9200 is a high-capacity benchtop ultrasonic cleaner engineered for consistent, non-destructive cleaning of delicate and complex components across laboratory, industrial, and clinical environments. It operates on the principle of cavitation—where high-frequency acoustic energy (25 kHz, 40 kHz, or 60 kHz) generates microscopic vacuum bubbles in the cleaning liquid that implode with localized energy, dislodging particulate contaminants, oils, oxides, and biofilms from surfaces without mechanical abrasion. With a 36-liter stainless steel tank (600 × 300 × 200 mm internal), this unit supports large-volume batch processing of glassware, metal parts, optical assemblies, printed circuit boards (PCBs), surgical instruments, and reusable medical devices. Its fixed 800 W transducer array delivers uniform energy distribution across the tank volume, ensuring reproducible cleaning efficacy validated by ASTM D2727 and ISO 13485-aligned workflows. Designed for reliability under continuous operation, the SCQ-9200 complies with IEC 61000-6-3 (EMC emissions) and IEC 61010-1 (safety for laboratory equipment).

Key Features

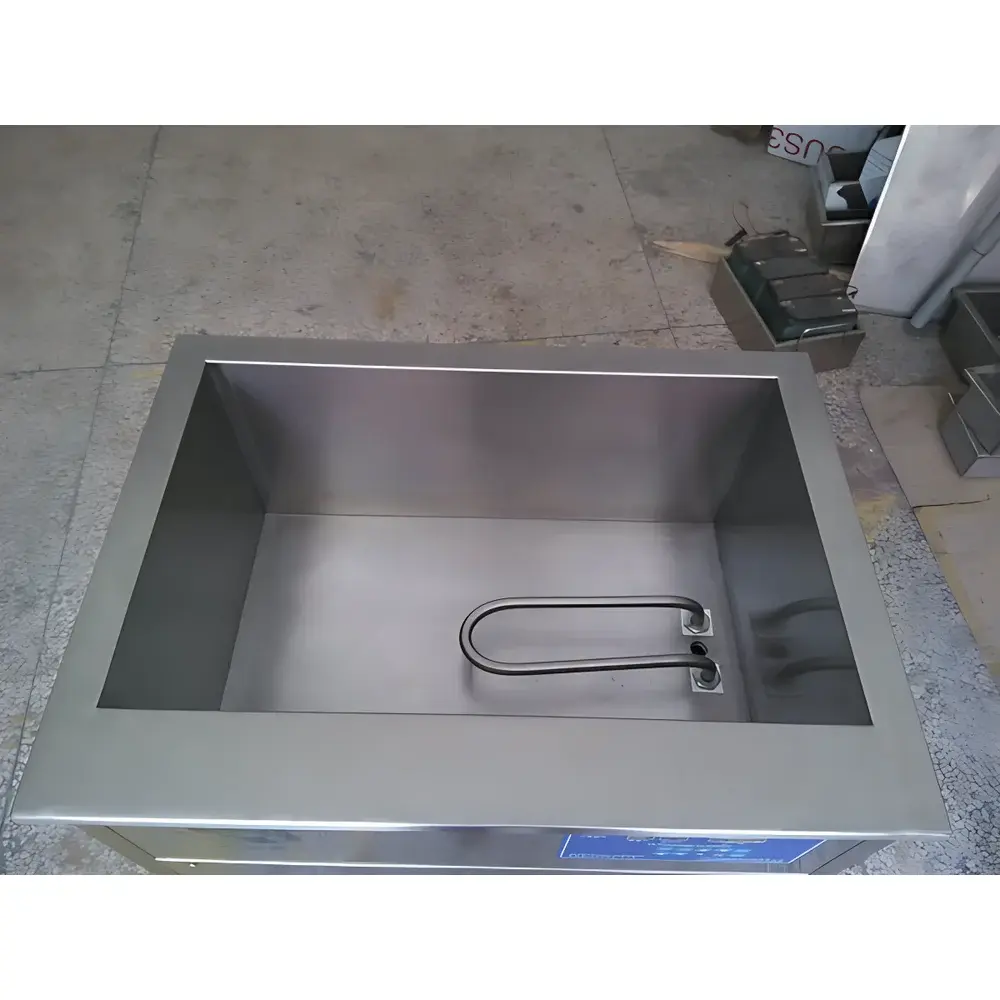

• 36 L capacity tank constructed entirely from corrosion-resistant 304 stainless steel—both inner tank and outer housing—with seamless welds and electropolished interior for enhanced cleanability and longevity.
• User-selectable single-frequency operation at 25 kHz (optimized for heavy-duty degreasing and rust removal), 40 kHz (balanced performance for general labware and electronics), or 60 kHz (high-resolution cleaning of microfluidic channels, optical lenses, and fine jewelry).

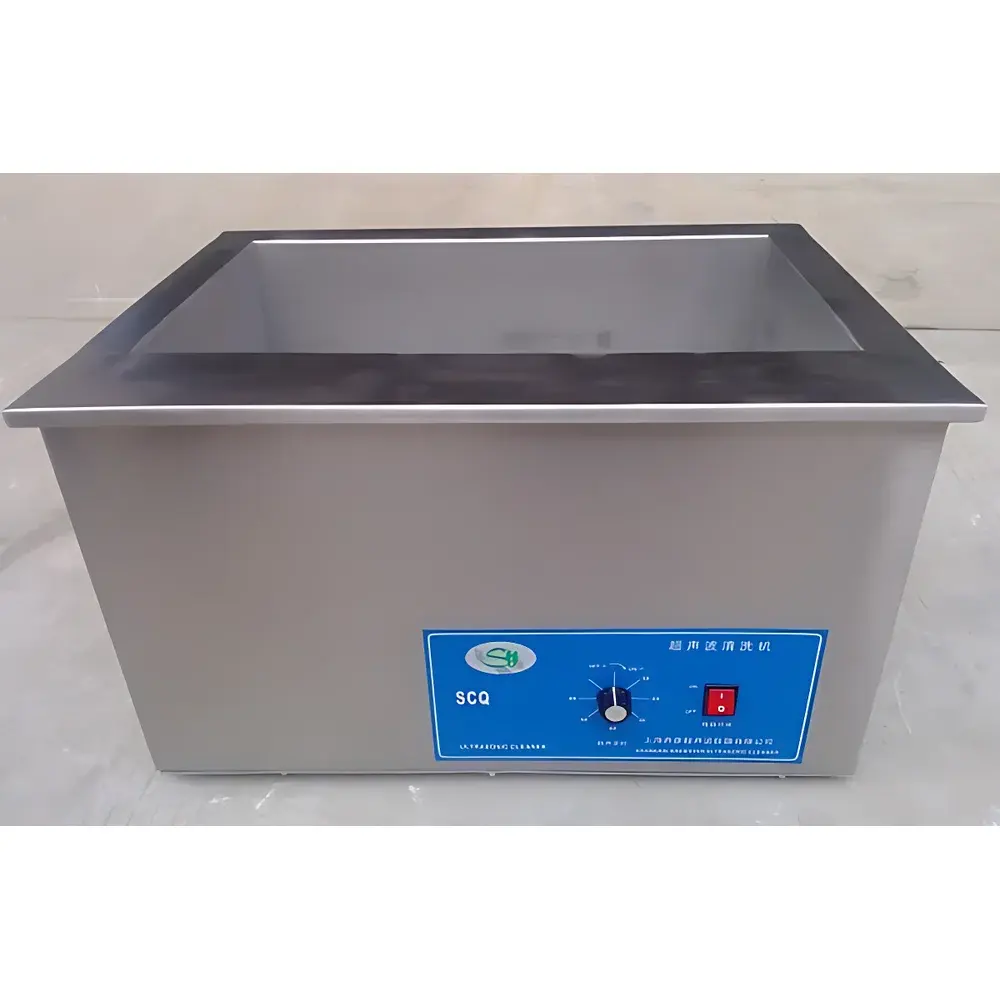

• Mechanically actuated timer (1–60 minutes) with tactile feedback dial—no software dependency, eliminating firmware failure points and ensuring compliance with GLP environments where electronic logging is not required.
• Integrated sound-dampening lid with safety interlock: automatically deactivates ultrasonics when opened, reducing operator noise exposure to <72 dB(A) at 1 m distance per ISO 7779.

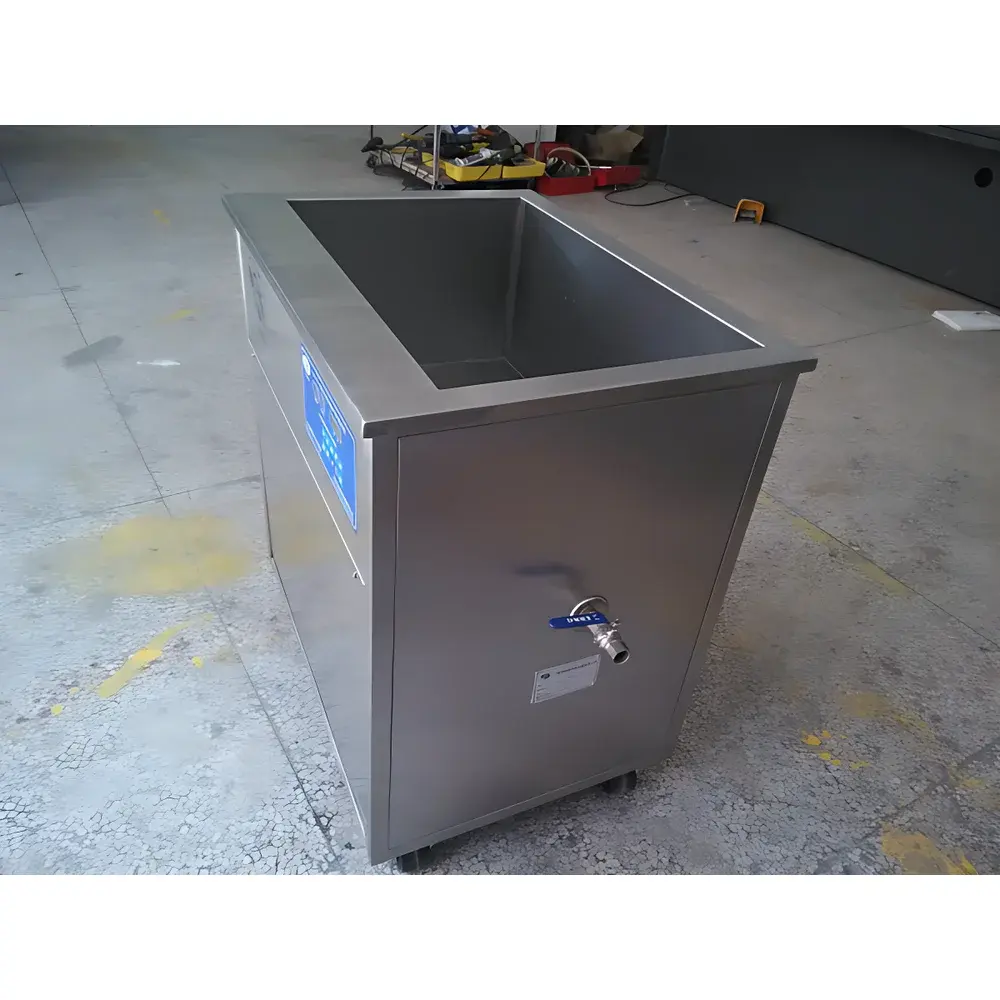

• Manual brass drain valve located at the tank base enables rapid, residue-free solution exchange—critical for solvent-based cleaning protocols requiring sequential baths (e.g., acetone → isopropanol → DI water).

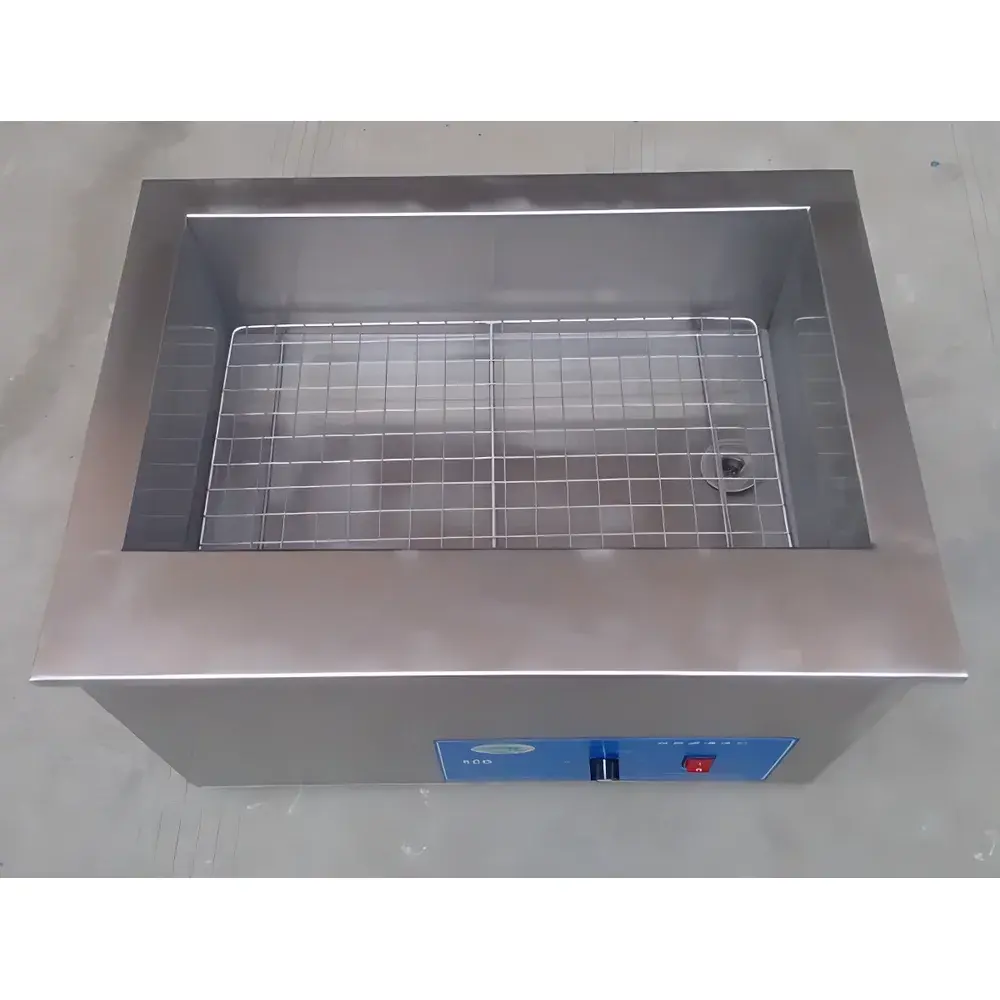

• Stainless steel mesh basket included as standard; optional custom-fit racks available for specialized fixtures (e.g., pipette tip trays, microscope slide holders, dental instrument cassettes).

Sample Compatibility & Compliance

The SCQ-9200 accommodates a broad range of substrates—including borosilicate glass, anodized aluminum, titanium alloys, silicone elastomers, polycarbonate, and ceramic composites—without inducing surface pitting or coating delamination when operated within recommended parameters. It is routinely deployed in ISO/IEC 17025-accredited laboratories for pre-analytical sample preparation (e.g., cleaning HPLC vials, GC autosampler needles, and ICP-MS sample introduction components). For regulated medical device reprocessing, the unit supports AAMI ST79-compliant cleaning validation when paired with compatible enzymatic or alkaline detergents. While not autoclavable itself, all wetted parts meet USP Class VI biocompatibility requirements. The absence of heating and programmable controls renders it suitable for use in environments governed by FDA 21 CFR Part 11 where audit trails are not mandated.

Software & Data Management

This model operates without embedded firmware or digital interfaces—intentionally designed for simplicity, traceability, and regulatory stability. All operational parameters (frequency selection, timer setting, and power activation) are manually controlled via front-panel switches and dials, producing no electronic records but enabling full procedural transparency during internal audits. Users maintain manual logbooks compliant with ISO 9001 clause 8.5.2 (identification and traceability) and CLIA §493.1253 (laboratory equipment documentation). Optional analog chart recorders or external time-lapse cameras may be integrated for visual process verification where required by QA protocols.

Applications

• Electronics Manufacturing: Removal of flux residues, solder paste, and particulate debris from PCBs, semiconductor wafers, and MEMS sensors—validated per IPC-J-STD-023.
• Life Sciences Research: Cleaning of centrifuge tubes, electrophoresis combs, cell culture flasks, and microtiter plates prior to sterilization or reuse.
• Clinical & Dental Labs: Decontamination of orthodontic appliances, endodontic files, impression trays, and reusable laryngoscope blades in accordance with CDC Guideline for Disinfection and Sterilization.
• Materials Science: Surface preparation of metal coupons prior to SEM/EDS analysis or coating adhesion testing (ASTM D3359).
• Jewelry & Precision Instrument Servicing: Non-abrasive restoration of optical lens coatings, watch movement components, and precious metal artifacts using low-surface-tension solvents.

FAQ

Is the SCQ-9200 suitable for cleaning delicate optics such as coated lenses or laser mirrors?
Yes—when operated at 60 kHz with a low-surface-tension solvent (e.g., 99.9% isopropanol) and appropriate immersion time (typically 3–5 min), it effectively removes sub-micron particles without damaging anti-reflective or dielectric coatings.
Can I use aqueous enzymatic cleaners in this unit?
Yes—provided the cleaner’s pH remains between 6.5 and 10.5 and operating temperature does not exceed 45°C. Avoid chlorine-based or strongly oxidizing formulations that accelerate stainless steel passivation layer degradation.
Does the unit include a heater or temperature control?
No—the SCQ-9200 is a non-heating model. For thermally assisted cleaning, users must pre-warm the bath externally or select a variant with integrated heating (e.g., SCQ-9200H series).
What maintenance is required to ensure long-term reliability?
Monthly inspection of transducer mounting bolts, quarterly descaling of the tank interior using citric acid solution, and annual verification of electrical grounding continuity per IEC 61010-1 Annex G.
Is the drain valve compatible with standard laboratory floor drain connections?
The 1/2″ NPT manual brass valve accepts standard flexible PVC or silicone tubing (ID 12–16 mm); direct floor coupling requires optional adapter kit (part #SCQ-DV-ADP).
