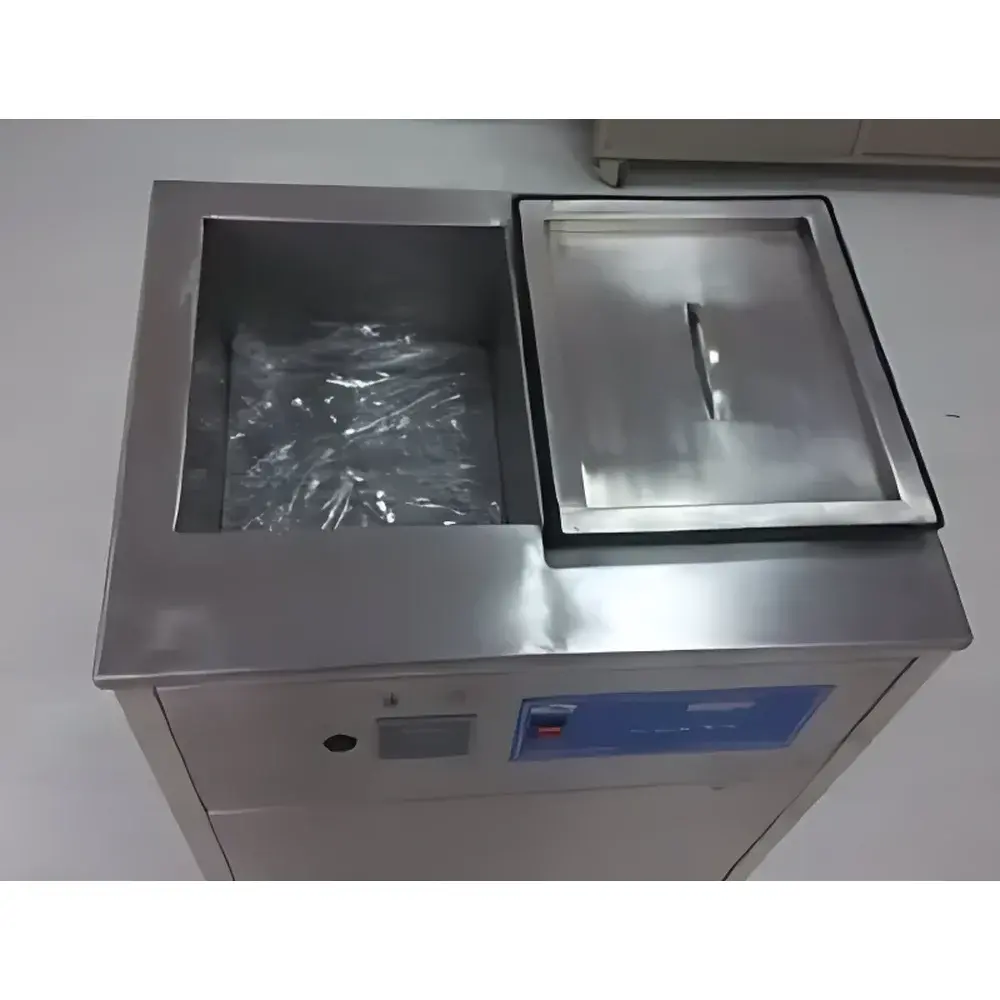

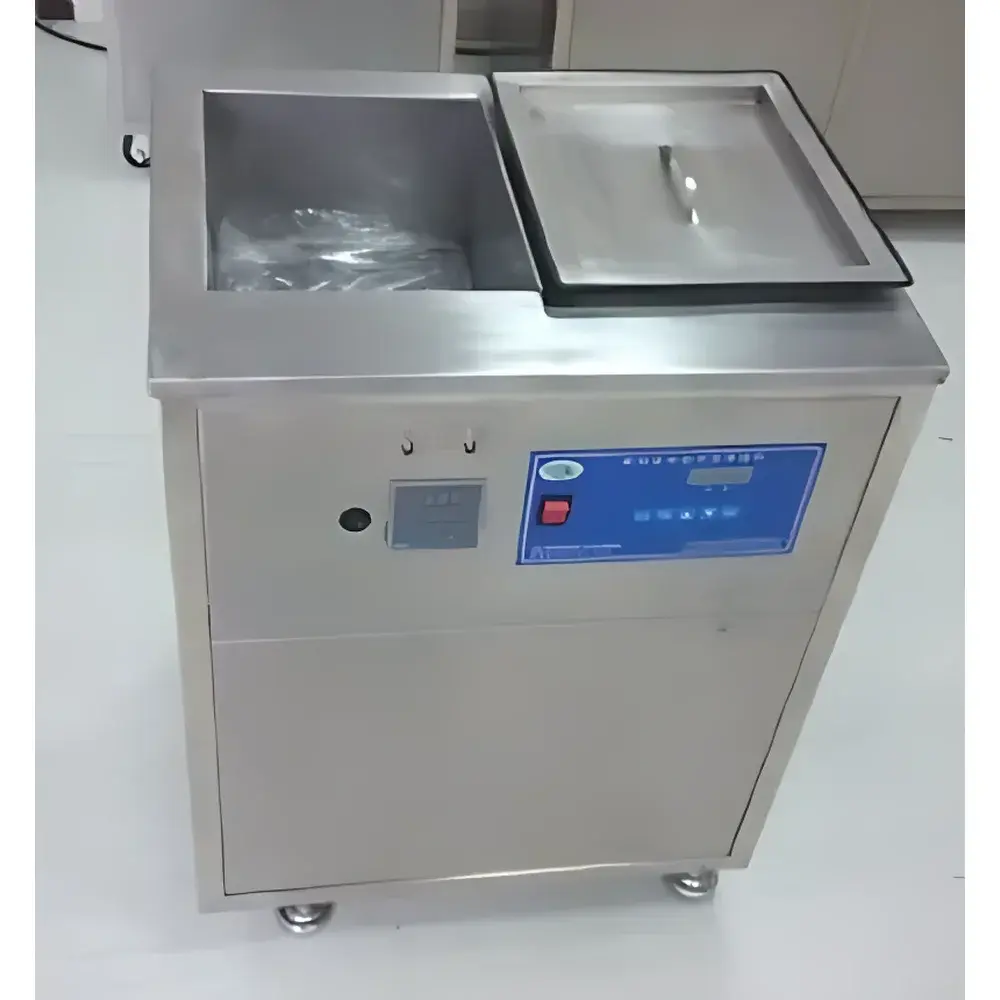

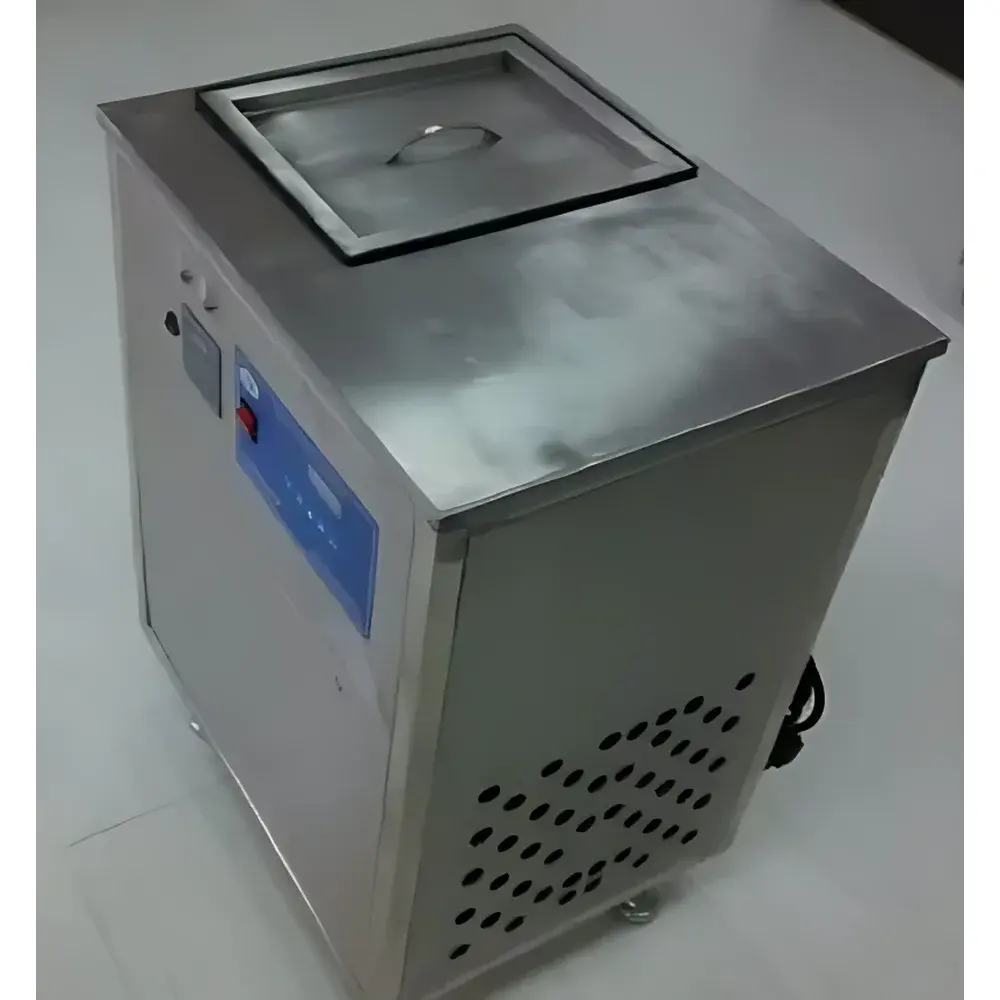

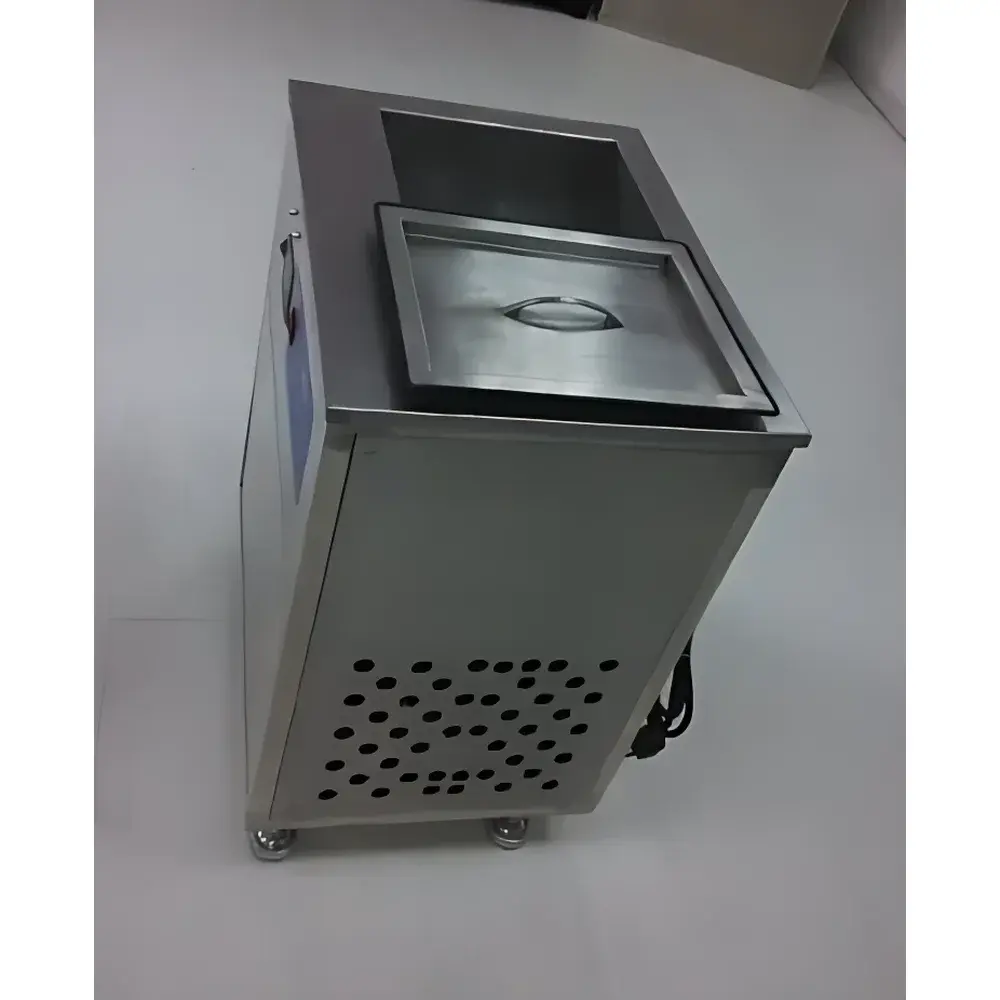

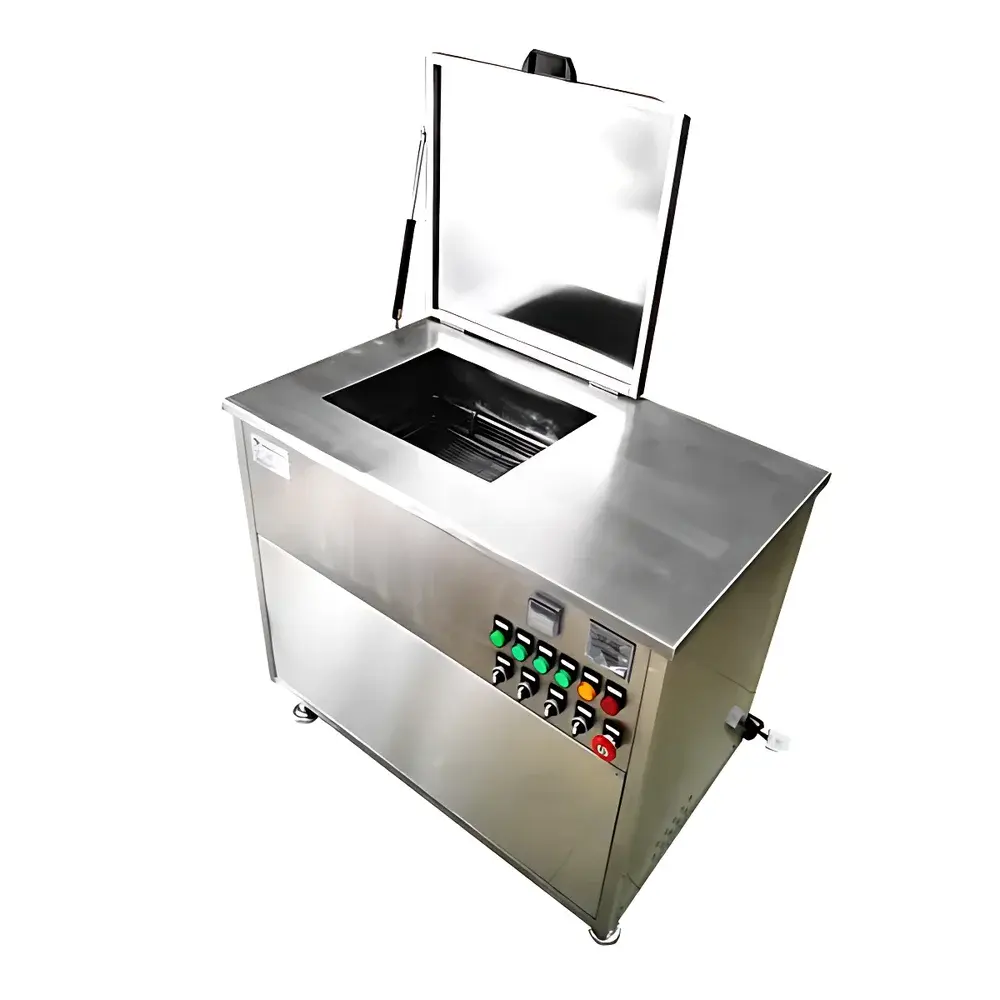

SYC Sycs SCQ-Y300A Ultrasonic Constant-Temperature Bath

Overview

The SYC Sycs SCQ-Y300A Ultrasonic Constant-Temperature Bath integrates high-intensity ultrasonic cavitation with precise thermostatic control in a single compact platform. It operates on the principle of piezoelectric transduction at 40 kHz, generating uniform acoustic energy distribution across the stainless steel tank to induce controlled microbubble collapse—enabling effective removal of particulate contaminants, organic residues, and biofilms from delicate surfaces. Unlike standard ultrasonic cleaners, the SCQ-Y300A incorporates a closed-loop temperature regulation system featuring a 304 stainless steel immersion heater and PID-controlled feedback, maintaining setpoint stability within ±0.5 °C over the full 20–100 °C operating range. This dual-function architecture supports applications requiring simultaneous sonication and thermal management—such as controlled enzymatic reactions, solvent-assisted extraction of thermolabile compounds, polymer dissolution kinetics, and pre-analytical sample conditioning for HPLC or ICP-MS workflows.

Key Features

• 304 stainless steel tank (300 × 240 × 200 mm internal dimensions) with electropolished finish for corrosion resistance and ease of cleaning
• Adjustable ultrasonic power output (10–100% of 320 W nominal), enabling optimization for sensitive substrates including optical lenses, microfluidic chips, and MEMS devices
• Microprocessor-based digital controller with backlit LCD interface supporting independent parameter setting for temperature, time, and power
• Integrated sound-dampening lid with safety interlock—reduces ambient noise to ≤65 dB(A) at 1 m distance and prevents solvent evaporation during extended operation
• Manual drain valve (1/2″ BSP thread) positioned at tank base for complete solution exchange without disassembly
• Removable perforated stainless steel basket (included) with handle for safe handling of fragile or irregularly shaped samples
• Over-temperature and dry-run protection circuits compliant with IEC 61010-1 safety standards

Sample Compatibility & Compliance

The SCQ-Y300A accommodates a broad spectrum of sample types—including glassware (vials, cuvettes, chromatography columns), metal components (surgical instruments, precision gears), polymer substrates (PDMS molds, PET films), and biological specimens (tissue culture plates, explanted implants). Its non-aggressive, non-contact cleaning mechanism preserves dimensional integrity and surface finish. The unit meets essential laboratory safety and environmental requirements: CE marking per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD); RoHS 2011/65/EU compliance for restricted substances; and conformity with ISO 13485–aligned manufacturing controls for medical device support applications. While not certified for GMP production environments, its repeatable performance and parameter traceability support GLP-compliant documentation when integrated into validated lab SOPs.

Software & Data Management

The SCQ-Y300A operates via embedded firmware without external PC dependency. All operational parameters—including setpoints, actual values, elapsed time, and fault logs—are retained in non-volatile memory and displayed in real time. The controller supports manual data recording via timestamped operator entries, and optional RS-232 serial output (available upon request) enables integration with LabVantage, Benchling, or custom LIMS platforms for audit-ready session logging. Though lacking native 21 CFR Part 11 electronic signature capability, the system’s deterministic behavior, hardware-enforced parameter limits, and immutable event history satisfy baseline FDA inspection expectations for ancillary lab equipment used in analytical method development or stability testing.

Applications

• Controlled extraction of active pharmaceutical ingredients (APIs) from botanical matrices under defined thermal-sonic conditions
• Pre-treatment of GC/MS inlet liners and autosampler vials to eliminate carryover and baseline drift
• Surface decontamination of reusable surgical tools prior to autoclaving—validated per ASTM F3127-18 guidelines
• Dispersion of nanomaterials (e.g., graphene oxide, TiO₂ nanoparticles) in aqueous or organic media for rheological characterization
• Accelerated cleaning of NMR tubes contaminated with paramagnetic salts or viscous polymers
• Thermally assisted desorption of adsorbed proteins from quartz crystal microbalance (QCM) sensors

FAQ

Is the SCQ-Y300A suitable for use with flammable solvents?
Yes—when operated below the flash point of the solvent and with the sound-insulating lid fully engaged. Ventilation must comply with local hazardous location codes (e.g., NEC Class I, Division 2).
Can temperature and ultrasonic power be controlled independently during operation?
Yes. The microprocessor allows concurrent, real-time adjustment of both parameters without interrupting the cycle.
What is the maximum recommended load volume for optimal cavitation efficiency?
For consistent energy distribution, liquid level should be maintained between 60–90% of tank capacity (i.e., 9–13.5 L for the 15 L model).
Does the unit include calibration documentation?
Factory calibration certificates for temperature sensor and timer accuracy are provided with each shipment; periodic verification using NIST-traceable references is recommended every 12 months.
Is remote monitoring or network connectivity supported?
Standard configuration includes only local control. RS-232 or Ethernet modules can be added as OEM options for centralized facility monitoring systems.
