Sykam S-501 HPLC System

Overview

The Sykam S-501 HPLC System is a modular, high-precision liquid chromatography platform engineered in Germany for robust routine analysis and method development in regulated and research laboratories. Built on proven dual-piston reciprocating pump architecture, it operates via high-pressure isocratic or gradient elution—utilizing either binary high-pressure or quaternary low-pressure solvent delivery—to separate analytes based on differential partitioning between a stationary phase and a mobile phase. Its design emphasizes long-term mechanical stability, thermal equilibrium control, and optical signal fidelity—critical for retention time reproducibility, peak resolution, and quantitative accuracy across diverse sample matrices including pharmaceuticals, environmental extracts, food additives, and biochemical compounds.

Key Features

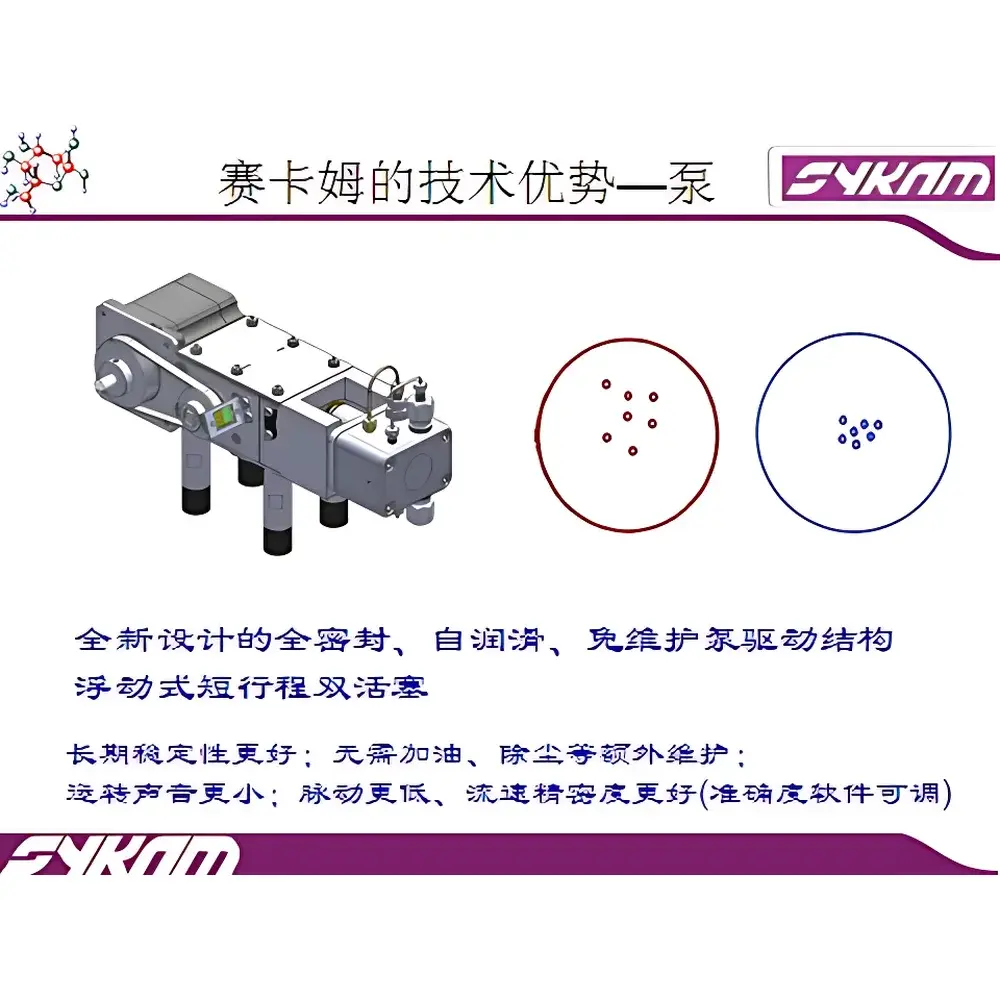

• High-stability dual-piston pump with floating short-stroke technology ensures flow precision ≤0.07% RSD at 1 mL/min and pressure stability <0.1% RSD up to 40 MPa.

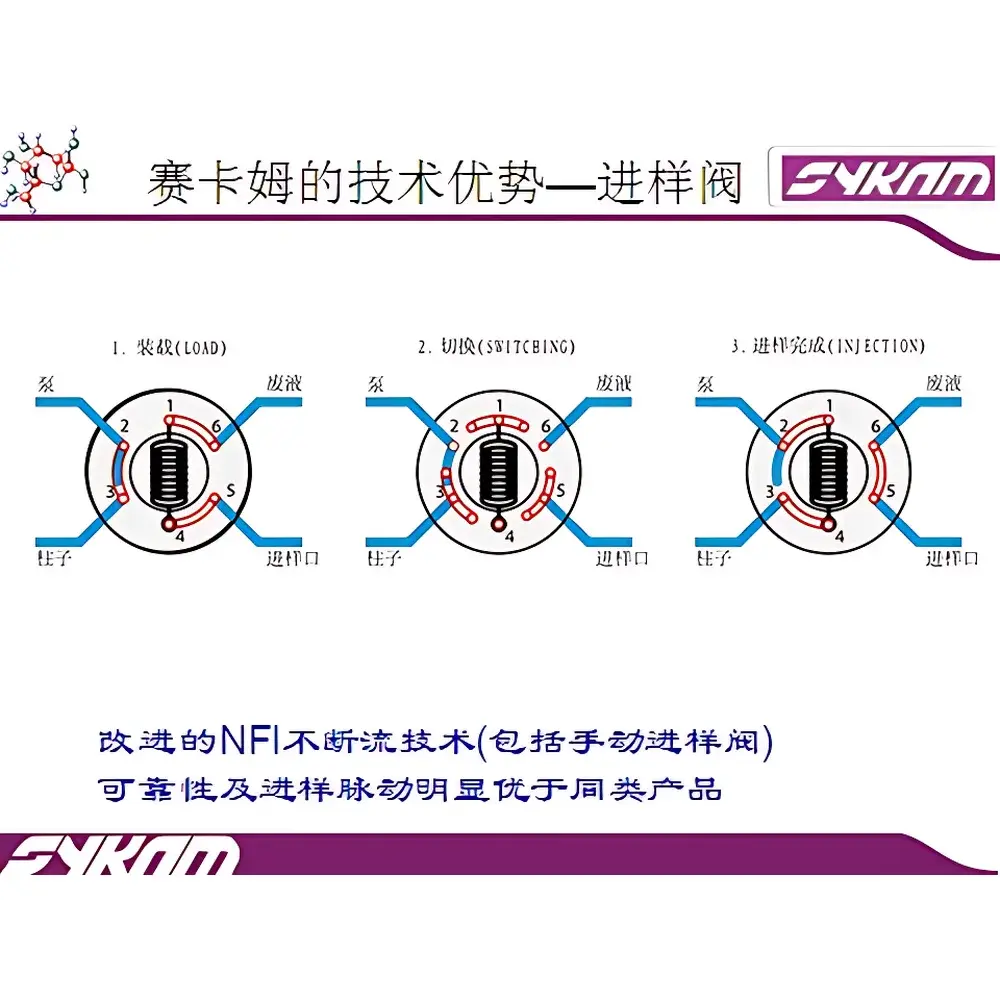

• DiaDur diamond-coated rotor seal technology in the injection valve extends service life beyond 100,000 injections while maintaining leak-free operation under high-salt or acidic/basic mobile phases.

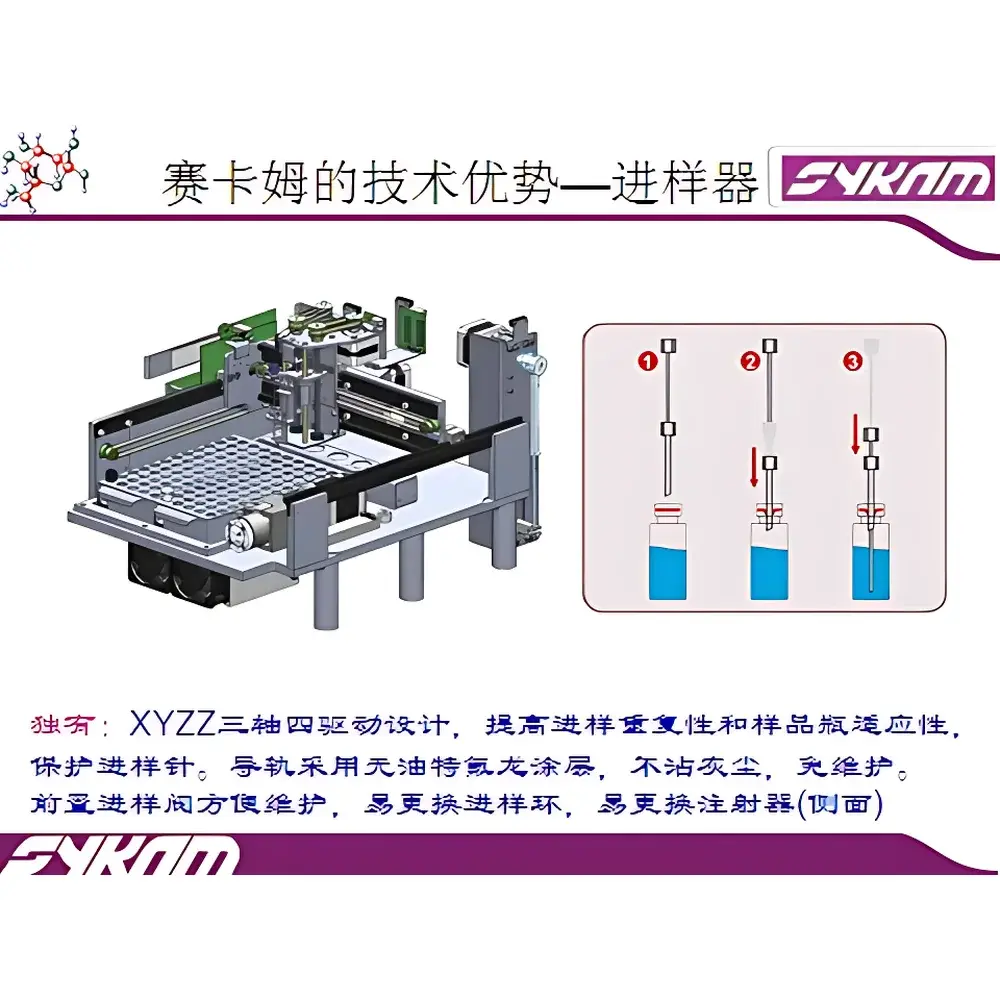

• Autosampler with XYZZ four-axis independent drive mechanism (separate air needle and injection needle actuators) delivers injection repeatability ≤0.25% RSD and memory effect <0.0025%—validated per USP and EP 2.2.46.
• Column oven with integrated pre-heater and ±0.05 °C temperature uniformity minimizes thermal mismatch-induced band broadening; accommodates up to three 300 mm columns and optional column-switching valves.
• UV/Vis detector featuring dual-beam ratio photometry, solid-state deuterium and tungsten lamps, and analog-to-digital conversion at 10 Hz provides baseline noise <±0.25 × 10⁻⁵ AU and drift <0.5 × 10⁻⁴ AU/h over 8 h.

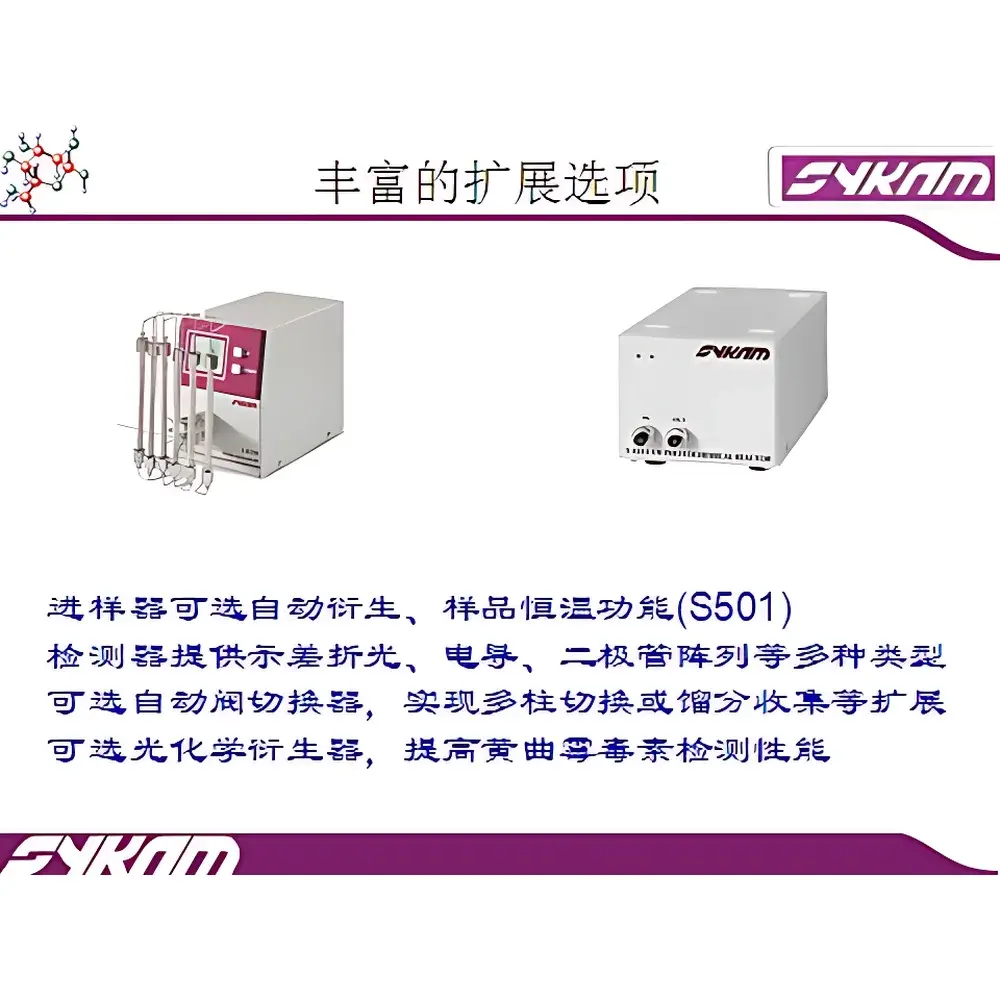

• Optional PDA and RI detectors available—PDA supports full-spectrum acquisition from 190–800 nm with spectral resolution ≤1.2 nm; RI detector incorporates dual-layer thermal insulation and auto-reference fill for ambient temperature independence.

Sample Compatibility & Compliance

The S-501 accommodates aqueous, organic, and mixed-phase mobile phases—including high-salt buffers (e.g., phosphate, acetate), ion-pair reagents, and pH extremes (pH 1.5–12.5)—enabled by chemically resistant wetted materials (e.g., sapphire pistons, Hastelloy C-276 check valves, PEEK and titanium fluidic paths). It meets structural and functional requirements of ISO 9001:2015 certified manufacturing and supports compliance with FDA 21 CFR Part 11, EU Annex 11, and GLP/GMP environments through audit-trail-enabled software, electronic signatures, and role-based access control. All hardware modules are CE-marked and RoHS-compliant.

Software & Data Management

The system integrates Clarity™ Chromatography Data System (CDS), a validated, fully localized English-language workstation developed by DataApex and distributed under OEM agreement with Sykam. Clarity supports method validation per ICH Q2(R2), sequence scheduling, real-time remote monitoring via web browser or dedicated mobile application, and automated report generation using customizable templates (PDF, Excel, CSV). Raw data files include embedded metadata (instrument ID, user, timestamp, calibration status), and all processing steps are logged with immutable timestamps and operator IDs—ensuring full traceability for regulatory submissions. The software also provides spectral deconvolution, peak purity assessment, and multi-wavelength overlay for method optimization.

Applications

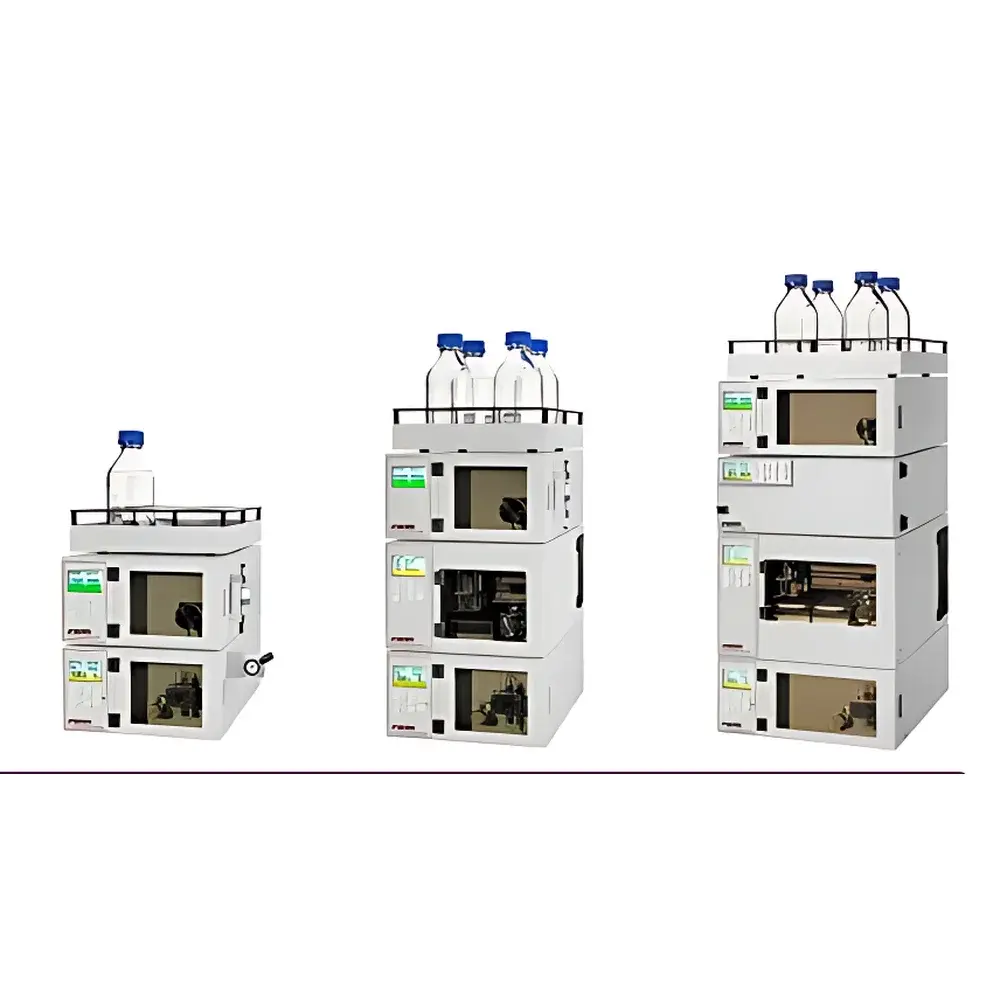

The S-501 serves as a core analytical tool across multiple sectors: pharmaceutical QC/QA labs for assay, dissolution, and stability-indicating assays per USP/EP monographs; clinical chemistry for therapeutic drug monitoring and metabolite profiling; food safety laboratories for pesticide residue screening and mycotoxin quantification; and environmental testing for PAHs, PCBs, and endocrine disruptors in water and soil extracts. Its modularity allows configuration as an isocratic system (single pump + UV detector), binary high-pressure gradient system (with column oven and autosampler), or quaternary low-pressure system with integrated degasser—enabling method transfer scalability without hardware replacement.

FAQ

Does the S-501 support FDA 21 CFR Part 11 compliance?
Yes—the Clarity CDS implements electronic signatures, audit trails, and secure user authentication per 21 CFR Part 11 Annex A requirements.
Can the autosampler be operated at elevated temperatures?
Yes—optional Peltier-cooled or heated sample tray modules maintain vial temperature between 4 °C and 60 °C for thermally labile compounds.
Is column switching supported out-of-the-box?
Yes—the column oven includes mounting provisions and electrical interfaces for up to two external 6-port/10-port switching valves, controllable via Clarity scripting.
What maintenance intervals are recommended for the pump and injection valve?
Under normal use (≤8 h/day, aqueous-organic solvents), pump seals require inspection every 12 months; DiaDur valves typically exceed 100,000 injections before replacement.
Are third-party column heaters or detectors compatible?
The S-501 features standard analog voltage outputs (0–1 V) and TTL trigger inputs, enabling synchronization with non-Sykam peripherals via external relay or DAQ integration.
