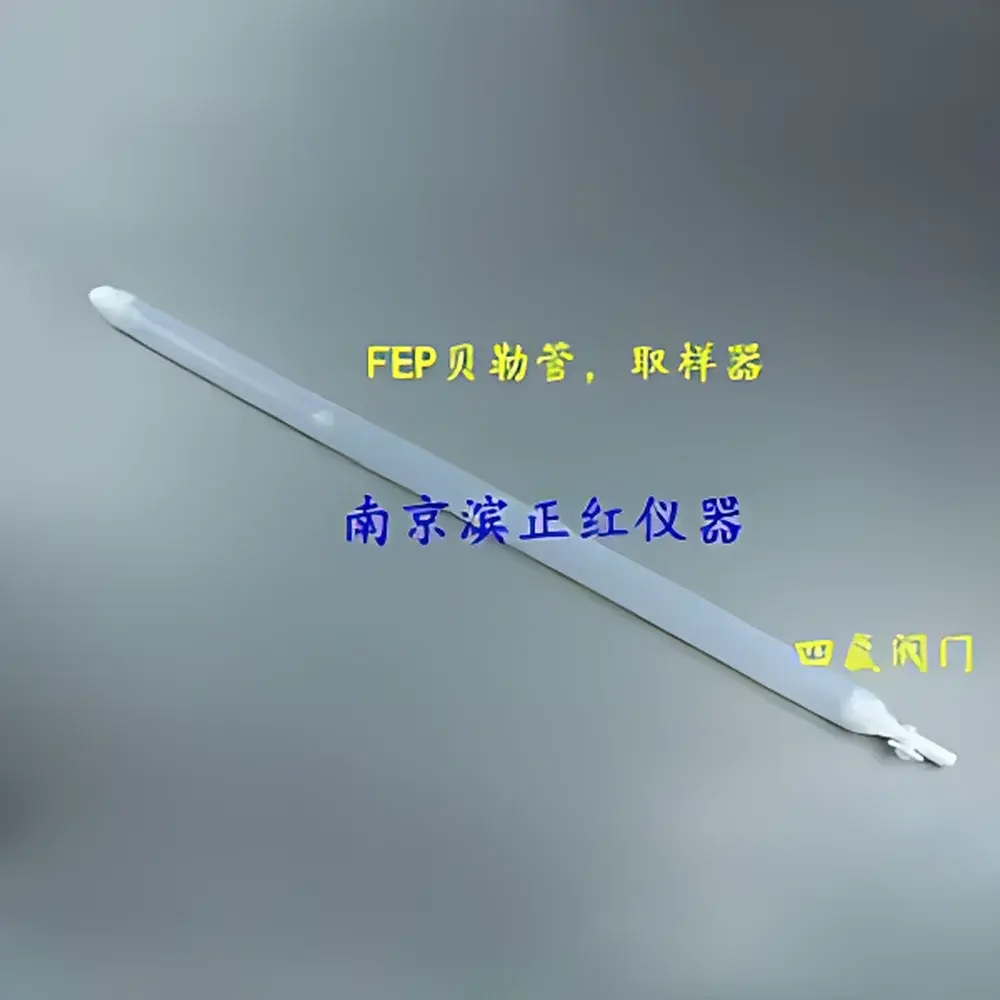

Teflon FEP Bailer Sampler 1L – Binzhenghong

Overview

The Teflon FEP Bailer Sampler 1L is a precision-engineered passive groundwater and surface water sampling device designed for low-contamination, chemically inert collection in environmental monitoring, regulatory compliance, and hydrogeological investigation workflows. Constructed entirely from fluorinated ethylene propylene (FEP), this bailer leverages the exceptional chemical resistance, ultra-low extractables, and non-stick surface properties inherent to high-purity FEP polymer—making it suitable for trace-level analysis of VOCs, SVOCs, metals, and emerging contaminants (e.g., PFAS) where sample integrity is paramount. Unlike stainless steel or PVC alternatives, FEP exhibits negligible leaching across pH 0–14 and resists degradation from aggressive solvents, oxidizers, and halogenated compounds. The device operates on gravity-driven passive sampling: lowered into a well or borehole on a dedicated sampling line, the integrated FEP valve opens under hydrostatic pressure upon submersion and closes automatically during retrieval, preventing cross-layer mixing and minimizing turbulence-induced volatilization.

Key Features

• Fully fluoropolymer construction: Body, valve seat, and sealing components fabricated from ASTM D2116-compliant FEP resin—certified free of plasticizers, heavy metals, and surfactants.
• Self-sealing dual-action FEP valve mechanism: Ensures positive closure at surface without manual actuation; eliminates risk of air intrusion or sample loss during hoisting.
• Smooth internal bore geometry: 38 mm inner diameter with electrostatically polished finish minimizes particle adhesion and facilitates complete sample recovery (>99.5% volumetric yield).
• Chemical compatibility verified per EPA Method 502.2, 524.4, and ISO 5667-10: Validated for use with chlorinated solvents, nitric acid (up to 70%), sodium hydroxide (up to 50%), and hydrogen peroxide solutions.
• Trace-metal-clean manufacturing: Assembled in ISO Class 7 cleanroom environment; individually triple-rinsed with ASTM Type I ultrapure water (resistivity ≥18.2 MΩ·cm) and certified for ≤0.1 ng/L blank levels for As, Cd, Cr, Cu, Pb, Ni, and Zn.
• Modular design: Compatible with standard ¼”–28 UNF sampling lines and universal wellhead adapters; includes calibrated depth marker tape attachment point.

Sample Compatibility & Compliance

This bailer supports representative, depth-specific sampling of aqueous matrices including groundwater (confined/unconfined aquifers), leachate, wastewater effluents, and surface water sediments (pore water extraction). It complies with core requirements of U.S. EPA SW-846 Methods 9060A (VOCs), 9045D (pH/conductivity), and 9040C (alkalinity), as well as ASTM D6771 (Standard Practice for Low-Flow Groundwater Sampling) and ISO 5667-3 (Sampling for physicochemical testing). Its FEP composition satisfies FDA 21 CFR 177.1260 for indirect food contact and meets GLP audit criteria for chain-of-custody documentation when used with validated field logs and barcoded sample vials. No lubricants, O-rings, or elastomeric components are present—eliminating a primary source of organic interference in GC/MS and ICP-MS analyses.

Software & Data Management

While the bailer itself is a hardware-only passive tool, its integration into digital field data capture ecosystems is supported via companion protocols. When paired with Binzhenghong’s optional Bluetooth-enabled depth logger (model BZ-DL200, sold separately), real-time deployment depth, temperature, and retrieval speed are logged and synchronized to LIMS platforms—including LabWare LIMS, Thermo Fisher SampleManager, and EQuIS—using ASTM E2999-compliant XML export templates. All calibration certificates, material traceability reports (including FEP resin lot numbers and extractables test summaries), and cleaning validation records are digitally archived and accessible through secure client portal access—supporting 21 CFR Part 11-compliant electronic signatures and audit trails.

Applications

• Regulatory groundwater monitoring at RCRA, CERCLA, and UST sites requiring VOC/VF/PAH analysis.
• Pre- and post-remediation verification sampling under state-approved work plans (e.g., NYDEC, CA State Water Board).
• Baseline characterization of fractured bedrock aquifers where minimal disturbance is critical.
• PFAS sampling per ASTM D8420-22 and DoD QSM guidance—leveraging FEP’s non-adsorptive surface to prevent analyte loss.
• Academic and government research programs involving isotopic tracer studies (e.g., δ²H, δ¹⁸O) where container-derived oxygen exchange must be excluded.
• Long-term multi-year monitoring wells where corrosion resistance ensures >10-year service life without performance drift.

FAQ

Can this bailer be autoclaved for sterile sampling?
No—FEP has a continuous service temperature limit of 200 °C; autoclaving (121 °C, 15 psi, 20 min) is permissible only if performed dry (no trapped water) and with gradual ramp/cool cycles. Wet autoclaving risks delamination and valve seal deformation.
Is the FEP valve compatible with pneumatic or hydraulic actuation systems?
No—the valve is purely passive and pressure-actuated; no external ports or interfaces exist for integration with active pumping manifolds.
What cleaning protocol is required between samples?
Rinse three times with native matrix water (or ultrapure water if matrix unavailable), followed by air-drying in laminar flow hood; avoid alcohol or acetone unless validated for target analytes.
Does the 1 L capacity include headspace allowance for preservation additives?
Yes—internal volume is calibrated to deliver 1.000 ± 0.005 L at 20 °C with 10 mL headspace reserved for sodium thiosulfate (for chlorine quenching) or HNO₃ (for metals stabilization).
