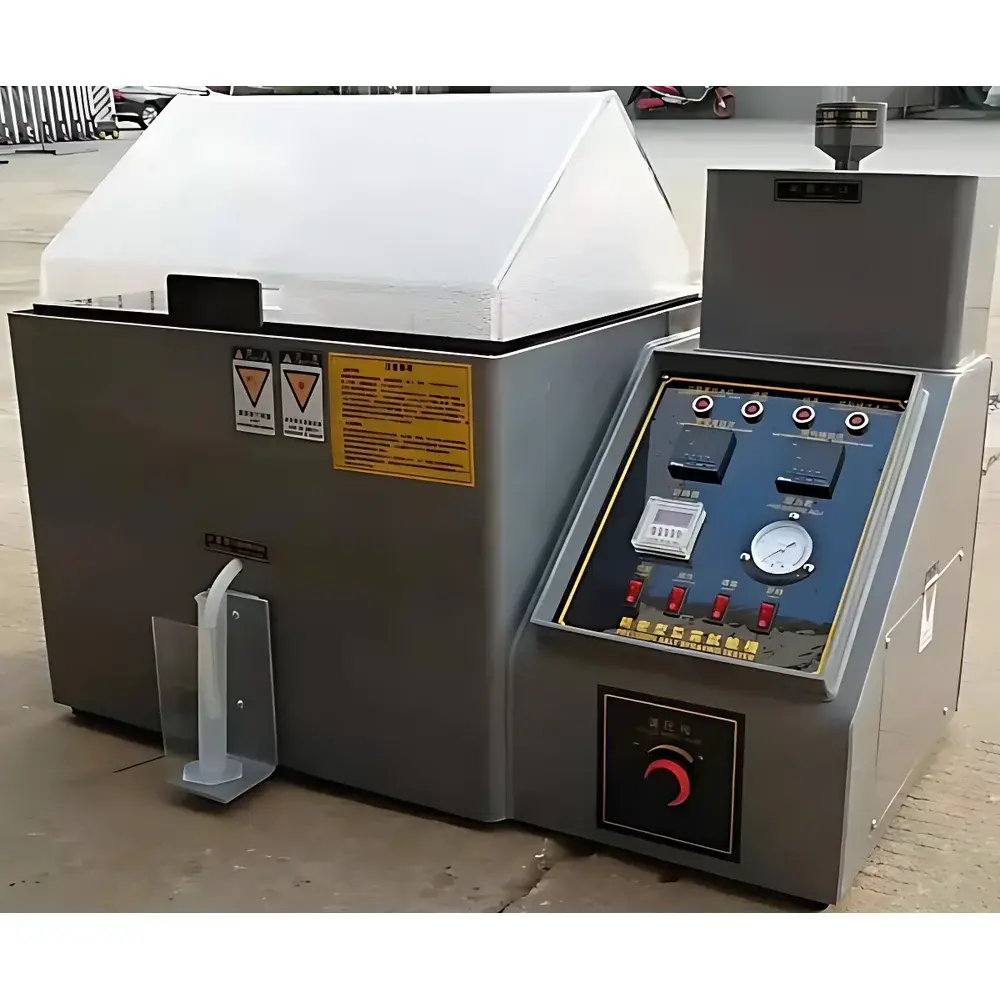

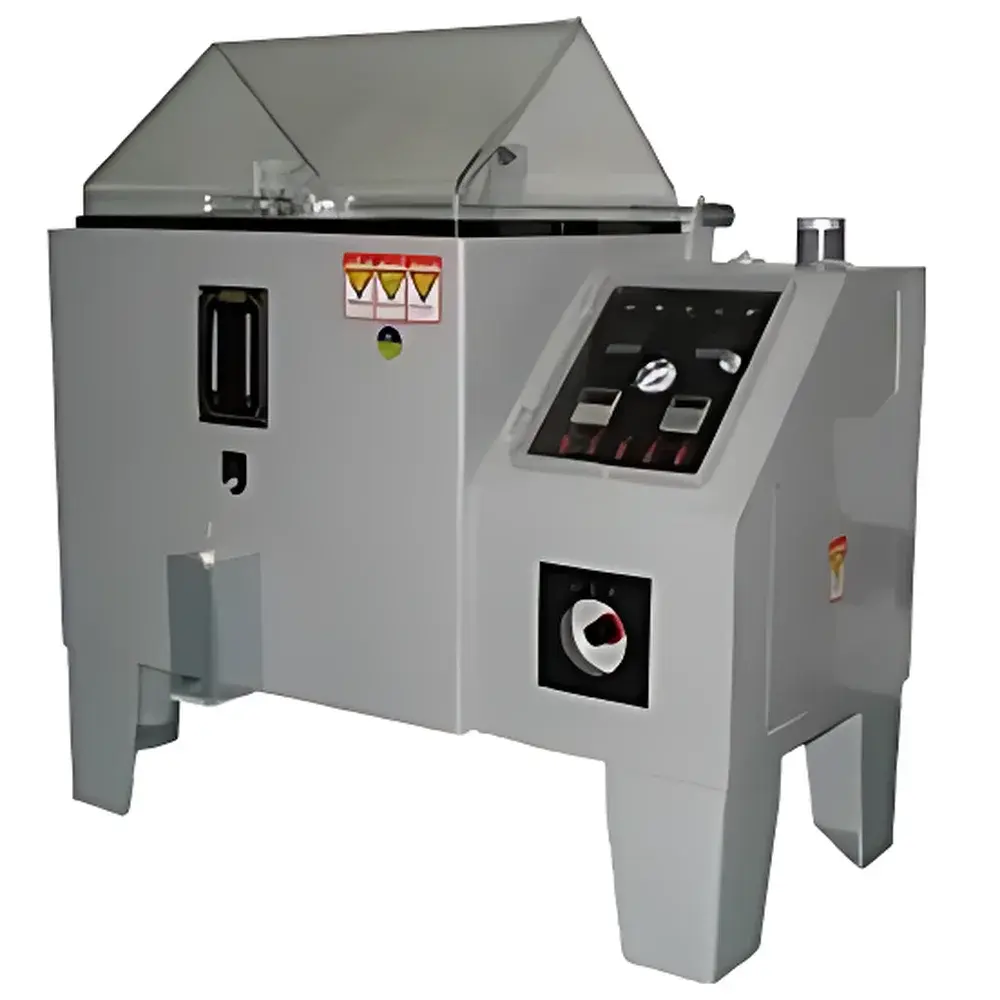

TF-310B Salt Spray Test Chamber

Overview

The TF-310B Salt Spray Test Chamber is an engineered environmental test system designed for standardized accelerated corrosion evaluation of metallic and coated substrates under controlled saline fog conditions. It operates on the principle of continuous atomization of a defined sodium chloride (NaCl) solution—typically 5% w/w—into a saturated, temperature-regulated test chamber to generate a uniform, reproducible salt fog atmosphere. This method simulates aggressive marine or industrial atmospheric environments, enabling quantitative assessment of coating integrity, galvanic protection performance, and base metal passivation stability over time. The chamber conforms to internationally recognized test protocols including ASTM B117, ISO 9227 (equivalent to GB/T 10125), and JIS H8502, making it suitable for quality assurance in electroplating, automotive component manufacturing, aerospace hardware finishing, and electronics enclosure validation.

Key Features

• Precision-engineered glass-reinforced polyester (GRP) chamber body with corrosion-resistant interior lining and insulated double-wall construction for thermal stability and minimal fog leakage.
• Continuous spray system utilizing calibrated ceramic nozzles operating at adjustable pressure (0.5–2 kg/cm²), ensuring consistent fog generation without pulsation or clogging.
• Digital PID-controlled heating system maintaining chamber temperature within ±1 °C across the full 30–70 °C operating range, critical for adherence to ASTM B117’s mandated 35 °C nominal test condition.
• Adjustable salt fog deposition rate (1–2 mL/h per 80 cm² collector area), verified via calibrated funnels and volumetric measurement in accordance with ISO 9227 Annex A.
• Integrated compressed-air de-misting mechanism that actively evacuates residual fog post-test without requiring manual venting or extended chamber cooldown periods.
• Stainless steel salt solution reservoir (15 L capacity) with level sensor and anti-crystallization design to prevent nozzle blockage during prolonged operation.
• Compliance-ready architecture supporting traceable calibration records, operator log entries, and audit trails required under GLP and ISO/IEC 17025 laboratory accreditation frameworks.

Sample Compatibility & Compliance

The TF-310B accommodates flat, cylindrical, or irregularly shaped specimens up to 60 × 45 × 40 cm in volume, with optimized rack positioning to ensure unobstructed fog exposure and minimal shadowing effects. It supports standard test configurations for neutral salt spray (NSS), acetic acid salt spray (AASS), and copper-accelerated acetic acid salt spray (CASS) per GB/T 12967.3–1991 and ISO 9227. All operational parameters—including temperature, spray duration, solution concentration, and collection rate—are documented and verifiable against ASTM B117, IEC 60068-2-11, and GB/T 2423.17–1993 requirements. The unit is supplied with calibration certificates for temperature sensors and deposition rate verification tools, facilitating internal QA audits and third-party certification readiness.

Software & Data Management

While the TF-310B operates via intuitive front-panel digital controls (no embedded PC required), it features RS-485 communication capability for integration into centralized lab monitoring systems. Optional data logging modules enable timestamped recording of chamber temperature, cumulative test hours, and spray cycle status—exportable as CSV for traceability in FDA 21 CFR Part 11–aligned environments. All parameter settings are password-protected and retain configuration memory after power interruption, supporting uninterrupted multi-day test sequences essential for long-term corrosion benchmarking.

Applications

• Validation of electroplated zinc, nickel, chromium, and tin coatings on fasteners, brackets, and chassis components.
• Comparative evaluation of organic coatings (epoxy, polyurethane, powder coat) for automotive trim and agricultural machinery.
• Corrosion resistance screening of anodized aluminum alloys used in architectural façades and electronic enclosures.
• Quality conformance testing of passivated stainless steel parts per ASTM A967 and AMS 2700.
• R&D support for corrosion inhibitors and rust-preventive oils in lubricant and metalworking fluid development.

FAQ

What standards does the TF-310B comply with?

It meets ASTM B117, ISO 9227 (GB/T 10125), JIS H8502, IEC 60068-2-11, GB/T 2423.17, and GB/T 12967.3 for CASS testing.
Can the salt fog deposition rate be verified in situ?

Yes—two 80 cm² funnels are included for hourly collection and volumetric measurement per ISO 9227 Annex A.
Is the chamber suitable for CASS testing?

Yes, when equipped with the optional CASS solution kit and calibrated pH meter, it fully supports GB/T 12967.3–1991 and ISO 9227 CASS methodology.
What maintenance is required to ensure long-term accuracy?

Monthly nozzle inspection, quarterly temperature sensor calibration, and biannual verification of fog deposition uniformity using the provided collector set.
Does the unit include documentation for ISO/IEC 17025 compliance?

Factory calibration certificates, user manual with SOP templates, and traceable metrology records are provided to support laboratory accreditation efforts.
