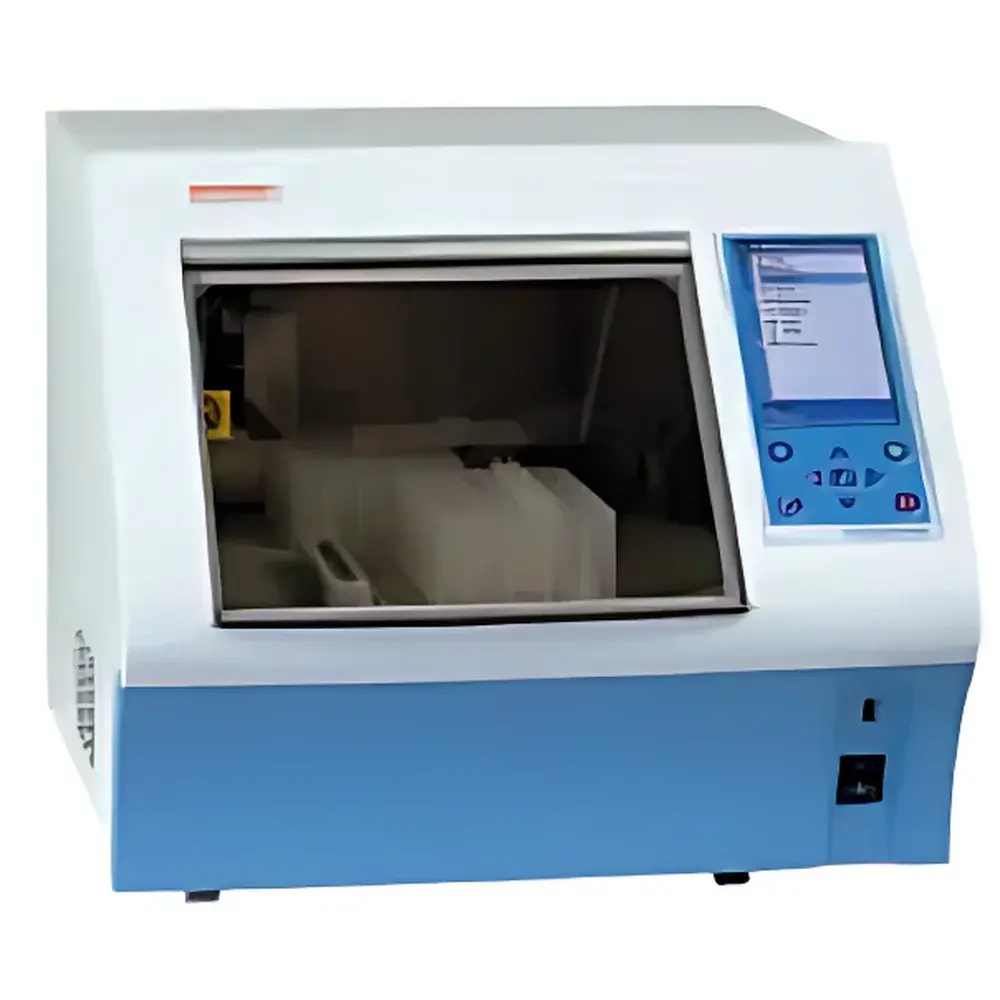

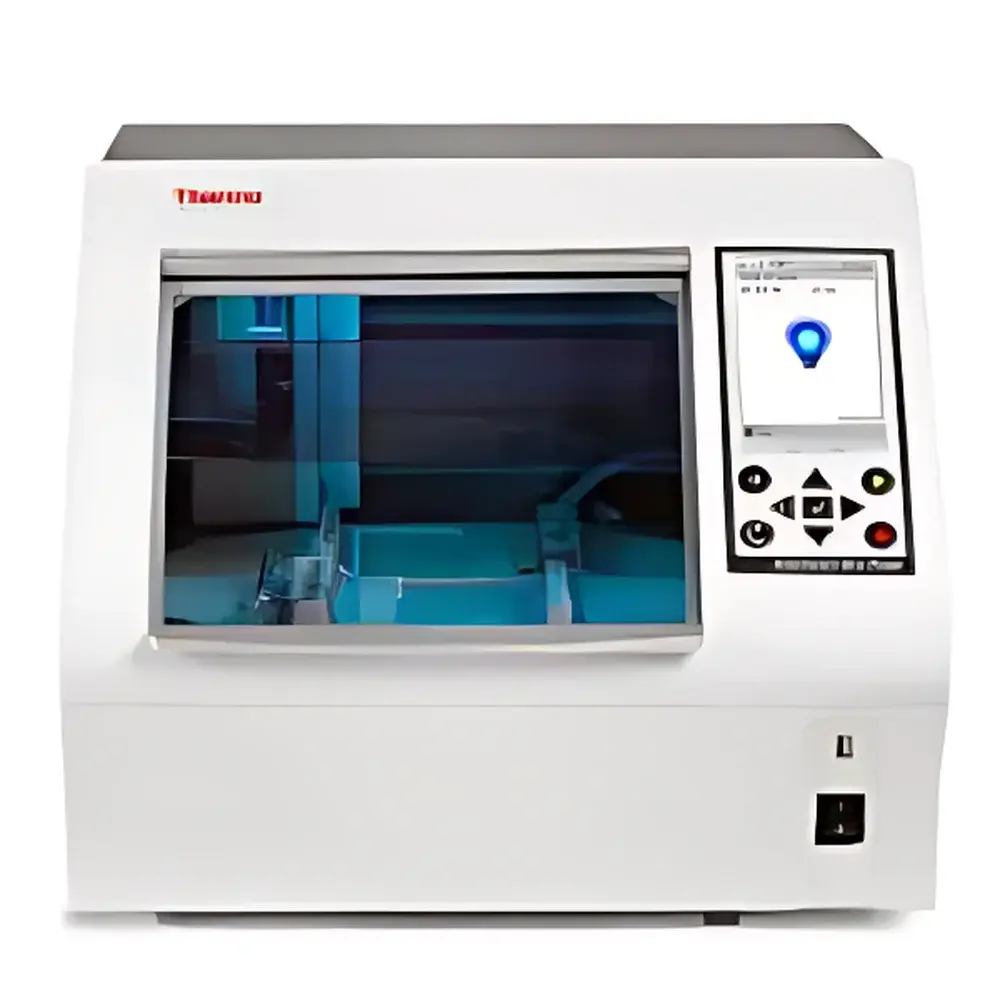

Thermo Fisher KingFisher Duo Prime Magnetic Particle Processor

Overview

The Thermo Fisher KingFisher Duo Prime is a semi-automated magnetic particle processor engineered for high-reproducibility nucleic acid and protein purification using magnetic bead-based chemistry. It operates on the principle of magnetic rod-based transfer—leveraging Thermo Fisher’s proprietary KingFisher technology—to move functionalized magnetic beads between wells without liquid aspiration, centrifugation, or manual pipetting. This eliminates cross-contamination risks and ensures consistent binding, washing, and elution steps across diverse sample matrices—including whole blood, saliva, tissue homogenates, cultured cells, and environmental swabs. Unlike fully automated liquid handlers, the Duo Prime maintains operator control over critical workflow checkpoints while significantly reducing hands-on time and inter-run variability. Its dual-head architecture supports two independent processing modes: simultaneous parallel runs on separate consumables or staggered sequential processing—enabling flexible throughput scaling within mid-throughput laboratory environments.

Key Features

• Proprietary magnetic rod transfer system enabling bead movement without liquid handling—eliminating pipette tip carryover and improving yield consistency.
• Dual magnetic head configuration: interchangeable 6-channel and 12-channel heads supporting scalable processing from low-volume (30 µL) to high-volume (5 mL) samples across multiple plate formats.
• Integrated Peltier-based thermal control: precise heating (10–75 °C) for lysis and binding steps in deep-well plates, plus dedicated 4 °C cooling for elution strip stabilization to preserve nucleic acid integrity.
• Onboard UV sterilization (8 W, timer-controlled up to 16 h) for routine decontamination of the processing deck and magnetic head assembly—supporting GLP-compliant lab hygiene protocols.
• Barcode reader compatibility for full traceability: automatic logging of sample IDs, reagent lot numbers, and consumable barcodes directly into instrument logs and BindIt export files.
• Ergonomic elution strip fixture with snap-lock lid—designed to retain viscous lysates during elution and enable short-term (≤4 h) post-purification storage at 4 °C prior to downstream applications.
• Intuitive color LCD touchscreen interface with eight-language support—including English, Chinese, Japanese, and Russian—reducing training overhead in multinational research or diagnostic facilities.

Sample Compatibility & Compliance

The KingFisher Duo Prime is validated for use with a broad spectrum of biological starting materials, including but not limited to human whole blood, plasma, serum, buccal swabs, FFPE tissue sections, bacterial cultures, and plant extracts. It complies with ISO 13485 design controls for IVD-related workflows and supports audit-ready documentation when used in conjunction with BindIt software configured for 21 CFR Part 11 compliance (electronic signatures, audit trails, user access levels). All consumables—including KF 96DW plates (95040450), KF 24DW plates (95040470), and elution strips (97003520)—are manufactured under Thermo Fisher’s quality management system and certified free of DNase/RNase and human DNA contamination. The system meets IEC 61000-3-2 electromagnetic compatibility standards and carries CE marking for in vitro diagnostic use in the European Economic Area.

Software & Data Management

BindIt software serves as the primary method for protocol development, execution monitoring, and data export. It enables drag-and-drop step editing, real-time run visualization, and batch parameter adjustment across multiple instruments. Exported logs include timestamped event records (e.g., magnet engagement, temperature setpoint achievement, UV activation), consumable usage history, and operator login metadata—facilitating internal QA reviews and external regulatory submissions. Protocols can be transferred via encrypted USB drives or networked PCs, and the onboard memory stores up to 200 user-defined methods with version timestamps. When deployed in GxP environments, BindIt supports role-based access control, electronic signature capture, and immutable audit trail generation aligned with FDA 21 CFR Part 11 and EU Annex 11 requirements.

Applications

The KingFisher Duo Prime delivers robust performance across molecular diagnostics, academic research, and bioprocess QC laboratories. Typical applications include: isolation of genomic DNA and total RNA from clinical specimens for qPCR and NGS library preparation; enrichment of circulating tumor DNA (ctDNA) from plasma using size-selective magnetic beads; purification of His-tagged recombinant proteins from E. coli lysates; isolation of extracellular vesicles via surface-binding magnetic nanoparticles; and high-yield plasmid DNA extraction from bacterial cultures. Its ability to handle viscous or particulate-rich samples—enabled by the reinforced elution strip holder and optimized magnetic field gradients—makes it particularly suitable for challenging matrices such as sputum, stool suspensions, and soil extracts.

FAQ

What consumables are required for operation?
The system requires Thermo Fisher–certified KingFisher-specific consumables: 96-well deep-well plates (Cat. No. 95040450), 24-well deep-well plates (Cat. No. 95040470), and elution strips compatible with either 6- or 12-channel magnetic heads (e.g., Cat. No. 97003520). Third-party plates are not supported due to dimensional tolerances and magnetic coupling requirements.
Can the instrument be integrated into a LIMS environment?
Yes—BindIt software supports CSV and XML export formats compatible with most LIMS platforms. Custom API integration is available through Thermo Fisher’s Professional Services team upon request.
Is validation documentation provided for GMP use?
Thermo Fisher supplies a comprehensive IQ/OQ protocol package, including installation checklists, operational test scripts, and calibration certificates for thermal modules and UV intensity. PQ support is lab-specific and typically conducted in collaboration with site QA personnel.
How is maintenance performed?
Preventive maintenance includes quarterly magnetic head cleaning with ethanol wipes, annual verification of thermal accuracy using NIST-traceable probes, and biannual inspection of UV lamp output intensity. Service contracts include remote diagnostics and on-site engineer dispatch within 48 business hours.
Does the system support custom protocol development?
Yes—BindIt allows full customization of incubation durations, mixing speeds, magnet engagement timing, temperature profiles, and UV exposure parameters. Users may also define conditional logic (e.g., pause for manual addition of wash buffer) within protocol sequences.
