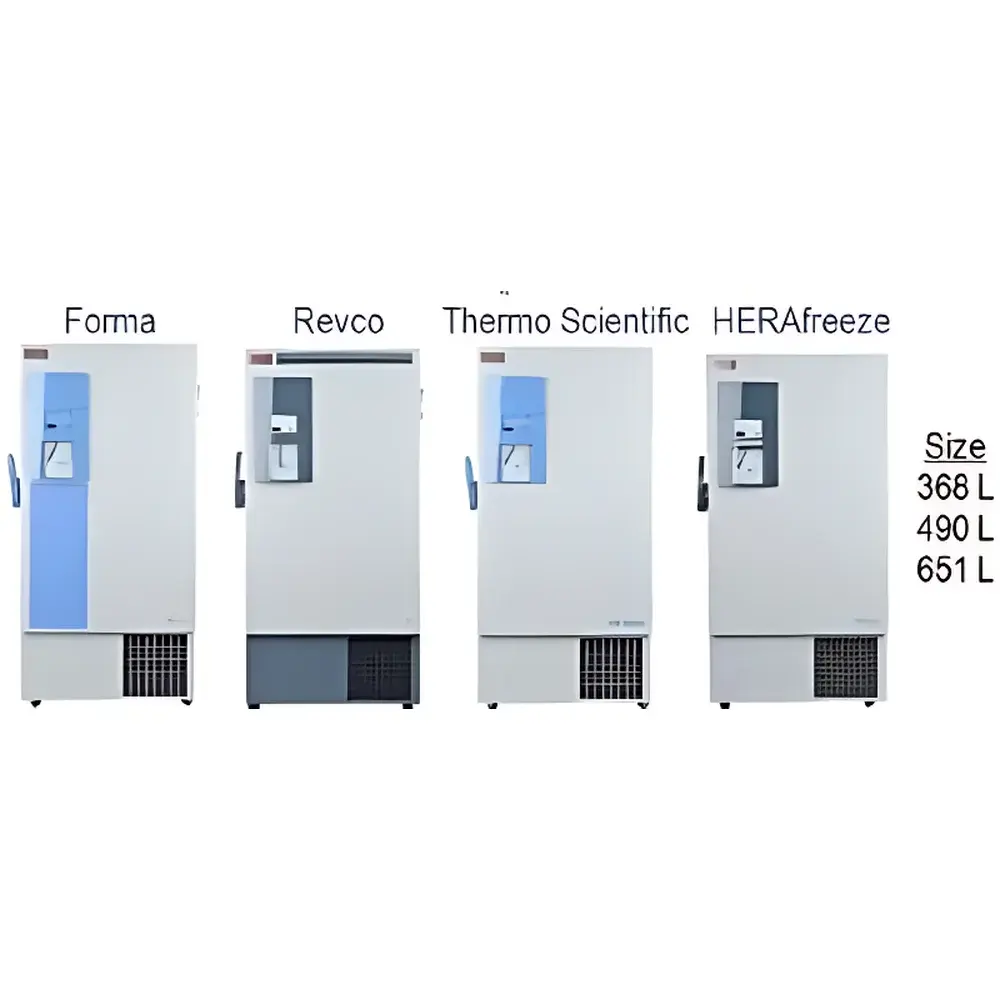

Thermo Fisher Localized Performance -86 Vertical Ultra Low Temperature Freezer

Overview

The Thermo Fisher Localized Performance -86 Vertical Ultra Low Temperature Freezer is an engineered solution for long-term cryogenic storage of biological samples—including primary cells, stem cells, plasma, tissue specimens, and mRNA-based reagents—requiring stable thermal environments between –50 °C and –86 °C. Designed and assembled in Suzhou, China, this unit integrates dual-stage cascade refrigeration architecture with two industrial-grade 1.25 HP compressors and environmentally compliant DuPont™ refrigerants (non-CFC, non-HCFC, flame-retardant), ensuring both regulatory alignment and thermodynamic efficiency. Its structural integrity derives from heavy-gauge cold-rolled steel construction with powder-coated exterior surfaces validated to >1000 hours salt-spray resistance (ASTM B117), while the interior offers corrosion-resistant galvanized steel or optional stainless-steel liners—critical for GxP-compliant cleanroom and biobanking applications.

Key Features

• Dual high-efficiency compressors with wide-input voltage tolerance (208–240 V AC) and integrated time-delay circuit breaker for grid stability
• Intelligent Boost/Buck voltage and current compensation system to maintain operational continuity during electrical fluctuations
• 127 mm thick in-situ foamed polyimide insulation (door: 114 mm), eliminating thermal bridging and minimizing condensation formation
• Triple-point door gasket seal and ergonomic single-hand latch with dual-lock capability (integrated lock + padlock provision) for physical security
• Front-access 1″ (25 mm) external port for integration with external sensors, CO₂/LN₂ backup systems, or environmental monitoring networks
• Standard analog (4–20 mA), digital (RS-485), and dry-contact outputs for seamless integration into centralized lab infrastructure (e.g., BMS, SCADA)
• Bottom-mounted temperature probe ensures representative cavity-wide thermal validation per ISO 14644-3 and USP
• Large-area condenser (305 × 457 mm) with removable, washable filter to sustain heat exchange performance under high-dust laboratory conditions
• Patented vacuum relief vent enabling rapid secondary door opening without pressure differential delay
• Acoustic dampening: integrated muffler and sound-absorbing foam reduce operational noise to ≤52 dB(A) at 1 m

Sample Compatibility & Compliance

This freezer accommodates standard cryovial racks (2” and 5” formats), cryoboxes (up to 10×10), and large-volume specimen containers up to 500 mL. Internal dimensions support flexible shelving configurations with three adjustable stainless-steel shelves (load capacity: 30 kg/shelf). The unit complies with CE marking requirements (2014/30/EU EMC Directive and 2014/35/EU LVD Directive) and meets IEC 61000-4 immunity standards. While SFDA (now NMPA) certification was anticipated in 2014, current deployment aligns with ISO 13485 quality management principles for medical device storage. Optional accessories—including LN₂ or liquid CO₂ backup systems—enable sustained operation below –67 °C (LN₂: < –80 °C) during extended power outages, supporting 21 CFR Part 11–aligned continuity protocols.

Software & Data Management

The embedded microprocessor control center provides real-time display of setpoint, actual cavity temperature, compressor status, door-open duration, and battery health. It delivers nine configurable alarm types—including over-temperature, under-temperature, prolonged door opening, power failure, sensor fault, and refrigeration circuit failure—with audible/visual alerts and relay-triggered notifications. A replaceable internal backup battery sustains monitoring and alarm functions for up to 72 hours post-power-loss. Optional 6-inch chart recorder (15.2 cm) provides analog temperature traceability for 7-day continuous recording—validated for audit readiness per FDA guidance on electronic records (21 CFR Part 11) and EU Annex 11. Data export via RS-485 enables direct ingestion into LIMS or ELN platforms using Modbus RTU protocol.

Applications

Primarily deployed in biobanks, clinical research laboratories, pharmaceutical QC/QA departments, and academic core facilities, this freezer supports critical workflows including: long-term preservation of human biospecimens under ISBER Best Practices; storage of temperature-sensitive monoclonal antibodies and viral vectors; maintenance of reference standards for GLP toxicity studies; and secure archiving of genomic DNA/RNA libraries. Its robust thermal uniformity (±2.5 °C across load zone, per internal mapping per ASTM F745-22) and low thermal recovery time (<12 min to return to –80 °C after 30-sec door opening) make it suitable for high-frequency access environments without compromising sample integrity.

FAQ

What is the validated temperature uniformity across the chamber?
Temperature uniformity is characterized per ASTM F745-22 methodology and demonstrates ±2.5 °C across the loaded working volume at –80 °C.
Does the unit support 21 CFR Part 11 compliance for electronic records?
Yes—when equipped with the optional chart recorder and paired with audit-trail-enabled data acquisition software, it satisfies electronic signature and record retention requirements.
Can the freezer operate continuously at –86 °C in ambient temperatures up to 32 °C?
Yes—the dual-compressor cascade design and oversized condenser ensure rated performance under ISO 13732-1 Class II ambient conditions (up to 32 °C, 60% RH).
Is stainless-steel interior available as a factory-installed option?
Yes—stainless-steel liner is offered as a configurable upgrade to enhance chemical resistance and simplify decontamination cycles.
What is the warranty coverage for thermal insulation integrity?
The vacuum-insulated panel structure and polyimide foam core are covered by lifetime limited warranty against delamination or thermal degradation under normal use conditions.
