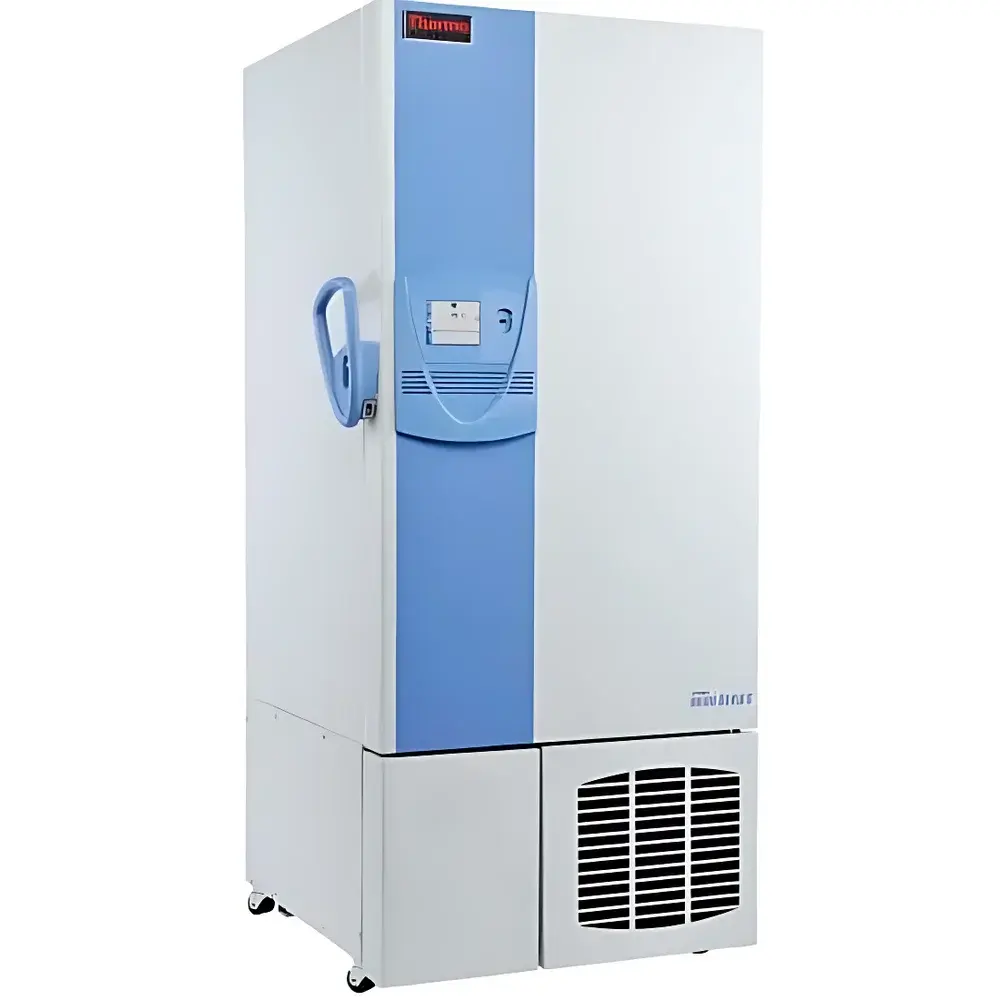

Thermo Fisher Scientific Forma Ultra Low Temperature Freezer
| Brand | Thermo Fisher Scientific |
|---|---|
| Origin | USA |
| Manufacturer Authorization | Authorized Distributor |
| Import Status | Imported |
| Model | Forma |
| Price Range | USD $12,500 – $25,000 (FOB) |
| Net Capacity | 368 L |
| Interior Dimensions (mm) | 1308 × 584 × 490 |
| Exterior Dimensions (mm) | 1979 × 846 × 836 |
| Power Supply | 230 V AC, 50 Hz |
| Rated Power Consumption | 400 W |
Overview
The Thermo Fisher Scientific Forma Ultra Low Temperature Freezer is an engineered solution for long-term, high-integrity cryogenic storage of biological specimens—including primary cells, stem cells, plasma, DNA/RNA extracts, and archived clinical samples—at sustained temperatures of –80 °C. Utilizing a dual-stage cascade refrigeration system with environmentally compliant HFC-based refrigerants (R-404A/R-507 blend), the Forma ULT freezer delivers thermodynamic stability through precision-controlled evaporator airflow, vacuum-insulated panels (VIPs), and a five-door inner polyurethane foam insulated structure. Its design adheres to ISO 13485-aligned manufacturing protocols and supports compliance with Good Laboratory Practice (GLP), Good Manufacturing Practice (GMP), and FDA 21 CFR Part 11 requirements when integrated with validated data management workflows.
Key Features
- Optimized space-to-capacity ratio: Delivers up to 76% greater 1 mL CryoBank vial storage volume per footprint compared to prior-generation models—enabling higher sample density without expanding laboratory floor space.
- Dual operational modes: High-Performance Mode ensures ±1.5 °C temperature uniformity across all zones (per ASTM F745-21); Energy-Saving Mode reduces average power draw by up to 15% while maintaining ≤±2.0 °C stability under typical ambient conditions (20–25 °C).
- Robust thermal architecture: Brazed plate heat exchanger with induction-brazed joints minimizes refrigerant leakage risk; reinforced stainless-steel shelving rated for 126 kg (278 lb) static load per shelf.
- Intelligent monitoring interface: 7-inch capacitive touchscreen with real-time temperature visualization (accessible via dedicated “Heart” icon), configurable alarm thresholds, and on-screen diagnostics including compressor runtime, defrost cycles, and door-open duration history.
- Power resilience: Integrated voltage regulation module protects against fluctuations between 198–264 V AC; automatic recovery after brownout events without manual reset.
- Expandable connectivity: Dual rear 25 mm access ports accommodate external PT100 probes or environmental sensors; 4–20 mA analog output enables integration with building management systems (BMS) or centralized lab monitoring platforms.
Sample Compatibility & Compliance
The Forma ULT freezer supports standardized cryovial formats (e.g., Nunc™, Corning® 1–2 mL冻存管), rack-based storage systems (including optional stainless-steel racks), and bulk specimen containers up to 5 L. Internal chamber geometry accommodates standard ISO/IEC 17025-compliant validation protocols for temperature mapping (IQ/OQ/PQ). All units ship pre-calibrated per NIST-traceable standards and include documentation packages suitable for audit readiness under CLIA, CAP, and EU Annex 1 requirements. Refrigerant formulation complies with Montreal Protocol phase-out schedules and contains zero ozone-depleting substances (ODP = 0) and low global warming potential (GWP < 3,922).
Software & Data Management
Onboard firmware logs temperature readings at 1-minute intervals and retains up to 15 years of continuous data in non-volatile memory. Event logs capture door openings, alarm activations, mode switches, and system faults with timestamp, duration, and severity classification. Data export is supported via USB 2.0 port (FAT32-formatted drives only) in CSV format compatible with LIMS, ELN, and statistical analysis tools (e.g., JMP, Python pandas). Optional Thermo Fisher Connect™ Cloud Services enable remote status viewing, automated report generation, and role-based user access control aligned with 21 CFR Part 11 electronic signature and audit trail mandates.
Applications
- Biobanking and biorepository operations requiring ISO 20387:2018 conformance
- Pharmaceutical R&D cold chain integrity validation (ICH M7, ICH Q5C)
- Clinical trial sample archiving under FDA IND/IDE submission guidelines
- Academic and government research labs managing longitudinal cohort studies
- Vaccine development pipelines requiring stable –80 °C intermediate storage prior to lyophilization or fill-finish
FAQ
What is the minimum ambient operating temperature for this unit?
The Forma ULT freezer is rated for operation in ambient environments between 10 °C and 32 °C, with optimal performance achieved at 20–25 °C.
Does it support validation for GxP-regulated environments?
Yes—factory-installed calibration certificates, IQ/OQ documentation templates, and 21 CFR Part 11–ready data export capabilities are provided.
Can the internal temperature be monitored remotely without proprietary software?
Yes—via the 4–20 mA analog output or Modbus RTU (optional RS-485 interface) for integration with third-party SCADA or BMS platforms.
Is liquid nitrogen (LN₂) backup available as a factory option?
Yes—LN₂ failover kits and CO₂ emergency holdover systems are available as configurable accessories with independent alarm relays.
How often does the condenser filter require maintenance?
Under typical lab conditions, the washable aluminum mesh filter should be inspected monthly and cleaned quarterly using lukewarm water and mild detergent.
