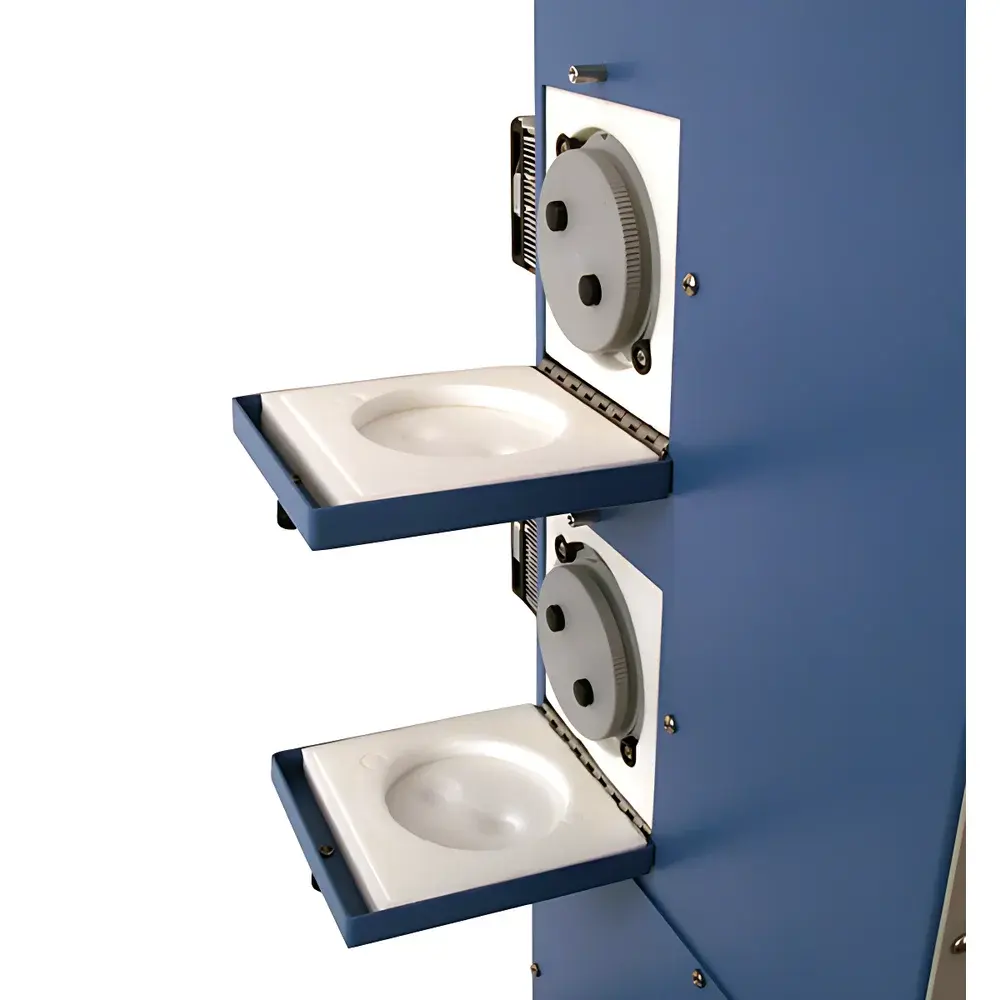

Thermo Fisher Scientific TEOM 1405-DF Dual-Channel Atmospheric Particulate Matter Monitor

Overview

The Thermo Fisher Scientific TEOM 1405-DF Dual-Channel Atmospheric Particulate Matter Monitor is an EPA-equivalent method (EQPM-0609-182) instrument engineered for high-fidelity, real-time mass concentration measurement of ambient aerosol. It implements the Tapered Element Oscillating Microbalance (TEOM) principle—a direct gravimetric technique in which particle-laden air is drawn through a precision-tapered quartz sensor element vibrating at its resonant frequency. Mass deposition on the element induces a measurable shift in oscillation frequency, linearly proportional to accumulated mass. Unlike optical, beta attenuation, or pressure-drop methods, TEOM provides NIST-traceable mass measurements without empirical calibration or assumptions about particle density, refractive index, or hygroscopic growth. The dual-channel architecture enables simultaneous, independent quantification of volatile and non-volatile fractions across three size-cut classes: PM₁₀, PM_2.5, and coarse particulate matter (PM_thoracic). This capability addresses a critical limitation of conventional filter-based monitors—loss of semi-volatile compounds (e.g., ammonium nitrate, organic aerosols) during sampling—thereby delivering chemically resolved, bias-corrected mass data essential for regulatory compliance, source apportionment, and health impact modeling.

Key Features

• Dual FDMS (Filter Dynamic Measurement System) channels with integrated TEOM sensors, enabling concurrent measurement of volatile-adjusted and unadjusted mass concentrations
• Active temperature and humidity control via Sample Equilibration System (SES) and chilled FDMS filter holder (maintained at 4 °C), minimizing artifact volatility and ensuring thermodynamic stability of collected aerosol
• Activol™ mass flow control with real-time compensation for ambient temperature and pressure, guaranteeing stable volumetric flow rates: 3.0 L/min (fine), 1.67 L/min (coarse), and 12.0 L/min (bypass)
• Embedded 1/4 VGA touchscreen interface with menu-driven firmware; supports local configuration, diagnostics, and real-time trend visualization
• Comprehensive connectivity suite: Ethernet (TCP/IP), USB, RS-232, RS-485, and built-in FTP server for remote data retrieval and firmware updates
• Configurable averaging intervals (30 min to 23 hr), default 6-min update for rolling 1-hr and 24-hr mass averages; output resolution of 0.1 µg/m³
• Robust environmental enclosure design: operational in ambient temperatures from −40 °C to +60 °C; internal electronics and sensors thermally regulated to 8–25 °C

Sample Compatibility & Compliance

The TEOM 1405-DF is validated for continuous monitoring of ambient urban, rural, and industrial air matrices. It accepts standard 47-mm diameter analytical filters (e.g., Pallflex TX40) mounted in the chilled FDMS stage for offline laboratory analysis—including ion chromatography, elemental carbon/organic carbon (EC/OC) determination, and metal speciation. Its measurement methodology satisfies U.S. EPA Performance Specification 11 (PS-11) and is formally designated as an Equivalent Method for PM_2.5 under EQPM-0609-182. The system complies with international electromagnetic compatibility (EMC) and safety standards including EN 61326, EN 61010-1, UL 61010-1:2004, CSA C22.2 No. 61010-1:2004, and FCC Part 15 Subpart B Class B. While not inherently 21 CFR Part 11 compliant, audit trails, user access logs, and data integrity safeguards can be implemented via ePort software in GxP-aligned environments when paired with validated IT infrastructure.

Software & Data Management

Local operation and configuration are managed through the onboard touchscreen UI. Remote monitoring and data acquisition are supported by Thermo Fisher’s ePort and RPCOMM software suites, enabling secure HTTP/HTTPS access, automated data export (CSV, XML), alarm event logging, and firmware version tracking. The instrument features an internal data logger capable of storing 500,000 records of user-selected variables—including raw TEOM frequency, flow rate, temperature, pressure, FDMS correction factors, and calculated mass concentrations. Eight programmable analog outputs (0–1 V or 0–5 V DC) allow integration into SCADA or central environmental management systems. Two relay outputs support hardware-triggered alarms (e.g., flow failure, temperature excursion), while four analog inputs accommodate external sensor feeds (e.g., meteorological stations, co-located gas analyzers). All data timestamps are synchronized to internal RTC with optional NTP alignment over Ethernet.

Applications

• Regulatory-grade ambient air quality monitoring networks (AQMNs) requiring EPA-equivalent PM_2.5 and PM₁₀ data for National Ambient Air Quality Standards (NAAQS) reporting
• Source-oriented studies distinguishing anthropogenic secondary aerosol formation from primary emissions using volatile/non-volatile mass partitioning
• Long-term trend analysis of coarse particulate matter in dust-prone or coastal regions where PM_thoracic is a health-relevant metric
• Method comparison and reference monitoring in inter-laboratory validation exercises and field audits
• Indoor air quality assessment in occupational settings with elevated semi-volatile organic compound (SVOC) exposure risks
• Supporting health epidemiology studies requiring high-temporal-resolution, chemically informed PM mass metrics

FAQ

How does the TEOM 1405-DF differentiate volatile from non-volatile particulate mass?
It employs two parallel FDMS channels: one measures total aerosol mass (including semi-volatiles), while the other subjects sampled air to thermal denuding prior to filtration, removing volatile components. The difference between the two channels yields the volatile mass fraction.

Is the TEOM 1405-DF suitable for unattended operation in extreme climates?
Yes—the instrument is rated for sample gas temperatures from −40 °C to +60 °C. Optional outdoor enclosures with active heating/cooling maintain internal sensor and electronics temperature within the specified 8–25 °C operating range.

What filter media are recommended for FDMS operation?
Pallflex TX40 (13-mm effective diameter) is standard for the TEOM sensor; 47-mm quartz or Teflon filters installed in the 4 °C FDMS filter holder are used for offline chemical analysis.

Can data be exported in formats compatible with EPA AIRS or EEA reporting systems?
Yes—ePort supports configurable CSV and XML export templates aligned with AIRS metadata requirements, including UTC timestamps, QA/QC flags, and instrument-specific diagnostic fields.

Does the system meet ISO/IEC 17025 traceability requirements for accredited laboratories?
The TEOM sensor is factory-calibrated against NIST-traceable mass standards; full uncertainty budgets per ISO/IEC 17025 can be developed using documented procedures for flow, temperature, pressure, and frequency measurement uncertainties.
