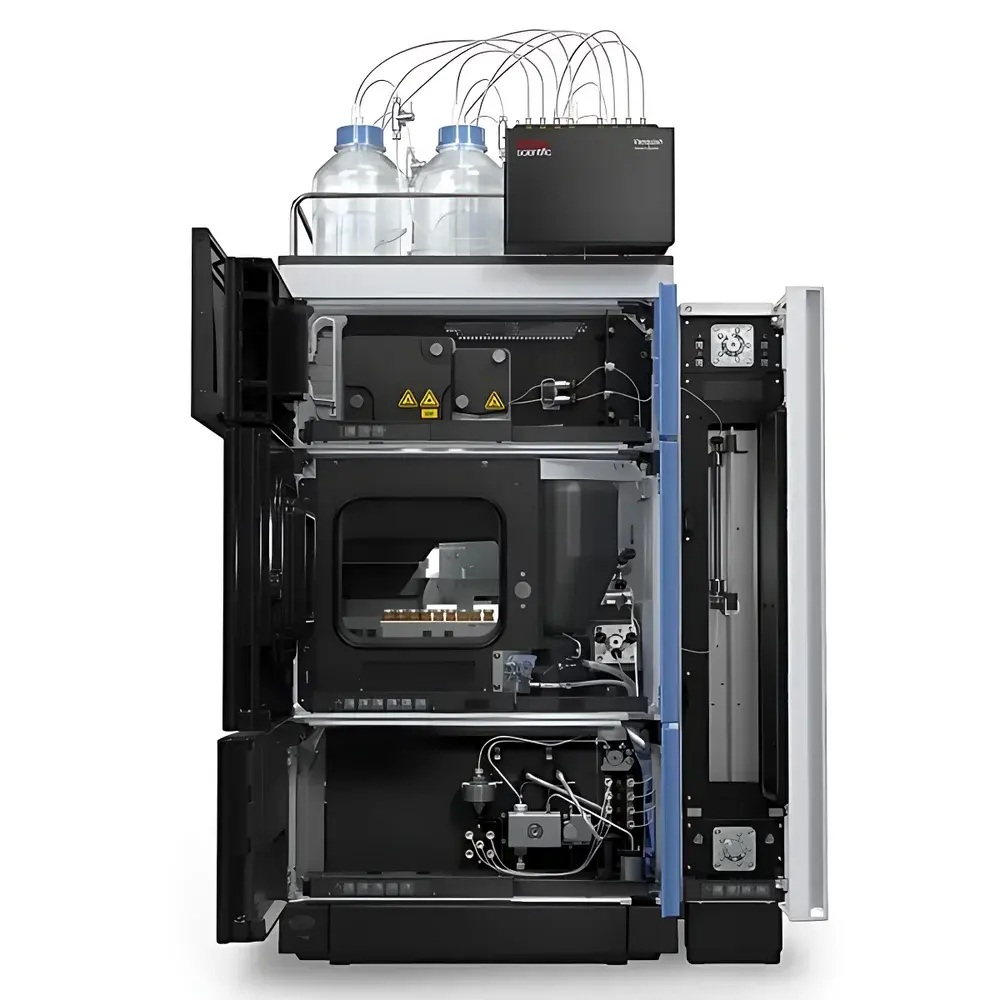

Thermo Fisher Vanquish Core HPLC System (Domestically Manufactured in Shanghai)
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestically Produced |
| Model | Vanquish Core HPLC System |
| Pricing | Available Upon Request |
Overview
The Thermo Fisher Vanquish Core HPLC System (Domestically Manufactured in Shanghai) is a high-performance, modular liquid chromatography platform engineered for robustness, method transfer fidelity, and regulatory compliance in quality control (QC), pharmaceutical development, and routine analytical laboratories. Built upon the proven architecture of the Vanquish family, this system employs high-pressure gradient pumping, precise column temperature control, and low-dispersion fluidic pathways to deliver consistent retention time reproducibility (<0.05% RSD), peak symmetry, and baseline stability across diverse mobile phase compositions. Its core measurement principle relies on pressure-driven separation of analytes through packed stationary phases under precisely controlled flow rates, gradient profiles, and thermal conditions—enabling reliable quantitation and identification in accordance with ICH Q2(R2), USP , and ISO/IEC 17025 requirements.
Key Features
- Adjustable Gradient Delay Volume (GDV): Enables precise matching of dwell volume between legacy and new systems without hardware reconfiguration—critical for seamless method transfer and cross-platform validation.
- SmartFlow Pump Technology: Compensates automatically for solvent compressibility and backpressure fluctuations, ensuring ±0.1% flow accuracy and ≤0.1% gradient composition precision—even at pressures up to 700 bar.
- Viper Hand-Tight Fittings: Tool-free, zero-dead-volume connections reduce extra-column band broadening and improve peak resolution; validated for >10,000 repeated cycles under GMP conditions.
- Multi-Mode Thermal Management: Column oven supports both air- and liquid-cooled configurations with ±0.1 °C temperature uniformity over 5–85 °C range, accommodating method-specific thermal stability requirements.
- Solvent Monitoring Module (Optional): Real-time level sensing across up to four solvent channels prevents dry-run pump damage and waste overflow—integrated into Chromeleon’s alarm hierarchy with configurable thresholds.
Sample Compatibility & Compliance
The Vanquish Core accommodates standard 2.1–4.6 mm ID analytical columns (30–250 mm length) and supports reversed-phase, HILIC, ion-exchange, and size-exclusion separations. It complies with FDA 21 CFR Part 11 requirements via Chromeleon CDS audit trail, electronic signatures, and role-based access control. Instrument qualification documentation—including IQ/OQ templates aligned with ASTM E2500 and EU Annex 11—is provided. All firmware and software versions are traceable and subject to Thermo Fisher’s change control process per ISO 9001:2015.
Software & Data Management
Chromeleon Chromatography Data System (CDS) v7.3 or later is fully embedded, supporting instrument control, sequence management, peak integration, reporting, and raw data archiving. The Standard Instrument Integration (SII) package enables bidirectional communication with third-party mass spectrometry platforms (e.g., Thermo Scientific Orbitrap, Q Exactive) and enterprise LIMS environments. Data integrity safeguards include automatic checksum generation, immutable audit logs, and encrypted database backups compliant with ALCOA+ principles.
Applications
This system is routinely deployed for small-molecule assay validation (ICH Q5C), peptide mapping in biologics QC, residual solvent analysis per USP , impurity profiling in API release testing, and stability-indicating method development. Its compatibility with UV/Vis, fluorescence, CAD, and MS detection modalities supports orthogonal characterization strategies required under ICH Q5A(R2) and Q5B guidelines.
FAQ
Is the Vanquish Core HPLC system manufactured in China fully equivalent to the globally supplied version?
Yes—the Shanghai-manufactured unit shares identical mechanical design, firmware versioning, calibration protocols, and factory acceptance test (FAT) criteria as its European and U.S.-assembled counterparts.
Does the domestic variant support 21 CFR Part 11 compliance out-of-the-box?
Yes—Chromeleon CDS is pre-configured with electronic signature workflows, audit trail activation, and user permission hierarchies meeting Part 11 technical and procedural requirements.
Can the GDV be adjusted during active sequence execution?
No—GDV configuration is performed during method setup and locked prior to run initiation to ensure gradient fidelity and regulatory traceability.
What column oven options are available for temperature-sensitive separations?
Both air-circulating and liquid-thermostatted ovens are supported; the latter achieves ±0.05 °C stability for applications requiring sub-degree thermal control.
Is SII compatibility limited to Thermo Scientific mass spectrometers?
No—SII supports standardized communication protocols (e.g., Open Chromatography Interface, OCX) enabling integration with select Agilent, Waters, and Sciex instruments per documented interface specifications.
