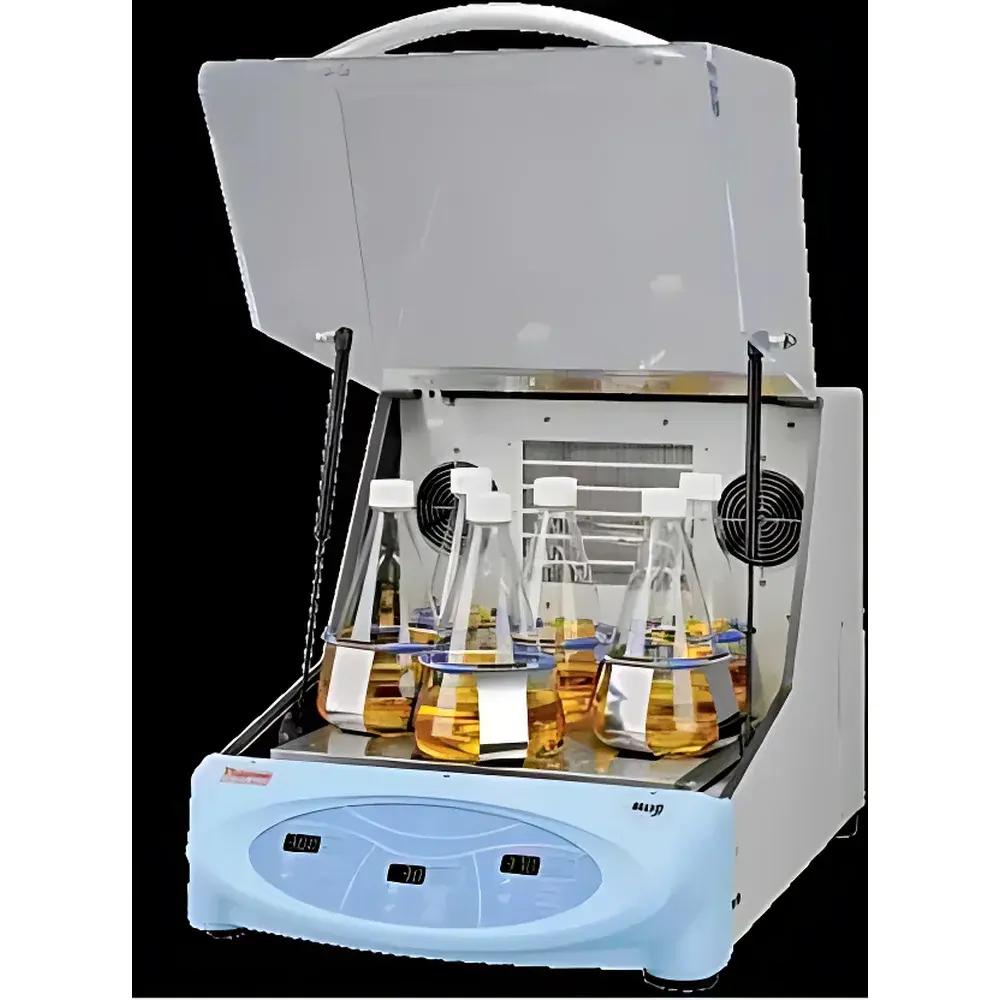

Thermo Scientific MaxQ 4000 Large-Volume Refrigerated Orbital Shaker

Overview

The Thermo Scientific MaxQ 4000 is a large-volume, refrigerated orbital shaker engineered for high-capacity cell culture, microbial fermentation, and biochemical incubation applications in academic, pharmaceutical, and biotechnology laboratories. Designed around a robust orbital motion principle—where platform displacement follows a consistent circular trajectory at precisely controlled speeds—the MaxQ 4000 delivers uniform mixing and suspension across volumetrically demanding samples. Its integrated refrigeration system enables stable temperature control from 4 °C to 60 °C, supporting both cryogenic preservation and elevated-temperature growth protocols without external cold rooms or auxiliary chillers. The unit’s benchtop footprint (W × D × H ≈ 76 × 71 × 66 cm) is optimized for space-constrained lab environments while accommodating up to six 2 L Erlenmeyer flasks simultaneously—making it suitable for scalable process development and parallel strain screening.

Key Features

• Large-capacity orbital platform with load capacity up to 25 kg, rated for continuous operation with six 2 L flasks or equivalent vessel configurations.
• Integrated dual-mode thermal management: compressor-based refrigeration combined with PID-controlled heating ensures ±0.3 °C temperature uniformity across the chamber and ±0.1 °C setpoint stability over 24 h.
• Acrylic transparent lid with gas-permeable sealing gasket allows real-time visual monitoring while maintaining sterility and minimizing CO₂ or humidity loss during extended runs.
• Hardware-enforced safety interlock system automatically halts platform motion within <100 ms upon lid lift—compliant with IEC 61000-6-2 electromagnetic immunity and UL 61010-1 laboratory equipment safety standards.
• Brushless DC motor drive provides low-vibration, maintenance-free operation with speed range of 20–300 rpm and programmable ramping profiles.
• Front-panel interface with intuitive rotary encoder and LCD display supports multi-step protocols, timer-based shutdown, and password-protected parameter locking for GLP/GMP environments.

Sample Compatibility & Compliance

The MaxQ 4000 accommodates standard microbiological and cell culture vessels—including baffled and non-baffled Erlenmeyer flasks (50 mL to 2 L), Fernbach flasks, roller bottles, and custom-sized trays—via interchangeable platform inserts. Its orbital radius of 25 mm ensures sufficient oxygen transfer for aerobic cultures while minimizing shear stress on sensitive mammalian cells. The unit meets ISO 13485 design control requirements for medical device manufacturing support and is validated for use in FDA-regulated workflows requiring audit-trail-capable instrumentation. Temperature and speed logs are timestamped and exportable in CSV format to satisfy 21 CFR Part 11 data integrity expectations when paired with optional Thermo Fisher Connect software.

Software & Data Management

While standalone operation is fully functional via the embedded controller, the MaxQ 4000 supports optional integration with Thermo Fisher Connect—a secure, browser-based platform enabling remote monitoring, alarm notifications (email/SMS), and centralized fleet management. All runtime parameters—including actual vs. setpoint temperature, rotational speed, elapsed time, and door-open events—are recorded with millisecond-level timestamp resolution. Audit trails are immutable and include user ID, action type, and change justification fields where configured—facilitating compliance with ISO/IEC 17025, USP , and internal quality system requirements.

Applications

• High-yield bacterial expression (e.g., E. coli BL21(DE3) in TB or autoinduction media)
• Mammalian suspension culture expansion (CHO, HEK293) under controlled hypothermic or normothermic conditions
• Enzyme production and purification workflow staging (lysate homogenization, binding/wash steps)
• Environmental microbiology studies requiring long-term incubation at sub-ambient temperatures (e.g., psychrophilic isolates)
• Bioprocess optimization trials involving DOE-based variation of agitation rate, temperature, and fill volume
• Stability testing of biologics and vaccines per ICH Q5C guidelines

FAQ

What is the maximum flask size supported without platform modification?
The standard platform accepts up to six 2 L Erlenmeyer flasks with standard neck geometry (e.g., 50 mm or 45 mm diameter). Larger vessels require custom inserts ordered separately.
Does the MaxQ 4000 support CO₂ supplementation?
No—this model lacks gas inlet/outlet ports and humidification control; for CO₂-dependent cultures, consider the Thermo Scientific Heracell CO₂ incubator series or third-party retrofit solutions validated per ISO 14644-1 cleanroom compatibility guidelines.
Is firmware upgrade capability available in-field?
Yes—firmware updates are delivered via USB flash drive and retain all user-defined protocols and calibration offsets post-installation.
Can the unit be installed in a cold room?
It is not rated for ambient operation below 10 °C; condensation risk and compressor efficiency degradation may occur outside the specified 15–30 °C installation environment.
What documentation is provided for IQ/OQ validation?
Factory-issued Installation and Operational Qualification templates—including test scripts, acceptance criteria, and blank execution records—are supplied with each unit and aligned with ASTM E2500-13 principles.
