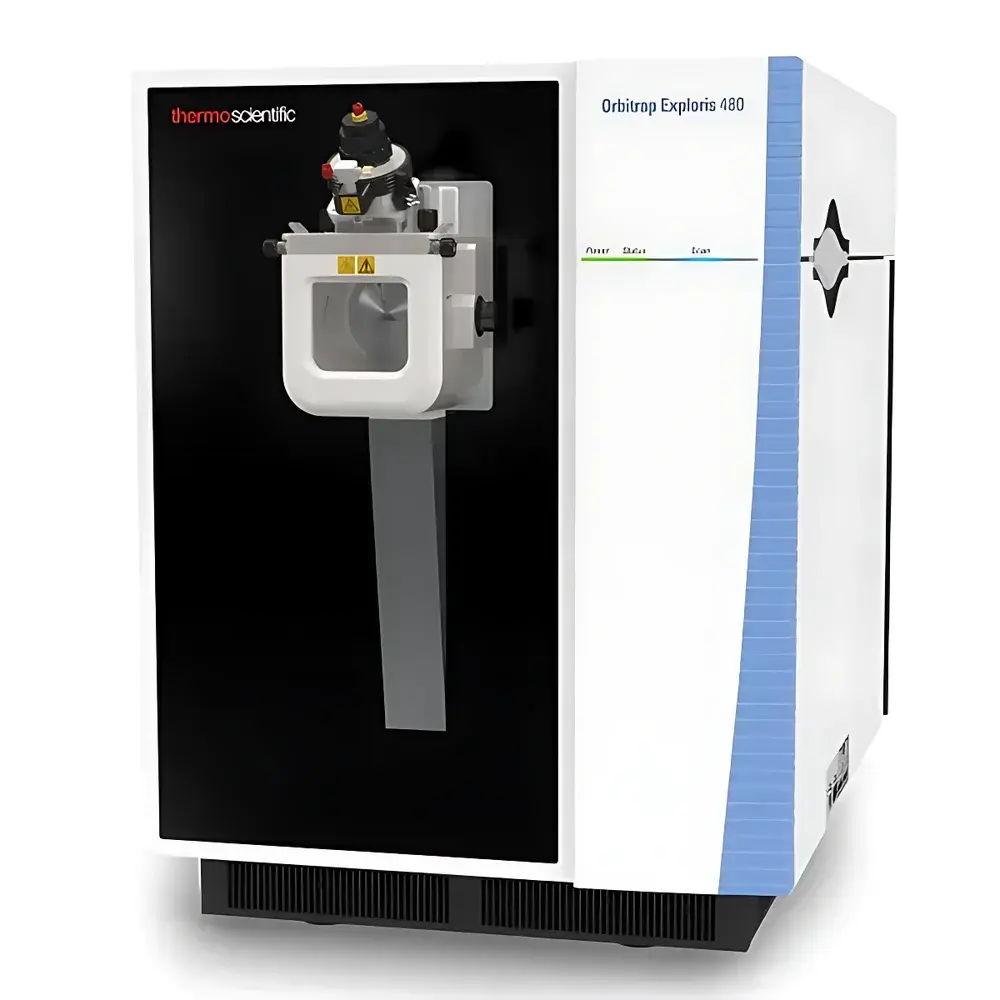

Thermo Scientific Orbitrap Exploris 480 High-Resolution Mass Spectrometer

Overview

The Thermo Scientific Orbitrap Exploris 480 is a next-generation hybrid quadrupole–Orbitrap mass spectrometer engineered for high-resolution, accurate-mass (HRAM) analysis in demanding proteomics, biopharmaceutical characterization, and small-molecule applications. It operates on the fundamental principle of electrostatic ion trapping within a modified Orbitrap analyzer, where ions oscillate along the central spindle under stable electric fields; their frequencies are detected via image current and converted into mass spectra using Fourier transform algorithms. This architecture delivers sub-ppm mass accuracy, high dynamic range, and exceptional spectral fidelity—critical for confident peptide identification, post-translational modification (PTM) mapping, and intact protein analysis. Designed with laboratory efficiency in mind, the Exploris 480 integrates compact mechanical architecture with robust vacuum system optimization, reducing physical footprint by approximately 50% compared to prior-generation Q Exactive platforms without compromising analytical performance or duty cycle.

Key Features

• Compact high-performance platform: Optimized ion optics and miniaturized turbomolecular pumping system enable a significantly reduced benchtop footprint while maintaining high ion transmission efficiency and vacuum stability.
• 480,000 resolution at m/z 200: Delivers consistent high-resolution capability across wide mass ranges—essential for resolving isobaric interferences in complex biological digests and glycopeptide analysis.
• Extended mass range (up to 8,000 Da) with Biopharma Option: Supports intact mass analysis of monoclonal antibodies, antibody–drug conjugates (ADCs), and large peptides—enabling top-down and middle-down workflows compliant with ICH Q5E and USP <1032> guidelines.
• Field-upgradable Internal Calibration (IC) module: Enables real-time mass recalibration during acquisition using co-injected reference ions—improving long-run mass stability and reducing need for external calibration standards.
• SureQuant and BoxCar acquisition frameworks: Integrated data-independent acquisition (DIA) strategies optimized for reproducible, sensitive targeted quantitation of low-abundance proteins in plasma, tissue lysates, and cell cultures—fully compatible with Skyline and Spectronaut software ecosystems.
• Intelligent instrument control: Embedded AI-assisted method setup guides users through parameter selection based on sample type and analytical goals, minimizing method development time and operator dependency.

Sample Compatibility & Compliance

The Orbitrap Exploris 480 interfaces seamlessly with Thermo Scientific Vanquish UHPLC systems and third-party LC platforms via standard ESI, APCI, and nanoESI sources. It supports diverse sample introduction modes—including microflow, nanoflow, and direct infusion—and accommodates both bottom-up and top-down proteomics workflows. The system complies with key regulatory requirements for GxP environments: full audit trail support, electronic signature capability, and 21 CFR Part 11–compliant software modules (via Thermo Scientific Chromeleon CDS or Compound Discoverer). Routine operation meets ISO/IEC 17025 criteria for method validation, and data integrity aligns with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Software & Data Management

Controlled by Thermo Scientific Tune and Xcalibur software (v4.5+), the Exploris 480 supports automated method optimization, real-time spectral quality monitoring, and integrated QC reporting. Raw data files (.raw) are natively compatible with open-source tools (e.g., MaxQuant, Proteome Discoverer 2.5+, FragPipe) and commercial platforms including Spectronaut, Skyline, and Byonic. All acquisition and processing metadata—including calibration history, sequence logs, and instrument configuration snapshots—are embedded in raw files to ensure traceability. For enterprise deployment, Thermo Scientific Cloud Connect enables secure remote monitoring, centralized method library management, and federated data sharing across geographically distributed labs—supporting FAIR (Findable, Accessible, Interoperable, Reusable) data principles.

Applications

• High-throughput discovery and targeted quantitation of post-translational modifications (phosphorylation, ubiquitination, glycosylation)
• Intact mass analysis and higher-order structure assessment of therapeutic proteins and biosimilars
• Comprehensive metabolite identification (MetID) and reaction phenotyping in drug development
• Environmental contaminant screening with non-targeted suspect screening workflows
• Single-cell proteomics leveraging multiplexed TMT or label-free DIA approaches
• Structural biology support via native MS and hydrogen-deuterium exchange (HDX-MS) coupling

FAQ

Is the Orbitrap Exploris 480 compatible with existing Thermo Scientific LC systems?
Yes—it natively supports Vanquish Flex, Vanquish Horizon, and UltiMate 3000 UHPLC systems via standard API interfaces, and third-party LC controllers can be integrated using vendor-neutral protocols (e.g., OPC UA).

Can the Biopharma Option be added post-purchase?
Yes—the extended m/z range capability is enabled via hardware upgrade (modified RF lens assembly and detector firmware) and is available as a certified field service installation.

Does the Internal Calibration option require additional consumables?
No—it utilizes built-in reference ion generation (e.g., lock mass from background solvent clusters or co-infused calibrants) and does not rely on proprietary cartridges or reagents.

What regulatory documentation is provided for GMP environments?
Thermo Scientific provides Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) templates, along with 21 CFR Part 11 readiness reports and cybersecurity validation packages upon request.
