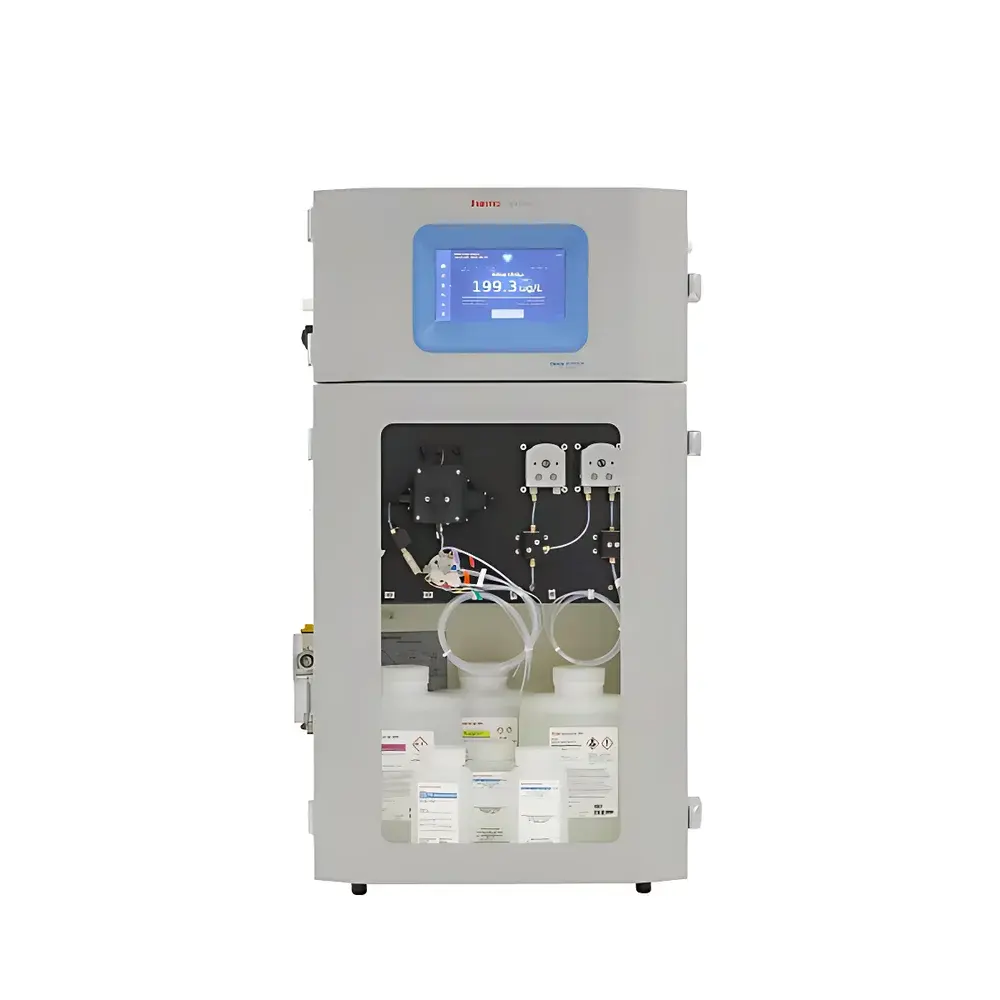

Thermo Scientific Orion 8030cX Online Silica Analyzer

Overview

The Thermo Scientific Orion 8030cX Online Silica Analyzer is an industrial-grade, colorimetric process analyzer engineered for continuous, real-time measurement of dissolved reactive silica (SiO₂) in ultrapure water streams. It operates on the heteropoly molybdenum blue method — a well-established, ASTM D859-22 compliant photometric technique in which soluble silicate ions react with molybdate under acidic conditions to form a stable blue-colored complex, quantified via dual-wavelength absorbance detection. This principle ensures high specificity for orthosilicic acid (H₄SiO₄), the dominant reactive silica species in power plant and semiconductor-grade water systems. Unlike offline lab methods requiring sample preservation and manual handling, the 8030cX delivers automated, unattended operation with minimal operator dependency — critical for maintaining boiler feedwater purity, preventing turbine blade deposition, and ensuring condensate system integrity.

Key Features

• Patented flow cell architecture with integrated air bubble elimination and low-volume reagent mixing chamber, minimizing carryover and improving reproducibility across wide concentration ranges (0–5000 µg/L)
• Automatic range switching between low- and high-range modes without manual intervention, preserving linearity and accuracy at sub-ppb levels while accommodating transient upsets
• Phosphate interference suppression algorithm, enabled by proprietary reagent formulation and dual-channel optical compensation, delivering reliable silica readings even in phosphate-dosed boiler water applications
• Self-diagnostic system with real-time monitoring of pump performance, valve actuation, photometer stability, and reagent depletion status
• Capacitive touchscreen interface with intuitive icon-driven navigation, multi-language support (English, Spanish, German, Chinese), and context-sensitive help — designed for field technicians with minimal analytical training
• Rugged IP65-rated enclosure with corrosion-resistant stainless-steel wetted parts and thermally stabilized optics, validated for continuous deployment in turbine halls, chemical dosing rooms, and outdoor skid-mounted installations

Sample Compatibility & Compliance

The Orion 8030cX is optimized for aqueous samples with conductivity <1 µS/cm and temperature between 5–40°C. It accepts standard ¼" OD tubing connections and integrates seamlessly with existing sample conditioning systems (e.g., pressure regulators, particulate filters, and temperature stabilizers). The analyzer meets IEC 61000-6-2/6-4 electromagnetic compatibility standards and is CE-marked for industrial use. While not a standalone regulatory device, its data integrity framework — including timestamped measurement logs, configurable alarm history, and optional electronic signature-enabled calibration records — aligns with GLP, GMP, and ISO/IEC 17025 quality management expectations. When deployed with Thermo Scientific’s Orion Connect™ software suite, it supports 21 CFR Part 11-compliant audit trails, role-based access control, and secure data export for compliance reporting.

Software & Data Management

The embedded firmware supports scheduled automatic calibration (daily or weekly), reagent blank verification, and system flush cycles — all configurable via the local HMI or remote Modbus TCP/RTU interface. Data output includes primary silica concentration (µg/L), raw absorbance values at 650 nm and 810 nm, diagnostic flags, and time-stamped event logs. Integration with distributed control systems (DCS) or SCADA platforms is achieved through analog 4–20 mA outputs (dual channel), digital relay contacts (for high/low alarms), and optional Ethernet/IP or Profibus DP modules. Orion Connect™ software enables centralized fleet monitoring, predictive maintenance alerts based on reagent consumption trends, and historical trend analysis with overlay of operational parameters (e.g., feedwater pH, conductivity, temperature).

Applications

• Power generation: Continuous monitoring of boiler feedwater, condensate return, and turbine bypass streams to prevent silica scaling on superheater tubes and LP turbine blades
• Semiconductor manufacturing: Ultrapure water (UPW) loop surveillance in fab utilities, ensuring compliance with SEMI F63 specifications for total silica (<0.5 µg/L)
• Pharmaceutical water systems: Monitoring purified water (PW) and water for injection (WFI) distribution loops where silica accumulation may compromise membrane integrity or endotoxin retention
• Chemical processing: Control of silica removal in ion exchange polishing trains and reverse osmosis (RO) pretreatment stages
• Pulp & paper: Detection of silica breakthrough in caustic recovery circuits and green liquor clarification systems

FAQ

What is the typical detection limit for reactive silica using the Orion 8030cX?

The instrument achieves a practical limit of detection (LOD) of <0.5 µg/L SiO₂ in low-phosphate matrices, verified per EPA Method 375.4 and ASTM D859-22 protocols.
Does the analyzer require daily manual maintenance?

No — routine maintenance is limited to reagent replacement every 100 days and annual optical path cleaning. All calibration, validation, and cleaning sequences are fully automated.
Can the 8030cX be integrated into an existing DCS without third-party gateways?

Yes — native 4–20 mA analog outputs and Modbus RTU over RS-485 allow direct integration. Optional Ethernet/IP or Profibus DP modules provide native PLC connectivity.
How does the system handle phosphate interference in boiler water applications?

It employs a patented dual-wavelength photometric correction combined with a phosphate-selective masking reagent, reducing cross-sensitivity to <±2% error at 10 mg/L PO₄³⁻.
Is remote firmware update supported?

Firmware updates are performed via USB drive or secure FTP upload through the Ethernet port, with rollback capability and version-locked configuration backup.
