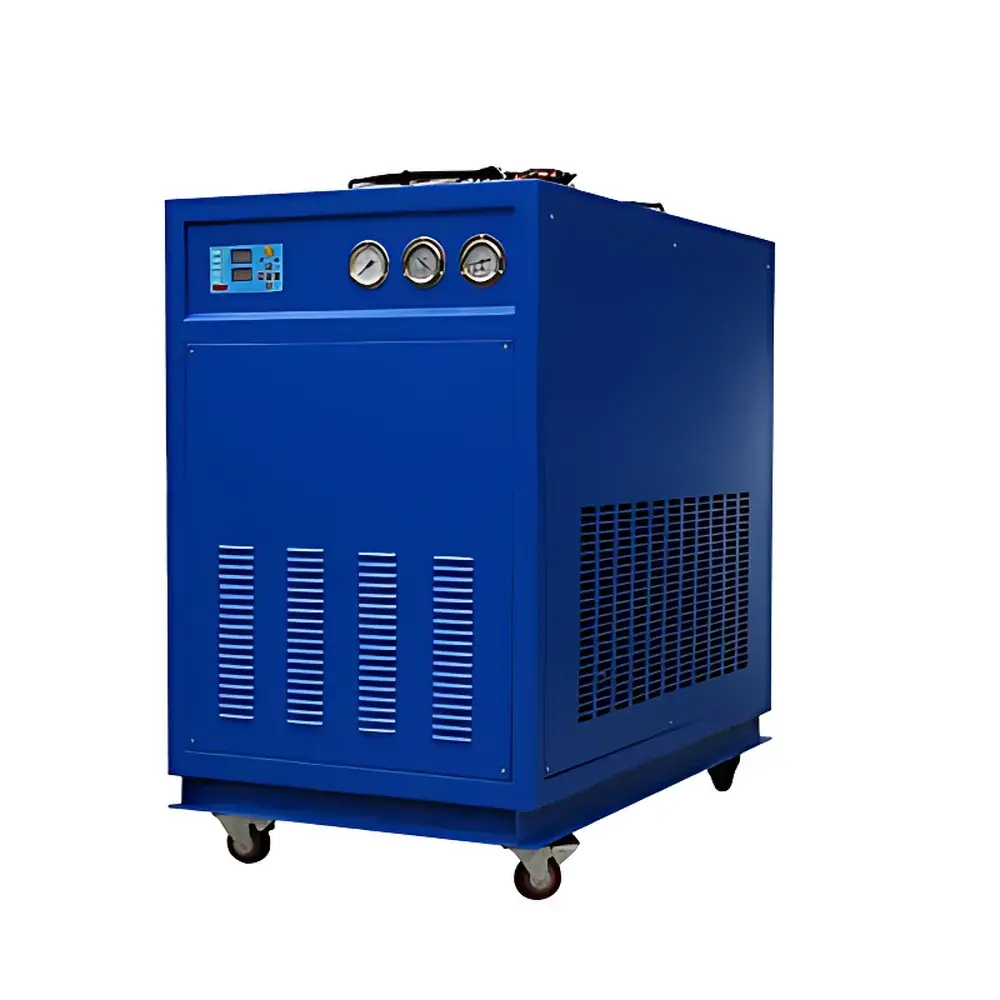

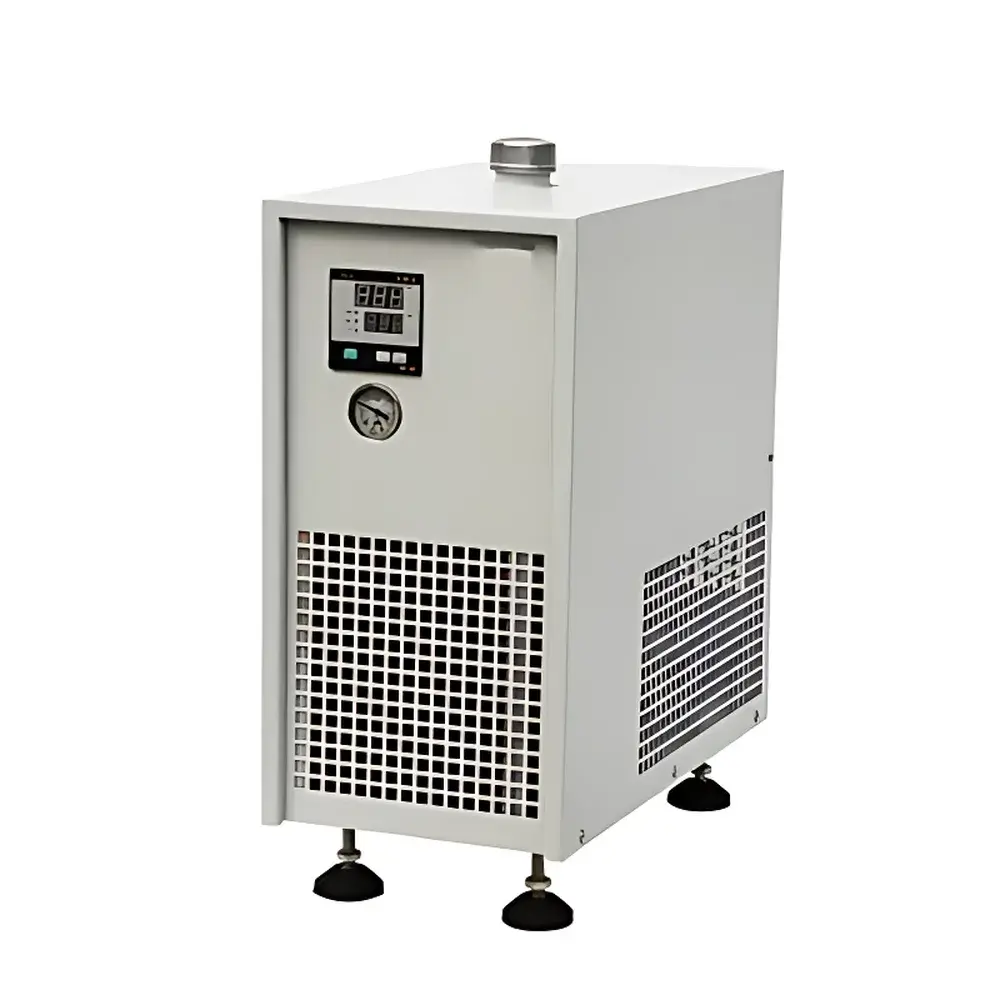

Tianfeng LS-1.5KW Integrated Circulating Chiller

Overview

The Tianfeng LS-1.5KW Integrated Circulating Chiller is an engineered thermal management solution designed for precision temperature control in laboratory and industrial instrumentation. It operates on a closed-loop vapor-compression refrigeration cycle, utilizing a high-efficiency scroll compressor, copper-aluminum finned condenser, and precision expansion valves to deliver stable cooling performance across a wide operational envelope. Unlike open-bath chillers or tap-water-based cooling systems, this unit maintains consistent coolant temperature, flow rate, and pressure—critical parameters for instruments sensitive to thermal drift, such as graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), X-ray fluorescence (XRF) analyzers, scanning electron microscopes (SEM), and transmission electron microscopes (TEM). Its integrated architecture eliminates external plumbing complexity while ensuring compliance with ISO/IEC 17025 environmental conditioning requirements for analytical laboratories.

Key Features

• Stable temperature regulation within ±0.1 °C over the full 0–40 °C operating range, validated per ASTM E2251-22 for liquid bath temperature uniformity and stability.
• High-reliability scroll compressor with integrated thermal overload protection and low-noise operation (<65 dB(A) at 1 m).
• Corrosion-resistant 304 stainless steel reservoir (15 L standard capacity) and centrifugal circulation pump rated for continuous duty at 38 L/min @ 2.0 bar.
• Dual-mode control system: fixed-setpoint constant-temperature mode and adaptive PID-controlled intelligent mode that dynamically adjusts cooling output based on real-time load feedback.
• Digital LED interface with independent display of setpoint, actual outlet temperature, and fault codes; supports remote analog (0–10 V / 4–20 mA) and digital (RS485 Modbus RTU) signal integration.
• Comprehensive safety architecture including high/low refrigerant pressure switches, compressor discharge temperature monitoring, reservoir low-level cutoff, and overtemperature lockout.
• CE-marked electrical design compliant with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission); meets UL 61010-1 requirements for laboratory equipment safety.

Sample Compatibility & Compliance

The LS-1.5KW chiller is compatible with all major laboratory instruments requiring recirculated coolant at controlled temperatures and flow rates—including but not limited to laser ablation systems, RF plasma generators, vacuum chamber cryo-shrouds, and high-power detector cooling stages. It supports glycol/water mixtures up to 30% concentration for sub-zero applications (with optional low-temp kit). All wetted materials—including tubing, pump head, and heat exchanger—are chemically inert to common laboratory coolants (e.g., ethylene glycol, propylene glycol, and deionized water). The unit conforms to GLP and GMP environmental control guidelines when deployed in regulated QC/QA labs. Its temperature logging capability (via optional USB data logger or RS485 integration) supports 21 CFR Part 11-compliant audit trails when paired with validated software platforms.

Software & Data Management

While the base model features standalone hardware control, the LS-1.5KW supports seamless integration into centralized lab infrastructure via its RS485 Modbus RTU port. This enables bidirectional communication with LIMS, SCADA, or building management systems for remote setpoint adjustment, real-time temperature telemetry, alarm forwarding, and event logging. Optional firmware upgrades provide timestamped temperature history (up to 30 days at 1-min intervals), configurable alarm thresholds, and password-protected parameter access—essential for ISO 17025-accredited facilities. Data export is supported in CSV format for traceability and trending analysis in Excel or statistical process control (SPC) tools.

Applications

• Analytical Instrument Cooling: Stabilizes thermal load in ICP-MS torch interfaces, XRD goniometer bearings, and SEM column cooling jackets to minimize thermal lensing and mechanical drift.
• Materials Characterization: Maintains precise coolant temperature during dynamic mechanical analysis (DMA), differential scanning calorimetry (DSC), and thermogravimetric analysis (TGA) auxiliary cooling stages.
• Laser Systems: Provides consistent heat removal from CO₂, fiber, and diode-pumped solid-state (DPSS) lasers used in LIBS, Raman spectroscopy, and laser-induced breakdown setups.
• Pharmaceutical R&D: Supports temperature-critical dissolution testing apparatus, HPLC column ovens, and bioreactor jacket cooling under cGMP-aligned thermal validation protocols.
• Electronics Testing: Enables thermal cycling and burn-in testing of PCB assemblies and semiconductor packages by coupling with programmable thermal plates.

FAQ

What is the maximum allowable inlet coolant temperature for continuous operation?
The unit is rated for continuous operation with return coolant temperatures up to 40 °C. Sustained inlet temperatures above this threshold may trigger high-pressure cutout and reduce compressor service life.
Can this chiller be used with organic solvents or aggressive coolants?
No. Only water, aqueous glycol solutions (≤30% v/v), or manufacturer-approved heat transfer fluids are permitted. Contact with chlorinated hydrocarbons, acetone, or strong acids will damage seals and internal components.
Is the reservoir volume customizable?
Yes. Standard configurations include 15 L, but custom reservoirs ranging from 5 L to 550 L are available upon engineering review and validation.
Does the unit support external temperature feedback control?
Yes. The controller accepts external PT100 or thermistor inputs for cascade control—enabling direct instrument-jacket temperature regulation rather than relying solely on chiller outlet sensing.
What certifications does the LS-1.5KW hold for international deployment?
It carries CE marking (EMC & LVD directives), RoHS 2011/65/EU compliance, and factory-issued ISO 9001:2015 quality system certification. FDA registration is not applicable as it is not a medical device, but it meets ancillary equipment requirements for Class I and II medical instrument cooling per IEC 60601-1 Annex BB.
