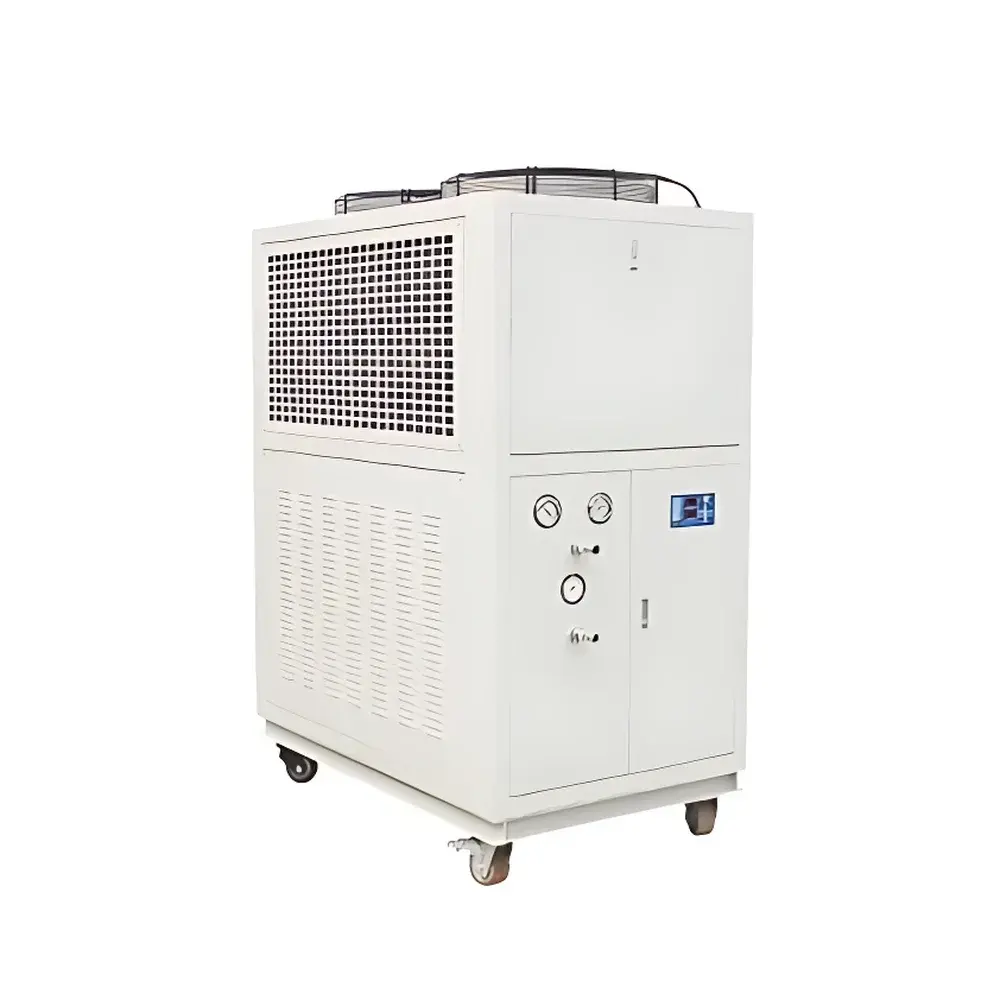

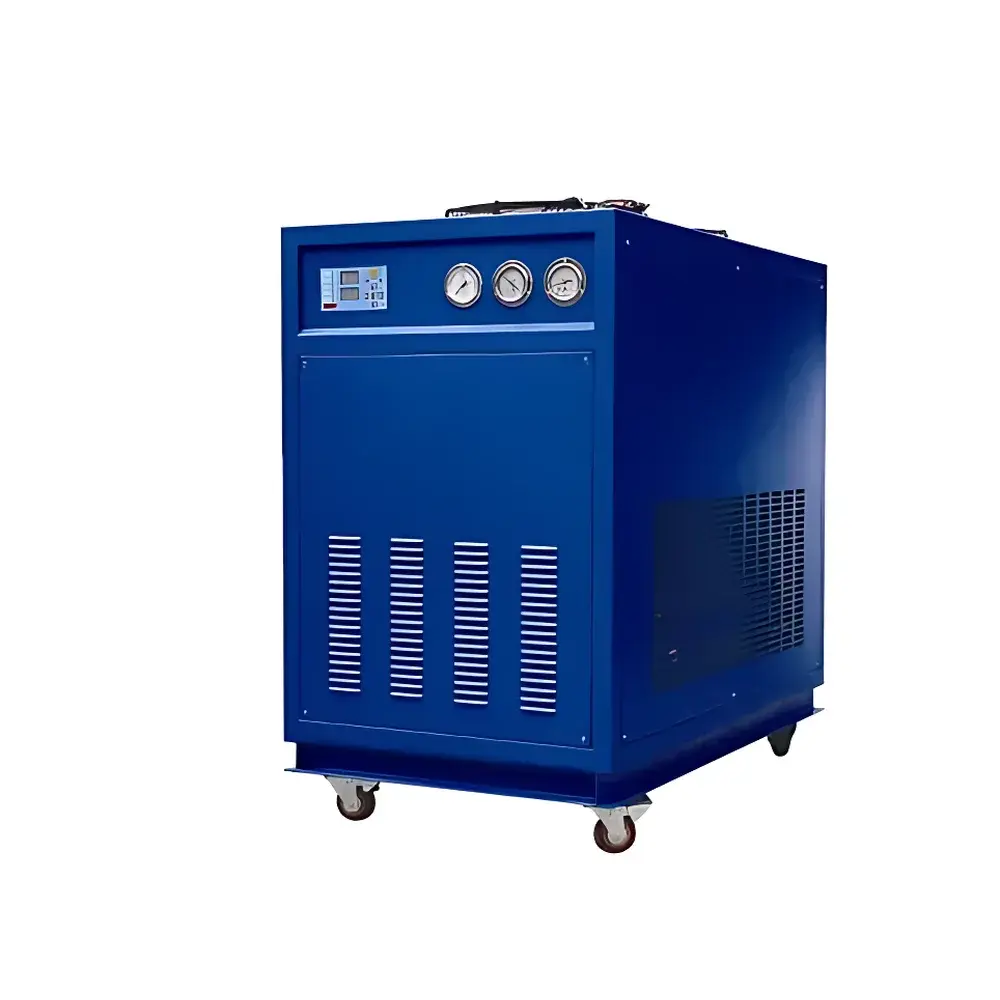

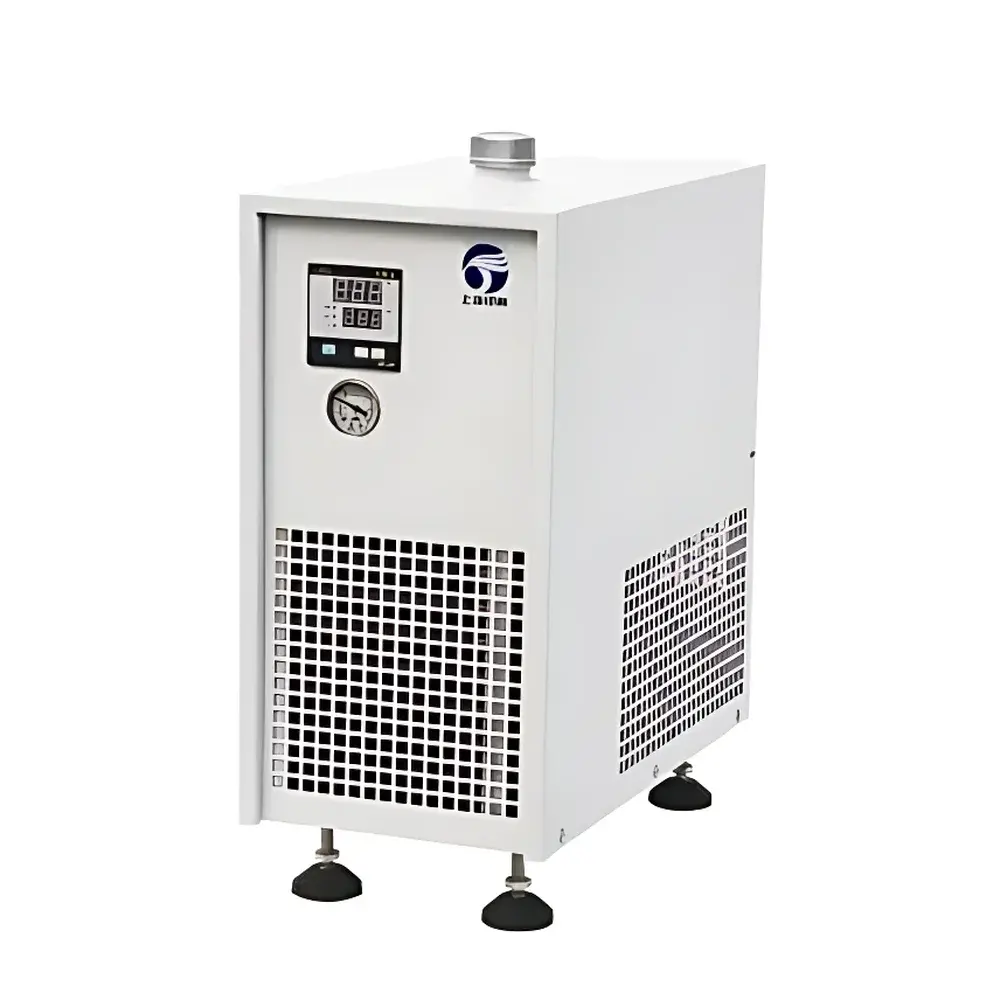

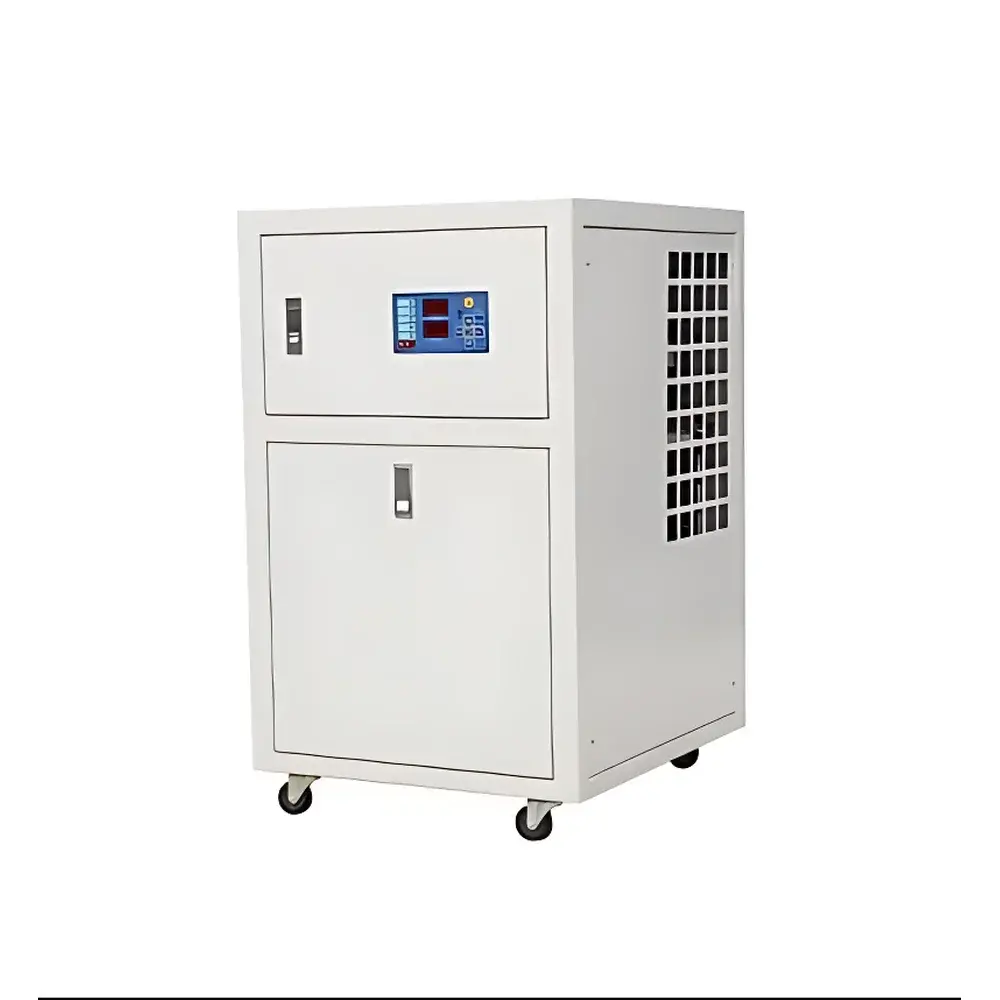

Tianfeng LS-5HP Integrated Circulating Chiller

Overview

The Tianfeng LS-5HP Integrated Circulating Chiller is a precision-engineered refrigeration system designed for stable thermal management of high-heat-load laboratory and industrial equipment. Utilizing a scroll compressor-based vapor-compression cycle with R22 or R407C refrigerant (configurable per regional compliance), it delivers consistent cooling performance across demanding applications where temperature stability, flow reliability, and long-term operational continuity are critical. Unlike basic recirculating coolers, the LS-5HP integrates PID-controlled digital temperature regulation, dual-mode operation (constant-temperature and intelligent adaptive control), and real-time monitoring of both coolant temperature and flow dynamics—enabling precise thermal coupling between the chiller and sensitive end-user instruments such as graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), scanning electron microscopes (SEM), and X-ray diffractometers (XRD). Its compact monoblock architecture supports floor-standing deployment in constrained lab spaces while maintaining full service accessibility and low acoustic emissions (<72 dB[A]).

Key Features

• High-efficiency scroll compressor from European or Japanese OEM suppliers, ensuring low vibration, extended service life, and stable refrigeration output under continuous duty cycles
• Dual-mode temperature control: fixed-setpoint mode for reproducible thermal conditions; adaptive mode dynamically adjusts setpoint based on real-time load feedback to minimize energy consumption without sacrificing stability
• Stainless steel reservoir (110 L capacity) and centrifugal circulation pump rated for 0–60 L/min at 0–2 kgf/cm² pressure, corrosion-resistant and compatible with deionized water, glycol-water mixtures, and other non-aggressive heat-transfer fluids
• Digital LED display with intuitive interface showing real-time outlet temperature, flow status, fault codes, and operational mode
• Comprehensive safety architecture including high/low refrigerant pressure cutoffs, compressor overheat protection, overcurrent detection, and overtemperature alarm with dry-contact relay output for integration into facility SCADA or lab automation systems
• Electrical components sourced from Siemens, Schneider Electric, and Omron—certified to IEC 61000-4 EMC standards and compliant with RoHS directives
• Factory-calibrated temperature controller (standard Chinese OEM unit; optional RKC Japan PID controller available for enhanced resolution and GLP traceability)

Sample Compatibility & Compliance

The LS-5HP is engineered to maintain coolant outlet temperatures between 5 °C and 30 °C with a typical stability of ±0.3 °C over 24-hour operation—meeting the thermal requirements of analytical instrumentation governed by ASTM E1510 (standard practice for calibration of atomic absorption spectrometers), ISO 17025 (general requirements for competence of testing and calibration laboratories), and USP (instrument qualification for pharmaceutical analysis). Its stainless steel fluid path complies with FDA 21 CFR Part 11 expectations for material compatibility when used with purified water in regulated environments. The unit supports GxP-aligned operation through configurable audit-trail-capable controllers (optional upgrade) and adheres to ISO 9001:2000 quality management system certification for design, manufacturing, and post-sale support processes.

Software & Data Management

While the base LS-5HP operates via embedded hardware controls, optional RS485 Modbus RTU or Ethernet TCP/IP interfaces enable integration with centralized lab infrastructure. When paired with Tianfeng’s optional LabLink™ monitoring software (Windows/Linux compatible), users gain remote access to historical temperature logs, pump runtime statistics, alarm event timestamps, and predictive maintenance alerts—including compressor cycle count, pressure differential trends, and coolant temperature deviation thresholds. All data exports in CSV format for import into LIMS or ELN platforms. For GLP/GMP environments, the upgraded RKC controller supports electronic signature functionality and 21 CFR Part 11-compliant user access levels (administrator/operator/auditor), with immutable audit trails for all parameter changes and manual overrides.

Applications

• Materials Characterization: Thermal stabilization of XRD goniometers, SEM/TEM cold stages, and laser-induced breakdown spectroscopy (LIBS) ablation chambers
• Elemental Analysis: Cooling of ICP-MS nebulizers and spray chambers, GFAAS graphite tubes, and XRF detector Peltier elements
• Manufacturing QA/QC: Mold temperature control in polymer rheometry sample preparation, CNC spindle cooling during precision metrology, and vacuum deposition chamber thermal management
• Pharmaceutical R&D: Fermentation bioreactor jacket cooling, lyophilizer condenser support, and dissolution apparatus temperature regulation per USP
• Electronics Testing: Thermal conditioning of semiconductor probe stations and high-frequency signal integrity test fixtures

FAQ

What is the recommended maximum return water temperature for continuous operation?
For optimal compressor longevity and refrigeration efficiency, the return coolant temperature should not exceed 40 °C. Sustained inlet temperatures above this threshold increase discharge pressure and reduce system COP, accelerating wear on the scroll compressor.
Can the LS-5HP be integrated into an existing building BMS?
Yes—via optional Modbus RTU (RS485) or BACnet/IP (Ethernet) communication modules, enabling read/write access to temperature setpoints, pump status, alarms, and energy consumption metrics.
Is the chiller suitable for use with ethylene glycol solutions?
The stainless steel reservoir and pump are fully compatible with aqueous glycol mixtures up to 30% concentration. However, glycol reduces heat transfer coefficient and increases viscosity—flow rate and pressure settings must be validated experimentally for each formulation.
Does the unit meet CE or UL safety standards?
The LS-5HP conforms to IEC 60335-1 (household and similar electrical appliances) and IEC 61000-4 (EMC immunity) requirements. CE marking is available upon request for EU-bound units; UL 61010-1 certification can be provided for North American deployment with factory-installed component upgrades.
What maintenance intervals are recommended?
Compressor oil and refrigerant charge verification every 24 months; condenser coil cleaning every 6 months in dusty environments; annual calibration of temperature sensor and pressure transducers using NIST-traceable references.
