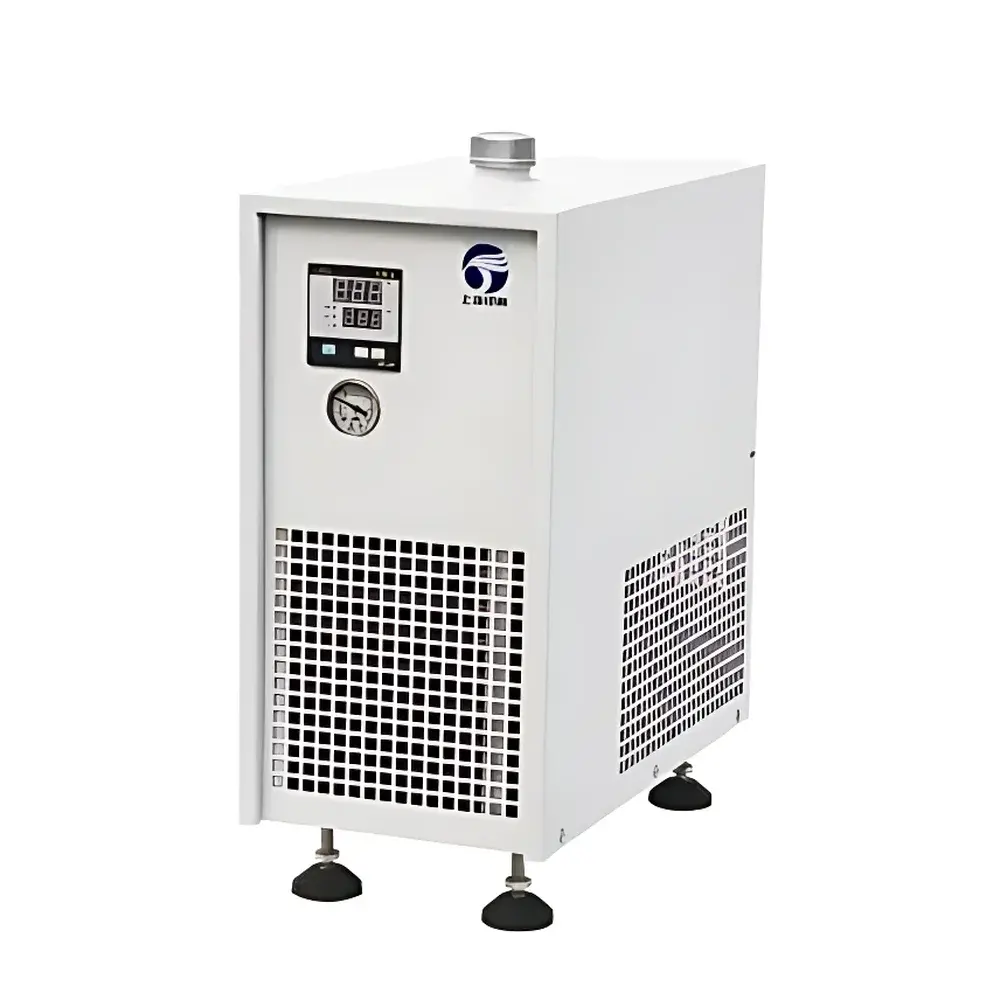

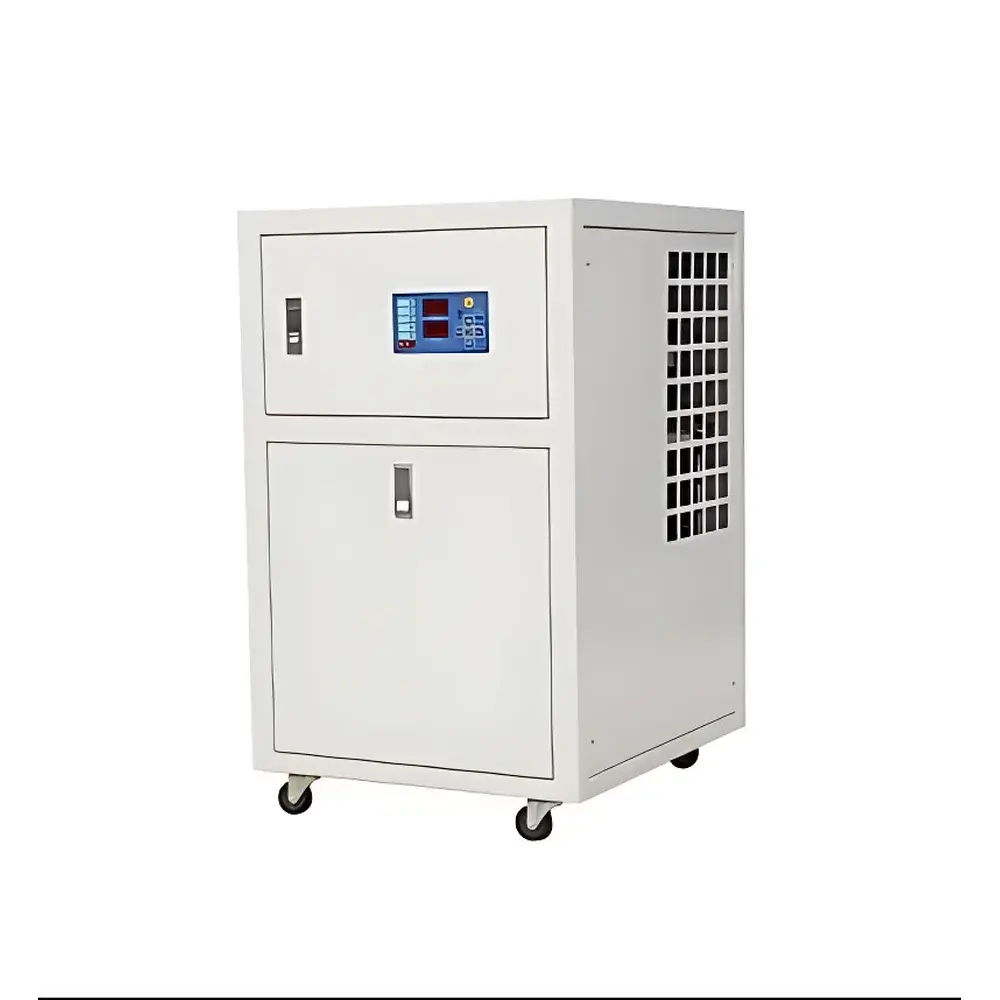

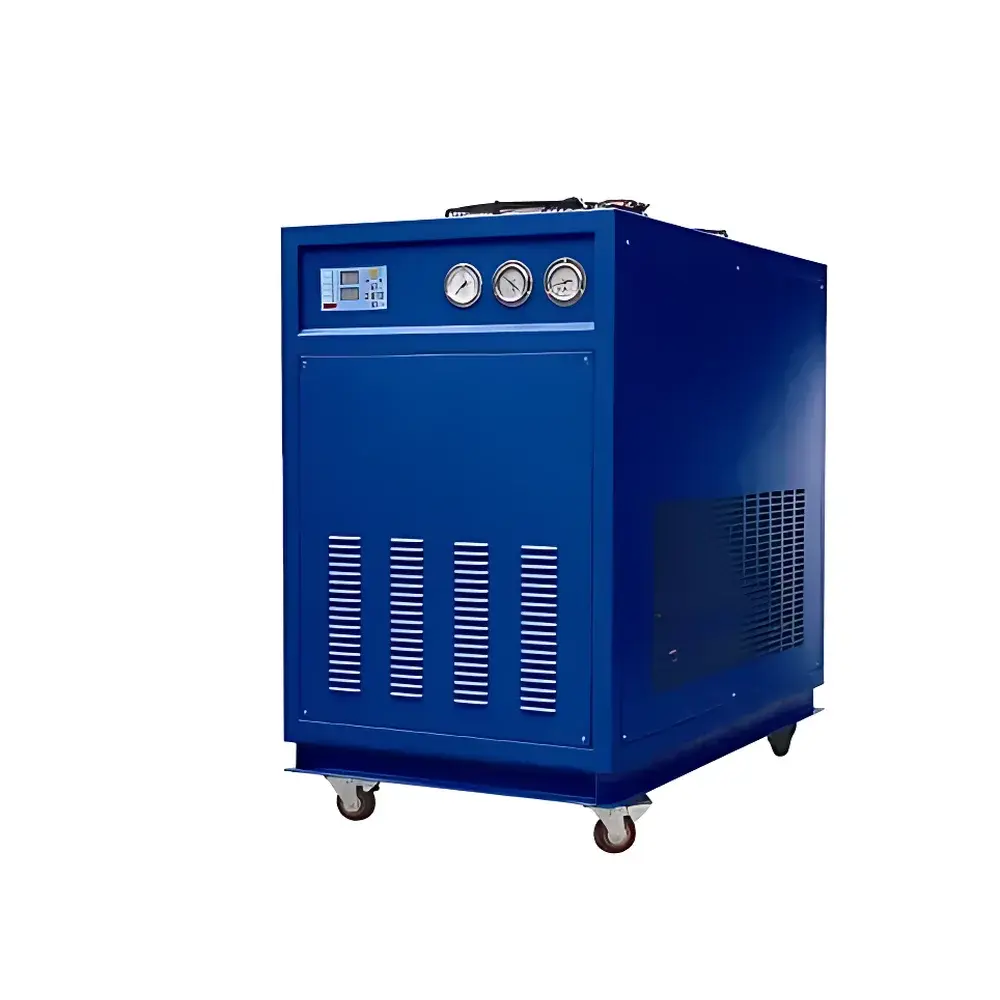

Tianfeng LS-6KW Integrated Circulating Chiller

Overview

The Tianfeng LS-6KW Integrated Circulating Chiller is a precision-engineered refrigeration system designed for stable thermal management of high-heat-load laboratory and industrial equipment. It operates on the vapor-compression refrigeration cycle, utilizing a scroll-type compressor, thermostatic expansion valve, and forced-convection water-cooled condenser to deliver consistent cooling performance across demanding applications. Unlike basic chillers, this unit integrates closed-loop temperature control with real-time feedback via a high-resolution digital PID controller—ensuring rapid thermal response and minimal overshoot. Its primary function is to maintain process fluids within a tightly regulated range (0–10 °C), enabling uninterrupted operation of sensitive instrumentation where thermal drift compromises measurement integrity or mechanical stability.

Key Features

• Stainless steel reservoir (45 L capacity) and pump housing for corrosion resistance and long-term fluid compatibility with deionized water, glycol-water mixtures, and low-conductivity coolants.
• High-efficiency scroll compressor with integrated overheat and pressure-safety interlocks—designed for >20,000 hours of continuous duty life under nominal load conditions.
• Dual-mode temperature control: fixed-setpoint mode for steady-state operation and adaptive modulation mode that dynamically adjusts coolant output in response to real-time thermal load fluctuations.
• Digitally calibrated temperature display with ±0.05 °C sensor accuracy (PT100 grade A) and 0.01 °C resolution; user-configurable alarm thresholds for high/low temperature, low flow, and pump failure.
• Modular electrical architecture compliant with IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity standards); all power components certified to UL 61000-1 and CE directives.
• Low-noise acoustic design (<65 dB[A] at 1 m) achieved through vibration-damped mounting, insulated condenser airflow paths, and optimized fan blade geometry.
• Full safety redundancy: high-pressure cut-off switch, low-refrigerant-pressure alarm, motor overcurrent protection, and electronic thermal limiter independent of main controller logic.

Sample Compatibility & Compliance

The LS-6KW chiller supports compatibility with a broad spectrum of analytical and manufacturing platforms requiring precise fluid temperature regulation—including graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), X-ray fluorescence (XRF) systems, scanning electron microscopes (SEM), transmission electron microscopes (TEM), and laser-based material processing tools (e.g., fiber lasers, ultrafast oscillators). Its stainless-steel wetted path meets ASTM F838-22 requirements for biocompatibility when used with pharmaceutical-grade coolants. The unit complies with ISO 9001:2015 quality management system standards and incorporates design elements aligned with FDA 21 CFR Part 11 data integrity expectations—specifically, non-volatile event logging of temperature excursions, setpoint changes, and fault conditions (when equipped with optional RS485/Modbus RTU interface).

Software & Data Management

While the base configuration features standalone analog/digital control, the LS-6KW supports optional communication modules enabling integration into centralized lab infrastructure. Via RS485 Modbus RTU or Ethernet TCP/IP (with external gateway), users can remotely monitor real-time parameters—including outlet temperature, flow rate, compressor run time, and fault status—through SCADA-compatible platforms or LIMS interfaces. Audit-trail-capable firmware (v3.2+) records timestamped entries for all manual setpoint modifications and alarm activations, satisfying GLP and GMP documentation requirements. Data export is supported in CSV format for post-processing in MATLAB, Python (Pandas), or Excel-based trend analysis. No proprietary software installation is required; configuration is managed via web-based HTML5 interface or standard Modbus register mapping.

Applications

• Materials Characterization: Stabilizes detector cooling stages in XRD and XRF systems to minimize thermal noise and improve signal-to-noise ratio during long-duration scans.
• Electron Microscopy: Maintains constant cold stage temperatures in SEM/TEM sample chambers and column cooling circuits to suppress thermal drift and preserve beam alignment.
• Laser Systems: Regulates diode-pumped solid-state (DPSS) and fiber laser head temperatures to sustain wavelength stability and prevent mode hopping.
• Plasma Sources: Controls coolant temperature for ICP torch interfaces and RF generator heat sinks, ensuring consistent plasma impedance and ionization efficiency.
• Industrial Process Support: Provides closed-loop cooling for CNC spindles, vacuum deposition chambers, and ultrasonic cleaning baths—reducing thermal expansion errors and extending component service intervals.
• Pharmaceutical QA/QC: Supports controlled-temperature dissolution testing apparatus and HPLC column ovens per USP and EP 2.2.42 specifications.

FAQ

What is the maximum allowable return water temperature for continuous operation?
For optimal compressor longevity and refrigerant cycle efficiency, inlet water temperature should not exceed 40 °C. Sustained operation above this threshold increases discharge pressure and accelerates oil degradation.
Can this chiller be integrated into an existing building BMS network?
Yes—via optional Modbus RTU (RS485) or BACnet/IP gateway modules, enabling read/write access to critical operational registers including setpoint, actual temperature, flow status, and alarm flags.
Is the reservoir compatible with 30% ethylene glycol solutions?
Yes—the stainless steel tank, pump head, and internal piping are rated for continuous exposure to aqueous glycol mixtures up to 40% concentration at temperatures between –10 °C and +45 °C.
Does the unit support dual-temperature zone control?
No—the LS-6KW is configured as a single-loop system. For multi-zone applications, parallel chiller configurations or external manifold systems with individual flow regulators are recommended.
What maintenance intervals are specified for long-term reliability?
Compressor oil inspection every 6,000 operating hours; refrigerant circuit leak check annually; condenser coil cleaning quarterly in dusty environments; temperature sensor calibration verification semiannually per ISO/IEC 17025 guidelines.
