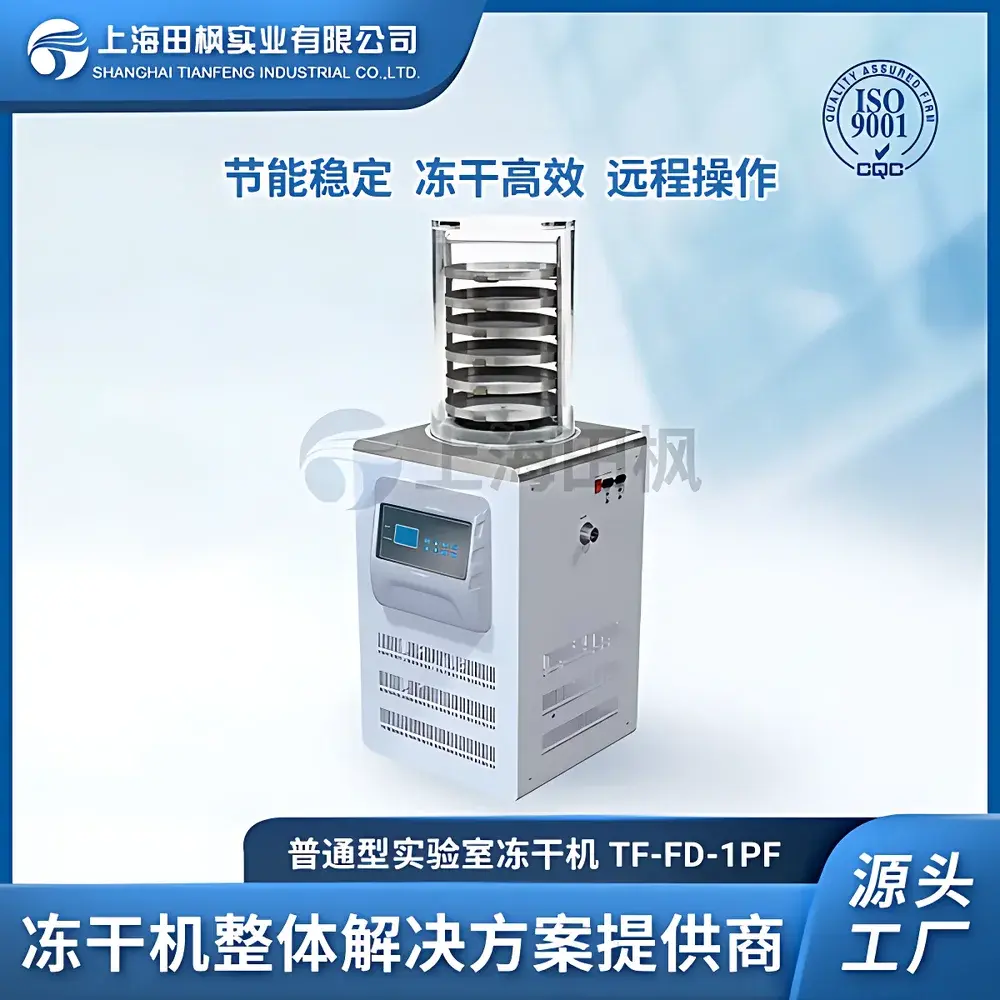

Tianfeng TF-FD-1PF Benchtop In-Situ Freeze Dryer (Standard Type)

Overview

The Tianfeng TF-FD-1PF is a benchtop in-situ freeze dryer engineered for precise, reproducible lyophilization of heat-sensitive biological and pharmaceutical samples in laboratory environments. It operates on the fundamental principle of sublimation—removing water from frozen materials under deep vacuum while maintaining temperatures below the eutectic point throughout primary drying. This process preserves structural integrity, enzymatic activity, immunogenicity, and long-term stability of labile compounds such as proteins, enzymes, vaccines, herbal extracts, and microbial cultures. Unlike conventional thermal drying methods that induce denaturation, oxidation, or collapse, the TF-FD-1PF enables near-complete reconstitution with minimal loss of bioactivity—critical for QC/QA workflows, preclinical formulation development, and stability studies compliant with ICH Q5C and USP <1211> guidelines.

Key Features

• In-situ pre-freezing capability: Sample freezing occurs directly on stainless steel shelves, eliminating manual transfer and minimizing contamination risk or thermal shock.
• Robust dual-stage refrigeration system: Achieves condenser temperatures ≤ −50 °C, ensuring efficient vapor capture during extended cycles—even for moderately volatile solvents (e.g., acetone, ethanol mixtures).
• High-transparency acrylic drying chamber: Enables real-time visual monitoring of ice morphology, cake formation, and drying front progression without compromising vacuum integrity.
• PID-controlled touchscreen interface: Displays dynamic temperature and pressure curves, supports user-defined ramp/hold protocols, and logs timestamped operational data at configurable intervals.
• 304 stainless steel construction: Fully corrosion-resistant interior surfaces—including shelves, condenser housing, and manifold—facilitate cleaning, sterilization (VHP-compatible), and compliance with GLP/GMP hygiene standards.
• Integrated inert gas inlet valve: Allows controlled backfilling with nitrogen or argon post-drying to prevent oxidation and support aseptic handling under ISO Class 5 conditions.
• Modular design: Compatible with optional accessories including calibrated temperature probes (shelf & product), eutectic point detection modules, and automated stoppering systems for vial-based workflows.

Sample Compatibility & Compliance

The TF-FD-1PF accommodates diverse sample formats—bulk solutions in trays (Φ200 mm × 4 layers), serum vials, ampoules, and multi-port flasks—making it suitable for protein purification intermediates, botanical extract concentrates (e.g., Ginseng radix, Cordyceps sinensis), enzyme formulations, and diagnostic reagent kits. Its validated performance meets key regulatory expectations for analytical-scale lyophilization: vacuum stability <15 Pa ensures consistent mass transfer rates; shelf temperature uniformity ±1.0 °C (via silicone oil circulation) guarantees homogeneous drying across the 0.12 m² active area; and ice-trapping efficiency (3 kg/24 h) supports batch sizes up to 1.5 L of aqueous solution. The system conforms to ISO 22042:2017 (freeze dryer performance testing), ASTM F2370-18 (lyophilization cycle verification), and supports audit-ready documentation when paired with an FDA 21 CFR Part 11-compliant data logger.

Software & Data Management

Equipped with embedded firmware supporting continuous acquisition of shelf temperature, condenser temperature, chamber pressure, and elapsed time, the TF-FD-1PF delivers traceable process records essential for method development and regulatory submissions. Raw data exports in CSV format enable integration with LIMS platforms or statistical analysis tools (e.g., JMP, Minitab) for drying kinetics modeling. Optional temperature recording modules provide independent validation of product thermocouple readings per ICH Q8(R2) design space requirements. All parameter changes are logged with operator ID, timestamp, and reason-for-change fields—ensuring full ALCOA+ compliance (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Stabilization of recombinant enzymes and monoclonal antibodies prior to analytical characterization (SEC-HPLC, DSC, CD spectroscopy).
• Preparation of reference standards and calibration materials for pharmacopeial testing (USP, EP, ChP).
• Routine lyophilization of herbal decoction concentrates to enhance shelf life while retaining marker compound profiles (e.g., ginsenosides, astragalosides).
• Development of lyophilized cell culture media supplements and growth factors for bioprocess scale-up.
• Drying of microbiological specimens (bacterial spores, fungal cultures) for long-term archival storage at ambient conditions.
• Processing of diagnostic assay components—including ELISA plates, lateral flow reagents, and PCR master mixes—to extend functional stability without cold-chain dependency.

FAQ

Can the TF-FD-1PF handle organic solvent-containing samples?
It is suitable for low-concentration organic-aqueous mixtures (e.g., ≤10% ethanol or acetone); however, for high-volatility solvents or >20% organic content, models with ≤−80 °C condensers (e.g., TF-FD-1SL) are recommended.
Is shelf heating available on this model?
No—the TF-FD-1PF is a standard-type unit without shelf heating; for controlled secondary drying with programmable ramping, consider the TF-FD-18S variant.
What vacuum pump compatibility does it require?
A two-stage rotary vane pump rated ≥4 m³/h and equipped with a cold trap is advised to maintain stable <15 Pa operation and protect the condenser from oil backstreaming.
How is calibration performed for temperature and pressure sensors?
Shelf and condenser RTDs can be field-calibrated using NIST-traceable dry-block calibrators; chamber pressure transducers accept zero/span adjustments via the service menu.
Does the system support remote monitoring or network connectivity?
While standalone operation is standard, optional RS485/Modbus RTU output enables integration into centralized lab automation networks for supervisory control and alarm forwarding.
