Tianfeng TF-FZG-50 Industrial-Scale Vacuum Freeze Dryer

Overview

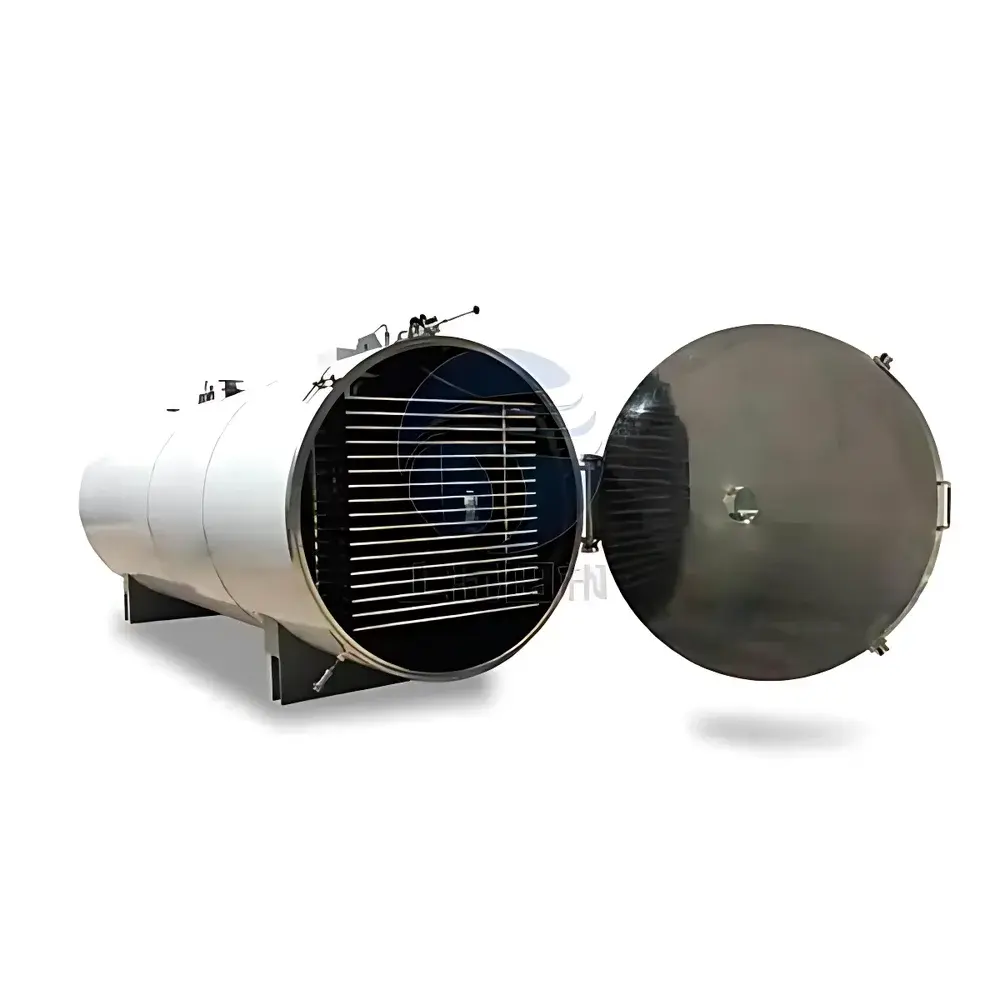

The Tianfeng TF-FZG-50 is an industrial-scale vacuum freeze dryer engineered for high-throughput, GMP-aligned lyophilization of heat-sensitive materials across food, herbal medicine, biopharmaceutical, and pet nutrition applications. Operating on the fundamental principles of sublimation—where ice transitions directly from solid to vapor under controlled low-pressure and low-temperature conditions—the system enables preservation of structural integrity, bioactivity, solubility, and nutritional profile without thermal degradation. Designed for continuous batch processing, the TF-FZG-50 integrates a front-chamber/rear-condenser architecture with a total shelf area of 50.31 m² across 32 stainless steel or aluminum shelves (configured as two trolleys, each with 15+1 shelves), supporting scalable loading of trays, vials, or bulk containers. Its ≤ −65 °C cold trap and ≤ 2.7 Pa ultimate vacuum ensure efficient water vapor removal and minimal recondensation risk during primary drying—critical for achieving low residual moisture (< 2% w/w) in final products such as ginseng powder, fruit crisps, or functional protein concentrates.

Key Features

• GMP-compliant construction: AISI 304 stainless steel chamber and shelves, electropolished interior surfaces, zero-hygiene-dead-zone geometry, and IP65-rated lighting-integrated observation windows.
• Modular shelf design: Dual-trolley configuration (2 × SUS304 trolleys), each accommodating 16 shelves (15 active + 1 dummy); shelf spacing fixed at 77 mm; optional aluminum extrusion or 304 stainless steel shelf variants for optimized thermal uniformity and cleanability.
• High-capacity refrigeration system: Dual-stage cascade refrigeration using premium imported compressors, delivering rapid cooldown to ≤ −65 °C within ≤ 90 minutes and maintaining stable shelf temperature control from −45 °C to +80 °C (electro-heating option: 16 kW × 3 zones).
• Robust vacuum architecture: Customizable vacuum pump train—including ULVAC (Edwards/Air Products) high-vacuum roots + scroll combinations—ensuring ≤ 2.7 Pa base pressure and < 0.1 Pa/min leakage rate per ASTM F2476.
• Intelligent control platform: Omron CJ2M PLC paired with industrial IPC running proprietary lyo-control software; supports full recipe management (≥ 99 programs), real-time parameter logging (shelf temp, chamber pressure, condenser temp, sublimation rate), and remote monitoring via Wi-Fi-enabled HMI.
• Hygienic defrosting: Steam-assisted or immersion-based defrost cycles compliant with ISO 22000 cleaning validation protocols; automated cycle sequencing minimizes operator intervention and cross-contamination risk.

Sample Compatibility & Compliance

The TF-FZG-50 accommodates diverse sample formats—including bulk trays (up to 310 × 54 cm per shelf), nested vial racks, and custom molds—for raw materials ranging from aqueous botanical extracts (e.g., Panax ginseng root homogenates) to formulated pet food pastes and probiotic suspensions. All wetted surfaces meet FDA 21 CFR Part 11 requirements for electronic records and signatures when operated with audit-trail-enabled firmware. The system conforms to ISO 20785:2018 (freeze-drying process validation), ISO 13485:2016 (for medical device intermediates), and EU GMP Annex 15 guidelines for process qualification. Documentation packages include FAT/SAT reports, IQ/OQ protocols, material traceability logs (EN 10204 3.1), and third-party calibration certificates for PT100 sensors and capacitance manometers.

Software & Data Management

Tianfeng’s LyoControl™ v4.2 software provides full lifecycle data governance: time-stamped, user-authorized parameter logging at 1-second intervals; encrypted database storage (SQL Server); PDF report generation with digital signature support; and configurable alarm thresholds with email/SMS notification (via SMTP/HTTP API). All operational data—including shelf temperature ramps, pressure hold steps, and endpoint detection via pressure rise test (PRT)—are exportable in CSV, Excel, or XML for integration into LIMS (e.g., LabWare, Thermo SampleManager) or MES platforms. The system supports 21 CFR Part 11 compliance through role-based access control (RBAC), electronic signatures with biometric or token-based authentication, and immutable audit trails covering all recipe edits, manual overrides, and cycle interruptions.

Applications

This freeze dryer serves validated production workflows in multiple regulated sectors: (1) Food & Beverage—lyophilization of instant coffee granules, berry powders, and ready-to-eat seafood snacks with 92% volatile retention; (2) Traditional Chinese Medicine—stabilization of ginseng saponins, astragalosides, and polysaccharide-rich herbal decoctions while preserving pharmacopeial assay specifications (ChP 2020); (3) Biologics & Diagnostics—bulk drying of enzyme conjugates, monoclonal antibody formulations, and ELISA kit reagents under ISO 13485-controlled environments; (4) Pet Nutrition—production of shelf-stable, high-protein freeze-dried meals meeting AAFCO nutrient profiles without synthetic preservatives.

FAQ

Is the TF-FZG-50 suitable for cGMP pharmaceutical manufacturing?
Yes—when configured with full documentation packages, calibrated sensors, and 21 CFR Part 11–enabled software, it meets cGMP requirements for intermediate and final product drying in non-sterile API and diagnostic reagent production.
Can shelf temperature be independently controlled per zone?
Yes—the system supports three independent electro-heating zones (16 kW total), enabling precise gradient control across shelf stacks for heterogeneous load optimization.
What validation support does Tianfeng provide?
FAT/SAT execution, IQ/OQ protocol templates, calibration certificates, and on-site commissioning assistance are included; PQ support is available upon request with qualified third-party partners.
Is remote diagnostics supported?
Yes—via secure VPN or cloud gateway, engineers can monitor real-time alarms, review historical trends, and initiate diagnostic routines without physical site access.
What maintenance intervals are recommended?
Vacuum pump oil change every 2,000 operating hours; refrigerant leak inspection semiannually; shelf surface passivation and chamber sanitization per ISO 14644-1 Class 8 cleanroom protocols between batches.
