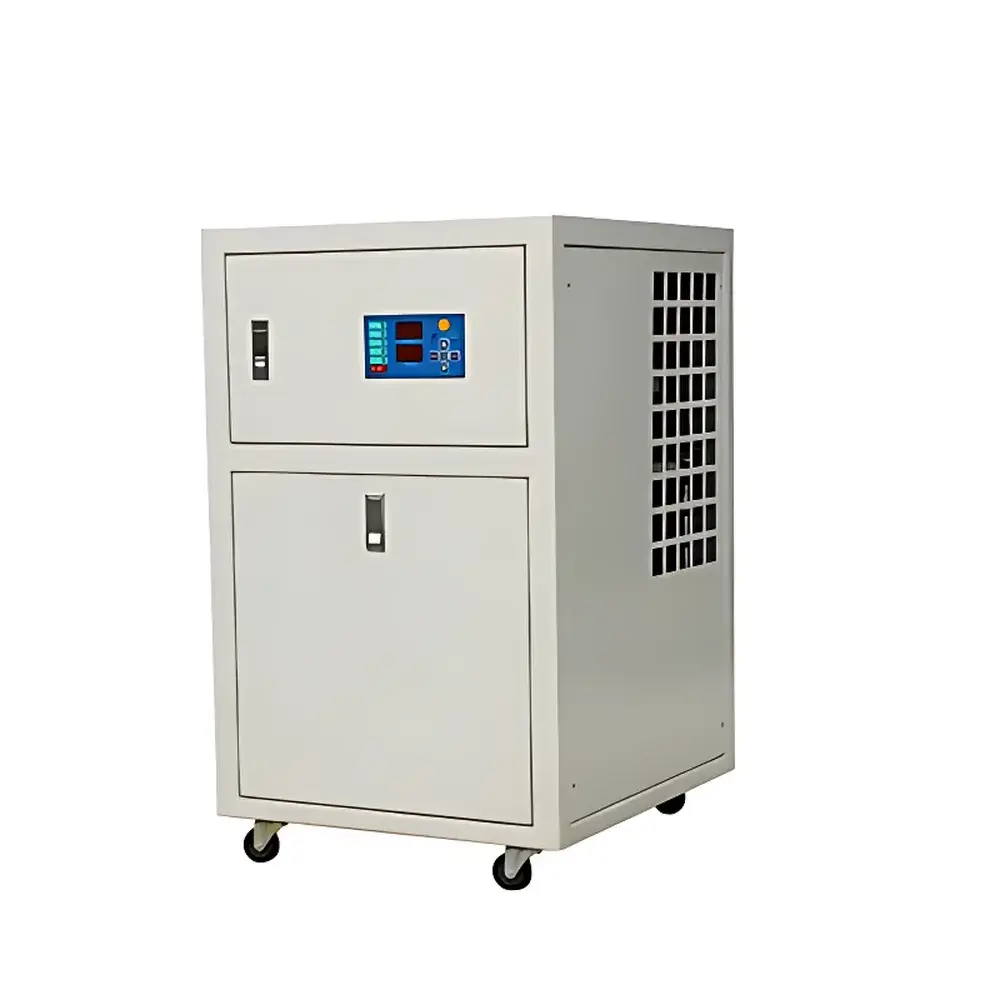

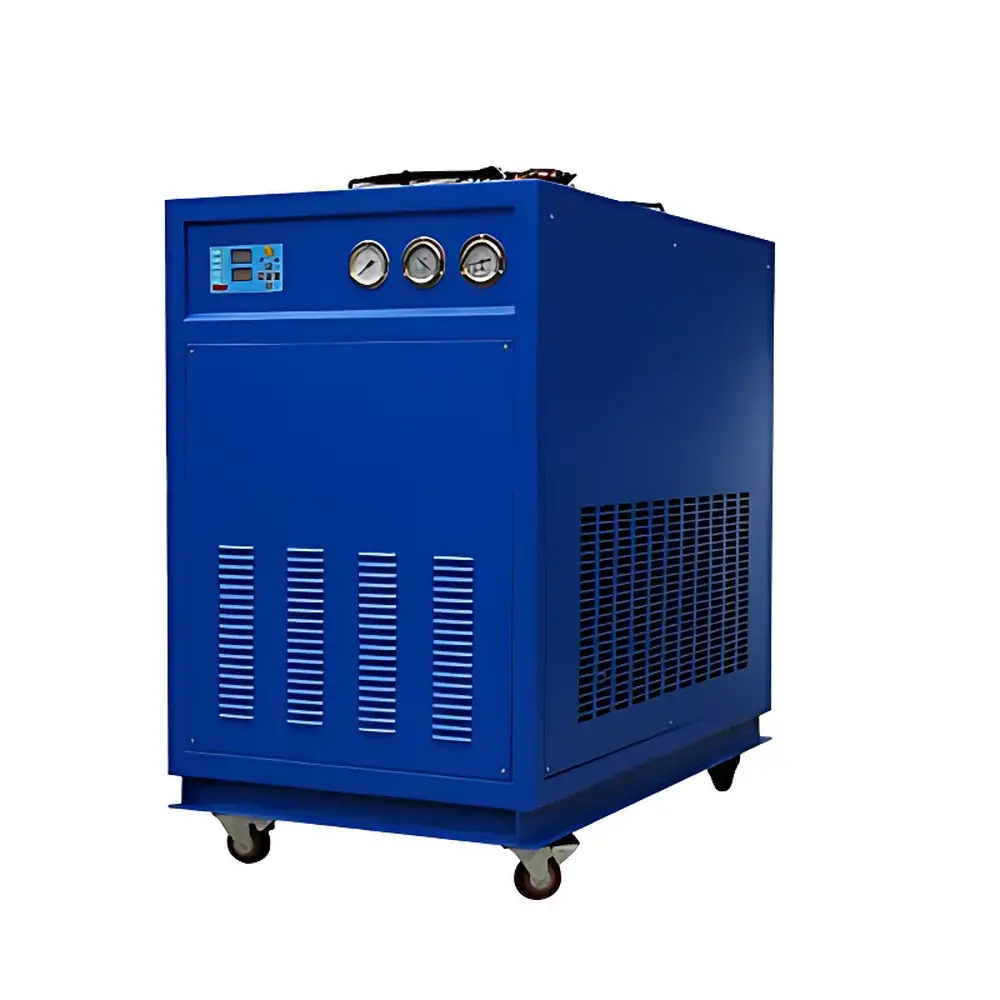

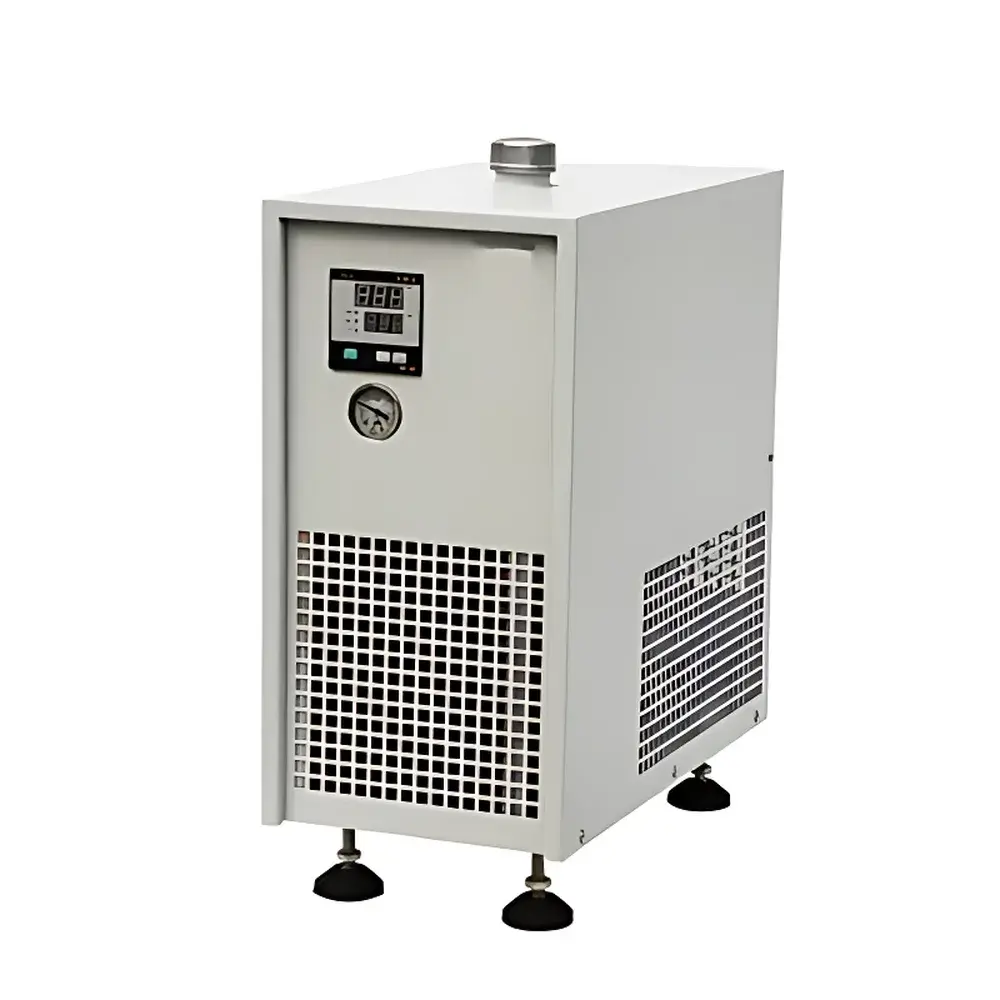

Tianfeng TF-LS-8000W Circulating Chiller

Overview

The Tianfeng TF-LS-8000W Circulating Chiller is an integrated, water-cooled precision temperature control system engineered for stable, continuous-duty thermal management in laboratory and industrial instrumentation environments. It operates on a closed-loop refrigeration cycle utilizing a high-efficiency scroll compressor, R410A or R134a refrigerant (model-dependent), and a PID-controlled stainless-steel reservoir to deliver precise coolant delivery within a regulated temperature range of 0–40 °C. Its core function is to absorb and dissipate heat generated by thermally sensitive components—such as X-ray tube anodes, ICP-MS interface cones, laser diode arrays, electron microscope column coolers, and graphite furnace atomizers—thereby maintaining operational stability, measurement repeatability, and component longevity. Designed for compatibility with analytical instruments requiring strict thermal boundary conditions, the unit complies with fundamental thermal management requirements defined in ISO/IEC 17025 for accredited testing laboratories and supports GLP-compliant workflows through traceable temperature logging and fault-event recording.

Key Features

• Integrated architecture with compact footprint (550 × 880 × 1160 mm), enabling placement beneath lab benches or adjacent to instrumentation without spatial compromise.
• PID-based digital temperature controller with ±0.1 °C stability over full operating range; optional RKC (Japan) controller available for enhanced resolution and programmable ramp/soak profiles.
• Stainless-steel reservoir (60 L standard volume) and corrosion-resistant pump ensure long-term fluid integrity and compatibility with deionized water, glycol-water mixtures (up to 30%), and low-conductivity coolants.
• High-flow, low-pulsation centrifugal circulation pump delivering up to 38 L/min at 2.0 bar pressure—sufficient for multi-instrument daisy-chaining or high-backpressure applications such as vacuum chamber jacketing.
• Comprehensive safety architecture including compressor overheat protection, high/low refrigerant pressure cutoffs, motor overcurrent detection, and real-time reservoir overtemperature shutdown.
• Low-noise operation (<65 dB[A] at 1 m) achieved via acoustic insulation, vibration-dampened compressor mounting, and optimized airflow design—critical for quiet laboratory zones.
• Modular electrical cabinet with CE-certified Siemens/Schneider/Omron contactors, relays, and circuit protection aligned with IEC 61000-6-2/6-4 EMC standards.

Sample Compatibility & Compliance

The TF-LS-8000W is validated for continuous thermal coupling with a broad spectrum of analytical and materials characterization platforms, including but not limited to: Graphite Furnace Atomic Absorption Spectrometers (GFAAS), Inductively Coupled Plasma Optical Emission Spectrometers (ICP-OES), ICP Mass Spectrometers (ICP-MS), X-ray Fluorescence (XRF) spectrometers, X-ray Diffraction (XRD) systems, Scanning Electron Microscopes (SEM), Transmission Electron Microscopes (TEM), and laser-based ablation or marking systems. It meets mechanical and electrical safety requirements per GB 4706.1 (China), IEC 61010-1 (Laboratory Equipment Safety), and carries ISO 9001:2015 certification for design, manufacturing, and service processes. While not inherently 21 CFR Part 11 compliant, its digital controller supports audit-trail-capable data export (CSV via USB or RS485) when integrated with validated LIMS or ELN platforms under site-specific SOPs.

Software & Data Management

The chiller features a local 4.3-inch TFT LCD interface with real-time display of setpoint, actual temperature, flow rate, compressor status, and alarm history. All operational parameters—including temperature setpoints, pump speed, and safety thresholds—are configurable via intuitive menu navigation. Event logs record timestamps for all active alarms and mode transitions, retained for ≥30 days in non-volatile memory. Optional RS485 Modbus RTU communication enables integration into building management systems (BMS) or centralized instrument monitoring networks. Data export functionality supports CSV-formatted temperature and status reports for quality documentation, internal audits, or regulatory review. Firmware updates are performed via USB stick following controlled change management protocols.

Applications

• Laboratory Analytical Instruments: Thermal stabilization of plasma sources, detector cooling blocks, X-ray tube housings, and optical bench mounts to minimize thermal drift and improve signal-to-noise ratio.
• Materials Characterization: Maintaining constant sample stage temperature during in-situ SEM/TEM heating/cooling experiments or XRD thermal cycling protocols.
• Laser Systems: Active cooling of CO₂, fiber, and solid-state laser gain media and optics to preserve beam quality and prevent wavelength shift.
• Pharmaceutical QC: Supporting dissolution testers, HPLC column ovens, and automated sample handlers requiring tightly bounded coolant supply temperatures.
• Electron Microscopy: Managing heat load from high-brightness field emission guns (FEG) and energy-dispersive X-ray spectrometers (EDS).
• Industrial R&D: Providing calibrated cooling loops for tribology testers, rheometers, and battery electrochemical test stations.

FAQ

What is the recommended coolant composition for long-term use?
Deionized water is standard; for sub-10 °C operation or freeze protection, a mixture of ≤30% USP-grade propylene glycol in DI water is approved. Ethylene glycol is not recommended due to oxidation byproducts that may corrode stainless steel wetted parts.
Can this chiller support multiple instruments simultaneously?
Yes—provided total thermal load remains within 9000 W and combined flow resistance does not exceed 2.0 bar pressure drop. A manifold distribution system with individual flow meters and shut-off valves is advised for multi-device configurations.
Is remote monitoring supported out-of-the-box?
RS485 Modbus RTU is standard; Ethernet or Wi-Fi connectivity requires optional gateway hardware and custom integration with SCADA or LabVantage platforms.
What maintenance intervals are recommended?
Compressor oil and refrigerant levels should be verified annually; condenser coil cleaning every 6 months in dusty environments; reservoir descaling every 12–18 months depending on water quality.
Does the unit comply with FDA 21 CFR Part 11 for electronic records?
The base controller does not provide electronic signature capability or audit-trail encryption. However, when connected to a validated third-party data acquisition system meeting Part 11 requirements, it serves as a compliant peripheral device under appropriate procedural controls.
