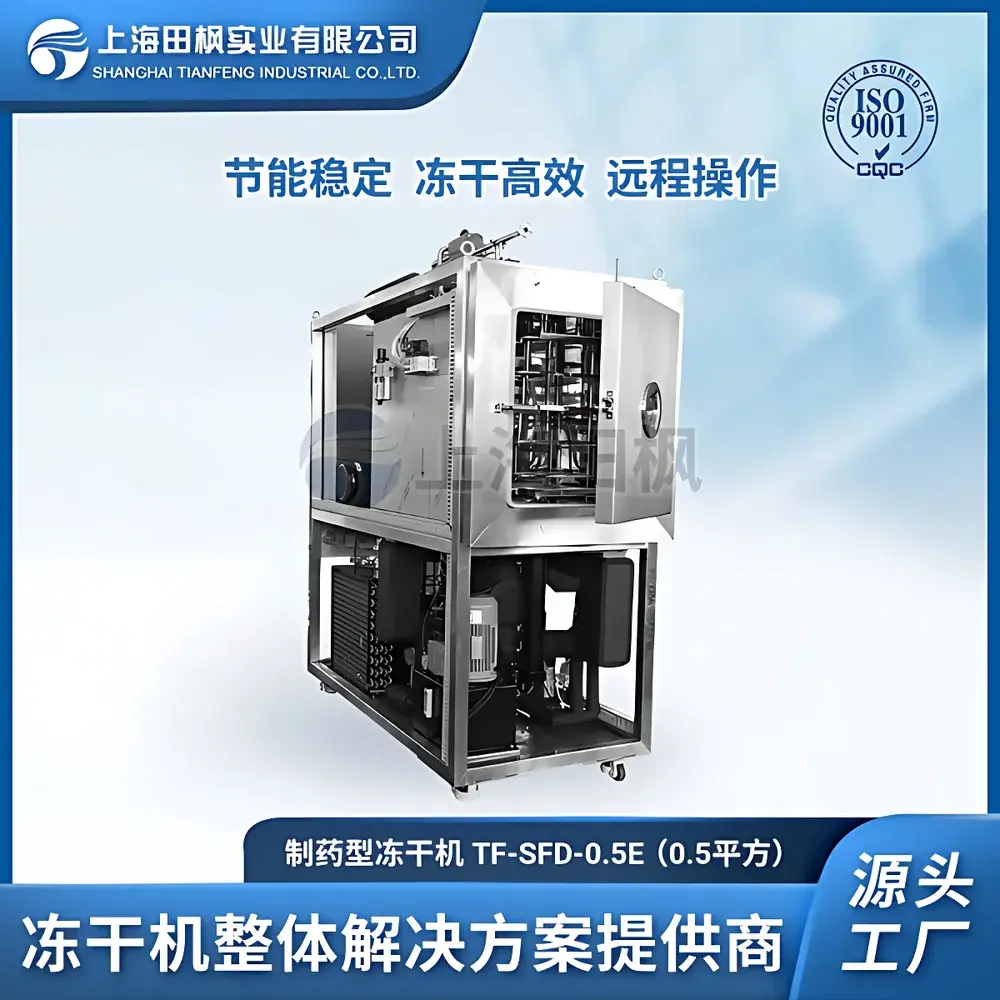

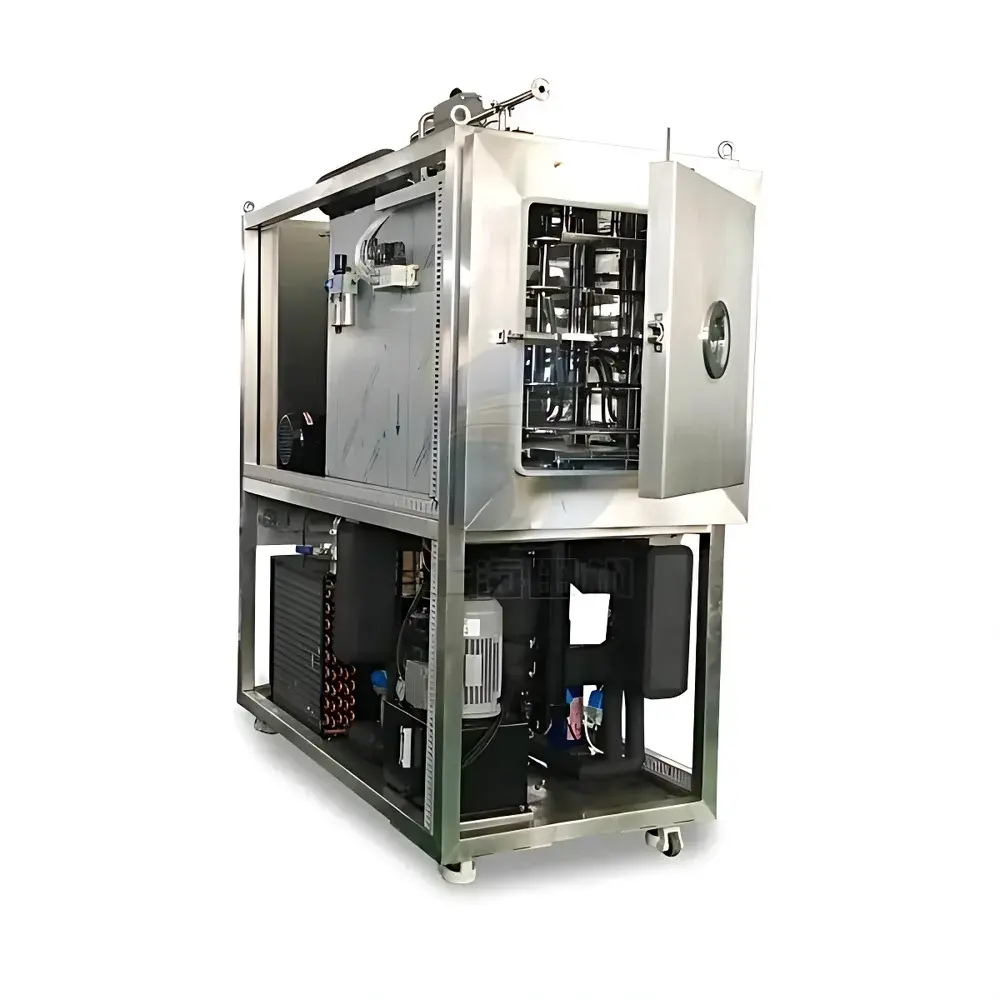

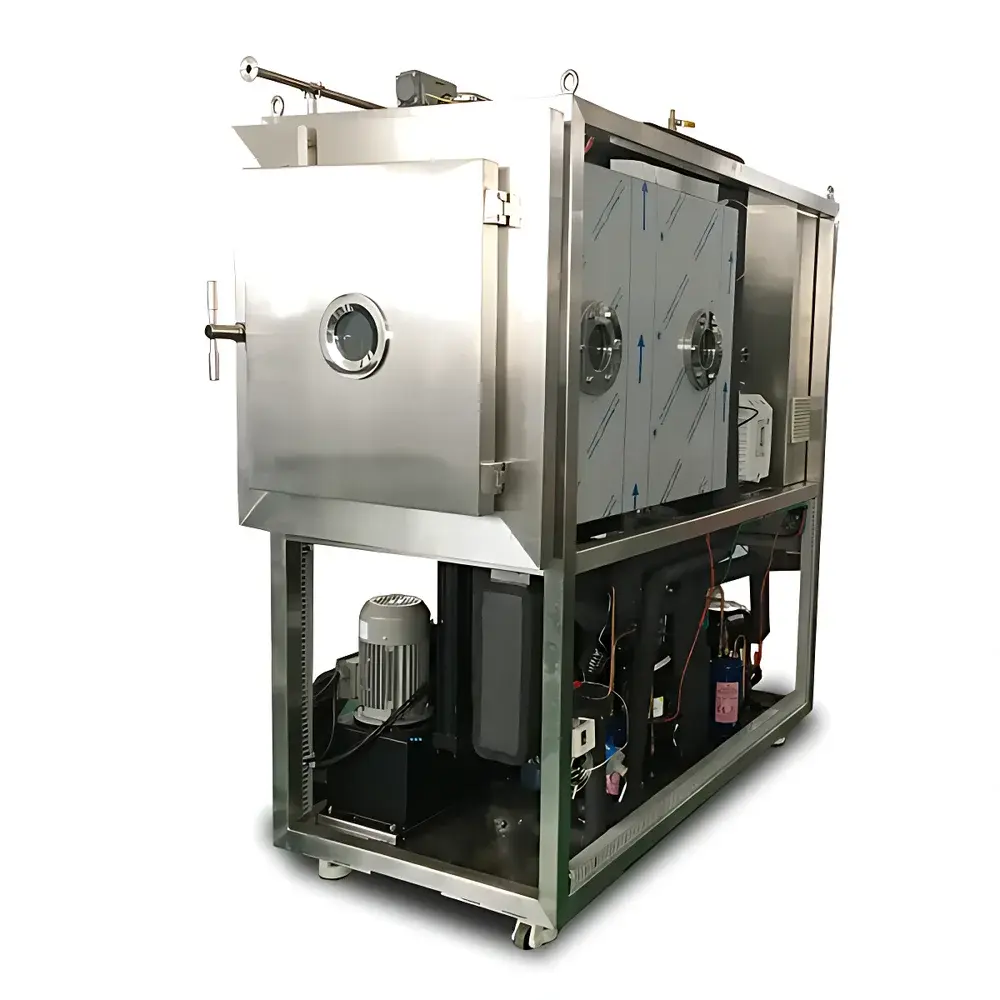

Tianfeng TF-SFD-0.5E Pharmaceutical Freeze Dryer

Overview

The Tianfeng TF-SFD-0.5E Pharmaceutical Freeze Dryer is a purpose-engineered, shelf-type lyophilization system designed for pilot-scale development and small-batch production of thermolabile pharmaceuticals, biologics, herbal extracts, sterile powders, and nutraceutical formulations. Operating on the principle of sublimation under deep vacuum and controlled low-temperature conditions, this unit removes water from frozen samples without passing through the liquid phase—thereby preserving structural integrity, biological activity, chemical stability, and volatile compound profiles. The system integrates a high-efficiency condenser operating at −75 °C, a robust vacuum system capable of achieving ≤1 Pa ultimate pressure, and precisely regulated shelf temperature control spanning −55 °C to +80 °C. Its 0.5 m² lyophilization area accommodates up to 1,900 vials (Φ16 mm) or 1,000 vials (Φ22 mm), supporting both batch and continuous process development workflows in compliance with international pharmaceutical manufacturing standards.

Key Features

• Stainless steel chamber (AISI 304) with fully polished, radius-rounded internal geometry to eliminate dead zones and facilitate cleaning-in-place (CIP) and sterilization-in-place (SIP) validation.
• Five-shelf configuration (4 active + 1 bottom shelf) with uniform thermal distribution achieved via low-viscosity silicone oil circulation; each shelf maintains ±0.5 °C temperature uniformity across its surface at all setpoints.
• High-capacity condenser rated for 10 kg ice capture over 24 hours, engineered for stable operation under sustained load during extended primary drying cycles.
• PLC-based control architecture with intuitive HMI interface, supporting recipe storage, real-time parameter logging, alarm management, and full audit trail functionality aligned with FDA 21 CFR Part 11 requirements.
• Critical components—including vacuum pumps, solenoid valves, temperature sensors, and pressure transducers—sourced from globally recognized industrial suppliers to ensure long-term reliability and repeatability.
• Fully documented design and manufacturing per ISO 9001 quality management systems; equipment supplied with material certifications, weld logs, surface finish reports, and FAT/SAT protocols.

Sample Compatibility & Compliance

The TF-SFD-0.5E is validated for processing a broad spectrum of pharmaceutical matrices: aqueous solutions of monoclonal antibodies, recombinant proteins, vaccines, small-molecule APIs, traditional Chinese medicine (TCM) extracts, and lyophilized diagnostic reagents. Its cGMP-compliant construction—including electropolished surfaces, traceable material certifications, and fully documented welding procedures—meets core requirements outlined in Annex 1 of the EU GMP Guidelines, USP , and WHO TRS No. 961. The system supports full qualification (IQ/OQ/PQ) execution and provides comprehensive documentation packages for regulatory submissions, including 3Q protocols, calibration records, and risk assessments per ICH Q9. Leak integrity testing confirms system tightness at ≤0.025 Pa·m³/s, ensuring consistent vacuum performance throughout freeze-drying cycles.

Software & Data Management

Equipped with an embedded PLC controller and industrial-grade HMI panel, the TF-SFD-0.5E enables secure, role-based access to operational parameters, historical trend data, and electronic batch records. All process-critical variables—including shelf temperature, chamber pressure, condenser temperature, and elapsed time—are sampled and logged at configurable intervals (minimum 1-second resolution). Data export is supported via USB or Ethernet to CSV or PDF formats, with optional integration into higher-level MES or SCADA environments via Modbus TCP. Audit trails are permanently stored with user ID, timestamp, and change description for every parameter modification—fully compliant with ALCOA+ principles and FDA 21 CFR Part 11 electronic record requirements.

Applications

• Development and scale-up of lyophilized injectables (e.g., vial-filling candidates for Phase I–III clinical trials).
• Stabilization of heat-sensitive biologics, including enzymes, cytokines, and viral vectors.
• Processing of botanical drug substances where preservation of terpenes, alkaloids, and glycosides is critical.
• Manufacturing of sterile powder formulations for reconstitution, including antibiotics, oncology agents, and peptide therapeutics.
• Supporting analytical method development by providing representative dried samples for residual moisture analysis (Karl Fischer), cake structure evaluation (SEM), and reconstitution time testing.

FAQ

What regulatory standards does the TF-SFD-0.5E comply with?
The system is designed and manufactured in accordance with ISO 9001 and meets core mechanical and control architecture requirements for cGMP compliance. It supports full 3Q qualification and provides documentation aligned with FDA, EMA, and NMPA expectations for lyophilizer validation.

Can the system be integrated into an existing cleanroom HVAC or utility infrastructure?
Yes—the unit features standard utility interfaces (compressed air, chilled water, electrical supply) and is compatible with Class A/B cleanroom environments when installed with appropriate isolation and exhaust handling per ISO 14644-1.

Is remote monitoring or network connectivity available?
Standard Ethernet port enables local network access for data retrieval and basic remote diagnostics. Optional OPC UA or MQTT gateways can be added for enterprise-level integration.

What level of after-sales support is provided?
Tianfeng offers on-site installation supervision, operator and maintenance training, preventive maintenance contracts, spare parts logistics, and technical assistance for protocol development and troubleshooting—globally supported through authorized service partners.
